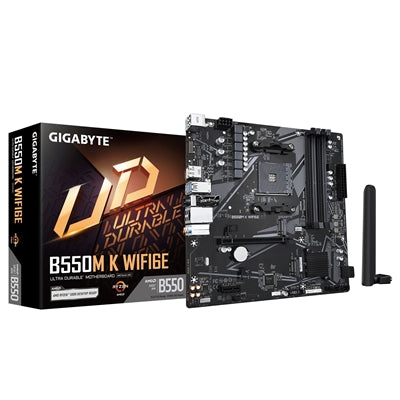

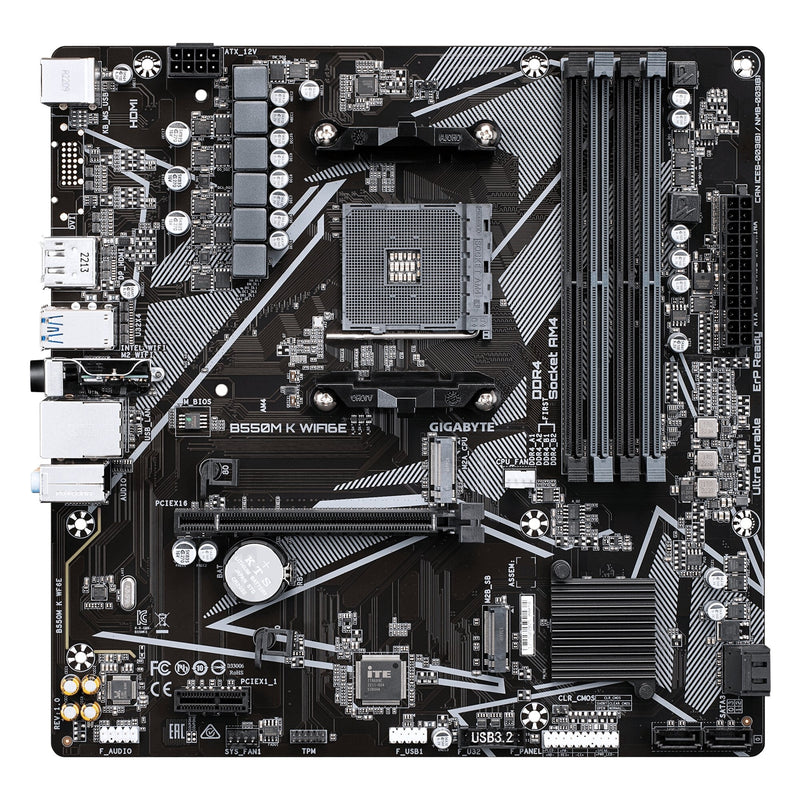

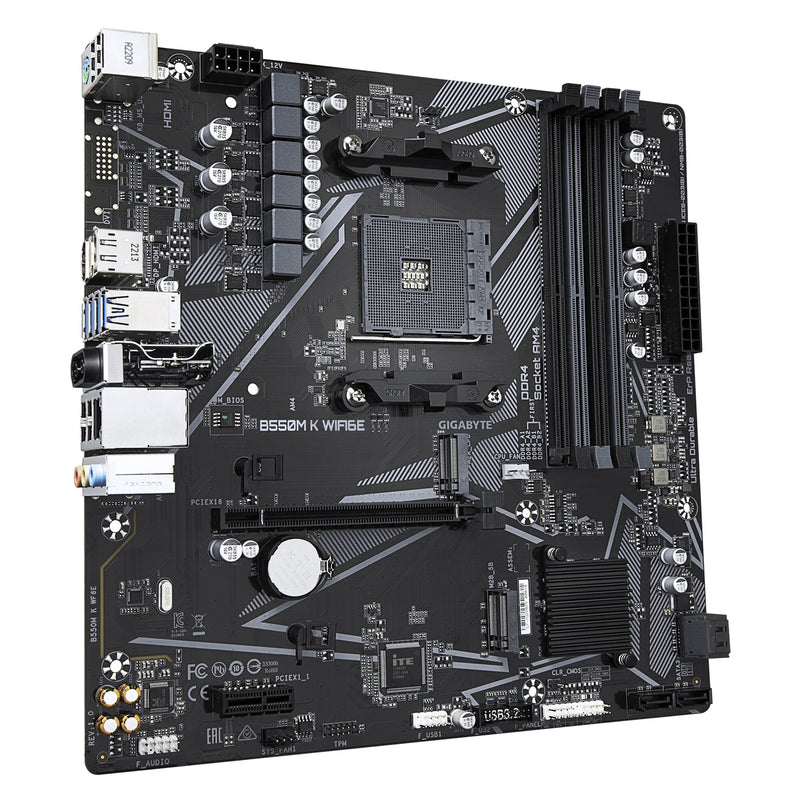

Gigabyte B550M K WiFi 6E AM4 DDR4 Micro ATX Motherboard
Gigabyte B550M K WIFI6E AMD AM4 Micro-ATX Motherboard – DDR4, PCIe 4.0, WiFi 6E
Build a powerful and reliable AMD system with the Gigabyte B550M K WIFI6E Motherboard. Designed for Ryzen processors, this feature-rich micro‑ATX board delivers fast performance, modern connectivity and strong expandability, making it ideal for gaming, home and office builds.
Key Features & Benefits
Wide AMD Ryzen Compatibility
Supports Ryzen 3000, 4000 G-Series and 5000 Series processors, offering flexibility for both new builds and upgrades.
High-Speed DDR4 Memory Support
With 4 DDR4 DIMM slots supporting up to 128GB, this motherboard ensures smooth multitasking and strong overall system performance.
Dual M.2 PCIe Storage
Equipped with two M.2 slots, including PCIe 4.0 support, enabling fast NVMe SSD performance with quicker boot times and reduced loading delays.
Integrated WiFi 6E & Bluetooth 5.3
Enjoy next-generation wireless connectivity with improved speed, lower latency and enhanced stability across 2.4GHz, 5GHz and 6GHz bands.
PCIe 4.0 Ready Graphics Slot
The PCIe 4.0 x16 slot delivers high bandwidth for modern GPUs, ensuring smooth gaming and high-performance graphics processing.
Smart Fan 6 Cooling Control
Advanced cooling features including multiple temperature sensors and fan control options, helping maintain optimal system temperatures.
Durable Build & Long-Term Reliability
Features Ultra Durable components and anti-sulfur resistors, designed for longevity and consistent performance.
High-Quality Audio Output
Enhanced audio experience with high-quality capacitors and noise guard technology, delivering clear and immersive sound.
Multi-Display Support
Includes HDMI and DisplayPort outputs, allowing for dual-display setups for productivity or entertainment.
Technical Specifications
CPU Support
- AMD AM4 Socket
- Ryzen 3000 / 3000 G-Series
- Ryzen 4000 G-Series
- Ryzen 5000 / 5000 G-Series
Chipset
- AMD B550
Memory
- 4 x DDR4 DIMM Slots
- Up to 128GB Capacity
- Dual Channel Architecture
- Speeds up to 4733MHz (OC)
- XMP Support
Storage
- 1 x M.2 PCIe 4.0 x4 Slot (CPU dependent)
- 1 x M.2 PCIe 3.0 Slot
- 4 x SATA 6Gb/s Ports
- RAID 0 / 1 / 10 Support
Graphics Outputs
- 1 x DisplayPort (up to 5K support)
- 1 x HDMI (up to 4K@60Hz)
Expansion Slots
- 1 x PCIe 4.0 x16
- 1 x PCIe 3.0 x1
Networking
- Realtek Gigabit LAN
- WiFi 6E (802.11ax, tri-band)
- Bluetooth 5.3
Audio
- Realtek HD Audio
- 2/4/5.1/7.1-channel
USB Connectivity
- USB 3.2 Gen1 ports (rear & internal)
- USB 2.0 ports
Internal Connectivity
- 2 x M.2 slots
- Fan headers (CPU + system)
- TPM header
- SATA connectors

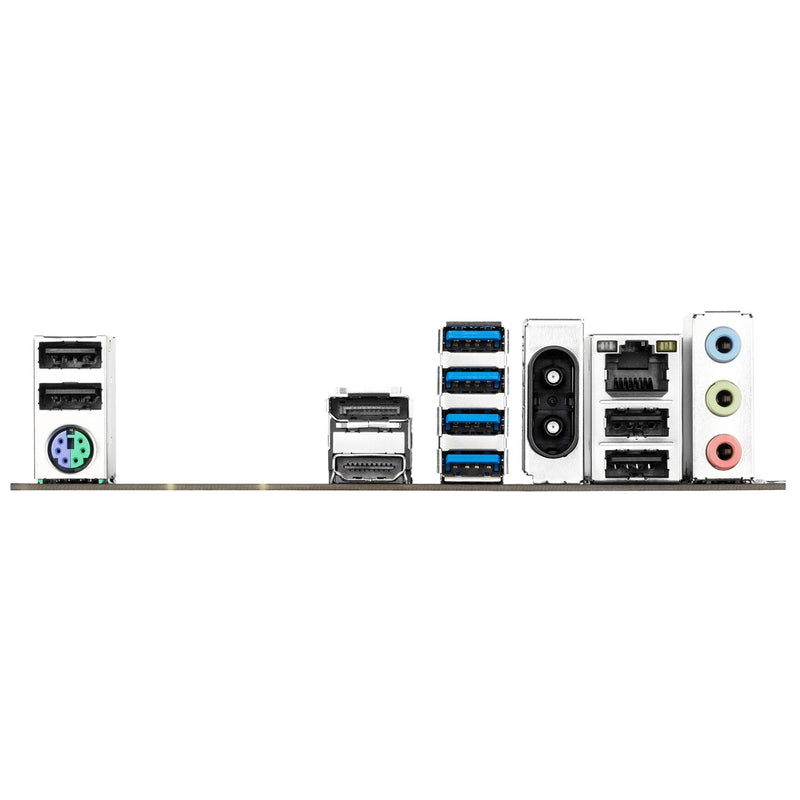

Rear I/O Ports
- HDMI & DisplayPort
- 4 x USB 3.2 Gen1
- 4 x USB 2.0
- RJ-45 LAN
- WiFi antenna connectors
- Audio jacks
Form Factor
- Micro-ATX (24.4cm x 24.4cm)
Operating System Support
- Windows 11 (64-bit)
- Windows 10 (64-bit)
Why Choose the Gigabyte B550M K WIFI6E?
The Gigabyte B550M K WIFI6E is a well-balanced motherboard offering performance, connectivity and durability at a great value. With PCIe 4.0 support, dual M.2 storage and integrated WiFi 6E, it provides everything needed for a fast and responsive Ryzen-based system.
Ideal for gamers, home users and professionals, it delivers reliable performance, modern features and excellent upgrade flexibility, making it a smart foundation for any AM4 PC build.
