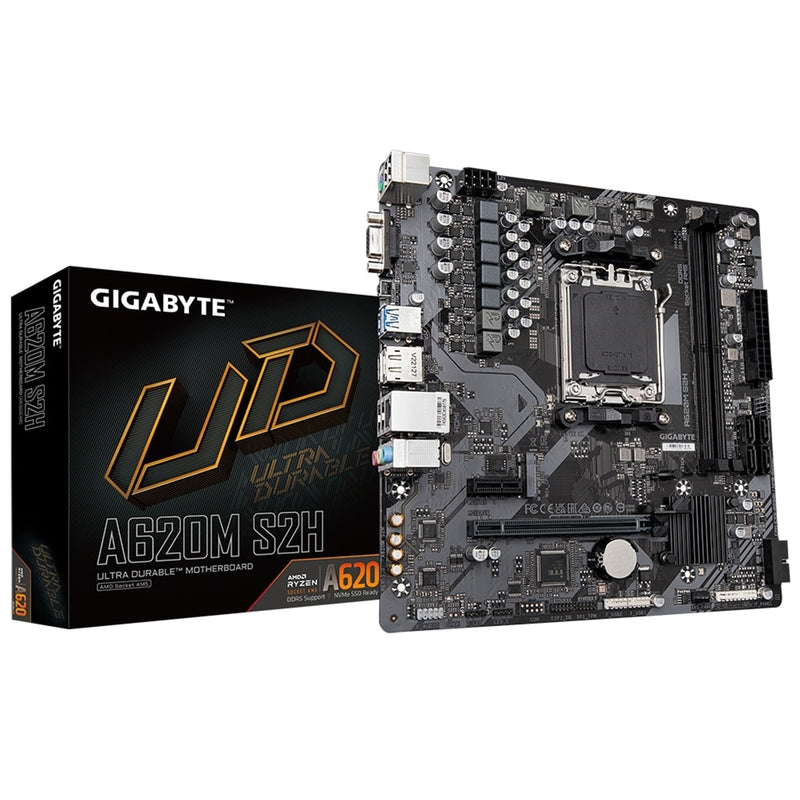

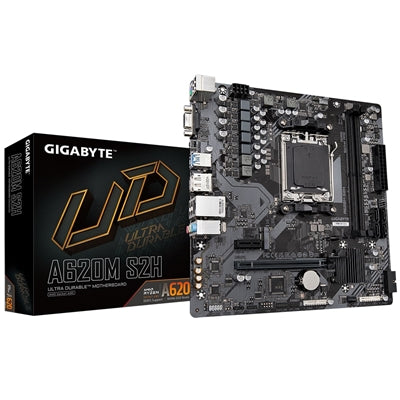

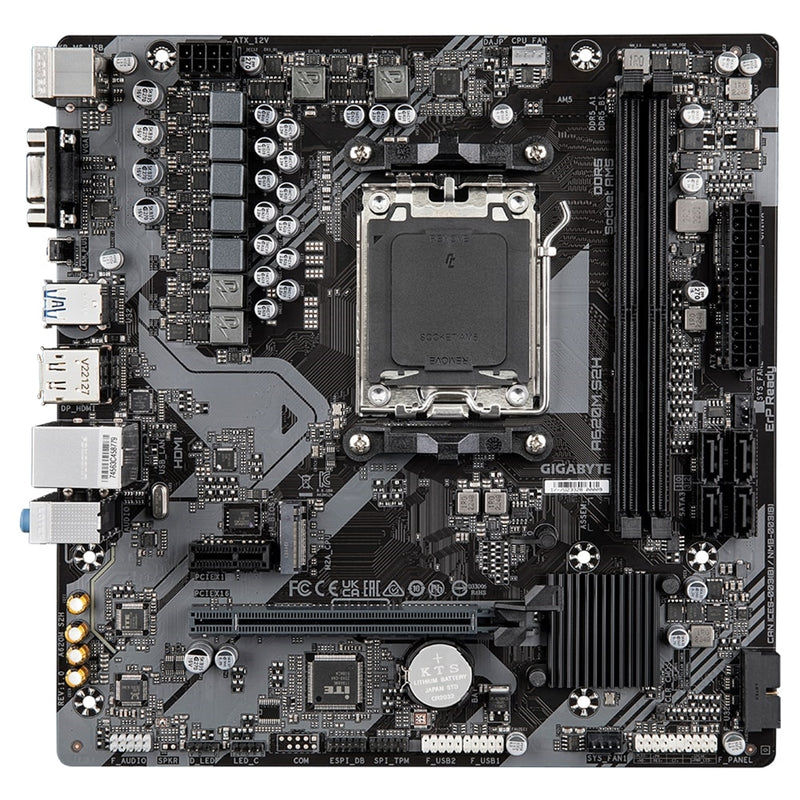

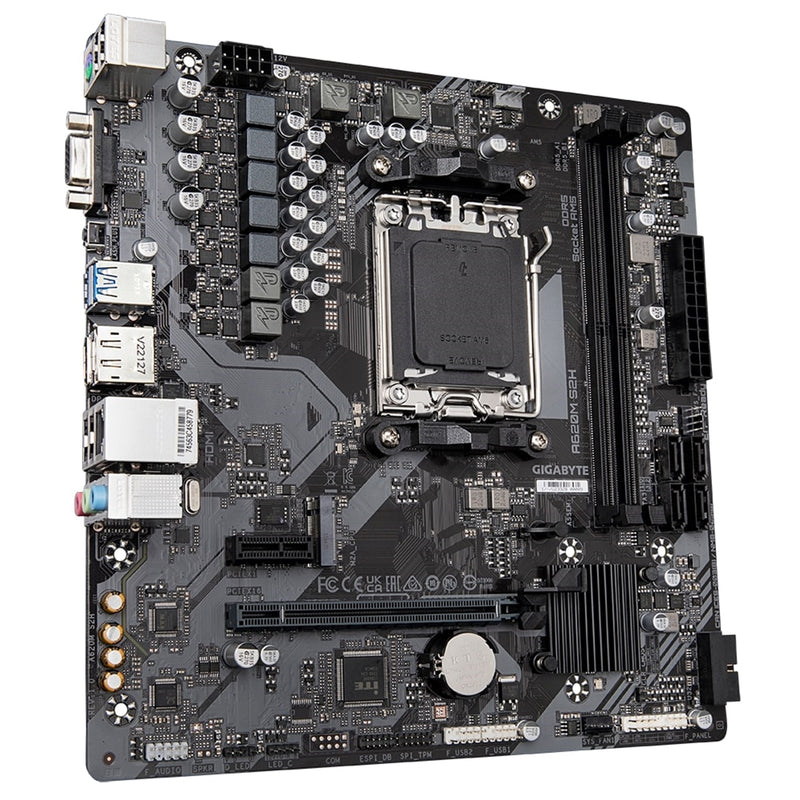

Gigabyte A620M S2H AM5 Micro-ATX Motherboard – 2x DDR5, 1x M.2, GbE LAN
Gigabyte A620M S2H AMD AM5 Socket Micro-ATX Motherboard – 2x DDR5, 1x M.2, GbE LAN
Build a reliable and efficient AMD-based system with the Gigabyte A620M S2H, a Micro-ATX motherboard supporting AMD Ryzen 7000, 8000, and 9000 series processors. Designed for mainstream PC builds, it features DDR5 memory support, PCIe 4.0 storage, and flexible display options, all in a compact form factor.
Key Features & Benefits
AMD AM5 Socket: Supports the latest Ryzen 7000/8000/9000 series CPUs for modern performance and upgradeability.
DDR5 Memory Support: 2 DIMM slots supporting up to 128GB with AMD EXPO/XMP overclocking for fast, responsive system memory.
Ultra-Fast Storage: PCIe 4.0 x4 M.2 connector and 4 SATA 6Gb/s ports for high-speed NVMe SSDs and legacy drives.
Compact Micro-ATX Design: 23.0cm x 22.5cm form factor allows small but powerful builds.
Flexible Graphics & Display: D-Sub, DisplayPort 1.4, and HDMI 2.1 outputs support up to three displays simultaneously.
Networking: Realtek GbE LAN for stable wired connectivity.
Enhanced Thermal & Build: 5+2+2 phase digital VRM for efficient power delivery, supporting stable operation under load.
Easy BIOS Updates: Q-Flash Plus enables BIOS updates without installing CPU, memory, or graphics card.
Smart Fan 6: Multiple temperature sensors and hybrid fan headers with FAN STOP for optimized cooling performance.
Technical Specifications
CPU Support: AMD AM5 Socket – Ryzen 7000/8000/9000 series
Chipset: AMD A620
Memory: 2 x DDR5 DIMM sockets, up to 128GB, DDR5 7200(OC)–4400 MT/s
Expansion Slots: 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
Storage: 1 x M.2 PCIe 4.0 x4, 4 x SATA 6Gb/s
RAID Support: RAID 0, 1, 10 for NVMe and SATA storage
Audio: Realtek High Definition Audio, 2/4/5.1/7.1-channel
LAN: Realtek GbE LAN (1Gbps)
USB: CPU – 2 x USB 3.2 Gen 1, 1 x USB 2.0/1.1; Chipset – 2 x USB 3.2 Gen 1 (internal), 7 x USB 2.0/1.1

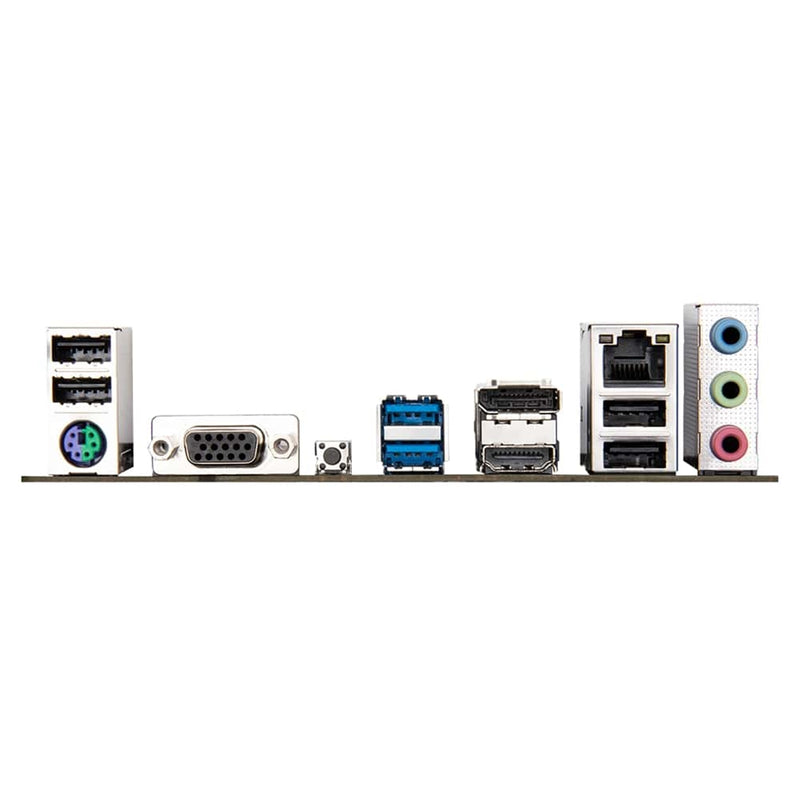

Rear I/O: 4 x USB 2.0, 2 x USB 3.2 Gen 1, 1 x PS/2, 1 x D-Sub, 1 x DisplayPort, 1 x HDMI, 1 x RJ-45, 3 x audio jacks, Q-Flash Plus button
Form Factor: Micro ATX, 23.0 x 22.5 cm
OS Support: Windows 11 / Windows 10 64-bit
