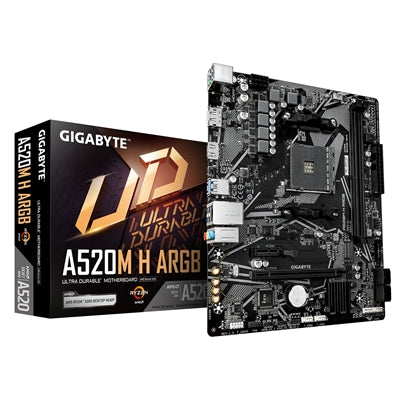

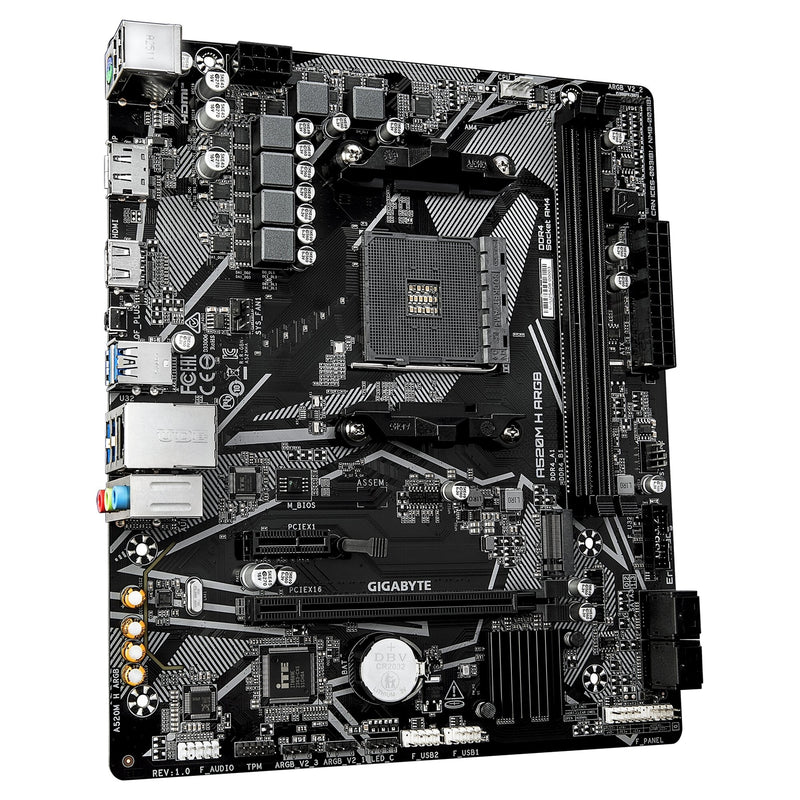

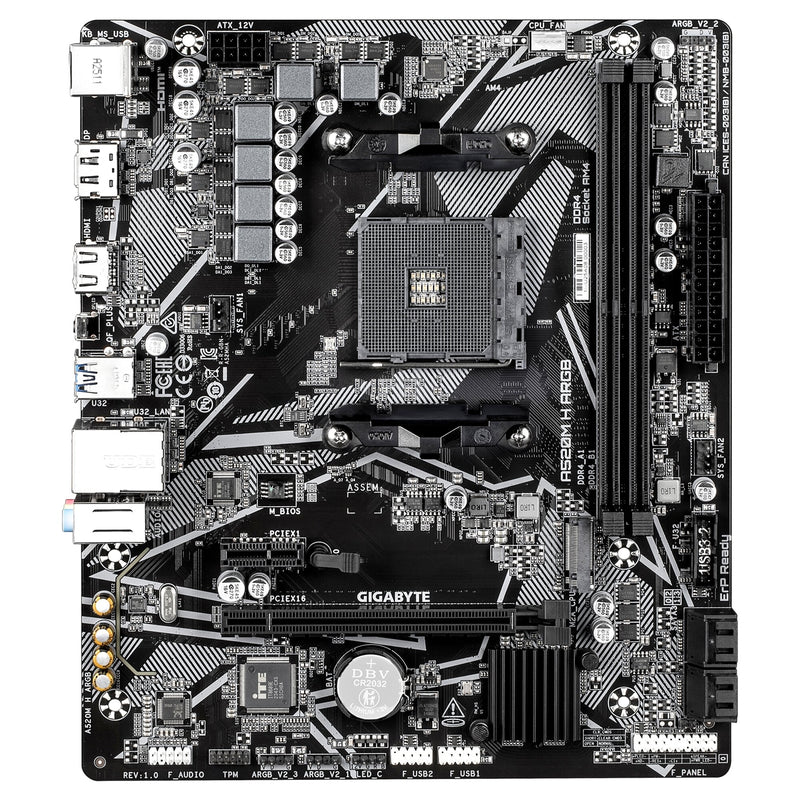

Gigabyte A520M H ARGB AM4 Micro ATX Motherboard DDR4
Gigabyte A520M H ARGB AM4 Micro-ATX Motherboard – Reliable Performance with RGB Control
Build a stable and efficient AMD system with the Gigabyte A520M H ARGB Motherboard. Designed for Ryzen processors, this micro-ATX board offers solid performance, essential connectivity and customisable RGB lighting, making it ideal for home, office and entry-level gaming builds.
Key Features & Benefits
Wide Ryzen Compatibility
Supports AMD Ryzen 3000, 4000 G-Series and 5000 Series processors, providing flexibility for a wide range of builds and upgrades.
High-Speed DDR4 Memory Support
Supports up to 64GB DDR4 RAM with speeds up to 5100MHz (OC), delivering smooth multitasking and improved system responsiveness.
Fast M.2 NVMe Storage
Equipped with a PCIe Gen3 x4 M.2 slot, allowing high-speed SSDs for faster boot times, reduced load times and improved overall performance.
Integrated ARGB Lighting Control
Features addressable RGB headers for custom lighting setups, easily controlled via Gigabyte software to match your build style.
Smart Fan 6 Cooling Control
Advanced cooling management with multiple temperature sensors and hybrid fan headers, ensuring optimal performance and quieter operation.
Reliable Gigabit LAN Connectivity
Integrated Realtek GbE LAN provides stable and fast wired network connections for work, gaming and streaming.
Multi-Display Output
Includes HDMI and DisplayPort, supporting high-resolution output up to 4K and beyond, ideal for productivity and media setups.
Q-Flash Plus BIOS Update
Update your BIOS without installing CPU, RAM or GPU, making setup and compatibility upgrades simple and convenient.
Technical Specifications
CPU Support
- AMD AM4 Socket
- Ryzen 3000 / 3000 G-Series
- Ryzen 4000 G-Series
- Ryzen 5000 / 5000 G-Series
Chipset
- AMD A520
Memory
- 2 x DDR4 DIMM slots
- Up to 64GB capacity
- Dual-channel support
- Speeds up to 5100MHz (OC)
- ECC & non-ECC support (non-ECC mode)
Storage
- 1 x M.2 (PCIe 3.0 x4 / SATA support)
- 4 x SATA 6Gb/s ports
- RAID 0 / 1 / 10 support
Graphics Outputs
- 1 x HDMI (up to 4K@60Hz)
- 1 x DisplayPort (up to 5K support)
Expansion Slots
- 1 x PCIe 3.0 x16
- 1 x PCIe 3.0 x1
Networking
- Realtek Gigabit LAN (10/100/1000 Mbps)
Audio
- Realtek HD Audio
- 2/4/5.1/7.1 channel support
- High-quality audio capacitors
USB Connectivity
- USB 3.2 Gen1 ports (rear & internal)
- USB 2.0 ports
Internal Connectivity
- 3 x ARGB headers (Gen2)
- 1 x RGB LED header
- 2 x system fan headers
- TPM header
- USB headers

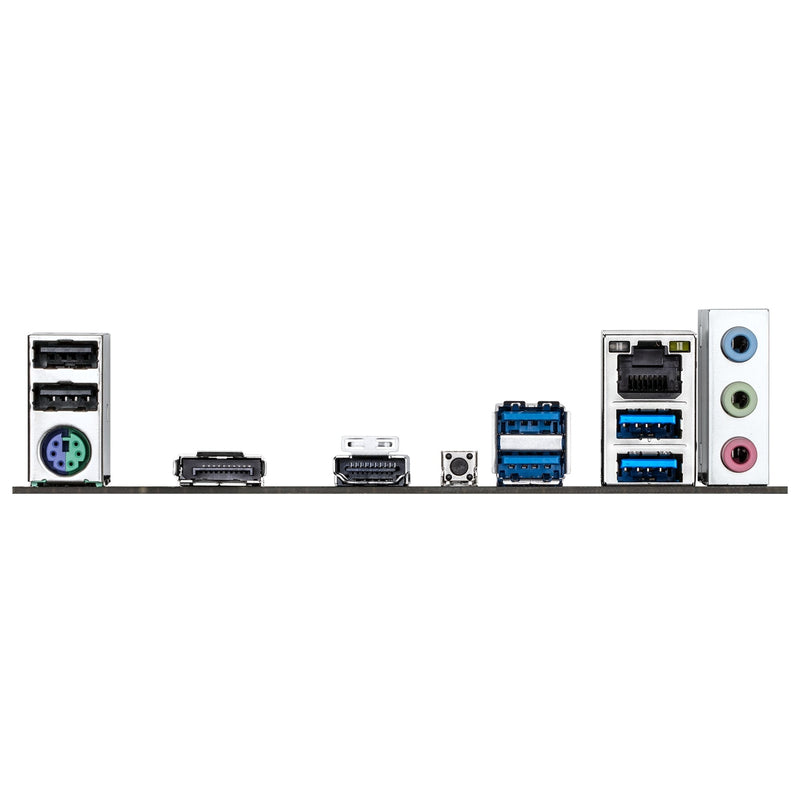

Rear I/O Ports
- DisplayPort
- HDMI
- 4 x USB 3.2 Gen1
- 2 x USB 2.0
- RJ-45 LAN
- Audio jacks
- PS/2 port
- Q-Flash Plus button
Form Factor
- Micro-ATX (23.3cm x 19.8cm)
Operating System Support
- Windows 11 (64-bit)
- Windows 10 (64-bit)
Why Choose the Gigabyte A520M H ARGB?
The Gigabyte A520M H ARGB is a dependable and cost-effective motherboard for Ryzen-based systems, offering all the essential features needed for a stable and modern PC build. With fast memory support, NVMe storage capability and flexible connectivity, it delivers solid everyday performance.
Ideal for entry-level gaming PCs, home systems or office builds, this motherboard provides reliable operation, easy setup and customisable RGB lighting, making it a smart choice for both new builds and upgrades.
