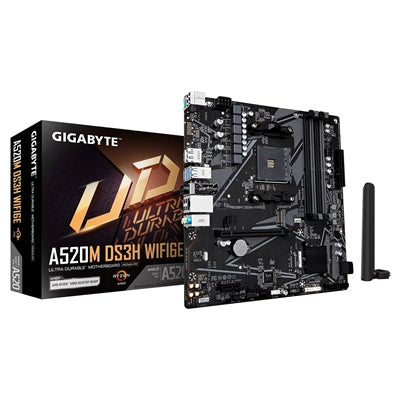

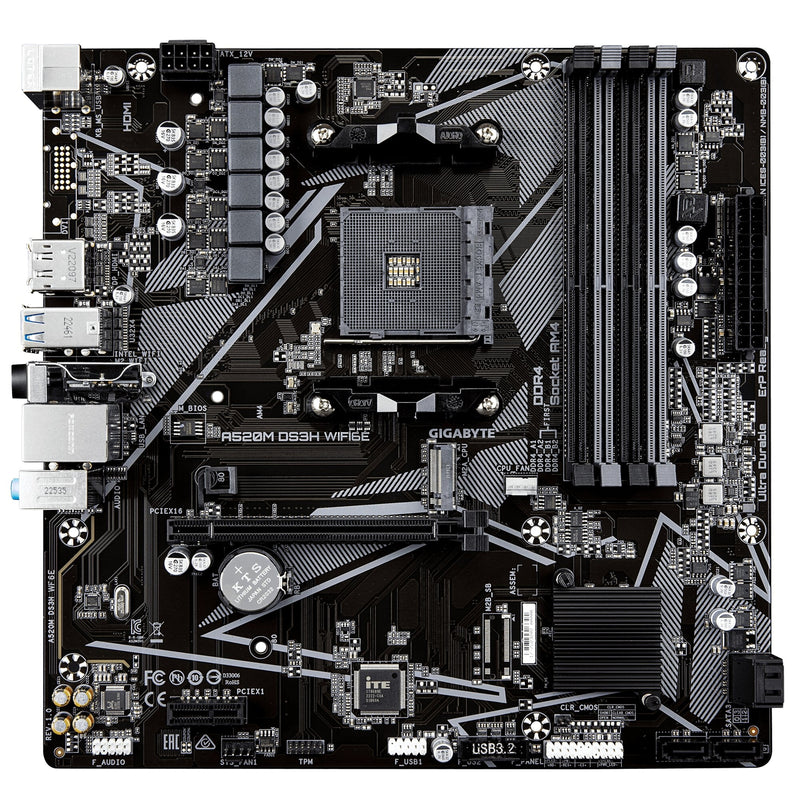

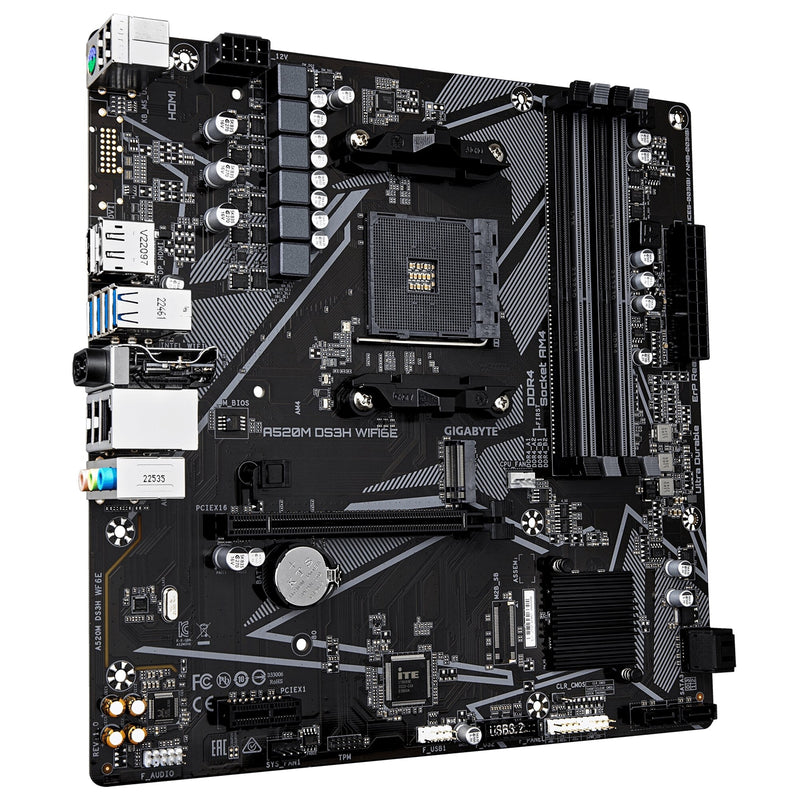

Gigabyte A520M DS3H WiFi6E AM4 DDR4 Micro ATX Motherboard
Gigabyte A520M DS3H WIFI6E AM4 Micro-ATX Motherboard – DDR4, WiFi 6E, Reliable Performance
Build a reliable and cost-effective AMD system with the Gigabyte A520M DS3H WIFI6E, a feature-packed micro‑ATX motherboard designed for AMD Ryzen 3000, 4000 G-Series and 5000 Series processors. Combining DDR4 memory support, fast connectivity and essential features, it’s ideal for everyday computing, office use and entry-level gaming.
Key Features & Benefits
Wide AMD Ryzen Compatibility (AM4 Platform)
Supports Ryzen 3000, 4000 and 5000 Series processors, offering great flexibility for upgrades and system builds.
High-Capacity DDR4 Memory Support
Equipped with 4 DDR4 DIMM slots supporting up to 128GB, with speeds up to 4733MT/s (OC) for smooth multitasking and system responsiveness.
WiFi 6E & Gigabit LAN Connectivity
- WiFi 6E (802.11ax) for faster wireless speeds and reduced latency
-
Gigabit LAN for reliable wired networking
Perfect for streaming, browsing and office work.
PCIe 3.0 & NVMe M.2 Storage
Includes a PCIe 3.0 x16 slot for graphics cards and an M.2 PCIe 3.0 x4 slot for fast SSD storage.
Multi-Display Support
Features DisplayPort and HDMI outputs, supporting high-resolution displays for productivity and entertainment.
Ultra Durable Build Quality
Built with high-quality components and anti-sulfur resistors, ensuring long-term reliability and stability.
Smart Fan 6 Cooling System
Advanced cooling features with temperature sensors and hybrid fan headers, keeping your system cool and quiet.
Enhanced Audio Experience
High-quality capacitors and audio noise guard technology provide cleaner, clearer sound output.
EZ-Friendly Design
- WiFi EZ-Plug for easy antenna installation
-
Q-Flash for simple BIOS updates
Designed for a smooth building and upgrade experience.
Technical Specifications
CPU Support
- AMD AM4 Socket
- Ryzen 5000 Series
- Ryzen 5000 G-Series
- Ryzen 4000 G-Series
- Ryzen 3000 / 3000 G-Series
Chipset
- AMD A520
Memory
- 4 x DDR4 DIMM Slots
- Up to 128GB Capacity
- Dual Channel Architecture
- Speeds up to 4733MHz (OC)
- XMP Support
Storage
- 1 x M.2 PCIe 3.0 x4 Slot
- 4 x SATA 6Gb/s Ports
- RAID 0 / 1 / 10 Support
Graphics Outputs
- 1 x DisplayPort (up to 5K support)
- 1 x HDMI (up to 4K@60Hz)
Expansion Slots
- 1 x PCIe 3.0 x16 Slot
- 1 x PCIe 3.0 x1 Slot
Networking
- Realtek Gigabit LAN
- WiFi 6E (2.4 / 5 / 6 GHz)
- Bluetooth 5.3
Audio
- Realtek HD Audio
- 2/4/5.1/7.1-channel support
USB Connectivity
- USB 3.2 Gen1 ports (rear & internal)
- USB 2.0 ports
Internal Connectivity
- 1 x M.2 slot
- Fan headers (CPU + system)
- TPM header
- SATA connectors

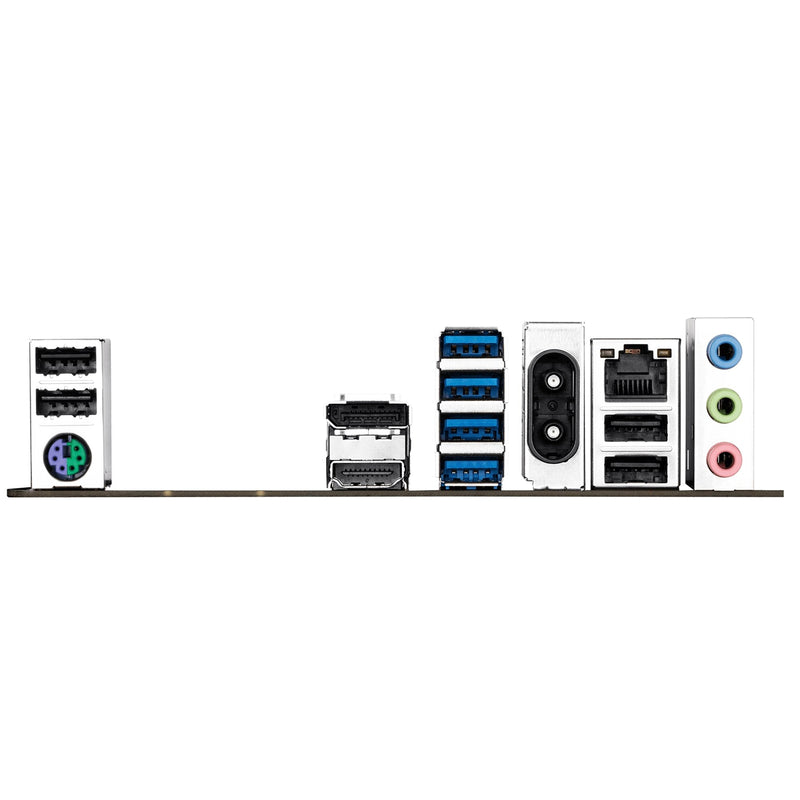

Rear I/O Ports
- DisplayPort & HDMI
- USB 3.2 Gen1 & USB 2.0
- RJ-45 LAN
- WiFi antenna connectors
- PS/2 port
Form Factor
- Micro-ATX (24.4cm x 24.4cm)
Operating System Support
- Windows 11 (64-bit)
- Windows 10 (64-bit)
Why Choose the Gigabyte A520M DS3H WIFI6E?
The Gigabyte A520M DS3H WIFI6E is a budget-friendly and dependable motherboard that delivers essential features for modern AMD systems. With DDR4 memory, NVMe storage support and WiFi 6E connectivity, it offers strong performance for everyday computing.
Ideal for home users, office systems and entry-level gaming builds, it provides reliable performance, solid connectivity and great value, making it an excellent foundation for AM4-based PCs.
