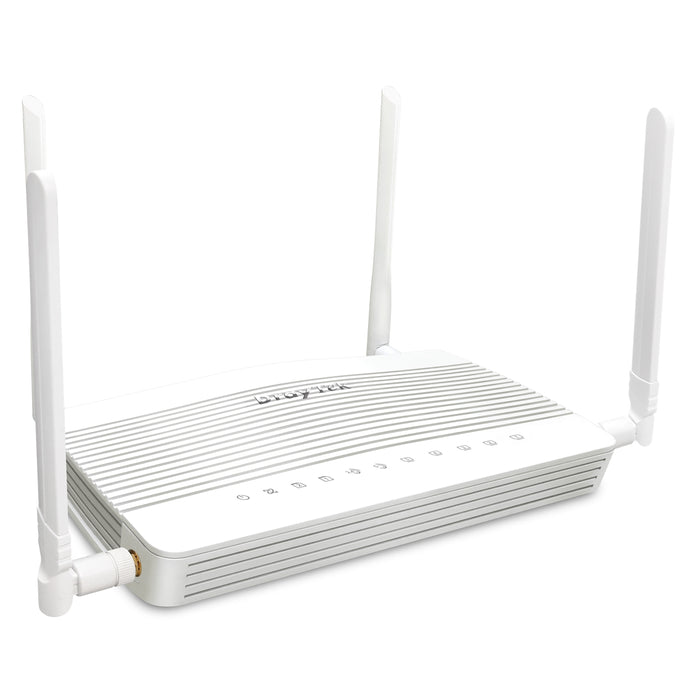

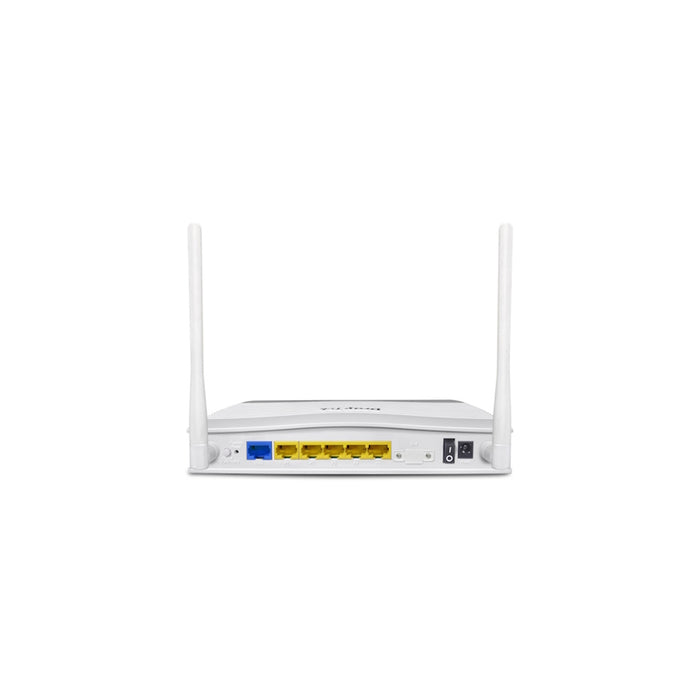

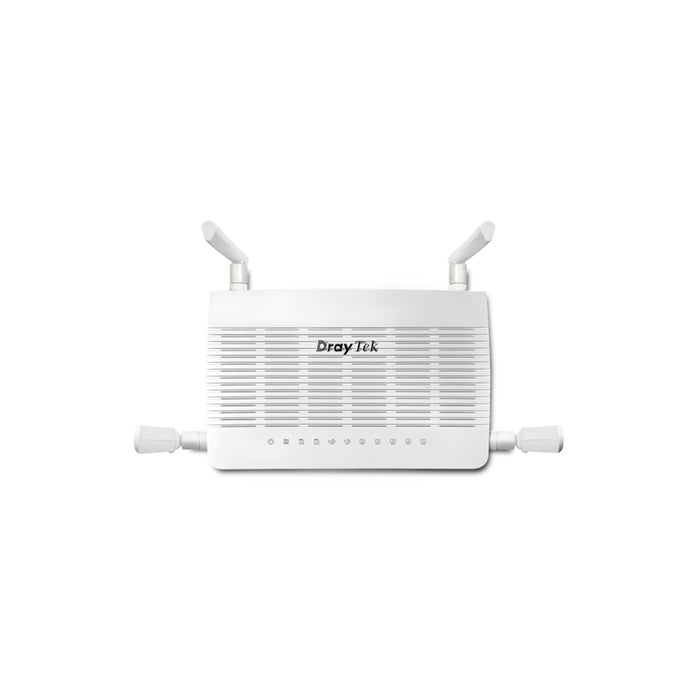

DrayTek VC410AX-K Vigor C410ax 4G AX3000 Wi-Fi 6 SOHO Router – Dual SIM, VPN
The DrayTek VC410AX-K Vigor C410ax is a high-performance, security-focused 4G mobile broadband router designed for SOHO and remote deployments. Featuring AX3000 Wi-Fi 6, dual-SIM failover, multi-WAN connectivity, and robust VPN support, it's the ideal solution for reliable, flexible internet access on the move or in fixed locations.
✅Built-in Cat 6 4G LTE Modem with Dual-SIM Failover
✅Wi-Fi 6 Dual-Band AX3000 (2.4GHz & 5GHz) Wireless
✅Gigabit WAN + Switchable WAN/LAN Port + 4x Gigabit LAN Ports
✅Supports 5x WANs (Ethernet, Wi-Fi, and Cellular)
✅Up to 940Mbps NAT & 370Mbps IPsec VPN Throughput
✅Up to 4 Concurrent VPN Tunnels – Supports IPsec, OpenVPN, WireGuard
✅Advanced SPI Firewall with Web Filtering & DoS Protection
✅VLAN Support with Up to 4 LAN Subnets
✅Supports VigorACS Central Management & VigorCare Warranty Options
Wireless Performance
•Dual-band 802.11ax Wi-Fi 6 (AX3000): 2402Mbps (5GHz) + 574Mbps (2.4GHz)
•MU-MIMO, OFDMA, Tx Beamforming, 1024-QAM
•Supports up to 8 SSIDs per band
•Assisted Client Roaming, Band Steering, Mesh Root Compatibility
4G LTE Modem
•LTE Category 6: Up to 300Mbps Down / 50Mbps Up
•Unlocked for all major UK/EU networks
•Dual Nano SIM slots with failover
•FDD Bands: 1, 3, 7, 8, 20, 28 | TDD Bands: 38, 40
•3G Support: Bands 1, 8
•SMS Inbox for text messaging and alerts
WAN Interfaces
•1x Gigabit WAN (RJ45)
•1x Switchable Gigabit WAN/LAN (RJ45)
•2.4GHz & 5GHz Wi-Fi WAN Support
•Built-in 4G LTE WAN
•Failover & Load Balancing support
Security & VPN
•IPsec VPN Throughput: Up to 370Mbps
•Up to 4 VPN Tunnels (LAN-to-LAN & Teleworker)
•Supports IPsec IKEv1/v2, OpenVPN, WireGuard, XAuth
•Encryption: AES (up to 256-bit), SHA-1/256
•User Auth: Local, RADIUS, TACACS+, TOTP
•Content Filtering: Web Category, DNS Filter, App Control
LAN Features
•4x Gigabit LAN Ports
•Supports VLANs (Port-based & 802.1q)
•Up to 4 LAN Subnets with custom DHCP options
•Hotspot Web Portal, Local DNS Server
•Wired 802.1x Port Authentication
Additional Features
•Bandwidth Control & Session Limits
•Quality of Service (QoS) with App & VoIP Prioritisation
•Management via HTTPS, Telnet, SSH, TR-069
•SNMP v1/v2c/v3, Syslog, Email/SMS Alerts
•Router-based AP & Switch Management
•Supports VigorACS for remote deployment & monitoring
Physical Specs
•Dimensions: 207 x 131 x 42 mm
•Weight: 840g
•Antenna Configuration:
•2x External Wi-Fi Antennas (2.8dBi/2.1dBi)
•2x External + 2x Internal 4G Antennas (4dBi)
•Power Supply: 12V DC @ 1.4A (Adapter included)
•Mounting: Wall-mountable
•Operating Temp: 0–45°C
Box Contents
•Vigor C410ax Router
•2x Detachable Wi-Fi Antennas
•2x Detachable 4G Antennas
•12V Power Adapter (UK plug)
•RJ45 Cat5e Ethernet Cable
•Quick Start Guide
Certifications & Warranty
•Standard 2-Year RTB Warranty
•5 Years Software Security Updates
•Optional VigorCare Extended Warranty (3 or 5 Years)
•CE, UKCA, RoHS Compliant
