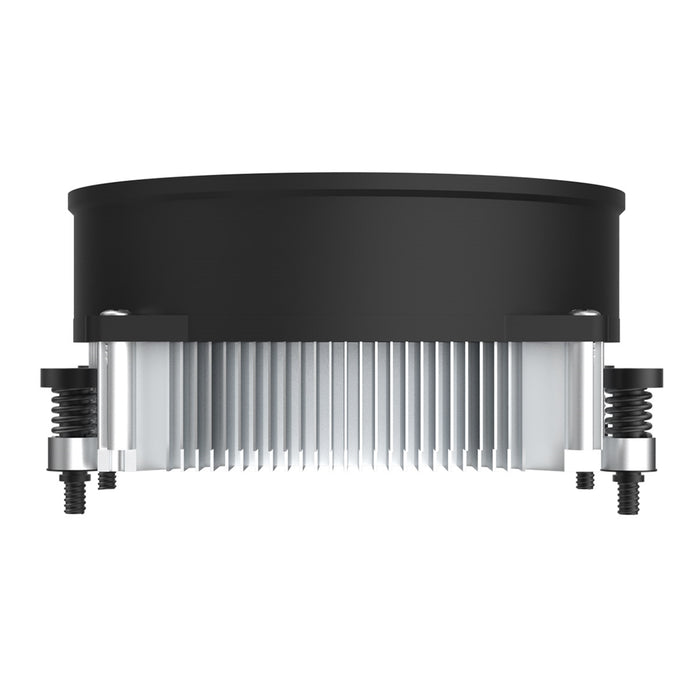

CiT Low Profile CPU Cooler with 92mm PWM Fan for AMD AM5 & AM4

Compact Cooling for Small Form Factor AMD Builds

The CiT Low Profile CPU Cooler is a compact and efficient cooling solution designed specifically for AMD AM5 and AM4 platforms. Engineered for systems where space is limited, this low-profile cooler stands just 45mm tall, making it ideal for Small Form Factor (SFF), Mini-ITX and slim desktop PC builds.

Featuring an aluminium heatsink and a quiet PWM-controlled fan, the cooler delivers reliable thermal performance for processors with up to 85W TDP, helping maintain stable operating temperatures while keeping noise levels low.

Whether you're building a compact home PC, office system, media centre or space-saving workstation, the CiT Low Profile Cooler provides dependable cooling performance without compromising valuable internal space.

Key Features & Benefits

Ultra-Low Profile Design

At only 45mm in height, this cooler is designed specifically for compact systems where traditional tower coolers won't fit.

Ideal for:

• Small Form Factor PCs
• Slim Desktop Systems
• Home Theatre PCs (HTPC)
• Office PCs
• Space-Constrained Cases

Its compact footprint allows for easier installation in restricted environments while maintaining effective cooling performance.

Optimised for AMD Platforms

Designed exclusively for AMD processors, the cooler supports:

• AMD AM5
• AMD AM4

Providing straightforward compatibility with a wide range of modern AMD Ryzen processors.

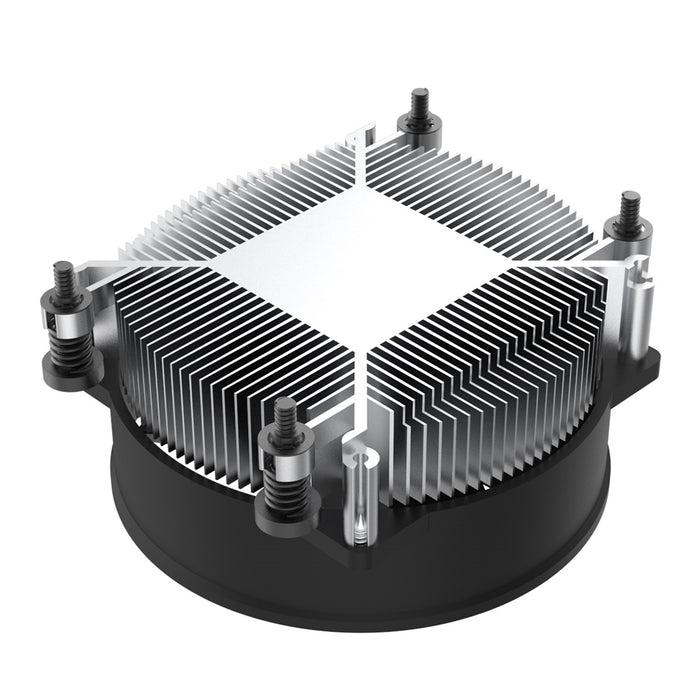

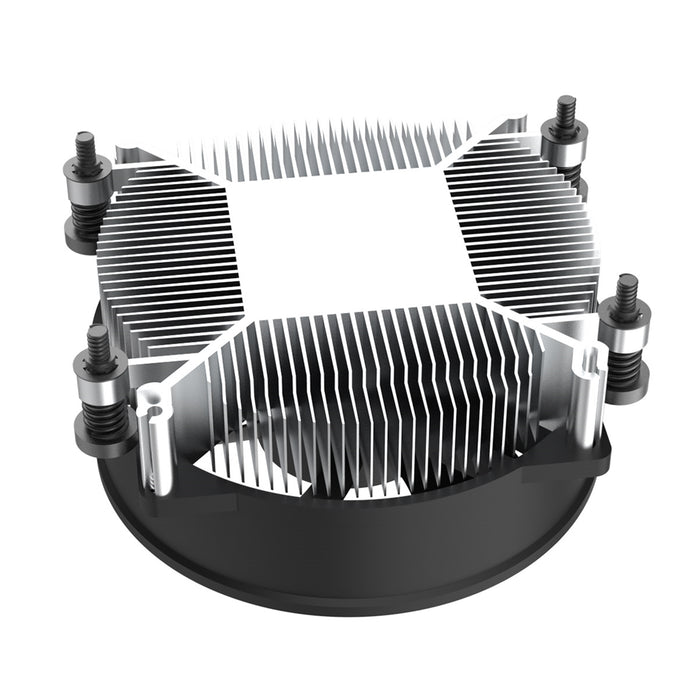

Efficient Aluminium Heatsink

The cooler incorporates a lightweight aluminium fin design that efficiently transfers heat away from the processor.

Benefits include:

• Effective heat dissipation
• Lightweight construction
• Reliable performance
• Improved thermal efficiency

Helping to maintain system stability during everyday workloads.

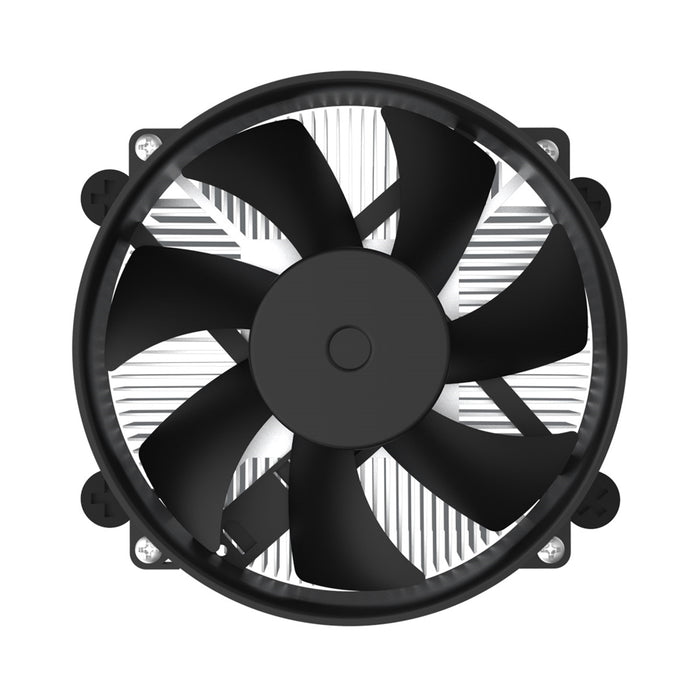

Quiet PWM Fan Control

Equipped with a PWM-controlled cooling fan, the cooler automatically adjusts fan speed according to CPU temperature.

Advantages include:

• Reduced noise during light workloads
• Increased cooling under heavier loads
• Improved energy efficiency
• Better thermal management

This intelligent fan control helps maintain an excellent balance between performance and acoustics.

Focused Airflow Design

The custom fan is positioned to maximise airflow through the aluminium fin stack, improving heat dissipation and system cooling efficiency.

Features include:

• Airflow up to 40.79 CFM
• Static Pressure up to 3.01mm H₂O
• Focused cooling performance
• Enhanced airflow direction

Perfect for restricted airflow environments commonly found in compact cases.

Quiet Everyday Operation

Designed for low-noise computing, the fan operates at a maximum noise level of just:

• 29.5 dBA

This makes the cooler well suited for office PCs, media centres and home systems where quiet operation is important.

Complete Installation Kit Included

Everything required for installation is supplied in the box, including:

• CPU Cooler
• Mounting Hardware
• Fixing Screws
• Thermal Paste

Allowing for quick and hassle-free installation.

Technical Specifications

CPU Cooler

• Cooler Type: Low Profile Air Cooler
• Supported TDP: Up to 85W
• Heatsink Material: Aluminium
• CPU Block Width: 90mm
• CPU Block Height: 20mm

Fan Specifications

• Fan Size: 95 x 95 x 25mm
• Fan Control: PWM
• Fan Connector: 4-Pin PWM
• Fan Speed: 0 – 2400 RPM ±10%
• Airflow: 40.79 CFM
• Air Pressure: 2.44mm H₂O
• Static Pressure: 3.01mm H₂O
• Bearing Type: Hydraulic Bearing
• Maximum Noise Level: 29.5 dBA
• Rated Voltage: 12V
• Starting Voltage: 5V
• Rated Current: 121mA
• Power Consumption: 1.5W
• MTBF: 30,000 Hours

Compatibility

• AMD AM5
• AMD AM4

Physical Specifications

• Colour: Black / Silver
• Product Dimensions: 97 x 45 x 97mm
• Packaging Dimensions: 102 x 68 x 102mm
• Net Weight: 0.25kg
• Gross Weight: 0.29kg

Included Accessories

• CPU Cooler
• Thermal Paste
• Mounting Hardware
• Fixing Screws

Manufacturer Information

• Manufacturer Part Number: CIT-CPU-AMD
• EAN: 5055492416278

Why Choose the CiT Low Profile AMD CPU Cooler?

The CiT Low Profile CPU Cooler is an excellent choice for users building compact AMD systems where space, airflow and noise levels are key considerations. Its ultra-low 45mm profile, reliable aluminium heatsink, PWM-controlled fan and AM5/AM4 compatibility make it a practical and cost-effective cooling solution for everyday computing.

Whether you're assembling a Mini-ITX gaming PC, a home office machine or a slim media centre system, the CiT Low Profile Cooler delivers dependable cooling performance, quiet operation and outstanding value in a compact package.
