ASRock B850 Rock WiFi 7 AM5 ATX DDR5 Motherboard WiFi 7 PCIe 5.0

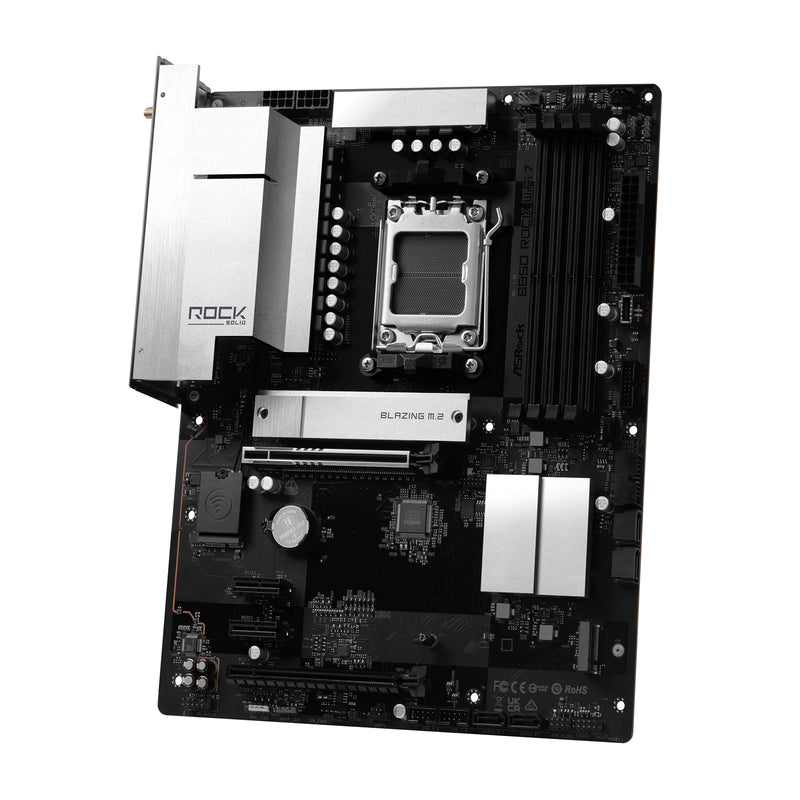

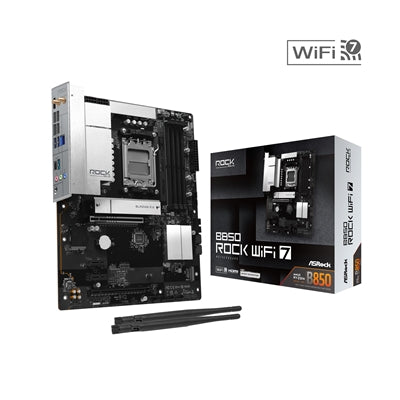

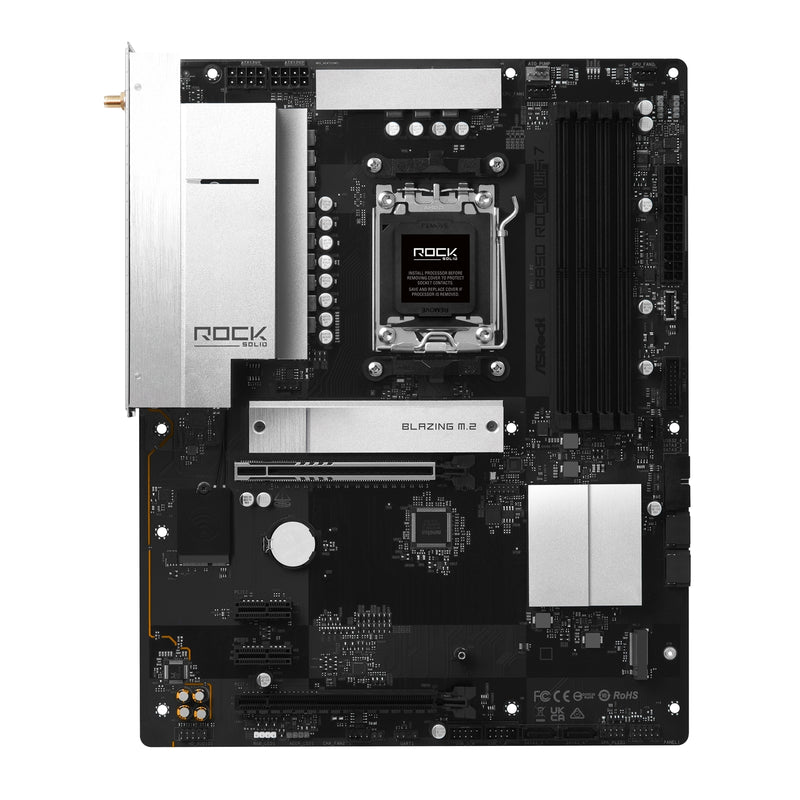

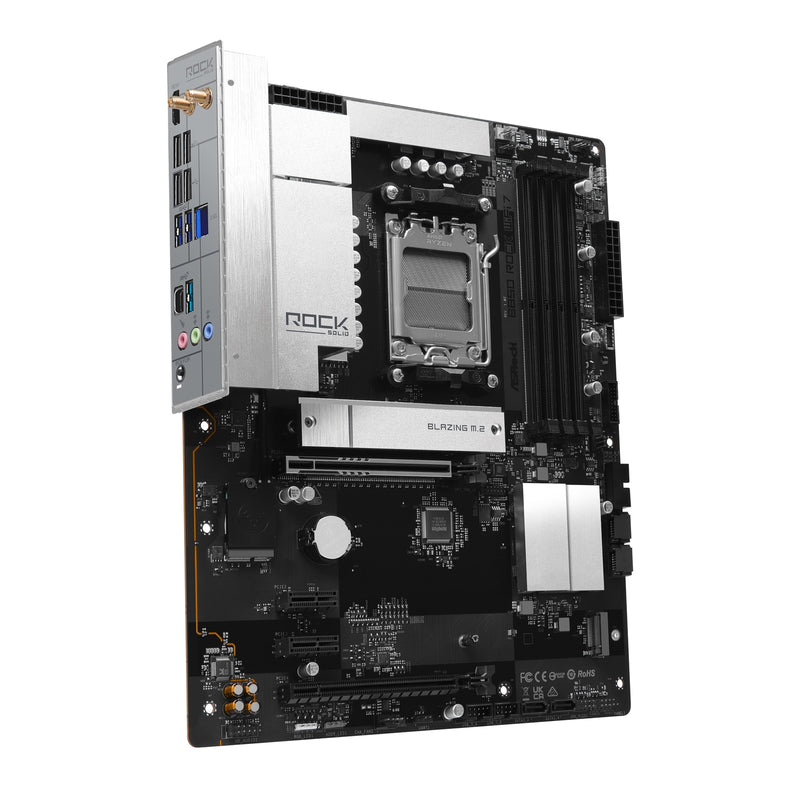

ASRock B850 Rock WiFi 7 AMD AM5 ATX Motherboard (DDR5, WiFi 7, PCIe 5.0)

Build a next-generation AMD system with the ASRock B850 Rock WiFi 7 motherboard. Designed for maximum performance, cutting-edge connectivity, and long-term upgradeability, this ATX board supports the latest AMD Ryzen AM5 processors and introduces WiFi 7 networking for ultra-fast, low-latency wireless performance.

Key Features & Benefits

✔ AMD AM5 Platform Support – Compatible with Ryzen 7000, 8000, and 9000 series processors
✔ PCIe 5.0 Graphics & Storage Support – Future-ready bandwidth for high-end GPUs and NVMe SSDs
✔ DDR5 Memory Support up to 8000+ MHz (OC) – High-capacity performance with up to 256GB support
✔ WiFi 7 (802.11be) + Bluetooth 5.4 – Next-generation wireless speeds across 2.4/5/6GHz bands
✔ 2.5GbE LAN (Wired Networking) – Stable, high-speed Ethernet for gaming and productivity
✔ 9+2+1 Power Phase Design (Dr.MOS) – Enhanced stability and efficient power delivery under load
✔ Dual M.2 Slots (Gen5 + Gen4) – Ultra-fast NVMe storage for OS, games, and creative workloads
✔ HDMI 2.1 Output (4K 120Hz) – Smooth integrated graphics support where applicable
✔ BIOS Flashback Button – Easy BIOS updates without CPU or memory installed
✔ Pre-Installed I/O Shield – Faster, cleaner, and more reliable installation

Next-Generation Connectivity

The B850 Rock WiFi 7 is designed for modern high-performance systems, offering ultra-fast wired and wireless networking alongside extensive I/O support. With WiFi 7 technology, it delivers improved throughput, reduced latency, and better performance in dense network environments.

Combined with PCIe 5.0 support and high-speed DDR5 memory, it provides a fully future-proof foundation for demanding gaming rigs and professional workstations.

Technical Specifications

• CPU Support: AMD Ryzen 7000 / 8000 / 9000 Series (AM5 socket)
• Chipset: AMD B850
• Memory:
  • 4 x DDR5 DIMM slots
  • Up to 256GB
  • Up to 8000+ MHz (OC)
  • ECC / non-ECC support
  • XMP / EXPO support
• Graphics Output:
  • 1 x HDMI 2.1 (up to 4K @ 120Hz, CPU dependent)
• Storage:
  • 1 x M.2 PCIe Gen5 x4 (CPU)
  • 1 x M.2 PCIe Gen4 x4 (Chipset)
  • 4 x SATA3 6Gb/s
• Expansion Slots:
  • 1 x PCIe 5.0 x16
  • 1 x PCIe 4.0 x16 (x4 mode)
  • 2 x PCIe 4.0 x1
• Networking:
  • 2.5GbE LAN (Dragon RTL8125BG)
  • WiFi 7 (802.11be) + Bluetooth 5.4
• Audio:
  • Realtek ALC897 7.1 CH HD Audio

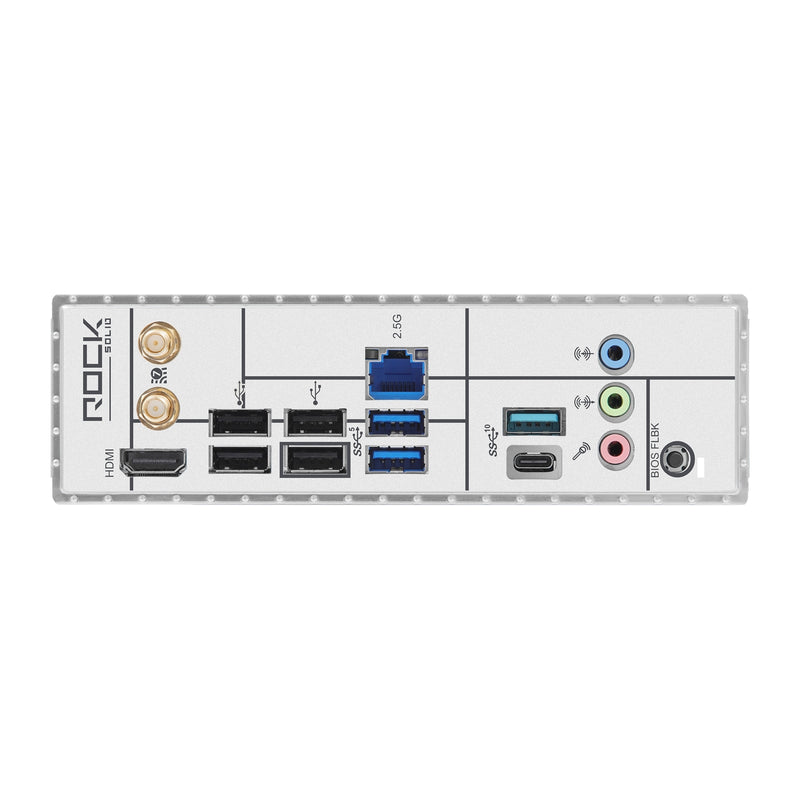

• USB Ports:
  • USB 3.2 Gen2 Type-A & Type-C
  • USB 3.2 Gen1 (rear + front headers)
  • USB 2.0 ports (rear + front headers)

Build & Feature Enhancements

• 8-layer PCB design for improved signal stability
• BIOS Flashback for easy recovery and updates
• ASRock Polychrome SYNC RGB support
• Multiple fan and pump headers for advanced cooling control
• ASRock Auto Driver Installer for simplified setup
• Full HD UEFI BIOS with EZ Mode interface

Form Factor

• ATX (30.5 cm x 24.4 cm)

Why Choose the ASRock B850 Rock WiFi 7?

The ASRock B850 Rock WiFi 7 is a high-end AM5 motherboard designed for users who want cutting-edge connectivity and maximum performance headroom. With WiFi 7, PCIe 5.0 support, DDR5 overclocking capability, and a robust power design, it is built for next-generation gaming, content creation, and professional workloads.

It delivers a stable, feature-rich platform that ensures your system remains future-ready for years to come.
