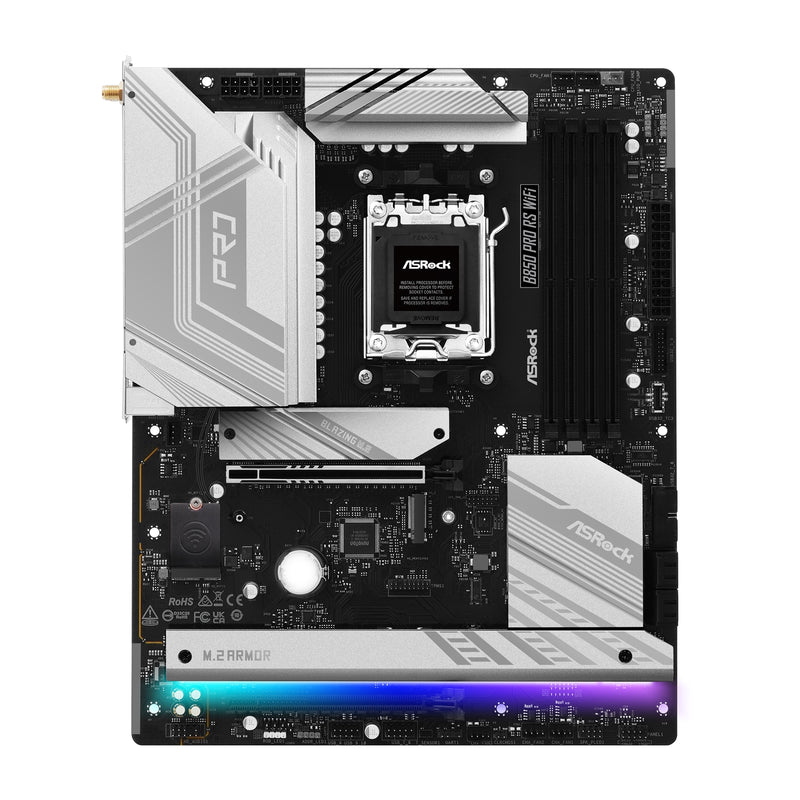

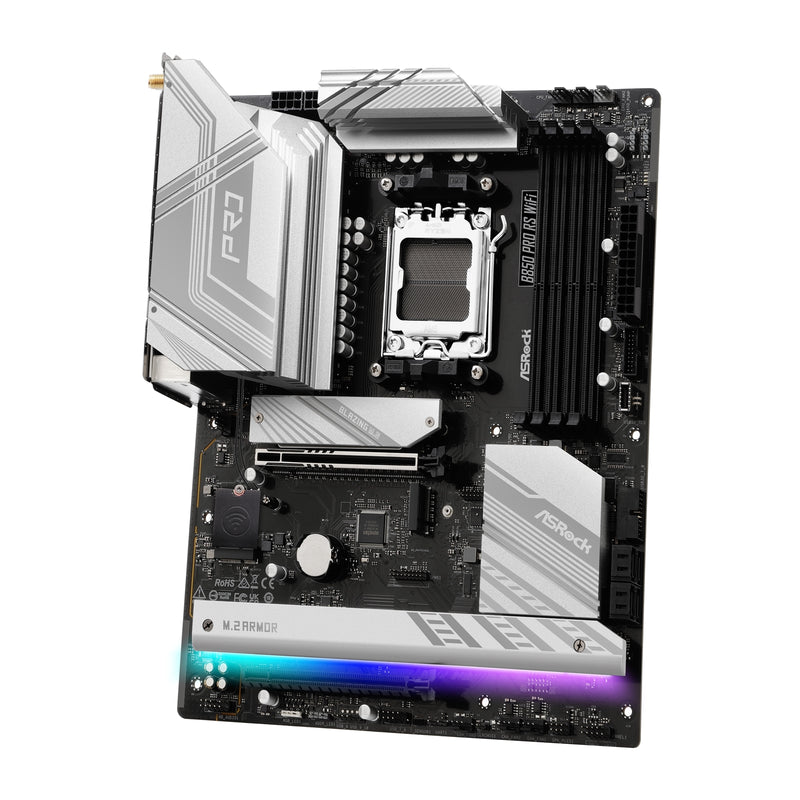

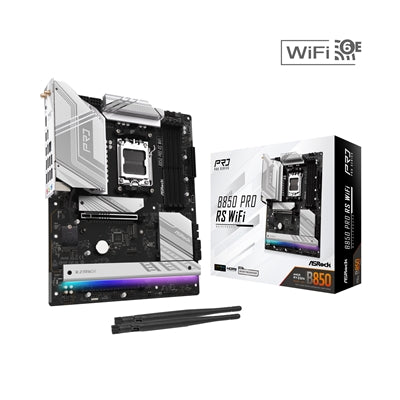

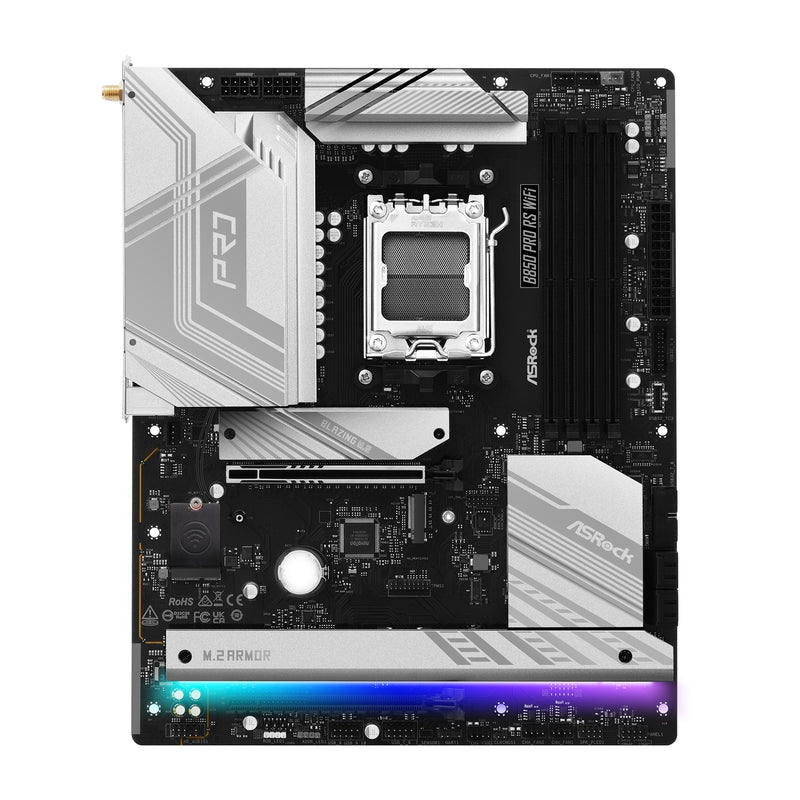

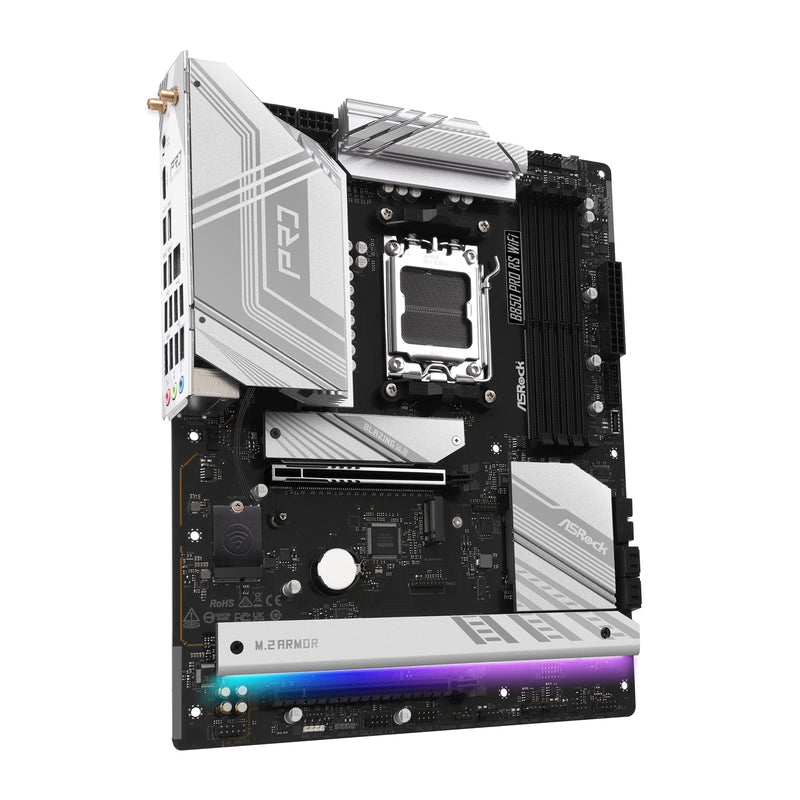

ASRock B850 Pro RS WiFi AM5 ATX Motherboard

High-Performance AM5 Platform for Next-Gen Builds

The ASRock B850 Pro RS WiFi is engineered for serious performance, reliability, and future-ready connectivity. Built to support AMD Ryzen 9000, 8000 and 7000 Series processors, this ATX motherboard delivers cutting-edge PCIe 5.0 speeds, ultra-fast DDR5 memory, and advanced power delivery for demanding workloads, gaming, and professional systems.

Key Features & Benefits

✔ Supports AMD AM5 Ryzen 9000, 8000 & 7000 Series CPUs
✔ 14+2+1 Phase Power Design with 80A Dr.MOS for stable, efficient power delivery
✔ PCIe 5.0 x16 slot for next-generation graphics performance
✔ Blazing-fast storage with 1x PCIe Gen5 M.2 + 3x additional M.2 slots
✔ DDR5 memory support up to 8000+ MHz (OC) for maximum bandwidth
✔ Integrated WiFi 6E and 2.5GbE LAN for ultra-fast networking
✔ USB 3.2 Gen2x2 Type-C (20Gbps) for high-speed connectivity
✔ Display output via HDMI and USB-C (DP Alt Mode)
✔ Integrated I/O shield for easy installation and improved durability

Engineered for Performance & Stability

The advanced 14+2+1 phase VRM design with 80A Dr.MOS ensures consistent and clean power delivery to your CPU. Combined with enlarged heatsinks and intelligent thermal design, this motherboard maintains stability under heavy loads, making it ideal for gaming rigs and high-performance workstations.

Next-Generation Storage & Expansion

Experience ultra-fast data access with a PCIe Gen5 x4 M.2 slot, capable of handling the latest NVMe SSDs at extreme speeds. With a total of four M.2 slots and additional SATA support, you have the flexibility to build high-capacity, high-speed storage solutions.

Advanced Connectivity

Stay ahead with cutting-edge connectivity:

✔ WiFi 6E with extended 6GHz band for lower latency and faster speeds
✔ 2.5 Gigabit LAN for high-performance wired networking
✔ USB-C with DisplayPort Alt Mode for video and data through a single cable
✔ Extensive USB connectivity including Gen2x2 (20Gbps) support

Immersive Audio Experience

Equipped with the Realtek ALC897 7.1 HD audio codec and Nahimic Audio technology, the motherboard delivers clear, immersive sound for gaming, media, and communication.

Technical Specifications

Form Factor
ATX (30.5 cm x 24.4 cm)

CPU Support
AMD Socket AM5
Ryzen 9000 / 8000 / 7000 Series

Chipset
AMD B850

Memory
4 x DDR5 DIMM slots
Dual channel support
Up to 256GB capacity
Speeds up to 8000+ MHz (OC)
Supports XMP & EXPO

Expansion Slots
1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (x4 mode)

Graphics Output
1 x HDMI 2.1 (up to 4K 120Hz)
1 x USB-C with DisplayPort 1.4 Alt Mode

Storage
1 x PCIe Gen5 x4 M.2
2 x PCIe Gen4 x4 M.2
1 x PCIe Gen3 x4 M.2
4 x SATA III (6Gb/s)
RAID support (0/1/10)

Networking
2.5GbE LAN (Dragon RTL8125BG)
WiFi 6E (802.11axe)
Bluetooth 5.2

USB Ports
Front USB-C Gen2x2 (20Gbps)
Rear USB-C Gen2 & Gen1
Multiple USB 3.2 Gen1 & USB 2.0 ports

Audio
7.1 Channel HD Audio
Realtek ALC897 + Nahimic

Special Features
BIOS Flashback Button
Integrated I/O Shield
ASRock Auto Driver Installer
Post Status Checker

Why Choose the ASRock B850 Pro RS WiFi

The ASRock B850 Pro RS WiFi is a premium yet cost-effective AM5 motherboard designed for users who demand performance without compromise. With PCIe 5.0 support, DDR5 capability, and next-gen connectivity including WiFi 6E and 2.5Gb LAN, it provides a powerful and future-proof foundation for any modern PC build.

Whether you're building a high-end gaming system or a professional workstation, this motherboard delivers the performance, stability, and expandability needed to stay ahead.
