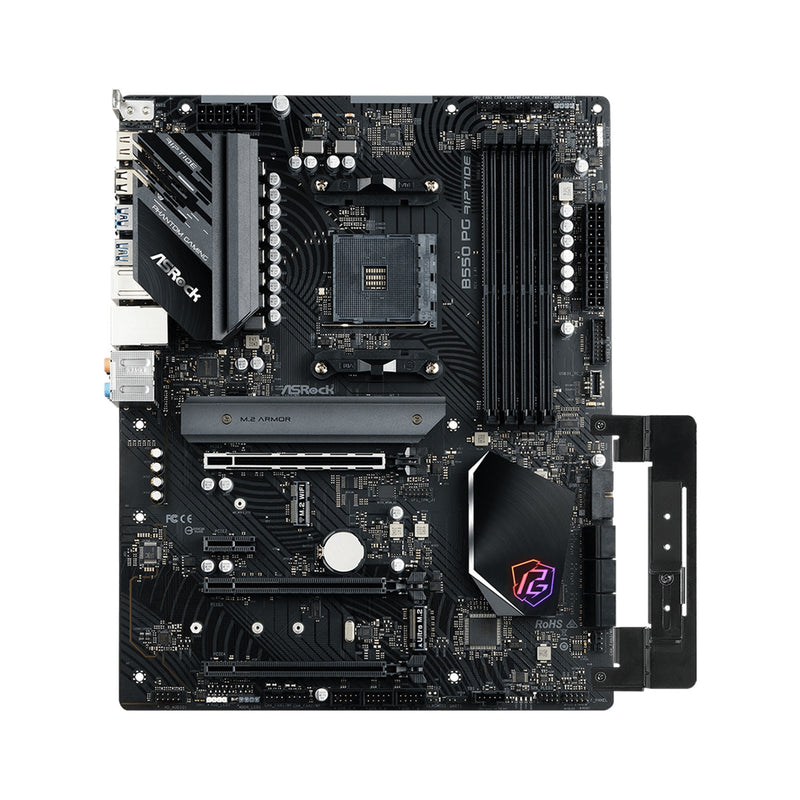

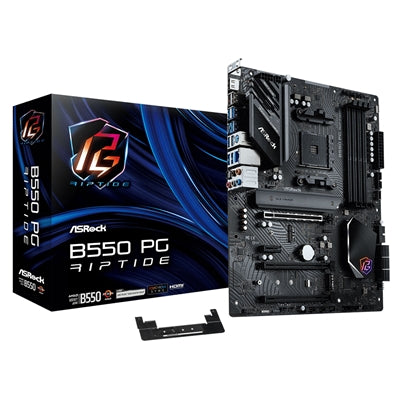

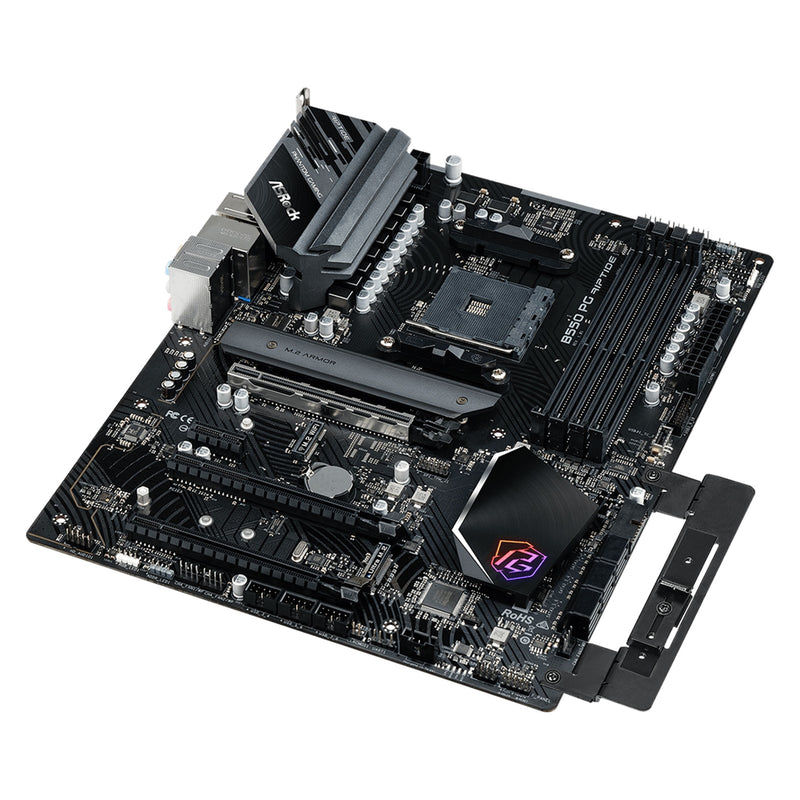

ASRock B550 PG Riptide AM4 ATX DDR4 PCIe 4.0 Motherboard

ASRock B550 PG Riptide AM4 ATX Motherboard

The ASRock B550 PG Riptide is a performance-driven ATX motherboard built for AMD Ryzen 3000, 4000 and 5000 series processors. Designed with gamers and power users in mind, it combines strong power delivery, high-speed connectivity, and advanced features to deliver reliable performance and stability.

Key Features & Benefits

✔ AMD AM4 Platform for Ryzen Processors
Supports a wide range of Ryzen CPUs, providing flexibility for gaming, streaming, and productivity builds.

✔ 10 Phase Power Design with Dr.MOS
Ensures stable power delivery and improved thermal efficiency, ideal for sustained performance and overclocking.

✔ DDR4 Memory Support up to 4933+ (OC)
Four DIMM slots enable high-speed memory configurations for improved responsiveness and multitasking.

✔ PCIe 4.0 Graphics & Storage Support
Includes PCIe 4.0 x16 slot and Gen4 M.2 support for faster GPUs and high-speed NVMe SSDs.

✔ Dual M.2 Storage with High-Speed Performance
One PCIe Gen4 x4 and one PCIe Gen3 x4 slot provide flexible, fast storage options.

✔ Killer 2.5GbE LAN for Low Latency Networking
Optimised for gaming and streaming, delivering prioritised network traffic and reduced latency.

✔ USB 3.2 Gen2 Type-C Connectivity
Front and rear USB-C ports offer fast data transfer speeds up to 10Gbps.

✔ Polychrome RGB Lighting Control
Customise your system with RGB and ARGB headers, synchronised across compatible components.

✔ Reinforced PCIe Steel Slot
Provides additional durability and stability for heavy graphics cards.

✔ Advanced Cooling & Protection Features
Includes premium chokes, aluminium heatsinks, and full spike protection for long-term reliability.

Technical Specifications

General

• Form Factor: ATX (30.5 x 24.4 cm)
• Chipset: AMD B550

CPU Support

• AMD Ryzen 3000 / 4000 G-Series / 5000 / 5000 G-Series (AM4 Socket)

Memory

• 4 x DDR4 DIMM Slots
• Dual Channel
• Up to 128GB Capacity
• Speeds up to 4933+ MHz (OC)
• Supports XMP

Expansion Slots

• 1 x PCIe 4.0 x16
• 2 x PCIe 3.0 x16
• 1 x PCIe 3.0 x1
• 1 x M.2 Key E (Wi-Fi module support)

Storage

• 1 x M.2 PCIe Gen4 x4
• 1 x M.2 PCIe Gen3 x4 / SATA
• 6 x SATA 6Gb/s
• RAID 0 / 1 / 10 support

Graphics Output

• 1 x HDMI 2.1 (up to 4K 60Hz)

Networking

• Killer E3100G 2.5GbE LAN

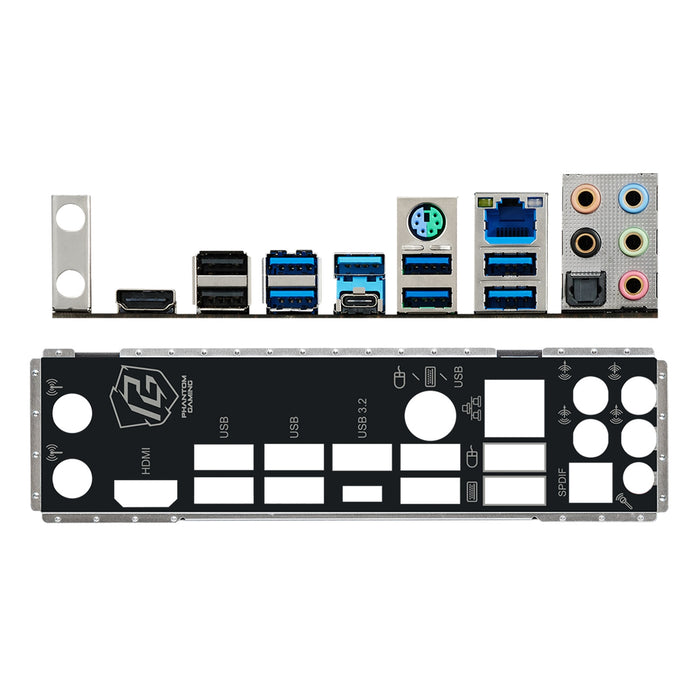

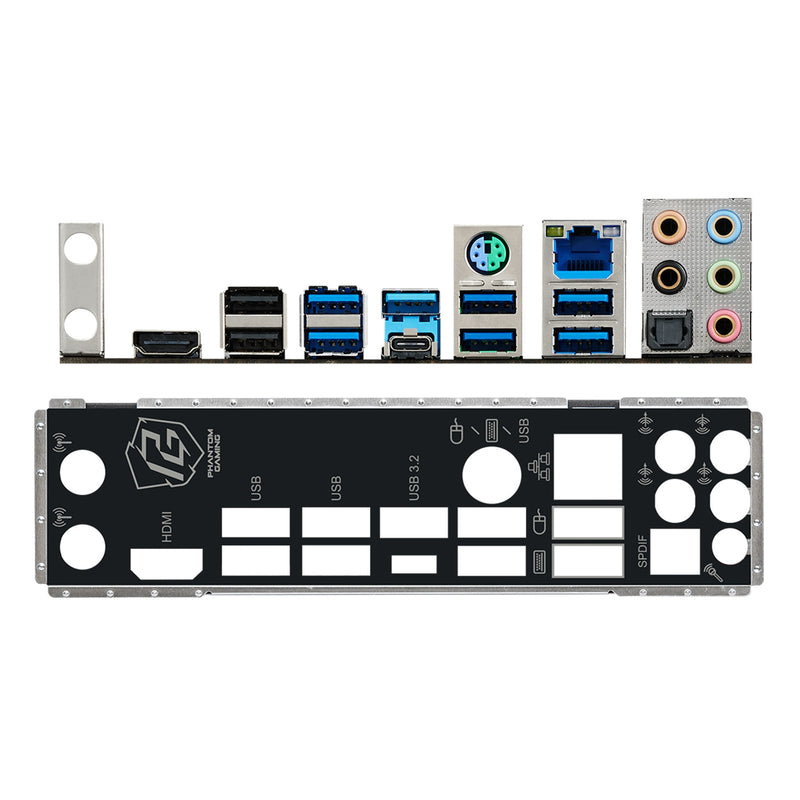

USB Connectivity

• Rear:
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 6 x USB 3.2 Gen1
  • 2 x USB 2.0
• Internal:
  • 1 x USB 3.2 Gen2 Type-C (front)
  • 4 x USB 3.2 Gen1
  • 6 x USB 2.0

Audio

• 7.1 Channel HD Audio (Realtek ALC897)
• Nahimic Audio Support

Internal Features

• RGB & ARGB headers
• Multiple fan and pump headers with smart control
• Thunderbolt 4 AIC header support
• POST Status Checker

Why Choose the ASRock B550 PG Riptide

The B550 PG Riptide is ideal for users building a reliable and performance-focused AM4 system. With strong power delivery, PCIe 4.0 support, and high-speed networking, it is well-suited for gaming rigs and productivity workstations alike.

Its combination of durability, connectivity, and advanced features makes it a dependable platform for users who want solid performance, expandability, and long-term value from their system.
