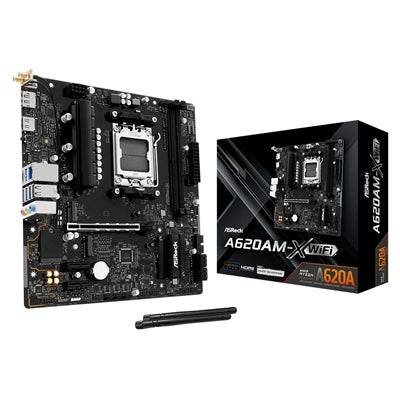

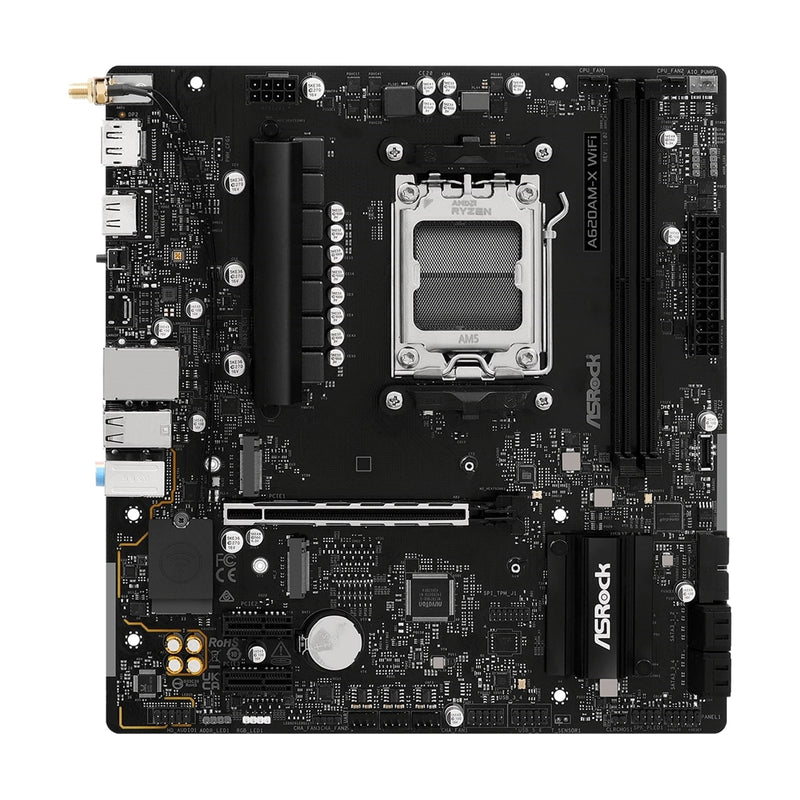

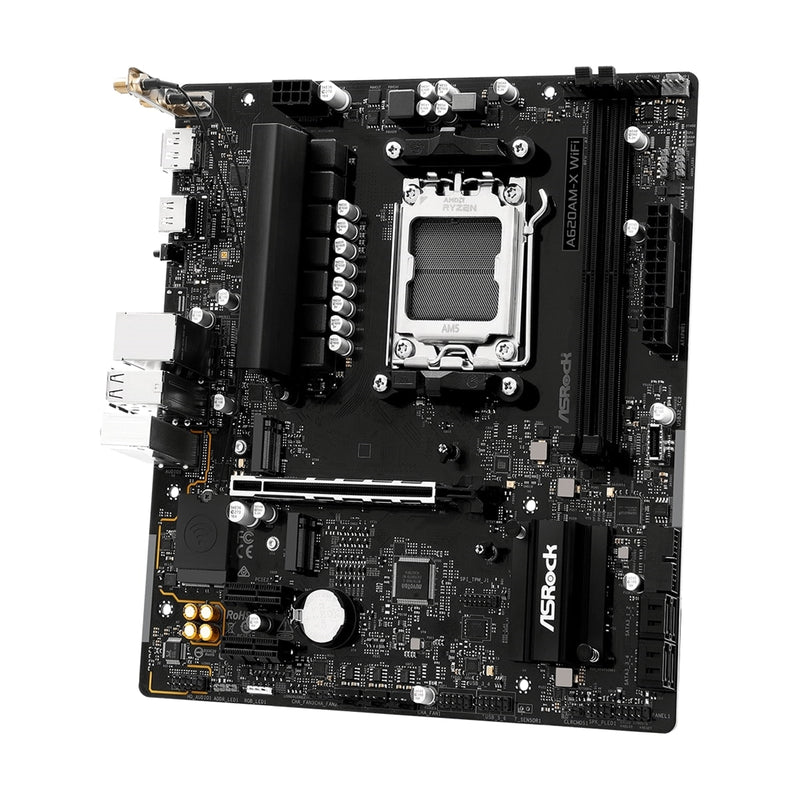

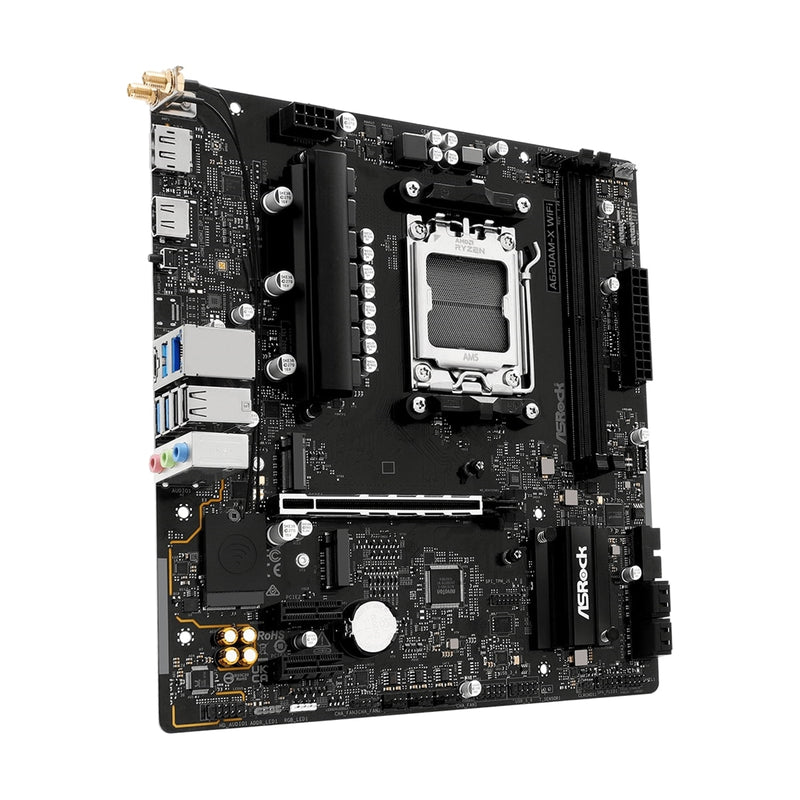

ASRock A620AM-X WiFi AMD AM5 Motherboard – DDR5, 2.5G LAN, USB-C

Compact Performance, Maximum Value
The ASRock A620AM-X WiFi delivers a perfect balance of performance, connectivity, and reliability for professionals, gamers, and daily computing tasks. Compact yet powerful, it supports AMD Ryzen 7000–9000 Series CPUs, DDR5 memory, M.2 SSDs, and next-generation networking.

Key Features & Benefits

Power & Stability

• 6+1+1 Power Phase VRM & Dr.MOS: Smooth, efficient power delivery for enhanced CPU performance.

• Hi-Density Power Connector: Supports high current safely during overclocking.

• 6-Layer PCB & Premium Capacitors: Stable signals, lower temperatures, and energy-efficient memory overclocking.

• Aluminium Heatsinks: Optimised thermal management for durability and performance.

Memory & Storage

• DDR5 Dual Channel Support, XMP/EXPO: Unlock extreme memory speeds up to 8000+(OC) effortlessly.

• PCIe Gen4 M.2 Slots: Lightning-fast SSD storage with up to 64Gb/s bandwidth.

• RAID Support: RAID 0, 1, 10 for M.2 and SATA for speed and redundancy.

Connectivity & Networking

• Wi-Fi 6E (802.11axe): Extended 6GHz spectrum with ultra-low latency and faster internet performance.

• Dragon 2.5G LAN: Superior wired networking for gaming, streaming, and file transfers.

• Front USB 3.2 Gen1 Type-C: 5Gb/s transfer rate with reversible USB design.

Audio & Visual Experience

• Nahimic 7.1 Audio: Immersive, clear sound with noise suppression, echo cancellation, and voice stabilisation.

• Sound Tracker: Visual in-game audio cues for full 360-degree immersion.

• Polychrome RGB & Signal RGB: Customise lighting across all compatible devices with game-reactive effects.

Ease of Use & Reliability

• EZ BIOS & Flashback: Easy system updates and diagnostics.

• Post Status Checker: Monitor CPU, DRAM, VGA, and boot device status with LED indicators.

• Durable Build: High-quality components for long-term reliability.

Technical Specifications

CPU & Chipset

• Socket: AMD AM5

• Supported CPUs: Ryzen 7000, 8000, 9000 Series

• Chipset: AMD A620

• PCIe Slots: 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1

• CrossFire Support: No

Memory

• Type: DDR5, Dual Channel

• Slots: 2 x DIMM

• Capacity: Up to 128GB

• Supported Speeds: 4800–8000+(OC)

• XMP/EXPO Profiles: Yes

• ECC/Non-ECC Support: Yes

Storage & RAID

• M.2 Slots: 2 x PCIe Gen4 x4 (2280)

• SATA Ports: 4 x 6Gb/s

• RAID Support: 0, 1, 10 (M.2 & SATA)

Graphics & Display

• Integrated AMD RDNA Graphics (depends on CPU)

• HDMI 2.1: Up to 4K 120Hz

• DisplayPort 1.4: Up to 4K 120Hz, DSC compressed

Audio

• Codec: Realtek ALC897

• Channels: 7.1 HD Audio

• Features: Nahimic Audio, Static Noise Suppression, Echo Cancellation, Sound Tracker

Networking

• Wired LAN: Dragon RTL8125BG 2.5G

• Wireless: Wi-Fi 6E 802.11ax, Dual-Band 2.4/5/6 GHz

• Bluetooth: 5.0

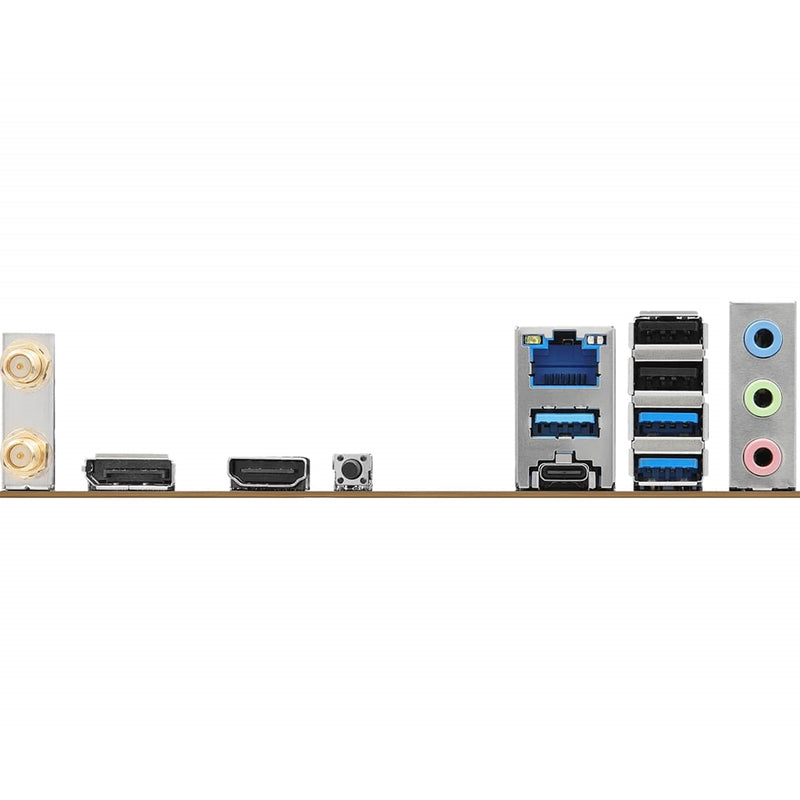

USB & Expansion Ports

• USB 3.2 Gen1 Type-C: 2 (1 Front, 1 Rear)

• USB 3.2 Gen1 Type-A: 5

• USB 2.0: 6

Cooling & Fans

• CPU Fan Connectors: 2 x 4-pin (Smart Fan)

• Chassis Fan Connectors: 3 x 4-pin (Smart Fan)

• AIO Pump Connector: 1 x 4-pin

Form Factor & OS

• Micro ATX Form Factor: 24.4 x 22.6 cm

• OS Compatibility: Windows 10 / 11 (64-bit)

Accessories

• 1 x I/O Shield, 2 x SATA Data Cables, 2 x Wi-Fi Antennas

Why Choose ASRock A620AM-X WiFi?
The ASRock A620AM-X WiFi is perfect for users seeking compact, high-performance computing without compromise. It delivers DDR5 memory speeds, PCIe Gen4 storage, 2.5G LAN, and Wi-Fi 6E connectivity in a Micro ATX form factor. Ideal for home offices, content creation, or casual gaming, it combines stability, speed, and reliability for a seamless computing experience.
