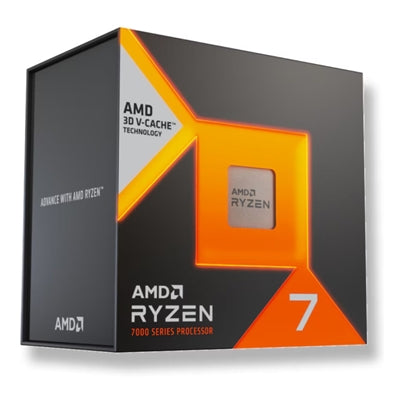

AMD Ryzen 7 7700X3D 8 Core AM5 Gaming Processor with 3D V-Cache
8 Cores | 16 Threads | AMD 3D V-Cache Technology | Up to 4.5GHz Boost | Zen 4 Architecture | AM5 Platform
Elite Gaming Performance Powered by AMD 3D V-Cache
Built for gamers who demand exceptional performance, the AMD Ryzen 7 7700X3D combines AMD's cutting-edge Zen 4 architecture with revolutionary 3D V-Cache technology to deliver outstanding gaming performance across modern titles.
Featuring 8 cores, 16 threads, boost speeds of up to 4.5GHz, and a massive 96MB L3 cache, the Ryzen 7 7700X3D is engineered to minimise latency, maximise frame rates and provide the responsiveness needed for competitive and high-end gaming.
Designed for the latest AM5 platform, this processor also supports DDR5 memory, PCIe 5.0 technology and modern connectivity options, making it an ideal foundation for a next-generation gaming PC.
Key Features & Benefits
AMD 3D V-Cache Technology
Experience faster gaming performance and reduced latency with AMD's advanced 3D V-Cache technology, delivering a massive cache pool that allows games to access critical data faster for smoother gameplay and higher frame rates.
Powerful 8-Core, 16-Thread Performance
Powered by 8 high-performance cores and 16 threads, the Ryzen 7 7700X3D handles gaming, streaming, content creation and multitasking with ease.
Up to 4.5GHz Boost Clock
Boost frequencies of up to 4.5GHz deliver excellent responsiveness and strong single-threaded performance for demanding applications and modern games.
Massive 104MB Total Cache
Featuring:
- 512KB L1 Cache
- 8MB L2 Cache
- 96MB L3 Cache
The large cache capacity reduces memory latency and improves gaming performance across a wide range of titles.
Advanced Zen 4 Architecture
Built on AMD's highly efficient Zen 4 architecture, the Ryzen 7 7700X3D provides excellent performance-per-watt, improved IPC and enhanced efficiency compared to previous generations.
Built for Enthusiast Gaming
Whether you're gaming at 1080p esports settings or high-resolution AAA titles, the Ryzen 7 7700X3D is optimised to deliver smooth gameplay and exceptional frame rates.
Support for DDR5 Memory
Take advantage of next-generation DDR5 memory technology, offering increased bandwidth and improved system responsiveness.
PCIe 5.0 Connectivity
Future-proof your system with PCIe 5.0 support for next-generation graphics cards, ultra-fast NVMe SSDs and expanding storage technologies.
Integrated AMD Radeon Graphics
The built-in AMD Radeon Graphics allows basic display functionality without requiring a dedicated graphics card, making initial setup and troubleshooting simple.
Advanced Overclocking Features
Fine-tune system performance with support for:
- AMD EXPO Memory Profiles
- Precision Boost Overdrive
- Curve Optimiser
- AMD Ryzen Master Utility
Enterprise-Level Security Features
Built with advanced hardware security technologies including AMD Secure Processor, Secure Boot support, Firmware TPM and virtualisation features.
Technical Specifications
Processor
- Processor Model: AMD Ryzen 7 7700X3D
- Product Family: AMD Ryzen
- Series: Ryzen 7000 Series
- Architecture: Zen 4
- Codename: Raphael AM5
- Socket: AM5
Core Specifications
- CPU Cores: 8
- Threads: 16
- Simultaneous Multithreading (SMT): Yes
- Base Clock: 4.0GHz
- Max Boost Clock: Up to 4.5GHz
Cache
- L1 Cache: 512KB
- L2 Cache: 8MB
- L3 Cache: 96MB
- Total Cache: 104MB
Manufacturing Process
- CPU Core Process: TSMC 5nm FinFET
- I/O Die Process: TSMC 6nm FinFET
Power & Cooling
- Default TDP: 120W
- Maximum Operating Temperature: 89°C
- Thermal Solution Included: No
- Recommended Cooling: Liquid Cooler Recommended
Memory Support
- Memory Type: DDR5
- Memory Channels: Dual Channel
- Maximum Memory Capacity: 128GB
- ECC Memory Support: Yes (Motherboard Dependent)
Supported Memory Speeds
- DDR5-5200 (2 DIMMs)
- DDR5-3600 (4 DIMMs)
Connectivity
- PCI Express Version: PCIe 5.0
- PCIe Lanes: 28 Total / 24 Usable
- Native USB 3.2 Gen 2 (10Gbps): 4
- Native USB 2.0: 1
- NVMe Support: Boot, RAID 0, RAID 1, RAID 10
Graphics
- Graphics Model: AMD Radeon Graphics
- Graphics Cores: 2
- Graphics Frequency: 2200MHz
- USB Type-C DisplayPort Alternate Mode Support
Chipset Compatibility
- X870E
- X870
- B850
- B840
- X670E
- X670
- B650E
- B650
- A620
Supported Technologies
- AMD 3D V-Cache
- AMD EXPO
- Precision Boost 2
- Precision Boost Overdrive
- AMD Ryzen Master
- Curve Optimiser
Operating System Support
- Windows 11 64-bit
- Windows 10 64-bit
- Ubuntu x86 64-bit
- RHEL x86 64-bit
Ideal For
- Competitive Gaming PCs
- High-End AAA Gaming
- Esports Systems
- Streaming & Gaming Setups
- Content Creation
- Video Editing
- Enthusiast PC Builds
- AM5 Platform Upgrades
- High Refresh Rate Gaming
- Performance-Focused Desktop Systems
Why Choose the AMD Ryzen 7 7700X3D?
The AMD Ryzen 7 7700X3D is purpose-built for gamers who want maximum performance from the AM5 platform. Combining 8 cores, 16 threads, advanced Zen 4 architecture, and AMD's industry-leading 3D V-Cache technology, it delivers exceptional gaming responsiveness and impressive frame rates across modern titles.
With 104MB of total cache, PCIe 5.0 support, DDR5 compatibility and advanced performance tuning features, the Ryzen 7 7700X3D provides the perfect foundation for a powerful next-generation gaming PC. Whether you're competing online, streaming gameplay or tackling demanding workloads, this processor is engineered to help you stay ahead of the competition.
