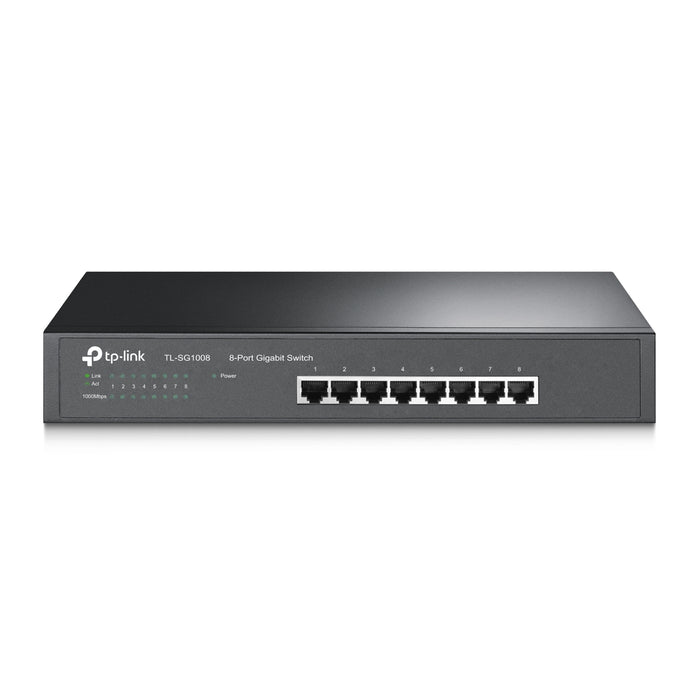

TP-Link TL-SG1008 8-Port Gigabit Metal Switch - Rackmount, Fanless, QoS
The TP-Link TL-SG1008 8-Port Gigabit Desktop/Rackmount Switch is designed to deliver reliable, high-speed networking with professional-grade hardware. With eight auto-negotiating Gigabit ports, silent fanless operation, and QoS support, it's the perfect choice for workgroups, small offices, and home users looking for efficient and scalable network performance.
✅8× 10/100/1000Mbps RJ45 Ports with Auto MDI/MDIX
✅MAC Address Auto-Learning & Auto-Aging for intelligent packet handling
✅802.1p/DSCP QoS ensures smooth traffic for latency-sensitive applications
✅Fanless Metal Design – Silent operation with robust rackmount build
✅Standard 13-inch rackmount case with included bracket for 19” mounting
✅Supports IEEE 802.3i/u/ab/x standards for broad compatibility
✅Green Ethernet technology reduces power consumption
✅Store-and-Forward transfer method ensures error-free packet delivery
✅Compact design for desktop use or rack integration
✅CE, FCC, RoHS Certified for safety and quality
Specifications
•Interface: 8× 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
•Network Media:
– 10BASE-T: UTP Cat 3, 4, 5 (max 100m)
– 100BASE-TX/1000BASE-T: UTP Cat 5, 5e or above (max 100m)
•Fan Quantity: Fanless
•Power Supply: 100–240VAC, 50/60Hz
•Power Consumption: Max 4.3W
•Max Heat Dissipation: 14.67 BTU/h
•Dimensions: 11.6 x 7.1 x 1.7 in. (294 x 180 x 44 mm)
•Mounting Options: Desktop, 13” or 19” Rackmount (bracket included)
Performance
•Switching Capacity: 16Gbps
•Packet Forwarding Rate: 11.9Mpps
•MAC Address Table: 4K
•Jumbo Frame: 16KB
•Transfer Method: Store-and-Forward
Software Features
•MAC address auto-learning and auto-aging
•IEEE 802.3x Flow Control
•802.1p/DSCP QoS for traffic prioritization
Certifications
•FCC, RoHS
Package Contents
•TL-SG1008 8-Port Gigabit Desktop Switch
•Power Cord
•Rackmount Kit
•Rubber Feet
•Installation Guide
Environment
•Operating Temperature: 0–40°C
•Storage Temperature: -40–70°C
•Operating Humidity: 10%–90% RH non-condensing
•Storage Humidity: 5%–90% RH non-condensing
