Ubiquiti UDR7 UniFi Dream Router 7 | WiFi 7, 2.5GbE, NVR & Security Gateway
Ubiquiti UDR7 UniFi Dream Router 7 – WiFi 7 All-in-One Console with 2.5GbE, 10G WAN, NVR, and Security Gateway
The Ubiquiti UniFi Dream Router 7 (UDR7) is a compact powerhouse, merging high-performance WiFi 7, 2.5GbE switching, 10G SFP+ WAN, integrated NVR, and a full suite of UniFi applications. Built to manage growing smart networks, it serves as your central controller, firewall, access point, and surveillance system—all in one elegant desktop unit.
✅ Key Features & Benefits
✅ WiFi 7 Tri-Band Access Point
Experience blazing speeds up to 5.7 Gbps on 6GHz, 4.3 Gbps on 5GHz, and 688 Mbps on 2.4GHz with advanced MU-MIMO and EHT320 support.
✅ All-in-One UniFi Console
Manages over 30 UniFi devices, runs UniFi Network, Protect, Access, Talk, and Connect applications with seamless centralisation.
✅ Integrated NVR with 64GB microSD
Supports up to 5 HD, 2 2K, or 1 4K UniFi cameras with built-in storage. Easily expand via the microSD card slot.
✅ 10G SFP+ & 2.5GbE WAN
Enjoy ultra-fast internet with dual WAN options—10G SFP+ and 2.5GbE RJ45—plus multi-WAN load balancing and failover.
✅ Advanced Layer 7 Security
Includes IDS/IPS (2.3 Gbps throughput), zone-based firewalls, application control, ad blocking, and VLAN segmentation with over 20,000 threat signatures.
✅ Multiple VPN Protocols with Site Magic
Supports IPSec, WireGuard, OpenVPN, L2TP, and Teleport for simple, secure remote access and site-to-site networking.
✅ Smart PoE + Switching
Includes 3x 2.5GbE LAN ports, with PoE output (15.4W) for powering UniFi devices directly.

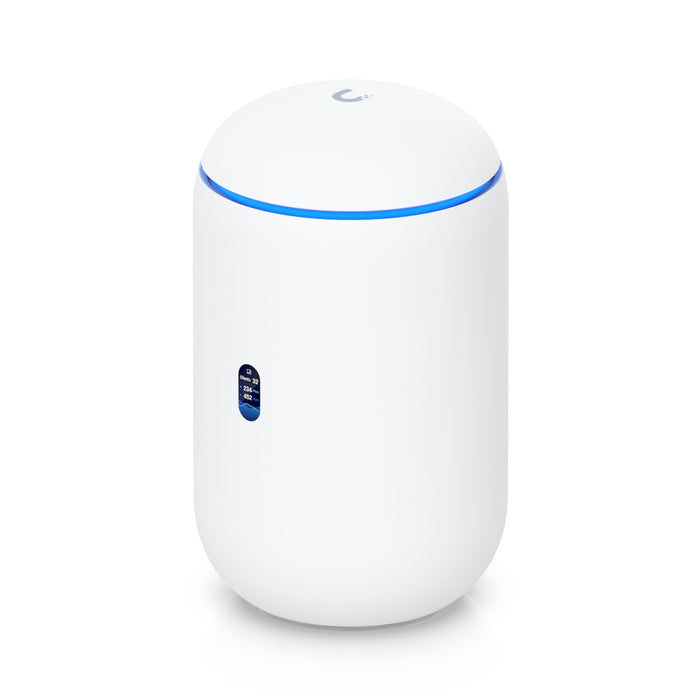

✅ Compact & Stylish with LCM Display
Minimalist polycarbonate design, status screen, and desktop footprint blend performance with modern aesthetics.
⚙️ Technical Specifications
| Feature | Details |
|---|---|
| WiFi Standard | WiFi 7 (802.11be) Tri-Band |
| Throughput | 6GHz: 5.7 Gbps, 5GHz: 4.3 Gbps, 2.4GHz: 688 Mbps |

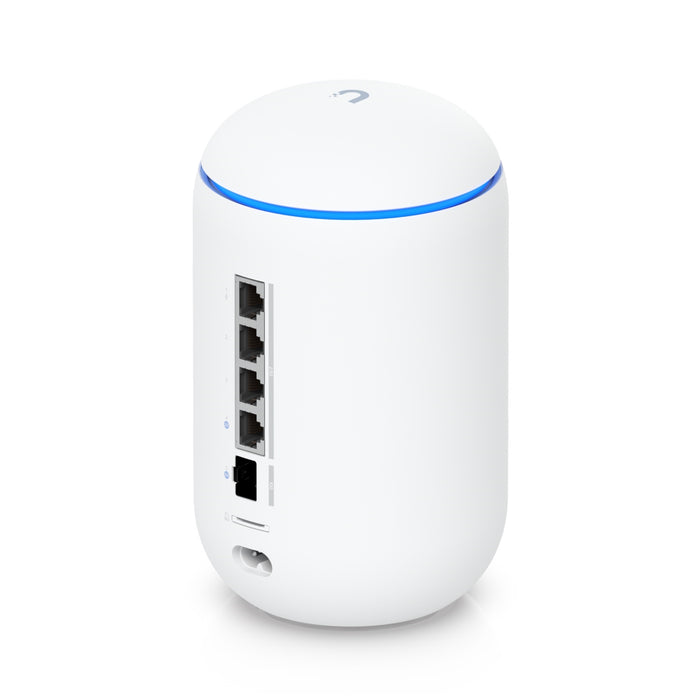

| Ports | 1x 10G SFP+, 1x 2.5GbE WAN, 3x 2.5GbE LAN (1x PoE) |
| PoE Output | 15.4W (802.3af) |
| Max Users | 300+ |
| Managed Devices | 30+ UniFi Devices |
| Security | Layer 7 Firewall, DPI, IDS/IPS, Ad Blocking |
| VPN Support | Teleport, WireGuard, IPSec, OpenVPN, L2TP |
| NVR Capability | 64GB microSD included, supports HD/2K/4K cameras |
| Processor | Quad-core ARM Cortex-A53 @ 1.5GHz |
| Memory | 3 GB RAM |
| Management | Ethernet, Bluetooth, LCM Display |
| Certifications | CE, FCC, IC |
| Power | 100–240V AC, 26W Max (excl. PoE) |
| Dimensions | 110 x 184.1 mm |
| Weight | 1.1 kg |
📦 What’s in the Box
-
UniFi Dream Router 7 (UDR7)
-
UK Power Cable
-
Quick Start Guide
💡 Who Is It For?
Perfect for tech-savvy homes, SMBs, or branch offices seeking a single, license-free UniFi solution to unify WiFi, routing, switching, surveillance, and VPN—all from one device.
