Ubiquiti UDB-Pro-Sector Device Bridge Pro Sector | 5GHz PtMP Link
Ubiquiti UDB-Pro-Sector UniFi Device Bridge Pro Sector
High-Performance Point-to-Multipoint Wireless Bridge for Long-Distance Links

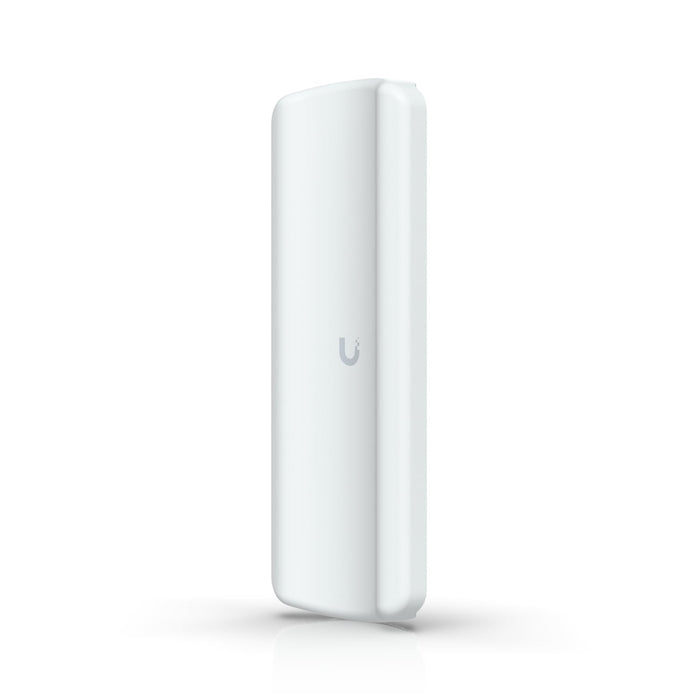

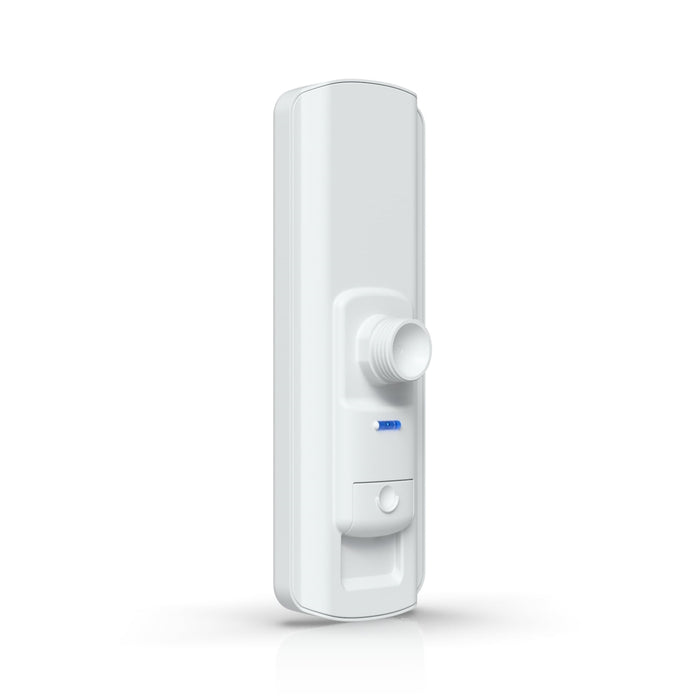

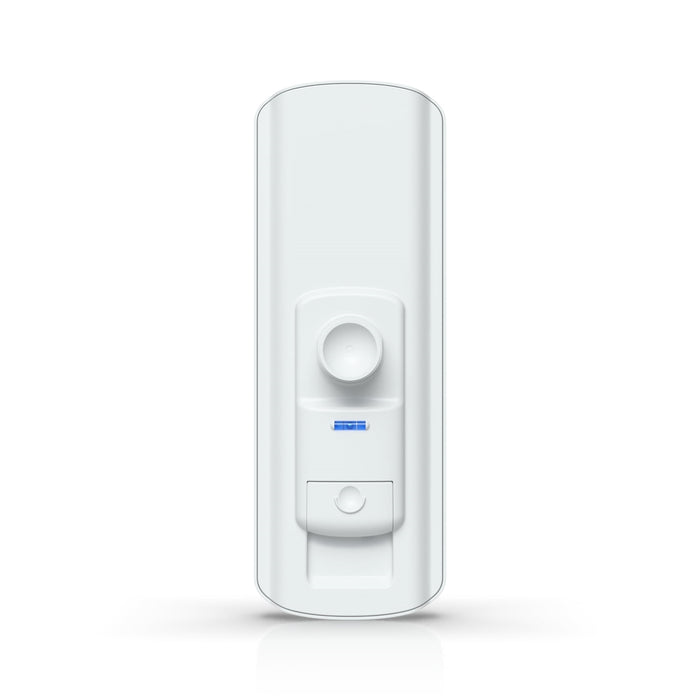

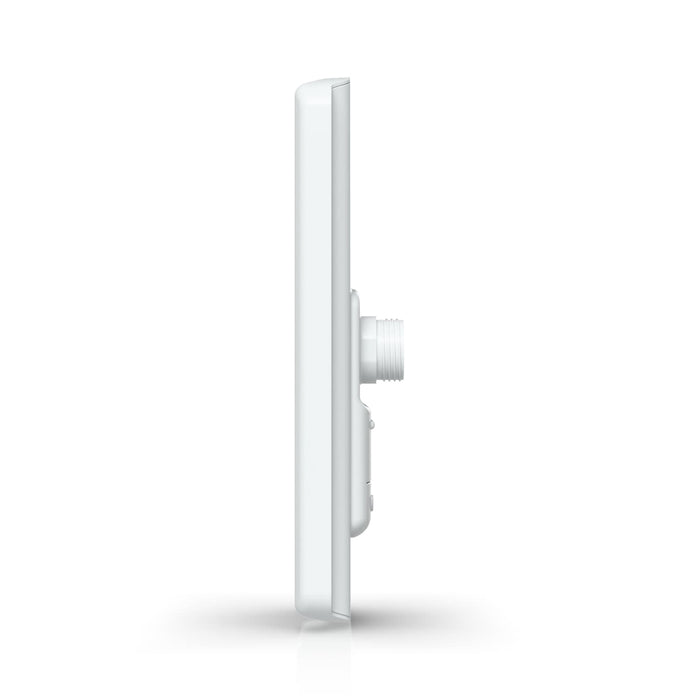

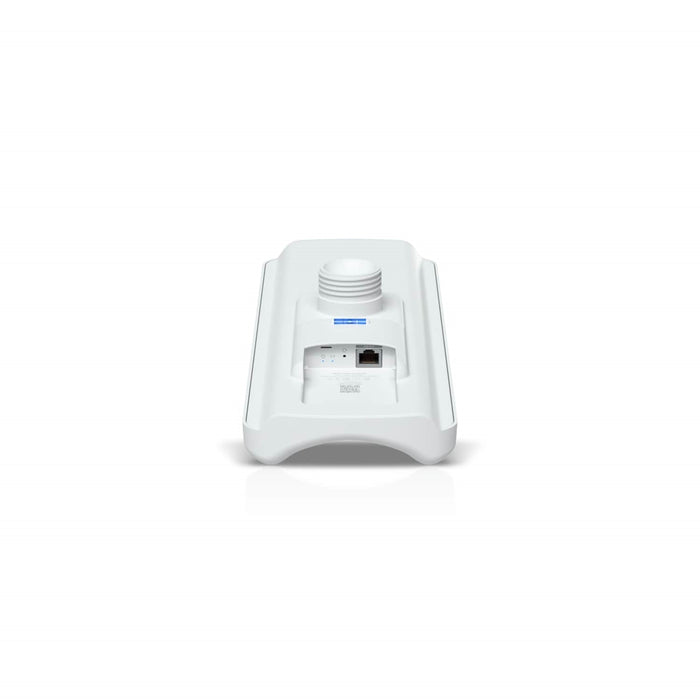

The Ubiquiti Device Bridge Pro Sector (UDB-Pro-Sector) is a robust, high-performance 5 GHz point-to-multipoint (PtMP) access point designed to connect over 40 Device Bridge Pro clients across distances exceeding 5 km. With its directional antenna, weather-resistant build, and UniFi integration, it is an ideal solution for campus networks, rural broadband deployment, or industrial IoT setups requiring reliable, long-range wireless coverage.
🌟 Key Features & Benefits
✅ Extended Point-to-Multipoint Coverage
Wirelessly bridges 40+ Ubiquiti Device Bridge Pro units at distances of up to 5 km (3.1 miles).
✅ WiFi 5 (802.11ac) with 2x2 MIMO
Delivers stable throughput up to 400 Mbps with low latency and dual spatial streams for increased performance.
✅ Built-In High-Gain Antenna
Integrated 17 dBi directional antenna offers focused signal strength ideal for line-of-sight deployments.
✅ Rugged, Weatherproof Design
Rated IPX6 for all-weather operation with a durable, UV-stabilized polycarbonate enclosure—perfect for outdoor pole mounting.
✅ PoE-Powered with Minimal Consumption
Efficient Power-over-Ethernet (PoE) operation consumes just 6W, simplifying installation and cabling.
✅ Seamless UniFi Management
Supports centralized management via UniFi Controller for easy monitoring, configuration, and remote firmware upgrades.
⚙️ Technical Specifications
| Feature | Specification |
|---|---|
| WiFi Standard | WiFi 5 (802.11ac) |
| Frequency Band | 5 GHz |
| Max. Data Rate | 400 Mbps (40 MHz BW) |
| MIMO | 2x2 (5 GHz) |
| Antenna Gain | 17 dBi |
| Max TX Power | 25 dBm |
| Coverage Range | Up to 5 km (3.1 miles) |
| Wireless Security | WPA2 AES |
| Ethernet Port | 1 x Gigabit RJ45 |
| Power Method | PoE (42.5–57V DC) |
| Max Power Consumption | 6W |
| Enclosure | UV-stabilized Polycarbonate |
| Mounting | Pole mount (diameter: 24–60 mm) |
| Environmental Rating | IPX6 Weatherproof |
| Operating Temperature | -40 to 60°C (-40 to 140°F) |
| Humidity | 5% to 95% (non-condensing) |
| Weight | 782 g (device) / 835 g (with mount) |
| Certifications | CE, FCC, IC, NDAA Compliant |
📦 Package Contents
-
Ubiquiti Device Bridge Pro Sector
-
Mounting hardware
-
Quick Start Guide
PoE injector not included
💡 Why Choose the UDB-Pro-Sector?
Whether you're extending connectivity to remote buildings or creating a scalable wireless infrastructure, the Ubiquiti UDB-Pro-Sector delivers industrial-grade point-to-multipoint performance in a sleek, weather-resistant housing. It’s the go-to solution for long-distance, high-throughput wireless bridging that integrates effortlessly into your existing UniFi ecosystem.
