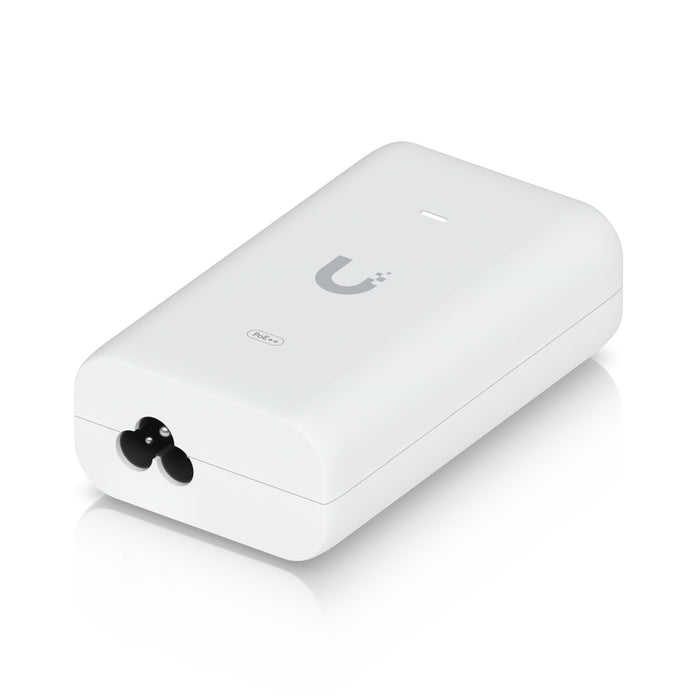

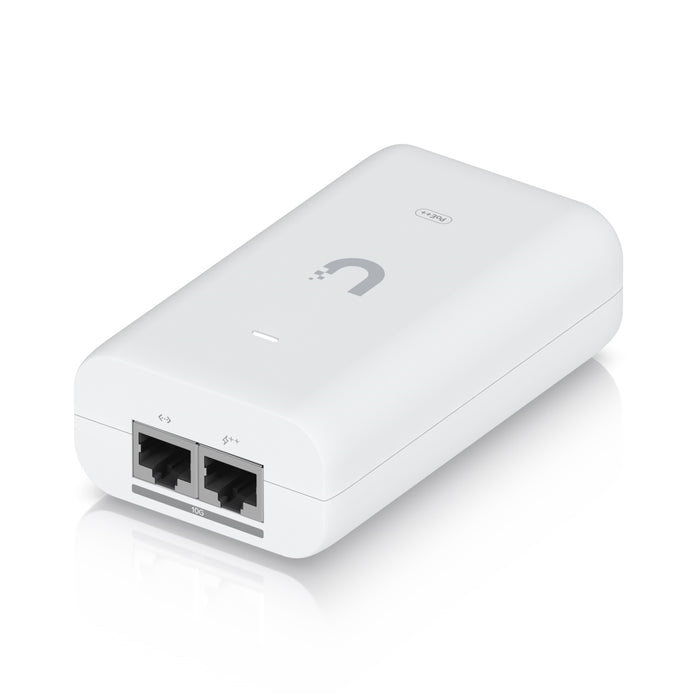

Ubiquiti UACC-POE++-10G 60W PoE++ Injector - 10G, 802.3bt, Universal

The Ubiquiti UACC-POE++-10G is a high-performance PoE++ injector built for modern networks that demand both power and speed. Delivering up to 60W of 802.3bt-compliant PoE++ output and supporting 10 Gigabit Ethernet, it provides flexible deployment options for UniFi devices, reduces reliance on PoE switch capacity, and ensures clean, protected power delivery.

✅Delivers up to 60W of 802.3bt PoE++ power
✅Supports up to 10GbE for high-speed networking
✅Reduces dependency on PoE switch power budgets
✅Surge, peak pulse, and overcurrent protection included

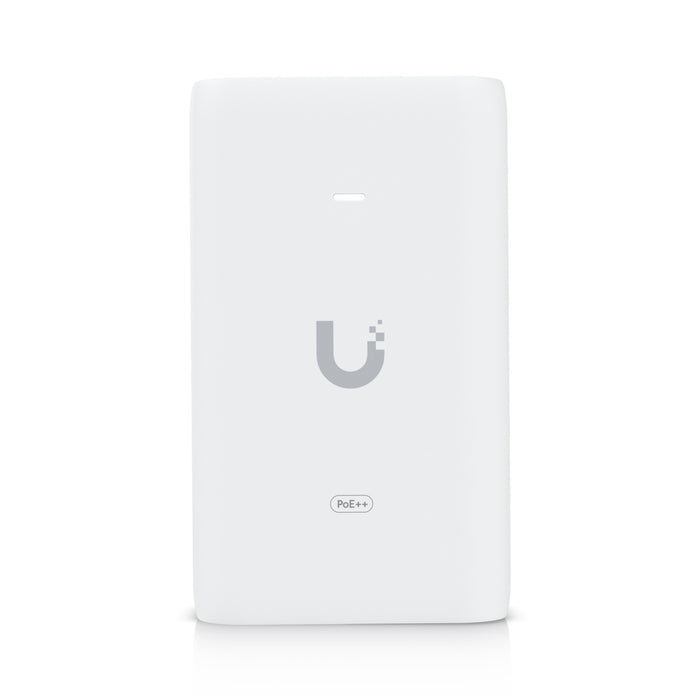

✅LED indicator for real-time power status
✅Compact, fanless, and silent design (106 x 63 x 34 mm)
✅4-pair powering on pins 1,2,4,5 (+) and 3,6,7,8 (–)

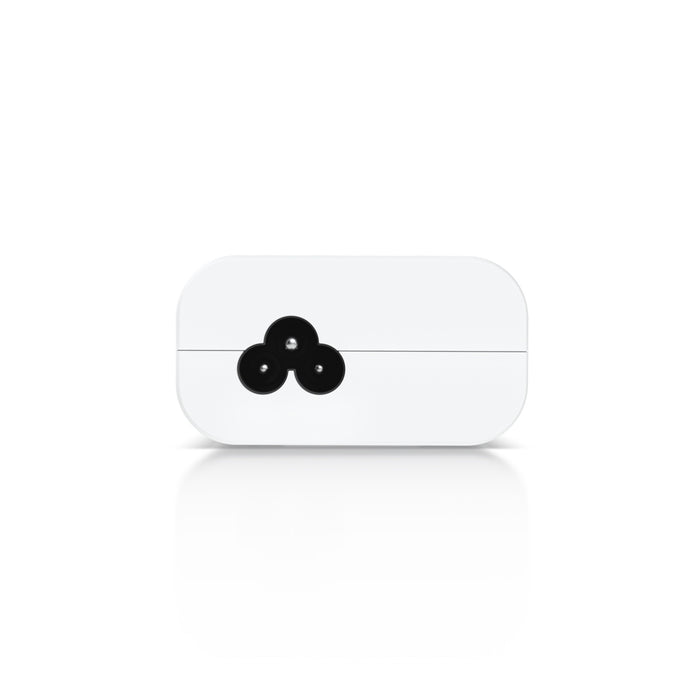

✅Input voltage: 100–240V AC, 50/60Hz
✅Efficiency over 88% with <1% output ripple
✅Compliant with CE, FCC, UKCA, UL, RoHS & more

Technical Specifications

•Output Voltage: 54V DC @ 1.12A
•Max Output Power: 60W

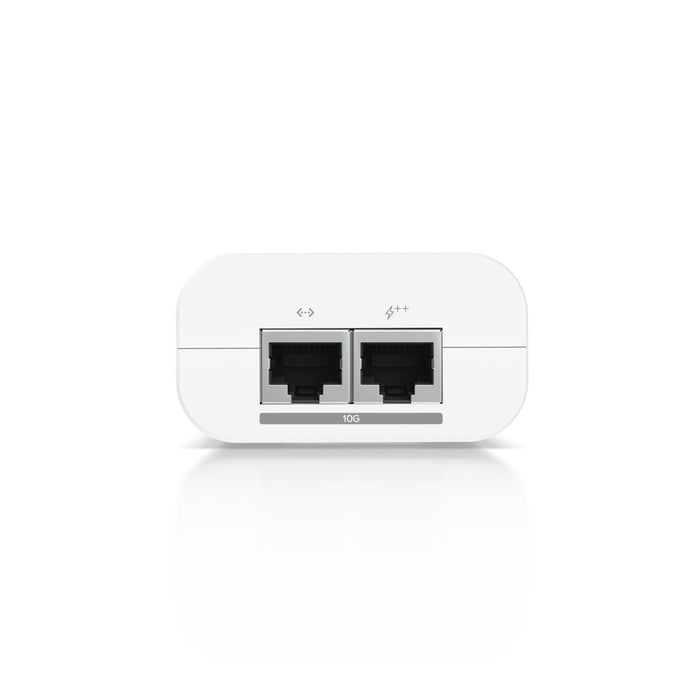

•LAN Port: 10 Gigabit RJ45 shielded socket
•Input Current: 1.5A max
•Inrush Current: <150A peak @ 230V AC
•Efficiency: >88%
•Switching Frequency: 65 kHz
•Surge Protection:
 – Data: 11V clamp, 36A peak pulse
 – Power: 60V clamp, 1500A surge discharge
•Power Pins Used: 1,2,4,5 (+) and 3,6,7,8 (–)
•No reset button or remote reset capability

Physical & Environmental

•Dimensions: 106 x 63 x 34 mm
•Weight: 210g
•Operating Temp: 0 – 40°C
•Humidity: 10 – 90% non-condensing
•Mounting: Desktop-ready

Package Contents

•UACC-POE++-10G Injector
•AC Power Cable
•Quick Start Guide

Certifications

CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
