Ubiquiti UDM-Pro-Max UniFi Dream Machine 10G Gateway NVR
Ubiquiti UDM-PRO-MAX UniFi Dream Machine Pro Max – 10G Cloud Gateway, Switch, Security Gateway & NVR

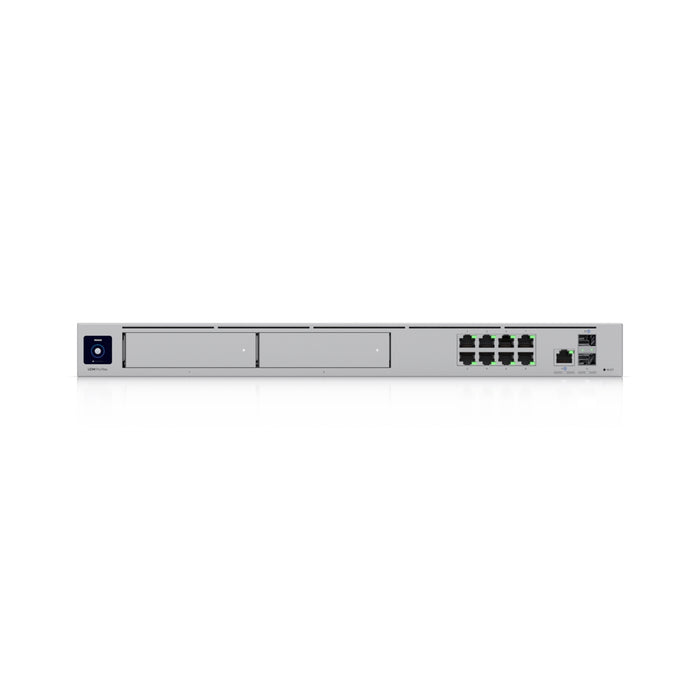

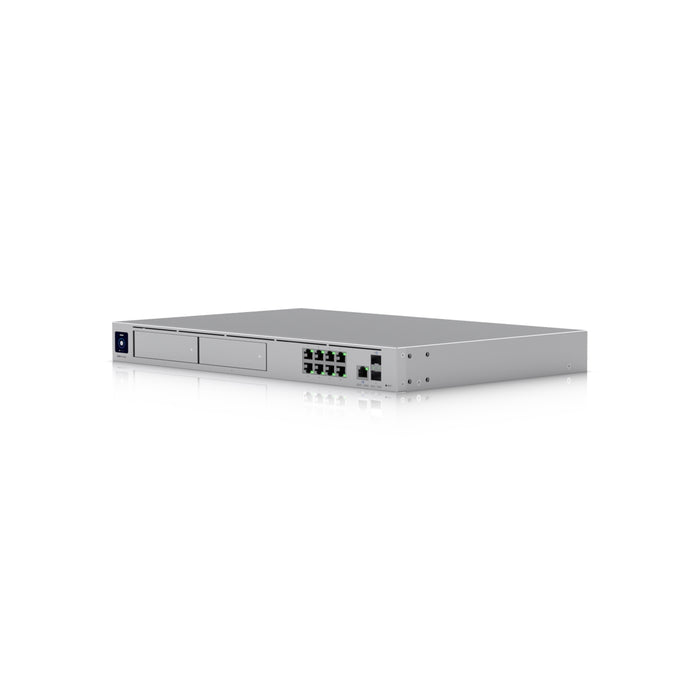

The Ubiquiti UniFi Dream Machine Pro Max (UDM-PRO-MAX) is a high-performance, all-in-one enterprise network appliance combining a 10G security gateway, managed switch, UniFi controller and UniFi Protect NVR in a single 1U rackmount chassis.
Designed for demanding business environments, it delivers 5 Gbps IDS/IPS routing, support for 200+ UniFi devices and over 2,000 clients, dual-WAN connectivity, and redundant RAID-protected video storage. With significantly increased CPU and memory resources over the Dream Machine Pro and SE models, it is built to scale with modern networks, advanced security policies and high-density surveillance deployments.
Key Features
✅ 10G cloud gateway, managed switch, security gateway and NVR in one device
✅ Supports 200+ UniFi devices and 2,000+ connected clients
✅ 5 Gbps IDS/IPS threat detection and prevention throughput
✅ Full UniFi application suite built-in (Network, Protect, Access, Talk, Connect)
✅ Dual WAN support with 10G SFP+ and 2.5GbE RJ45
✅ (8) Gigabit LAN ports plus (1) 10G SFP+ LAN port
✅ (2) 3.5" HDD bays with RAID support for UniFi Protect
✅ Integrated 128GB SSD for detection recordings
✅ Quad-core ARM Cortex-A57 processor with 8GB DDR4 memory
✅ Redundant power input support via UniFi Power Backup (USP-RPS)
✅ Advanced firewall, VLAN segmentation and traffic inspection
✅ License-free SD-WAN and advanced VPN support
✅ 1.3" front touchscreen status display
✅ Rackmount aluminium and steel enterprise chassis
Enterprise-Grade Performance and Scalability
With double the computing resources of the Dream Machine Pro and SE, the UDM-PRO-MAX is engineered for:
• High-density UniFi deployments
• Large multi-site networks
• AI-enabled surveillance systems
• Advanced security inspection
• High-throughput fibre connections
Its 5 Gbps IDS/IPS throughput enables full deep packet inspection without compromising performance, making it suitable for internet connections up to multi-gigabit speeds.
Integrated UniFi Protect NVR with Redundancy
The built-in NVR system supports:
• (2) 3.5" HDD bays
• RAID data protection
• Integrated 128GB SSD for motion detection metadata
• Seamless UniFi Protect camera management
This provides enterprise-class reliability for surveillance deployments without requiring a separate NVR appliance.
Advanced Security & Networking Capabilities
Includes a comprehensive next-generation firewall and routing stack:
• Application-aware firewall rules
• Signature-based IDS/IPS
• Country, domain, content and ad filtering
• VLAN and subnet traffic segmentation
• Full stateful firewall
• Policy-based WAN and VPN routing
• WireGuard, OpenVPN and L2TP VPN server support
• IPsec and OpenVPN site-to-site VPN
• SD-WAN with no licensing costs
• LTE failover support
• Detailed internet quality and outage reporting
Technical Specifications
Model: UDM-PRO-MAX
Product Type: Cloud Gateway / Switch / Security Gateway / UniFi Protect NVR
Hardware
Processor: Quad-core ARM Cortex-A57 @ 2.0GHz
System Memory: 8GB DDR4
Onboard Storage: 32GB eMMC
Integrated SSD: 128GB
Drive Bays: 2 × 3.5" HDD (RAID supported)
Networking Interfaces
LAN:
(8) × 1GbE RJ45
(1) × 10G SFP+
WAN:
(1) × 2.5GbE RJ45
(1) × 10G SFP+
Performance
IDS/IPS Throughput: 5 Gbps (iPerf3, DHCP network)
Client Capacity: 2,000+
UniFi Device Capacity: 200+
Power
Power Input:
AC 100–240V, 50/60Hz
USP-RPS DC input (11.5V DC, 8.7A)
Power Supply: Internal AC/DC, 100W
Max Power Consumption: 100W
Physical
Dimensions: 442.4 × 43.7 × 285.6 mm
Weight: 4.7 kg
Enclosure Material: CNC aluminium and SGCC steel
Mount Material: SGCC steel
Management
Ethernet management
Bluetooth setup support
Front 1.3" touchscreen display
Ideal For
• Medium to large businesses
• Multi-site organisations
• High-density WiFi deployments
• Enterprise security environments
• Fibre broadband and 10G networks
• Professional surveillance installations
• MSP and IT infrastructure providers
