TP-Link EAP772 Wi-Fi 7 Access Point BE9300 Tri-Band | 2.5G PoE

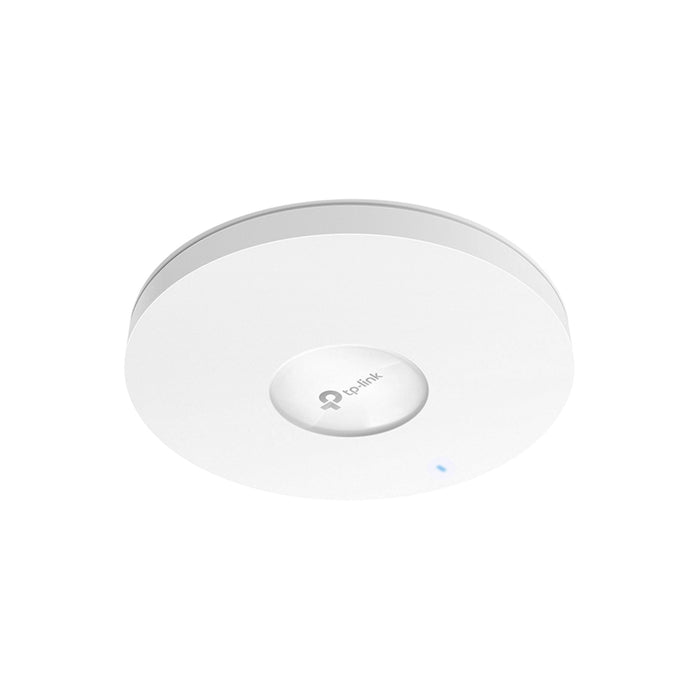

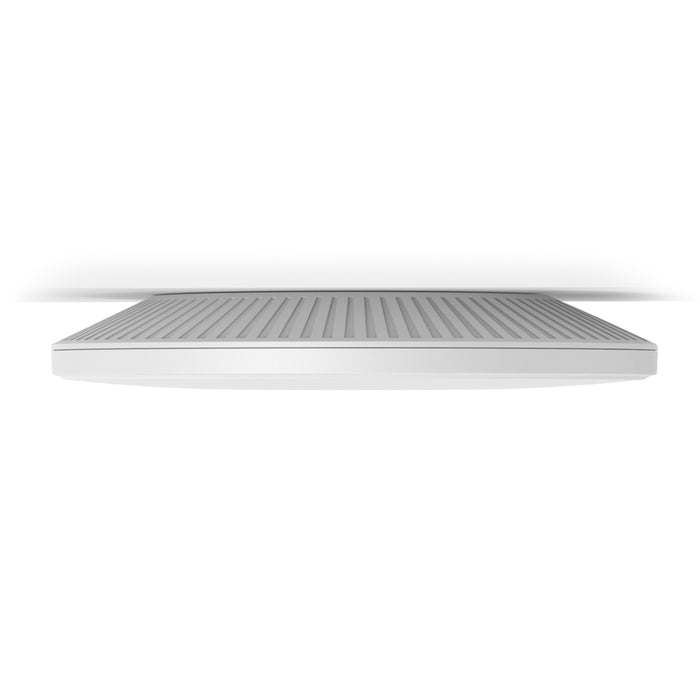

TP-Link EAP772 BE9300 Tri-Band Wi-Fi 7 Access Point (Ceiling Mount)
Next-Gen Wi-Fi 7 Access Point for Enterprise-Grade, High-Density Environments
The TP-Link EAP772 is an ultra-powerful Wi-Fi 7 ceiling-mount access point, engineered to deliver superior wireless speed, expanded capacity, and cleaner spectrum access via the 6 GHz band. Perfect for hotels, campuses, offices, and smart buildings where seamless performance and robust central management are key.
🌟 Key Features & Benefits
✅ Wi-Fi 7 Tri-Band Performance
Experience ultra-fast wireless speeds with tri-band coverage:
-
6 GHz: 5760 Mbps
-
5 GHz: 2880 Mbps
-
2.4 GHz: 574 Mbps
Support for HE320 and 4K-QAM ensures fast, stable throughput.
✅ 320 MHz Channel Width
Supports 320 MHz bandwidth for more simultaneous, high-speed client connections, unlocking Wi-Fi 7’s full potential.
✅ 6 GHz Clear Band Access
Access the cleaner, interference-free 6 GHz band, ideal for mission-critical, latency-sensitive applications like conferencing, streaming, or AR/VR.
✅ Handles 380+ Clients Concurrently
Built for high-density environments, the EAP772 supports 380+ clients with balanced performance across tri-band frequencies.
✅ 2.5G PoE+ Ethernet Port
Leverages a 2.5 Gigabit Ethernet port for high-speed backhaul. Powered via 802.3at PoE or optional DC power adapter (sold separately).
✅ Omada SDN Integration
Fully manageable via Omada Cloud, OC300/OC200 hardware controller, or software controller. Features AI Roaming, mesh capability, and zero-touch provisioning.
✅ Enterprise-Grade Security
Includes support for WPA3, VLAN, rogue AP detection, MAC filtering, RADIUS accounting, and captive portal for secure guest access.
⚙️ Technical Specifications
| Feature | Specification |
|---|---|
| Wi-Fi Standard | Wi-Fi 7 (802.11be) with backward compatibility |
| Tri-Band Speeds | 6 GHz: 5760 Mbps • 5 GHz: 2880 Mbps • 2.4 GHz: 574 Mbps |
| Ethernet Port | 1 x 2.5G PoE+ RJ45 |
| Power Supply | 802.3at PoE or 12V/2.5A DC (not included) |
| Max Power Consumption | 24.05W (PoE), 20.92W (DC) |
| Antenna Gain | 6x internal (3.0 dBi per band) + Bluetooth 5.2 |
| Client Capacity | 380+ concurrent clients |
| Coverage Area | Up to 140 m² (1,500 ft²) |
| Mounting Options | Ceiling/Wall (kits included) |
| Security Protocols | WPA/WPA2/WPA3, MAC Filtering, Captive Portal |
| SSID Support | Up to 24 (8 per band) |
| Management | Omada App • Cloud-Based • OC300/OC200 • Software |
| Cloud Access | Yes (Controller Required) |
| Certifications | CE, FCC, RoHS, IC |
| Dimensions | 220 x 220 x 32.5 mm (8.7 x 8.7 x 1.3 in) |
📦 What’s in the Box?
-
TP-Link EAP772 Wi-Fi 7 Access Point
-
Ceiling/Wall Mounting Kit
-
Quick Installation Guide
Power Adapter is NOT included.
💡 Why Choose the TP-Link EAP772?
The EAP772 delivers the cutting-edge features of Wi-Fi 7 with a compact, professional design tailored for demanding wireless environments. Whether expanding an enterprise-grade Omada SDN network or upgrading to the latest wireless standard, this access point ensures speed, stability, and scalability.
