TP-Link BE3600 Wall Wi-Fi 7 Access Point | EAP725-Wall, 2.5G, PoE+
TP-Link BE3600 Wall Plate Wi-Fi 7 Access Point (EAP725-Wall)
Compact Wall-Mounted Access Point with Tri-Band Wi-Fi 7 and Omada SDN Integration
Upgrade your wireless network with the TP-Link EAP725-Wall, a Wi-Fi 7 BE3600 wall plate access point designed for high-density environments like hotel rooms, student housing, offices, and modern apartments. This sleek, wall-mounted unit supports 2.5G PoE+ and delivers exceptional throughput with advanced security and mesh capabilities.
🌟 Key Features & Benefits
✅ Next-Gen BE3600 Wi-Fi 7 Performance
Tri-band wireless delivers:
-
5 GHz: Up to 2882 Mbps
-
2.4 GHz: Up to 688 Mbps
Built on the 802.11be standard for high-speed, low-latency performance.
✅ Compact Wall-Mounted Design
Low-profile form factor with simple in-wall installation using the included mounting kit — ideal for room-based or hallway deployments.
✅ 2.5G Uplink with PoE++ Support

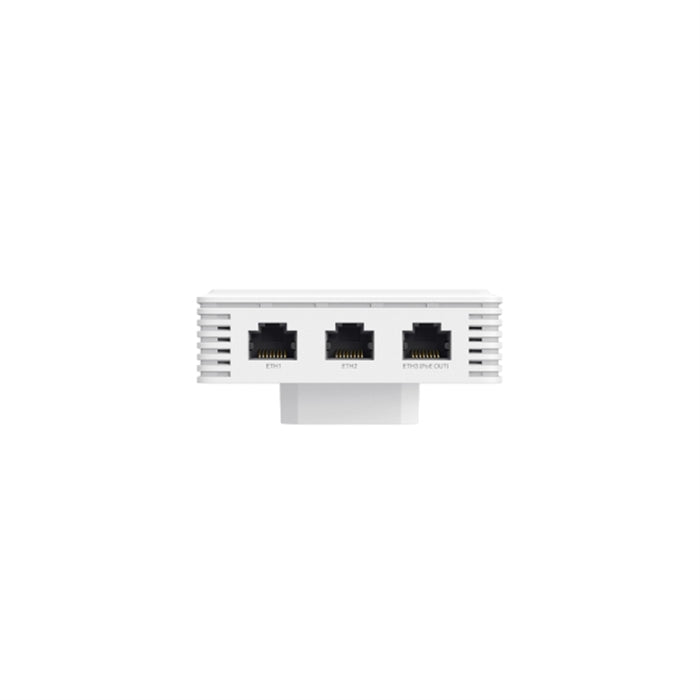

Includes:
-
1 x 2.5G PoE input (802.3at/bt)
-
1 x 2.5G passthrough port
-
2 x Gigabit RJ45 downlink ports
Supports PoE pass-through to downstream devices.
✅ Omada Centralised Management
Fully integrates with TP-Link's Omada SDN via hardware, software, or cloud controller. Manage thousands of APs from one interface.
✅ Enterprise-Grade Features
Advanced wireless functions:
-
Seamless Roaming
-
Band Steering & Load Balancing
-
MU-MIMO & Beamforming
-
WPA3 Security & VLAN Support
-
Wireless Isolation & Rogue AP Detection
✅ Supports 250+ Clients Simultaneously
Handles high-density usage with low latency and excellent coverage for up to 50 m² (600 ft²).
⚙️ Technical Specifications
| Feature | Specification |
|---|---|
| Wi-Fi Standard | 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Wireless Speeds | 5 GHz: 2882 Mbps • 2.4 GHz: 688 Mbps |
| Ethernet Ports | 1 x 2.5G PoE+ in, 1 x 2.5G passthrough, 2 x 1G downlink |
| PoE Standard | 802.3at/bt |
| Power Consumption | Max 17W (PoE out: up to 15.4W on bt input) |
| Client Capacity | 250+ concurrent clients |
| Coverage Area | Up to 50 m² (600 ft²) |
| Antenna Type | 4 x internal antennas (2x 5 GHz, 2x 2.4 GHz) |
| Mounting Options | Wall mount (mounting kit included) |
| Security | WPA3, VLANs, MAC filtering, captive portal |
| Management | Omada App, Cloud/Hardware/Software Controller |
| Cloud Access | Yes (Omada Controller Required) |
| Dimensions | 143 x 86 x 40 mm (5.6 x 3.4 x 1.6 in) |
| Certifications | CE, RoHS |
📦 What’s in the Box?
-
TP-Link EAP725-Wall Access Point
-
Mounting Kit
-
Installation Guide
Note: PoE injector or power supply not included.
💡 Why Choose the TP-Link EAP725-Wall?
The TP-Link BE3600 Wall Plate Access Point offers a smart, space-efficient solution for reliable, high-speed connectivity. With Wi-Fi 7 technology, PoE pass-through, and enterprise-grade security, it’s ideal for scalable deployments where performance and compact design are essential.
