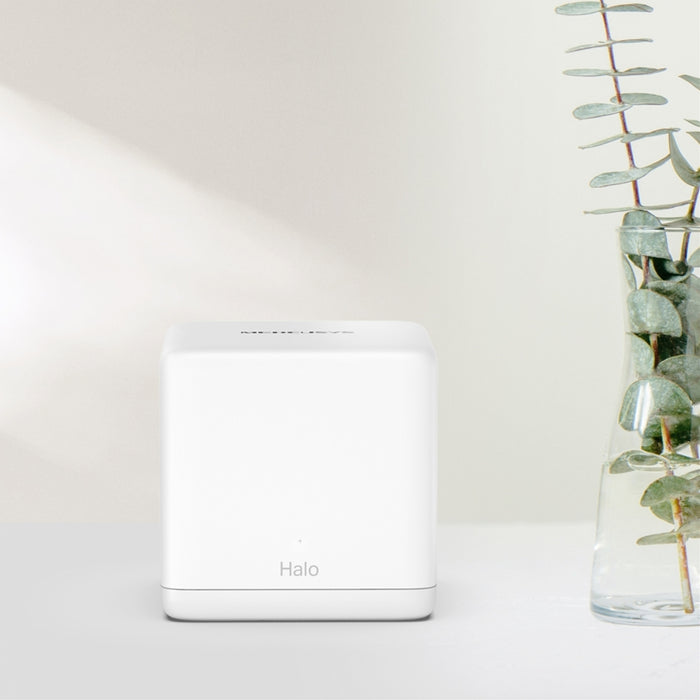

Mercusys Halo H60X Mesh WiFi 6 System 3 Pack – AX1500 Coverage

The Mercusys Halo H60X AX1500 Whole Home Mesh Wi-Fi 6 System (3 Pack) delivers fast, reliable, and seamless internet coverage throughout your home. With dual-band Wi-Fi 6 speeds, mesh roaming, and full gigabit ports, it’s built to handle busy households and multiple connected devices without compromise.

Key Features & Benefits

✔ Wi-Fi 6 Performance – AX1500 dual-band speeds up to 1500 Mbps (1201 Mbps on 5 GHz, 300 Mbps on 2.4 GHz) for smooth 4K streaming, gaming, and browsing.
✔ Seamless Mesh Roaming – Move freely around your home with one unified Wi-Fi name and password. Halo units automatically switch to the strongest signal.
✔ Whole Home Coverage – Blanket up to 6,000 sq.ft (550 m²) with strong Wi-Fi, eliminating dead zones in every corner.
✔ Connect Over 100 Devices – Stable and fast connections for smartphones, tablets, smart TVs, consoles, and smart home gadgets.
✔ Easy App Control – Set up, manage, and monitor your network with the intuitive Mercusys app. Includes parental controls for safer browsing.
✔ Full Gigabit Ports – Wired gigabit connections ensure maximum speed for PCs, smart TVs, and gaming consoles.
✔ Energy Efficient & Secure – WPA3 encryption, firewall protection, and IPv6 support keep your network safe and efficient.

Technical Specifications

Wireless

• Standards: Wi-Fi 6, IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11n/b/g 2.4 GHz

• Signal Rate: 1201 Mbps (5 GHz), 300 Mbps (2.4 GHz)

• Wireless Security: WPA-PSK/WPA2-PSK/WPA3

• Mesh Protocol: 802.11k/v/r

Software

• Modes: Router, Access Point

• WAN Types: Dynamic IP, Static IP, PPPoE, L2TP, PPTP

• Features: Guest Network, DHCP (Server/Client), SPI Firewall, IPv4/IPv6 support

• Management: Local, Remote, Multi-Manager via Mercusys App

Hardware

• Dimensions: 88 × 88 × 88 mm (3.5 × 3.5 × 3.5 in)

• Interfaces:
  • Halo H60XR: 3 × Gigabit WAN/LAN Ports
  • Halo H60XS: 2 × Gigabit LAN Ports

• Button: Reset

Performance

• Device Capacity: 100+ devices

• Transmission Power: 2.4 GHz < 20dBm, 5 GHz < 23dBm

• Coverage: Up to 6,000 sq.ft (550 m²)

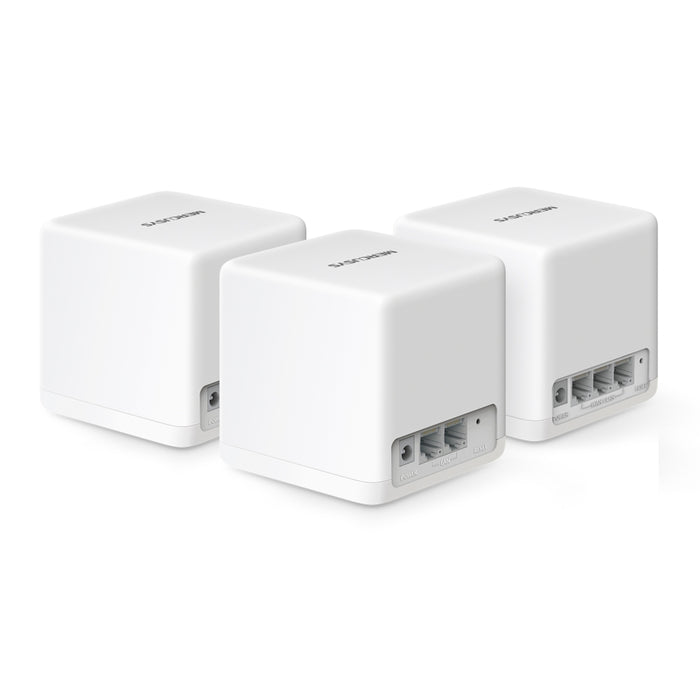

Package Contents (3-Pack)

• 1 × Halo H60XR Unit

• 2 × Halo H60XS Units

• 3 × Power Adapters

• 1 × RJ45 Ethernet Cable

• Quick Installation Guide

Why Choose the Mercusys Halo H60X?

The Halo H60X offers affordable next-gen Wi-Fi 6 mesh coverage without sacrificing speed, stability, or security. Perfect for medium to large homes, it eliminates dead zones, supports over 100 connected devices, and ensures smooth roaming with one network name. Whether for work, entertainment, or smart living, the Halo H60X is a future-ready choice.
