LOGIX 14th Gen Intel Core i7 SFF Business PC – 16GB RAM, 1TB SSD
LOGIX 14th Gen Intel Core i7 20-Core Small Form Factor Business / Education PC
The LOGIX 14th Gen Intel Core i7 SFF PC combines professional-grade performance, enterprise-class security, and a compact footprint. Designed for demanding business and education workloads, this system features Intel vPro Enterprise, ultra-fast Kingston PCIe 4.0 storage, and high-quality components to ensure speed, stability, and long-term reliability.
Key Features & Benefits
✅ Compact, Professional Design – Small Form Factor chassis (321 × 95 × 283 mm) saves desk space without compromising cooling or expandability.
✅ Enterprise-Grade Performance – Intel Core i7-14700 with 20 cores / 28 threads delivers 2.10GHz base clock and up to 5.30GHz Turbo Boost.
✅ Advanced Security – Intel vPro Enterprise, Intel Hardware Shield, AES-NI encryption, and Trusted Execution Technology for robust business protection.
✅ Lightning-Fast Storage – Kingston NV2 1TB PCIe Gen4 NVMe SSD with 6000MB/s read and 4000MB/s write speeds.
✅ Future-Proof Memory – Kingston 16GB DDR4 3200MHz RAM with expansion up to 64GB via 2 DIMM slots.
✅ Professional Connectivity – Multiple display outputs (DP 1.4a, HDMI 2.1, VGA, DVI-D) supporting up to 8K resolution via DisplayPort.
✅ Reliability Guaranteed – Built with Gigabyte Ultra Durable motherboard and premium power delivery for 24/7 operation.
✅ 3-Year UK Warranty – Parts and collection cover for peace of mind and minimal downtime.
Technical Specifications
Processor
-
Model: Intel Core i7-14700 (14th Gen)
-
Architecture: Raptor Lake
-
Cores / Threads: 20 cores / 28 threads
-
Base Frequency: 2.10GHz
-
Max Turbo Boost: 5.30GHz
-
Cache: 33MB total
-
Graphics: Intel UHD 730, base frequency 300MHz, max dynamic frequency 1.40GHz
-
Max Resolution:
-
DisplayPort: 7680×4320 @ 60Hz
-
HDMI: 4096×2160 @ 60Hz
-
-
Supported Standards: DP 1.4a, HDMI 2.1, eDP 1.4b
-
Intel vPro Enterprise, Intel Hardware Shield, Intel AES-NI, Intel Boot Guard, Intel OS Guard, Intel Threat Detection Technology (TDT)
Memory
-
Installed: 16GB Kingston DDR4 3200MHz (2×8GB DIMMs)
-
Voltage: 1.20V
-
Latency: CL22
-
Capacity: Expandable to 64GB (2 slots)
-
Intel XMP Profile Support
Storage
-
Drive: Kingston NV2 1TB PCIe Gen4 NVMe SSD (M.2 2280)
-
Interface: PCIe Gen4 x4 NVMe
-
Sequential Read: Up to 6000MB/s
-
Sequential Write: Up to 4000MB/s
-
TBW: 160TB
-
MTBF: 1,500,000 hours

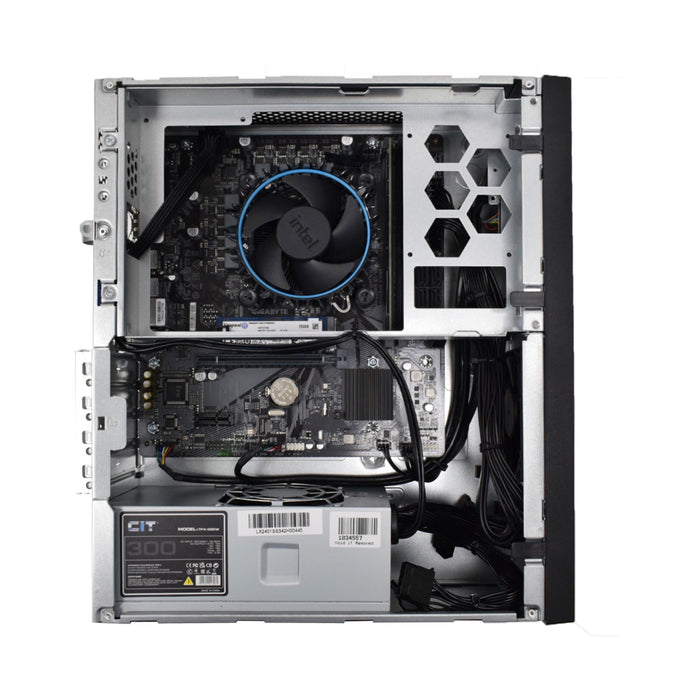

Motherboard
-
Model: Gigabyte H610M S2H V2 (Micro ATX, LGA1700)
-
Expansion Slots:
-
1× PCIe 4.0 x16
-
1× PCIe 3.0 x1
-
-
Storage Support: 1× M.2 PCIe 3.0 x4, 4× SATA 6Gb/s
-

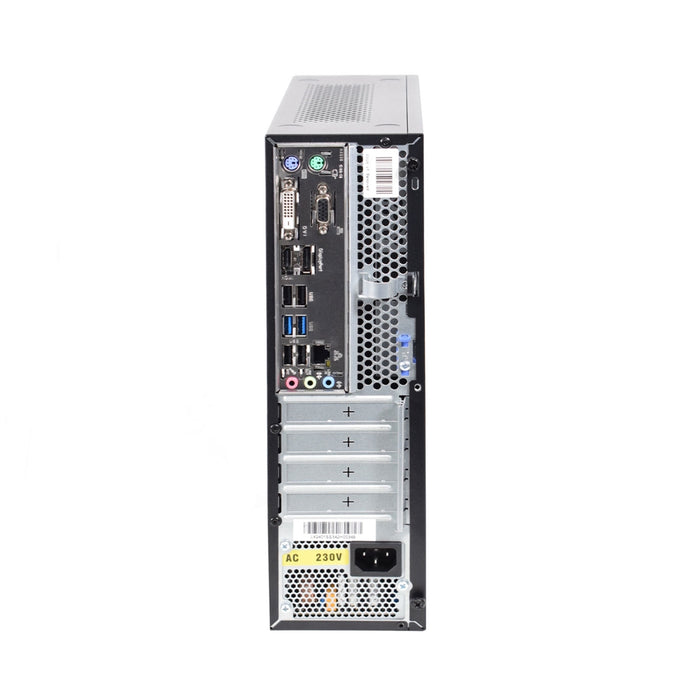

Rear I/O:
-
2× PS/2 (Keyboard/Mouse)
-
1× VGA, 1× DVI-D, 1× DisplayPort, 1× HDMI
-
2× USB 3.2 Gen1, 4× USB 2.0
-
1× RJ-45 GbE LAN
-
3× 3.5mm Audio Jacks
-

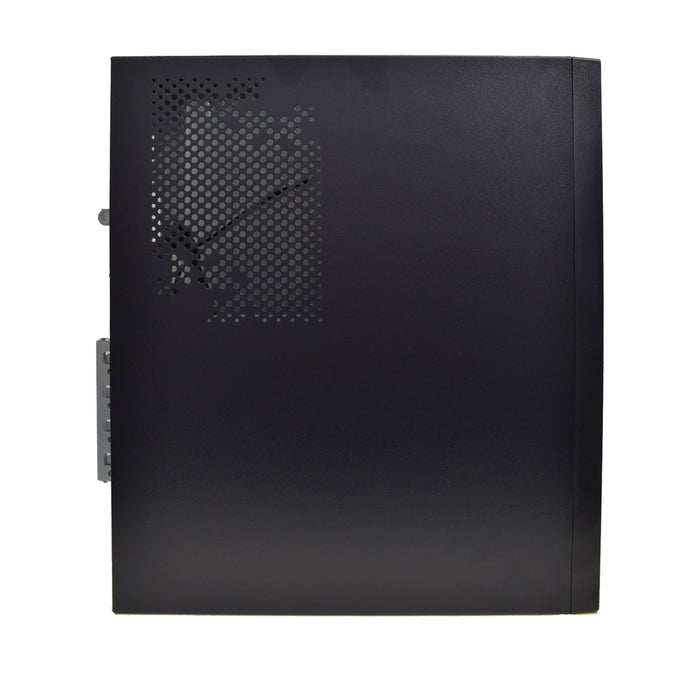

Chassis
-
Type: LOGIX Small Form Factor
-
Drive Bays: 1× 3.5", 2× 2.5"
-
Cooling: 1× 80mm fan included
-
Power Supply: 300W TFX PSU

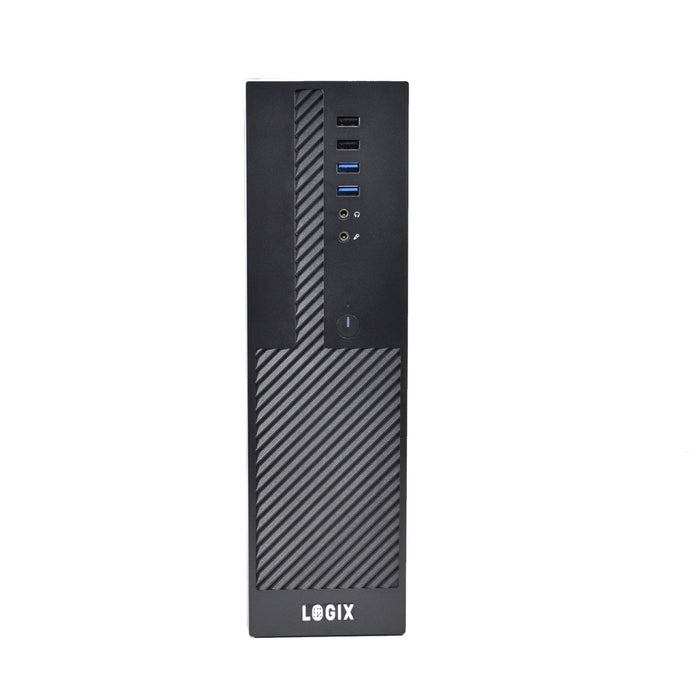

Front Panel
-
2× USB 3.0
-
2× USB 2.0
-
3.5mm HD Audio & Microphone
Networking
-
Wired: Realtek 1GbE LAN with bandwidth management for low-latency performance
-
No Wi-Fi – wired only for maximum security in business environments
Peripherals
-
Logitech MK120 USB Keyboard with silicone cover
-
Logitech Optical USB Mouse
Operating System
-
Windows 11 Pro 64-bit, pre-installed, updated, and bloatware-free
Dimensions & Weight
-
Size: 321 × 95 × 283 mm (W×H×D)
-
Weight: 6.9kg
Warranty
-
3-Year Parts & Collection Warranty (UK mainland only)
Why Choose This LOGIX Business PC?
This system is purpose-built for professional workloads where uptime, security, and performance matter. It’s hand-assembled in the UK, tested extensively for stability, and includes business-class features like Intel vPro Enterprise and Hardware Shield for complete confidence. From data processing to 8K display output, it’s ready for today’s demands and tomorrow’s growth.
