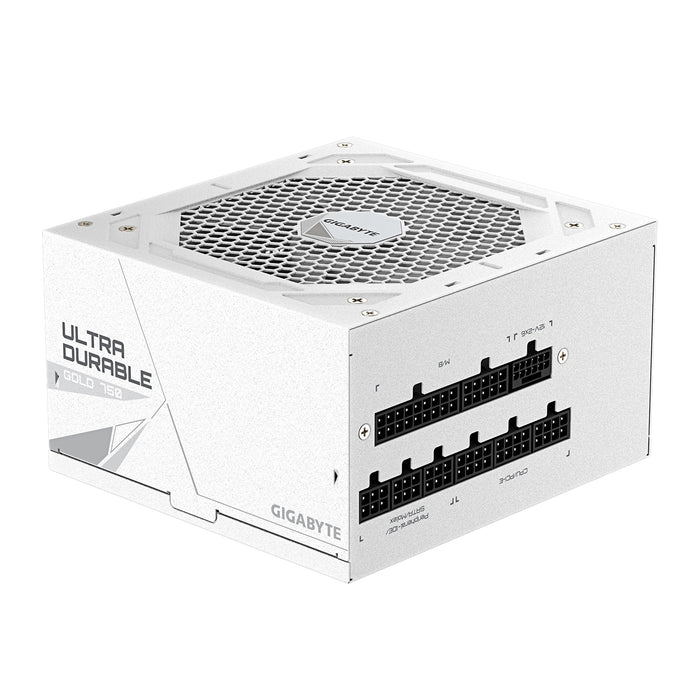

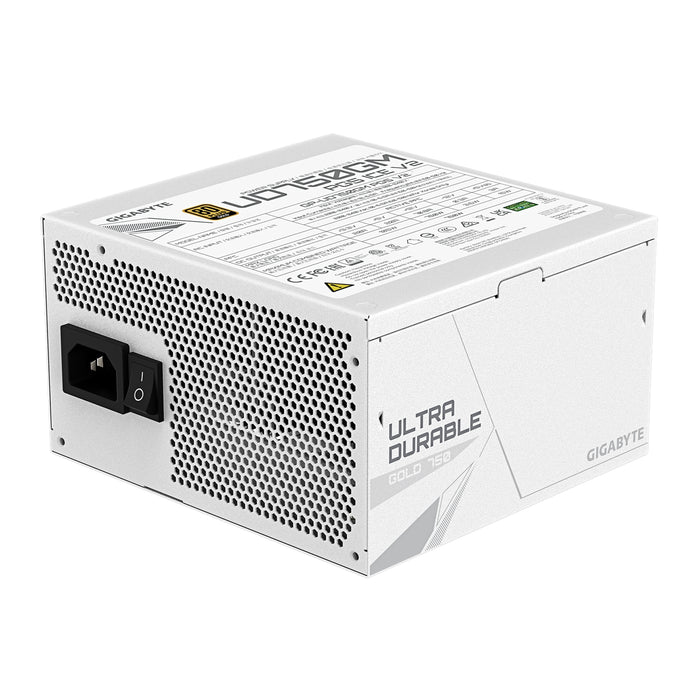

GIGABYTE UD750GM PG5 V2 ICE 750W PSU - 80+ Gold, ATX 3.1, White
GIGABYTE UD750GM PG5 V2 ICE 750W PSU, PCIe Gen 5.1, 80 PLUS Gold, Fully Modular, ATX 3.1 Compatible, UK Plug – ULTRA DURABLE WHITE EDITION
The GIGABYTE UD750GM PG5 V2 ICE delivers high efficiency, next-gen readiness, and striking all-white aesthetics. Designed for modern gaming systems and performance builds, this ATX 3.1 & PCIe Gen 5.1 compliant power supply ensures rock-solid stability, superior cooling, and seamless support for the latest hardware, including NVIDIA GeForce RTX 50 Series GPUs.
✅ Next-Gen Ready (ATX 3.1 & PCIe Gen 5.1) – Fully supports next-generation GPUs with a native 16-pin 12VHPWR cable, delivering up to 600W for advanced PCIe Gen 5.1 graphics cards.
✅ Ultra Durable Engineering – Built with 100% Japanese capacitors and premium components for consistent power delivery and long-lasting reliability.

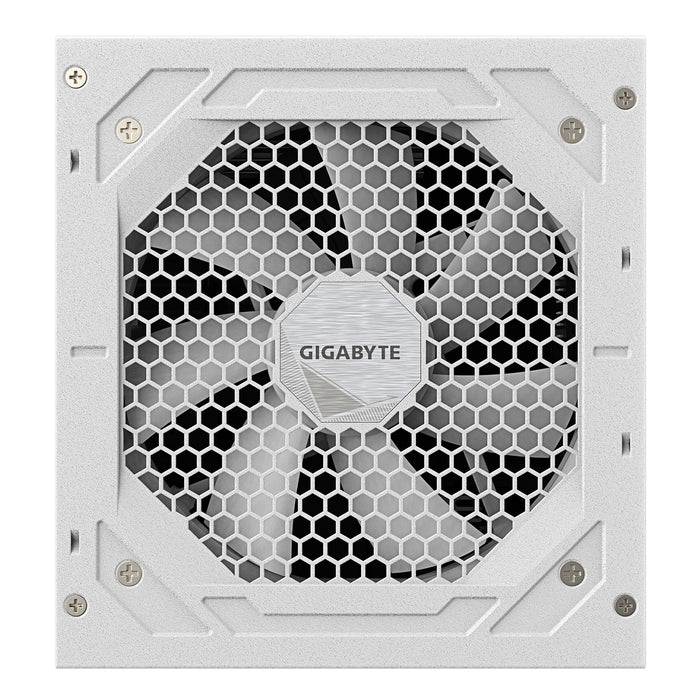

✅ Silent 120mm Hydraulic Bearing Fan – Intelligent speed control keeps noise to a minimum, remaining silent when system load is under 20%.
✅ Fully Modular White Cables – The embossed all-white modular cables ensure a clean, professional look while improving airflow and case management.
✅ 80 PLUS Gold Certified Efficiency – Up to 90% efficiency at 50% load, reducing heat, noise, and wasted power.
✅ Comprehensive Protection – Equipped with OVP, OPP, SCP, UVP, OCP, OTP safeguards for stable and secure operation.
✅ Compact 140mm Design – Optimized for compatibility with space-limited cases while maintaining full performance and cooling capabilities.

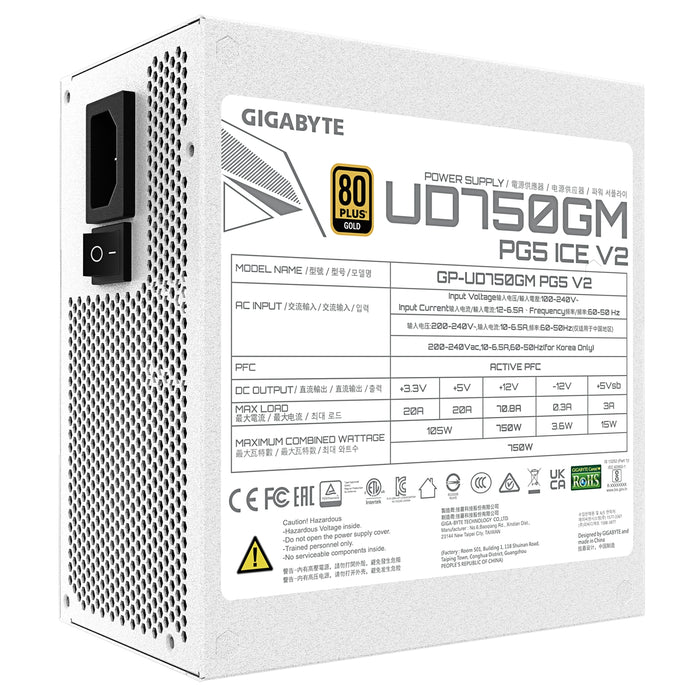

Specifications
• Model: GP-UD750GM PG5 ICE
• Form Factor: Intel ATX 12V v3.1
• Total Power: 750W
• Input Voltage: 100–240V AC (Full Range)
• Fan Type: 120mm Hydraulic Bearing (HYB)
• Efficiency: 80 PLUS Gold (90% Typical Load)
• MTBF: >100,000 hours
• Dimensions: 150 × 140 × 86 mm
• Cable Type: Embossed, All White
• Protections: OVP / OPP / SCP / UVP / OCP / OTP

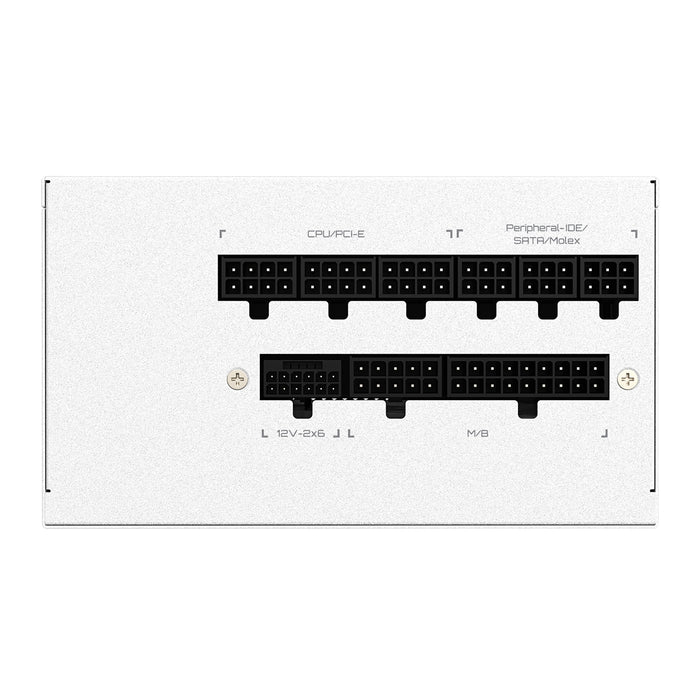

• Connectors:
– ATX 20+4 Pin × 1 (610mm)
– CPU 4+4 Pin × 2 (650mm + 200mm)
– PCI-E 6+2 Pin × 4 (600mm + 150mm ×2)
– PCI-E 12+4 Pin × 1 (700mm)
– SATA × 8 (600mm + 150mm + 150mm + 150mm ×2)
– 4-Pin Peripheral × 3 + Floppy × 1 (500mm + 150mm + 150mm + 150mm)
