be quiet! Power Zone 2 750W PSU - Platinum, ATX 3.1, 10Yr Warranty

The be quiet! Power Zone 2 750W is a high-performance power supply unit designed for gamers, creators, and professionals who demand exceptional efficiency, silent operation, and next-generation hardware compatibility. With an 80 PLUS Platinum and Cybenetics Platinum efficiency rating, semi-passive cooling, and support for PCIe 5.1/ATX 3.1 standards, it delivers reliable, future-proof power for even the most demanding PC builds. The inclusion of a Pure Wings 3 140mm fan, advanced voltage regulation, and a massive single 12V rail ensures consistent performance and long-term stability – all backed by a 10-year manufacturer’s warranty.

Key Features:
✅ 80 PLUS Platinum Efficiency – Up to 94.2% efficiency for lower energy use, cooler operation, and reduced noise.
✅ Semi-Passive Zero-RPM Mode – Fan stops completely under low load; smart post-ventilation ensures longevity.
✅ Pure Wings 3 140mm Fan – Custom-engineered for quiet, reliable cooling.
✅ Future-Proof Connectivity – 90° angled 12V-2x6 connector with PCIe 5.1/ATX 3.1 support for next-gen GPUs.
✅ Stable Power Delivery – Advanced LLC technology ensures excellent voltage regulation and efficiency.
✅ Unique Mesh Design – Stylish look with labelled cable outputs for easy installation.
✅ High-Performance 12V Rail – Handles extreme power excursions, up to 2x rated output.
✅ 10-Year Warranty – Long-term reliability and peace of mind.

Technical Specifications:

• Model: Power Zone 2 750W

• Continuous Power: 750W

• Peak Power: 820W

• Form Factor: ATX 3.1 / EPS 12V v2.92

• Input Voltage: 100 – 240V

• Input Current: 10A / 5A

• Frequency: 50 – 60Hz

• Power Factor (100% Load): >0.98

• Standby Power: <0.18W

• MTBF: >100,000h (25°C)

• Operating Temp: Up to 40°C

Efficiency:

• Certification: 80 PLUS Platinum / Cybenetics Platinum

• Efficiency at 230V, 100% Load: 92.5%

Cooling:

• Cybenetics Noise Rating: A++

• Fan Type: Pure Wings 3, 140mm, rifle bearing, 4-pole motor

• Max Fan Speed: 1800 RPM

• Noise Level at 100% Load: 15.8 dB(A)

Rails:

• 12V Rail Power: 750W

• 12VHPWR Output: 600W

• 3.3V + 5V Combined Power: 120W

• Hold-up Time (100% Load): 24.5ms

• Hold-up Time (80% Load): 32.9ms

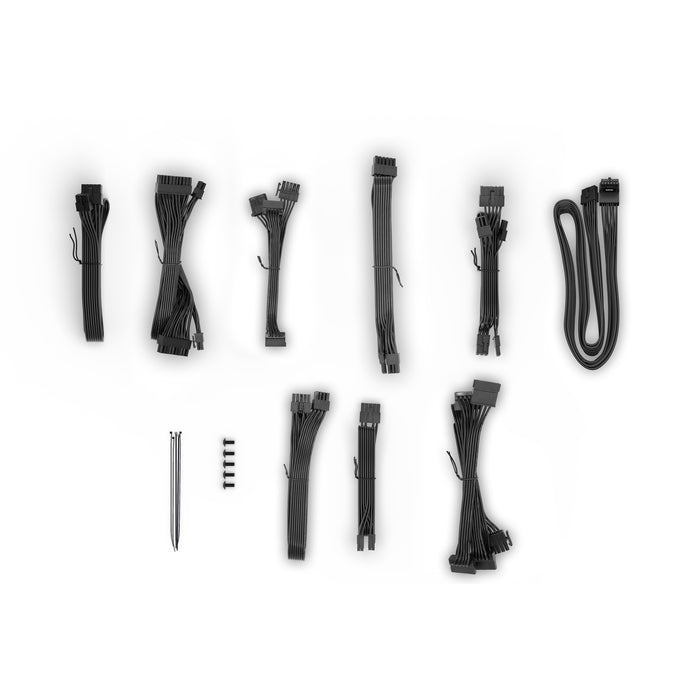

Cables & Connectors:

• Max Cable Length: 100cm

• 1x 20+4-pin ATX

• 1x P4+4 (CPU)

• 1x P8 (CPU)

• 1x P4 (CPU)

• 1x 12VHPWR (GPU)

• 3x PCI-e 6+2-pin (GPU)

• 6x SATA

• 1x PATA

• No Floppy Connector

Dimensions:
160mm (L) x 150mm (W) x 86mm (H)
