Ultra Compact Intel N150 BRIX PC 8GB RAM 500GB SSD USB-C Wi-Fi BT

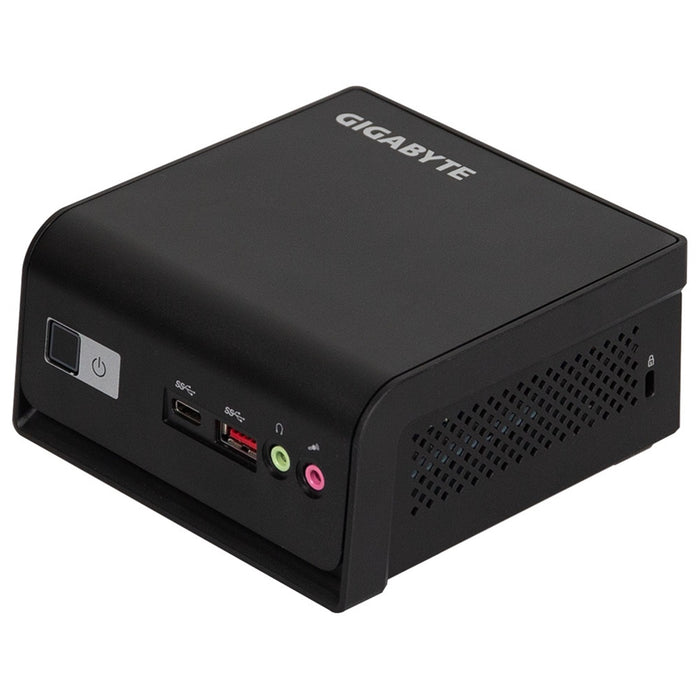

Ultra Compact GIGABYTE BRIX PC - Intel N150, 8GB DDR5 RAM, 500GB NVMe SSD, USB-C, Wi-Fi & Bluetooth

Small Footprint. Serious Performance.

Meet the GIGABYTE BRIX GB-N285B – a pre-built, ultra-compact PC solution designed to offer maximum flexibility, low power consumption, and high performance in an unbelievably small form factor. Powered by the latest Intel N150 quad-core processor, 8GB of high-speed DDR5 memory, and a lightning-fast 500GB Kingston NVMe SSD, this micro PC is ideal for home, office, or digital signage use.

Whether you’re browsing, working remotely, streaming, or deploying a secure edge computing solution, the BRIX does it all — without taking up valuable desk space.

✅ Key Features & Benefits

• Ultra Compact Design
  Tiny 0.7L chassis (113 x 116.5 x 56.2 mm) with VESA mount support – ideal for clutter-free desktops or mounting behind a monitor.

• Intel Quad-Core Performance
  Intel N150 processor (up to 3.6GHz) with only 6W TDP for powerful and efficient computing in any environment.

• 8GB Kingston DDR5 Memory
  Equipped with fast, reliable DDR5-5600 SODIMM memory (upgradeable to 16GB) for smooth multitasking.

• Superfast NVMe Storage
  500GB Kingston NV3 PCIe 4.0 SSD delivers speeds up to 6000MB/s read and 2200MB/s write for rapid boot and load times.

• Multiple Display Output Support
  Supports dual 4K displays via HDMI 2.0 and dual USB-C (ALT Mode with DisplayPort 1.4).

• Wi-Fi 5 + Bluetooth 5.0
  Strong wireless connectivity out of the box. Pair with peripherals or cast to displays with ease.

• High-Speed USB-C & USB 3.2 Gen2
  Fast, versatile ports including USB-C ALT Mode for DisplayPort and USB data combined.

• Expandable Storage & VESA Mountable
  Includes M.2 expansion slot and supports an additional 2.5” SSD/HDD. Mounts to any 75x75 or 100x100 VESA bracket.

⚙️ Technical Specifications

Processor:
Intel Processor N150 (4-Core, up to 3.6GHz, 6W TDP)

Memory:
8GB Kingston DDR5-5600MHz (1x8GB SODIMM)
1x DDR5 SO-DIMM slot (Max 16GB)

Storage:
500GB Kingston NV3 PCIe Gen4 M.2 2280 SSD
• Read: 6000MB/s
• Write: 2200MB/s
1x M.2 M Key (PCIe Gen 3x2)
1x M.2 E Key (Wi-Fi/BT preinstalled)

Graphics:
Intel UHD Graphics (24EUs)
• 1x HDMI 2.0 (4096x2160 @ 60Hz)
• 2x USB-C ALT Mode (DP 1.4, 3840x2160 @ 60Hz)

Audio:
Realtek ALC897 Codec
Separate headphone and microphone jacks

Networking:
• Realtek RTL8111H Gigabit Ethernet
• Wi-Fi 5 (802.11ac)
• Bluetooth 5.0

Front I/O:
• 1x USB-C (ALT Mode DP + USB)
• 1x USB 3.2 Gen2 Type-A
• 1x Headphone jack
• 1x Microphone jack
• 1x Power button

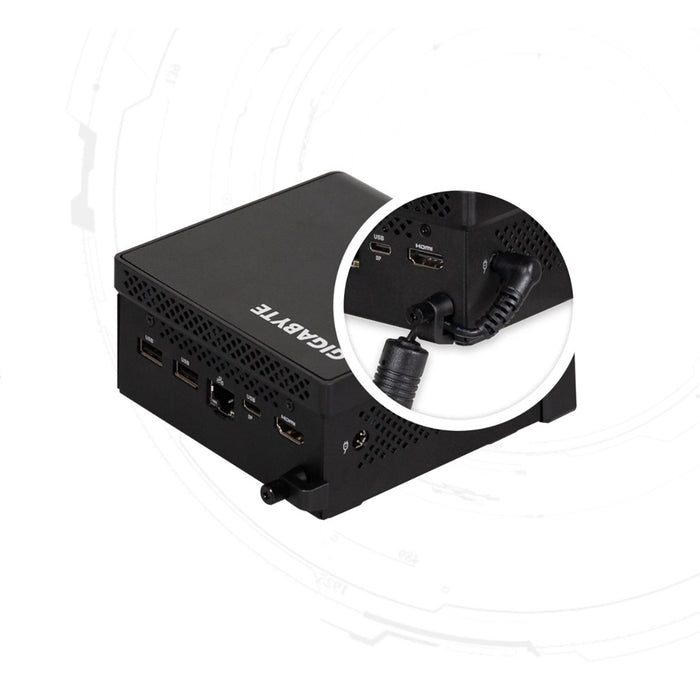

Rear I/O:
• 1x HDMI
• 1x RJ-45 Ethernet
• 2x USB 3.2 Gen2 Type-A
• 1x USB-C (ALT Mode)

Dimensions:
• 113mm x 116.52mm x 56.22mm
• Weight: ~0.6kg
• VESA Mount: 75x75 & 100x100mm

Power Supply:
• Input: 100-240V AC
• Output: 19V / 3.42A, 65W

OS Support:
• Windows 11 64-bit (not installed)

Cooling & Environment:
• Fan-cooled
• Operating temp: 0°C to +35°C
• Storage temp: -20°C to +60°C

💼 Why Choose the GIGABYTE BRIX?

✔ Maximum Flexibility: Whether it’s mounted behind a monitor, under a desk, or used for signage, BRIX fits anywhere.
✔ Low Power, High Efficiency: Perfect for 24/7 tasks without generating heat or high bills.
✔ Full Connectivity: With dual display outputs, USB-C, fast Ethernet and Wi-Fi, it's as connected as full-size desktops.
✔ Future Expandable: Add a 2.5" HDD/SSD or upgrade RAM when needed.
