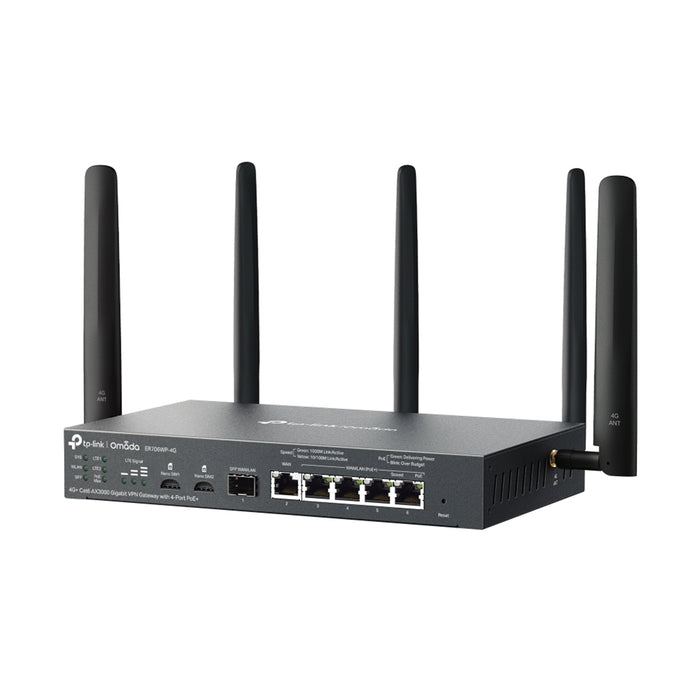

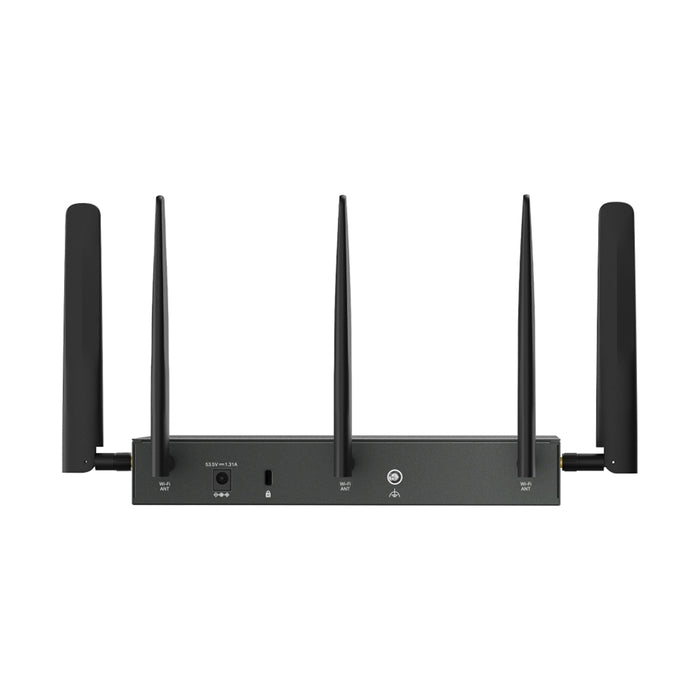

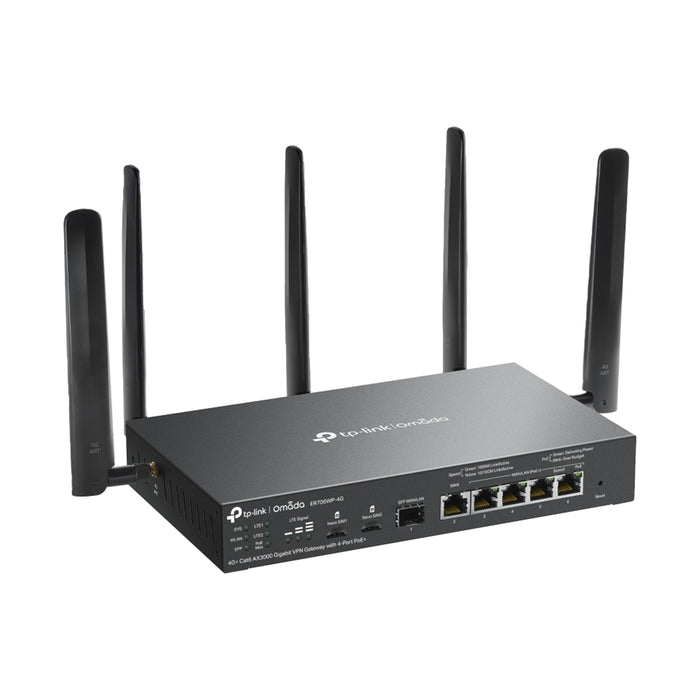

TP-Link Omada ER706WP-4G AX3000 4G+ Gigabit VPN Gateway with PoE

TP-Link Omada ER706WP-4G AX3000 4G+ Cat6 Gigabit VPN Gateway with 4-Port PoE

Enterprise-Class Wi-Fi 6 Gateway with Dual 4G+ and Centralised Management

The TP-Link Omada ER706WP-4G combines Wi-Fi 6 AX3000 performance, 4G+ Cat6 mobile broadband, and advanced VPN security in a compact, professional gateway. With 4 PoE+ Gigabit LAN ports, dual Nano SIM slots, and full integration into the Omada SDN platform, it’s designed for branch offices, retail, and SMEs requiring always-on, cloud-managed connectivity.

Key Features & Benefits

✓ 4G+ Cat6 Mobile Connectivity
Insert a Nano SIM card to enjoy lightning-fast 4G+ Cat6 speeds up to 300 Mbps downlink and 50 Mbps uplink.*

✓ AX3000 Dual-Band Wi-Fi 6 Performance
Delivers up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz for high-capacity wireless networking with reduced latency.

✓ Flexible Gigabit Connectivity
Features 1 × Gigabit SFP WAN/LAN, 1 × Gigabit WAN, and 4 × Gigabit LAN/WAN ports for versatile deployment.

✓ 4-Port PoE+ Power Output
Simplify installations by powering access points or IP cameras directly from the gateway with a 45 W PoE budget.

✓ High-Gain Detachable Antennas
Includes 3 dual-band Wi-Fi antennas and 2 LTE antennas for extended range and stronger signal coverage.

✓ Omada Cloud & App Management
Monitor and manage devices centrally via the Omada SDN cloud or mobile app, supporting Zero-Touch Provisioning.

✓ Advanced VPN Capabilities
Supports IPSec, SSL, WireGuard, OpenVPN, PPTP, and L2TP with impressive throughput up to 670 Mbps.

✓ Professional-Grade Security
Includes DPI application control, IDS/IPS, access control, ARP inspection, and attack defence against TCP/UDP/ICMP floods.

✓ Seamless Integration & Mesh Support
Works with Omada EAPs supporting Mesh and Seamless Roaming for unified, scalable wireless networks.

Network Performance

• NAT Throughput: Up to 949 Mbps
• WireGuard VPN: 387.7 Mbps
• IPSec VPN (ESP-SHA512-AES256): 670.5 Mbps
• SSL VPN: 122.5 Mbps
• DPI Throughput: 933 Mbps (TCP) / 927 Mbps (UDP)
• Concurrent Sessions: 150,000
• New Sessions/Second: 5,100

Hardware Specifications

Interfaces:

• 1 × Gigabit SFP WAN/LAN Port

• 1 × Gigabit WAN Port

• 4 × Gigabit LAN/WAN Ports (with PoE+)

• 2 × Nano SIM Slots

Antennas:

• Wi-Fi: 3 × Dual-Band Detachable Antennas (5 GHz 5.5 dBi / 2.4 GHz 4.5 dBi)

• LTE: 2 × 4.0 dBi Omnidirectional Detachable Antennas

Wi-Fi Standard: 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Power Output: 4 × PoE+ Ports, 45 W Budget
Power Consumption: Max 64.9 W (with PoE Max) / 19.8 W (without PoE)
Memory: 256 MB Flash / 512 MB DDR4 DRAM

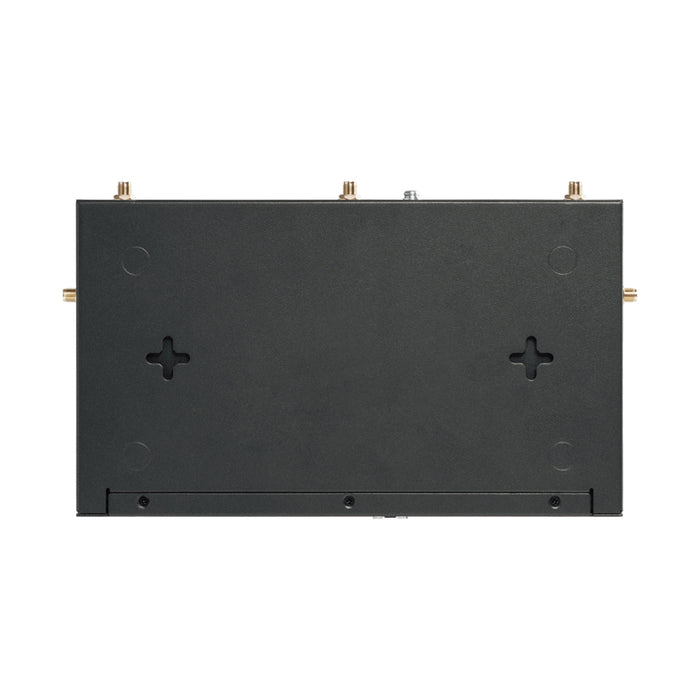

Mounting: Desktop / Wall / Rackmount
Dimensions: 226 × 131 × 35 mm

4G Network Support (EU Bands)

LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32
LTE-TDD: B38/B40/B41
3G: B1/B3/B5/B8
Carrier Aggregation: Supported combinations across B1-B41 bands

Wireless Features

• Seamless Roaming / Mesh (with EAPs)
• OFDMA and MU-MIMO for high efficiency
• Beamforming and Airtime Fairness
• WPA/WPA2/WPA3 Personal & Enterprise Security
• Multiple SSIDs (16 total, 8 per radio)
• Guest Network Support

Security & Filtering

• DPI: Application control with regular signature updates
• IDS/IPS: Intrusion detection and prevention
• Access Control: Source/Destination IP based
• Filtering: Web Group, URL, and Web Security
• ARP Inspection: IP-MAC Binding, ARP Scanning, GARP Packets
• Attack Defence: Flood and TCP Scan Protection, Ping Block from WAN

Additional Features

• WAN Connection Types: Static IP, Dynamic IP, PPPoE, PPTP, L2TP
• IPv6 Support: Static IP, DHCPv6, SLAAC, 6to4 Tunnel, PassThrough
• VLAN Support: 802.1Q VLAN
• IPTV Support: IGMP v2/v3 Proxy, Custom & Bridge Modes
• SMS Send/Receive Functionality
• DHCP Server with Custom Options and Address Reservation
• Multi-Net DHCP and Multi-IP Interfaces

Why Choose the TP-Link Omada ER706WP-4G

The TP-Link ER706WP-4G is an all-in-one gateway offering fast 4G+ connectivity, dual-band Wi-Fi 6, PoE output, and advanced VPN security — ideal for remote branches, small offices, and retail deployments. Integrated into the Omada Cloud SDN, it delivers simplified management, flexible deployment, and enterprise-grade reliability in one compact unit.

Access Control
IP/Port/Protocol/Domain Name Filtering

Advanced Routing
Static Routing
Policy Routing
RIP
OSPF

Bandwidth Control
IP-Based Bandwidth Control

Load Balance
Intelligent Load Balance
Application Optimized Routing
Link Backup(Timing, Failover)
Online Detection

NAT
One-to-One NAT
Multi-Net NAT
Virtual Server
Port Triggering
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG
UPnP

Session Limit
IP-Based Session Limit

VPN

GRE
Only in Standalone Mode

SSL VPN
50 Tunnels

IPsec VPN
100 IPSec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
IPsec Failover
IKE v1/v2
MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)

PPTP VPN
PPTP VPN Server
PPTP VPN Client (10)
50 Tunnels
PPTP with MPPE Encryption

L2TP VPN
L2TP VPN Server
L2TP VPN Client (10)
50 Tunnels
L2TP over IPSec

OpenVPN
OpenVPN Server
OpenVPN Client (5)
55 OpenVPN Tunnels
Certificate + Account Mode
Full Mode

WireGuard VPN
20 Tunnels

Authentication

Web Authentication
No Authentication
Simple Password
Hotspot (Local User / Voucher / SMS / Radius)
External Radius Sever
External Portal Sever
LDAP

Management Features

Omada App
Yes.

Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller

Cloud Access
Yes.

Service
Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)

Maintenance
Web Management Interface
Remote Management
Export Import Configuration
SNMP v1/v2c/v3
Diagnostics (Ping Traceroute)
NTP Synchronize
Port Mirroring
CLI (only in Standalone Mode)
Syslog Support

Zero-Touch Provisioning
Yes. Require the use of Omada Cloud-Based Controller.

Management Features
Automatic Device Discovery
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration

Other

Network Services Enabled by Default - Web Server
Manage and configure device through web (HTTP/HTTPS)
Port: 80/443 Protocol: TCP

TDP Server
Device discovery
Port: 20003 Protocol: UDP

DHCP Server
Handle DHCP packets
Port: 67 Protocol: UDP

DNS
Handle DNS packets
Port: 53 Protocol: TCP/UDP

Others

Certification
CE, FCC, RoHS

Package Content
ER706WP-4G
Power Adapter
Quick Installation Guide

System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10/11
MAC OS, NetWare, UNIX or Linux

Environment
Operating Temperature: 0 ?C to 40 ?C (32 ?F to 104 ?F)
Storage Temperature: -40 ?C to 70 ?C (-40 ?F to 158 ?F)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing
