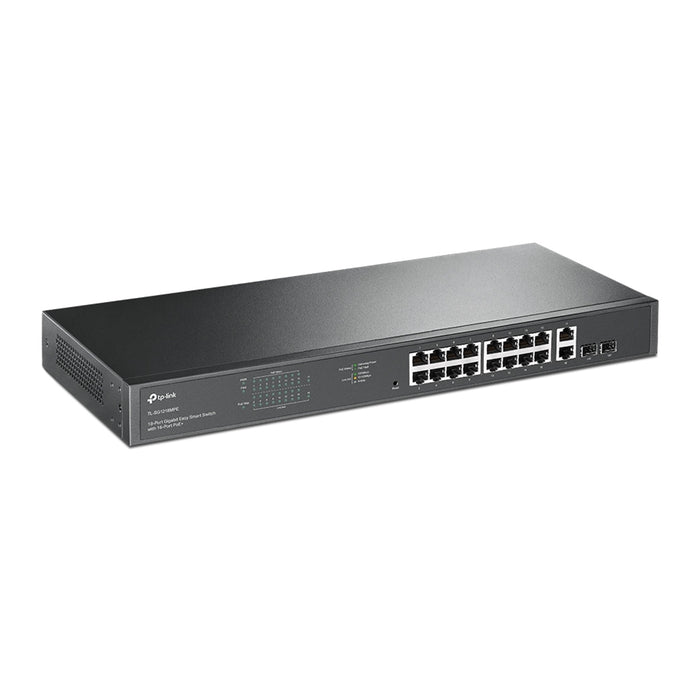

TP-Link TL-SG1218MP 18-Port Gigabit PoE+ Switch - 250W, Rackmount

The TP-Link TL-SG1218MP is a high-performance 18-Port Gigabit Rackmount PoE+ switch, designed for businesses, surveillance setups, and office networks requiring robust power delivery and intelligent data control. With 16 PoE+ ports and a total power budget of 250W, it supports devices like IP cameras, access points, and VoIP phones—while ensuring stable connections for standard network hardware.

✅16× Gigabit PoE+ RJ45 ports, 2× non-PoE Gigabit RJ45 ports, 2× combo Gigabit SFP slots
✅Supports IEEE 802.3af/at with up to 30W per PoE+ port
✅Total 250W PoE budget, ideal for surveillance, APs, and VoIP
✅Plug and play, no configuration required
✅802.1p/DSCP QoS ensures smooth video/voice traffic
✅Auto power management prevents overload and protects critical devices
✅Fan-assisted metal housing enables stable 0–50°C operation
✅MAC address auto-learning and auto-aging for dynamic traffic handling
✅Rackmount-ready with full accessories included
✅Compatible with both PoE and non-PoE network devices

Specifications

•Interface:
 – 16× PoE+ Gigabit RJ45 Ports
 – 2× Non-PoE Gigabit RJ45 Ports
 – 2× Combo Gigabit SFP Slots
•Power Supply: 100–240VAC, 50/60Hz
•PoE Support: IEEE 802.3af/at compliant (Ports 1–16)
•PoE Power Budget: 250W
•Fan Quantity: 2
•Physical Security Lock: Yes
•Mounting: Rackmount (17.3 x 7.1 x 1.73 in / 440 x 180 x 44 mm)
•Max Power Consumption: 286.64W (with PoE load)
•Max Heat Dissipation: 977.44 BTU/h (with PoE load)

Performance

•Switching Capacity: 36Gbps
•Packet Forwarding Rate: 26.78Mpps
•MAC Address Table: 8K
•Buffer Memory: 4.1 Mbit
•Jumbo Frame: 10KB
•Transfer Method: Store-and-Forward

Software Features

•802.1p/DSCP QoS for prioritized traffic
•MAC address auto-learning and aging
•IEEE802.3x flow control (full-duplex) and backpressure (half-duplex)
•Intelligent PoE power management for safe operation

Certifications

•CE, FCC, RoHS

Package Contents

•TL-SG1218MP Switch
•Power Cord
•Rackmount Kit
•Rubber Feet
•Installation Guide

Environment

•Operating Temperature: 0–50°C
•Storage Temperature: -40–70°C
•Operating Humidity: 10–90% RH non-condensing
•Storage Humidity: 5–90% RH non-condensing
