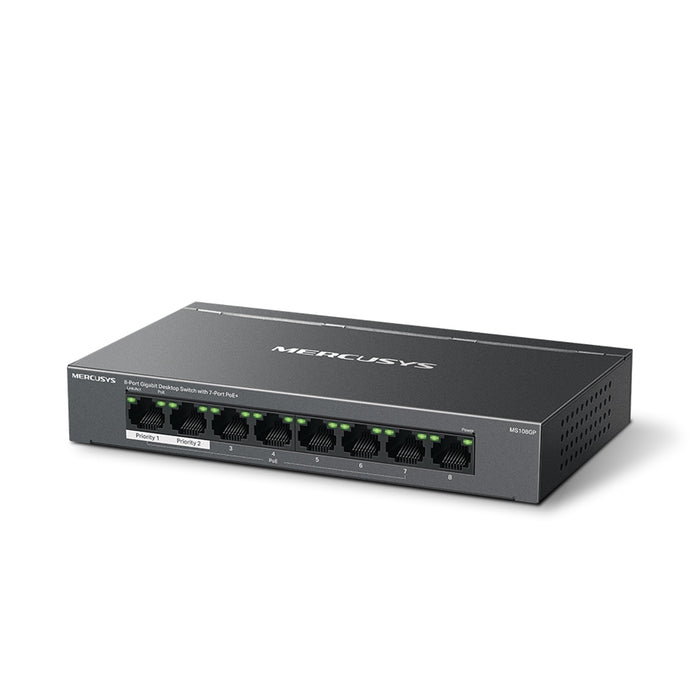

Mercusys MS108GP 8-Port Gigabit PoE+ Switch – Desktop, Metal Case

Mercusys MS108GP 8-Port Gigabit Desktop Switch with 7-Port PoE+

The Mercusys MS108GP is a high-performance 8-Port Gigabit switch designed for small business networks, home offices, and IP surveillance setups. With 7 PoE+ ports, long-range PoE support, and robust metal housing, it delivers reliable and efficient connectivity for powered devices such as access points, IP cameras, and VoIP phones.

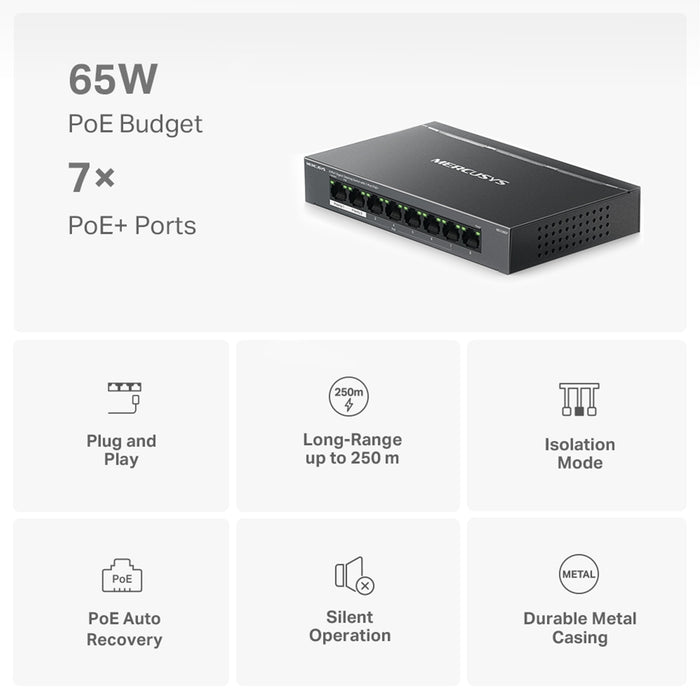

Key Features & Benefits

✅ Full Gigabit Ports – 8 × 10/100/1000 Mbps RJ45 ports for high-speed wired connections.

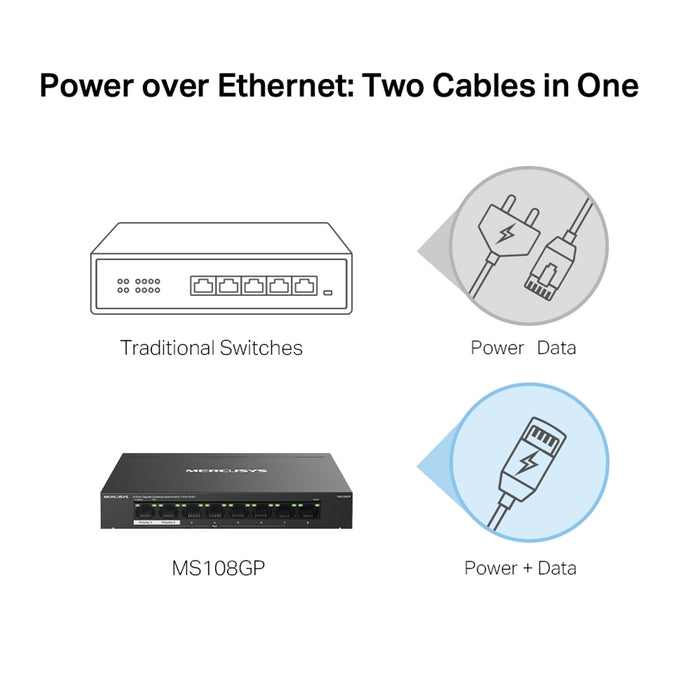

✅ 7-Port PoE+ Support – Delivers up to 30W per port, 65W total PoE power budget, powering multiple devices without extra adapters.

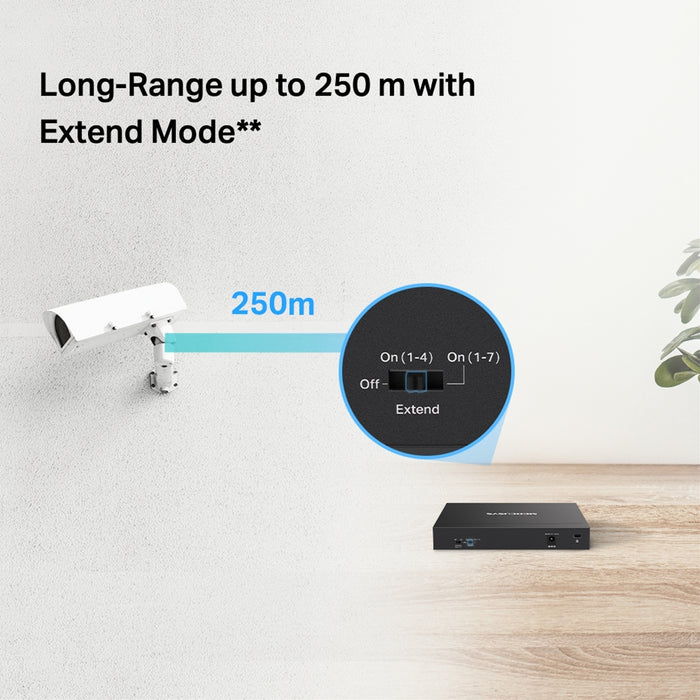

✅ Long-Range Transmission – Extend Mode increases PoE transmission distance up to 250m, ideal for IP cameras and remote devices.
✅ Isolation Mode – One-click traffic isolation enhances security and stability across specific ports.
✅ Durable Metal Housing – Ensures efficient heat dissipation and long-lasting performance.
✅ Plug & Play Setup – No configuration required, simply connect and power your devices.
✅ IEEE 802.3af/at Compliance – Works seamlessly with compatible Powered Devices (PDs).

Technical Specifications

Hardware

• Dimensions: 171 × 98 × 27 mm

• Ports: 8 × Gigabit RJ45 (Auto-Negotiation, Auto MDI/MDIX)

• PoE: Ports 1–7, up to 30W each, 65W total power budget

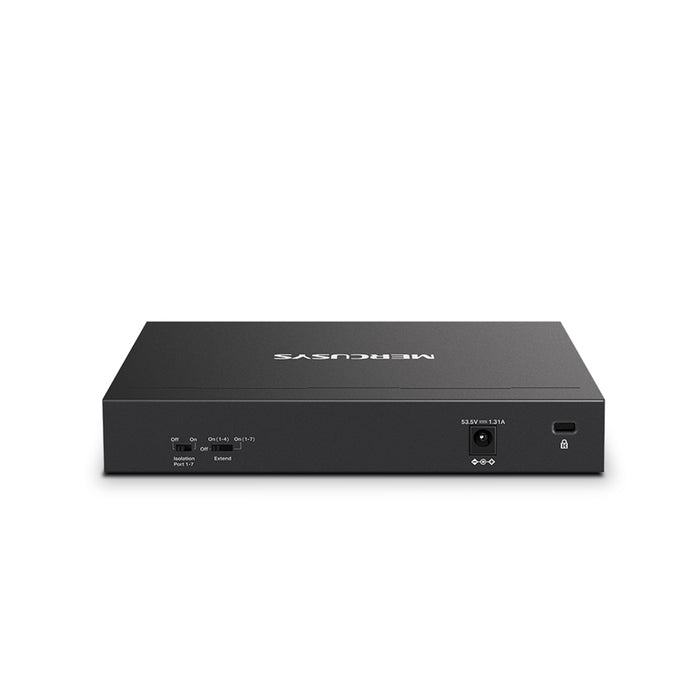

• Power Supply: External (53.5V / 1.31A)

• Metal casing, desktop design

Performance

• Data Rates:
    • 10/100/1000 Mbps (Half Duplex)
    • 20/200/2000 Mbps (Full Duplex)

• Jumbo Frame: 9 KB

• MAC Address Table: 8K entries

• Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control

• Max Power Consumption: 77.33W (with 65W PD connected)

• Max Heat Dissipation: 262.92 BTU/h (with 65W PD connected)

Package Contents

• Mercusys MS108GP 8-Port Gigabit Desktop Switch

• Power Adapter

• Quick Installation Guide

Why Choose the Mercusys MS108GP?

With 7 PoE+ ports, a robust 65W power budget, and extended transmission up to 250m, the MS108GP is ideal for powering and connecting multiple devices without clutter. Perfect for IP cameras, wireless access points, and VoIP phones, it offers a reliable, energy-efficient, and secure networking solution—all in a compact, durable metal design.
