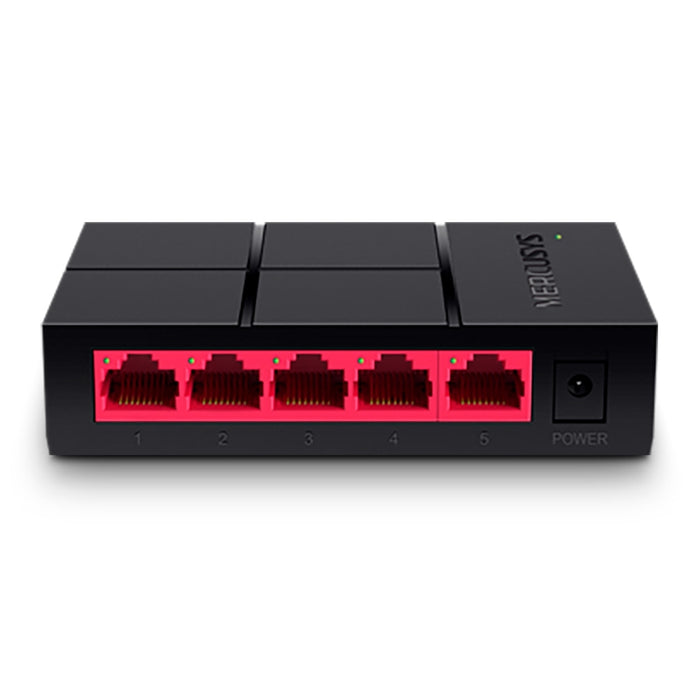

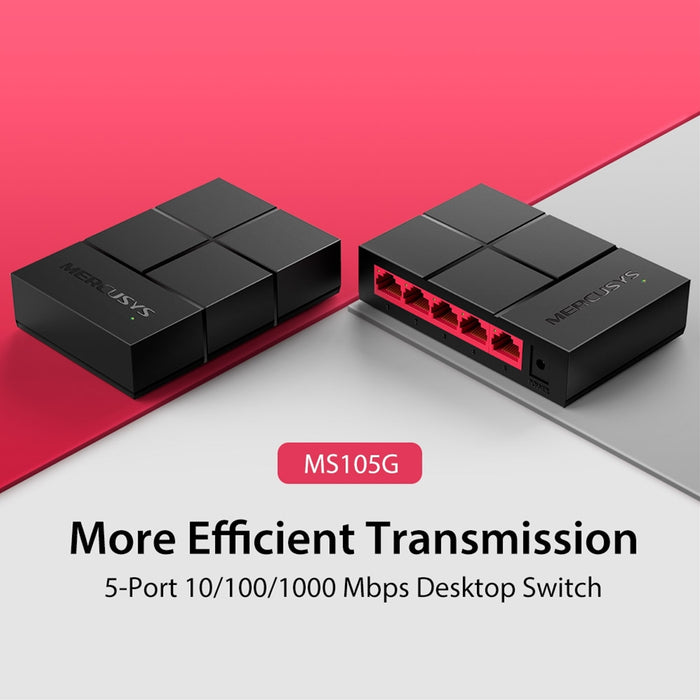

Mercusys MS105G 5-Port Gigabit Network Switch – Fast, Compact
The Mercusys MS105G 5-Port Gigabit Ethernet Network Switch is designed for seamless wired network expansion at home, in small offices, or student accommodation. With gigabit speeds, reliable performance, and an ultra-compact design, it’s the ideal choice for anyone needing a fast, simple, and energy-efficient networking solution.
Key Features & Benefits

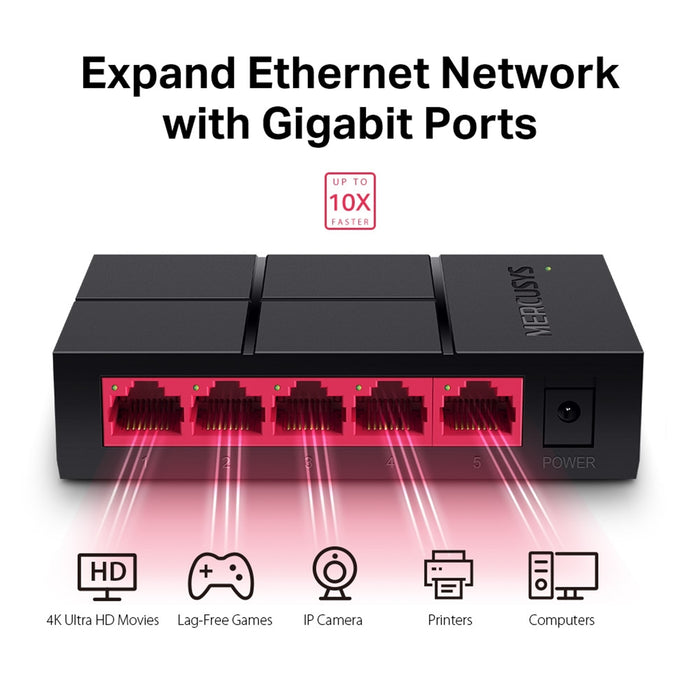

✅ High-Speed Gigabit Ports – Five auto-negotiation RJ45 ports deliver speeds up to 1,000 Mbps, ideal for streaming, gaming, and high-bandwidth tasks.

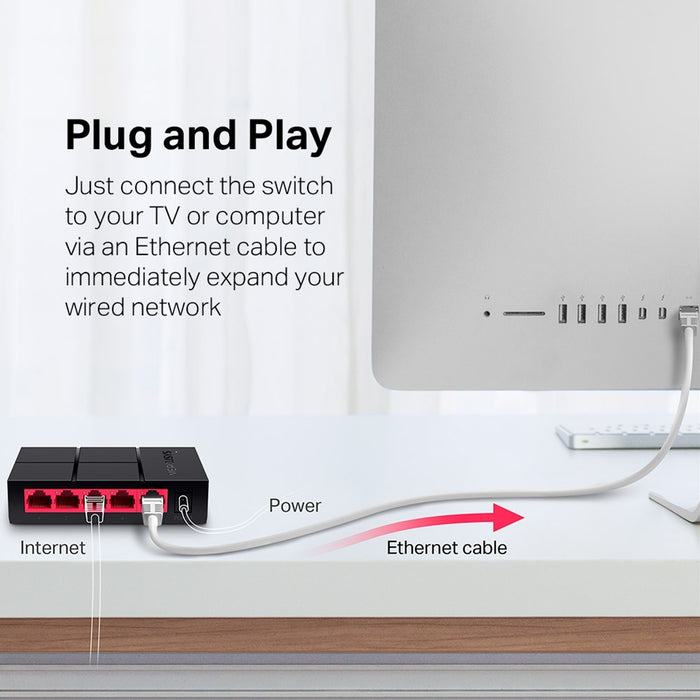

✅ Plug & Play Setup – No configuration required; simply connect your devices to expand your wired network instantly.
✅ Compact, Stylish Design – Sleek red and black casing, small enough to fit anywhere without cluttering your workspace.
✅ Reliable Performance – Up to 10 Gbps switching bandwidth with Half/Full Duplex support and MAC address learning technology.
✅ Energy-Efficient – Green Ethernet technology reduces power consumption by up to 82%, lowering costs and environmental impact.
Technical Specifications
-
Ports: 5 × 10/100/1000 Mbps RJ45 with Auto MDI/MDIX
-
Standards & Protocols: IEEE 802.3, 802.3u, 802.3x, CSMA/CD
-
Data Rates:
• 10/100/1000 Mbps (Half Duplex)
• 20/200/2000 Mbps (Full Duplex) -
Switching Capacity: 10 Gbps
-
Buffer Capacity: 512 Kbit
-
Jumbo Frame: 9 KB
-
Transfer Method: Store and Forward
-
Power Supply: External 5V/0.6A adapter
-
LED Indicators: Power, Ethernet Ports (1–5)
-

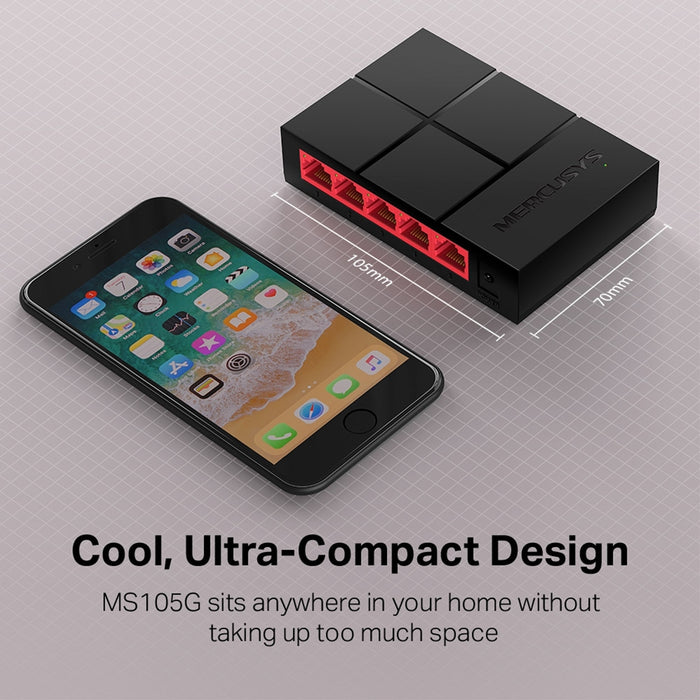

Dimensions: 105 × 70 × 24.9 mm
Package Contents
-
1 × Mercusys MS105G 5-Port Gigabit Desktop Switch
-
1 × Power Adapter
-
1 × Quick Installation Guide
Why Choose the Mercusys MS105G?
The Mercusys MS105G combines performance, simplicity, and efficiency. It’s powerful enough to support modern devices like 4K Ultra HD TVs, gaming consoles, and IP cameras, yet compact enough to fit into any home or office setup. With effortless plug-and-play installation, robust reliability, and energy-saving technology, it’s a cost-effective upgrade for any wired network.
