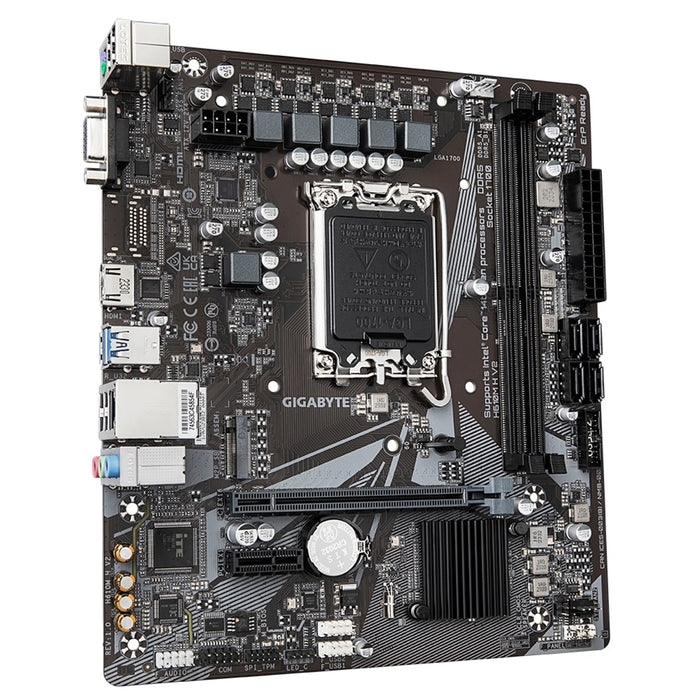

Gigabyte H610M H V2 Micro-ATX Intel 1700 DDR5 Motherboard

Gigabyte H610M H V2 (Rev. 1.0) Micro-ATX Motherboard — Built for Reliable, High-Performance Intel 14th Gen Systems

Designed for users who demand stability, speed, and long-term reliability, the Gigabyte H610M H V2 delivers outstanding performance in a compact Micro-ATX form factor. With support for the latest Intel® 14th, 13th and 12th Gen processors, DDR5 memory, ultra-fast NVMe storage, and intelligent cooling features, this motherboard is the ideal foundation for business PCs, home computing, and entry-level performance builds.

Engineered with premium power delivery, enhanced audio components, and Gigabyte’s proven durability features, it provides a robust and future-ready platform you can depend on.

Key Features & Benefits

• Supports Intel® 14th / 13th / 12th Gen Core®, Pentium® Gold and Celeron® processors — ready for modern workloads and future upgrades

• Dual-channel DDR5 memory support (up to 128GB) — faster performance, improved responsiveness, and enhanced productivity

• 4+1+1 Hybrid Digital VRM design — stable and efficient power delivery for reliable long-term operation

• GbE LAN with bandwidth management — smooth network performance for business, streaming, and cloud applications

• NVMe PCIe 3.0 x4 M.2 slot — ultra-fast SSD performance with rapid boot and load times

• High-quality audio capacitors with Audio Noise Guard — clearer, richer onboard sound output

• Smart Fan 6 cooling technology — multiple temperature sensors and hybrid fan headers with FAN STOP for quieter, optimised cooling

• GIGABYTE APP Center — centralised, user-friendly software control and utilities

• Anti-Sulfur Resistor design — improved durability in demanding environments and extended component lifespan

This board delivers the perfect balance of value, performance, and reliability — ideal for professional environments and everyday computing alike.

Technical Specifications

CPU Support
LGA1700 socket — Intel® 14th, 13th and 12th Gen Core®, Pentium® Gold and Celeron® processors

Chipset
Intel® H610 Express

Memory

• 2 x DDR5 DIMM slots (up to 128GB)

• Dual-channel architecture

• Supports DDR5 5600 / 5200 / 4800 / 4400 MT/s (CPU dependent)

• Supports XMP memory profiles

• Supports ECC (non-ECC mode) and non-ECC modules

Graphics Outputs

• 1 x D-Sub (1920×1200@60Hz)

• 1 x HDMI 2.1 (4096×2160@60Hz, HDCP 2.3)

• Integrated graphics support dependent on CPU

Audio
Realtek® HD Audio CODEC — 2 / 4 / 5.1 / 7.1-channel support

Networking
Realtek® GbE LAN (1Gbps)

Expansion Slots

• 1 x PCIe 4.0 x16 (CPU)

• 1 x PCIe 3.0 x1 (Chipset)

Storage

• 1 x M.2 PCIe 3.0 x4 / x2 (2280 / 2260)

• 4 x SATA 6Gb/s ports

USB Connectivity

• 2 x USB 3.2 Gen 1 (rear) + 2 x internal

• 4 x USB 2.0 (rear) + 4 x internal

Internal Connectors
24-pin ATX power | 8-pin ATX 12V | CPU fan | 2 x system fans
RGB header | TPM header | Serial header | Front panel & audio

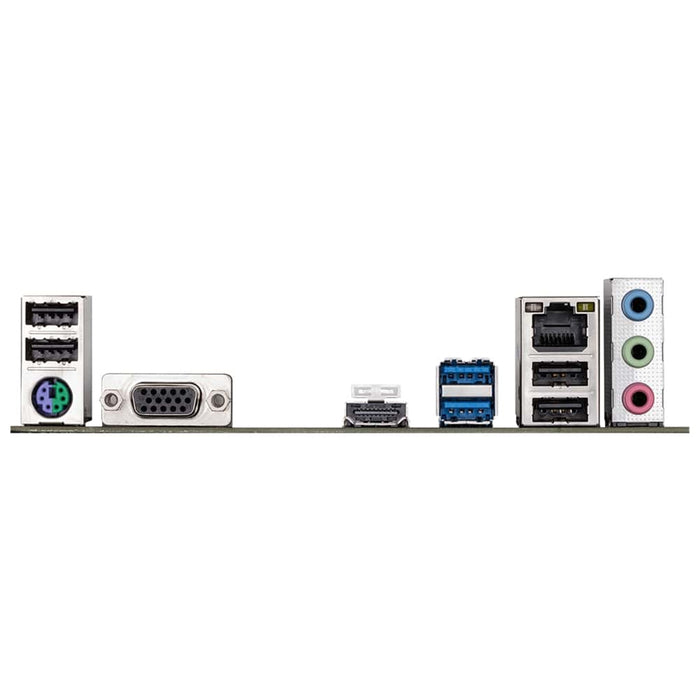

Rear I/O Ports
PS/2 combo | D-Sub | HDMI | 2 x USB 3.2 Gen 1
4 x USB 2.0 | RJ-45 | 3 x audio jacks

Form Factor
Micro-ATX — 22.3 cm x 19.6 cm

Operating Systems
Windows 11 64-bit | Windows 10 64-bit

Why Choose the Gigabyte H610M H V2?

The Gigabyte H610M H V2 is built for users who value stability, reliability, and modern performance. With DDR5 support, PCIe 4.0 expansion, ultra-fast NVMe storage capability, and intelligent cooling features, it delivers excellent real-world efficiency for office PCs, professional workstations, education environments, and everyday home computing.

Backed by Gigabyte’s proven engineering quality and long-life component design, this motherboard provides a dependable and future-ready platform — offering superb value without compromise.
