ASRock H810M-H Intel Socket 1851 Motherboard

The ASRock H810M-H is a compact, high-performance motherboard designed to deliver stability, speed, and versatility. Perfect for gamers, content creators, and everyday users, it supports the latest Intel processors (Socket 1851) and DDR5 memory, giving you the foundation for a fast and future-ready PC build.

🔑 Key Features & Benefits

✅ Future-Ready Performance – Supports Intel 1851 processors with DDR5 memory for blazing-fast multitasking.
✅ Lightning-Fast Storage – Hyper M.2 Gen4 x4 slot doubles SSD speeds compared to Gen3 for ultra-quick load times.
✅ Stable Cooling – Optimised aluminium heatsink keeps your system cool during gaming and heavy workloads.
✅ Seamless Connectivity – Built-in Dual Band 802.11ac WiFi + Bluetooth for fast wireless performance.
✅ High-Speed Networking – Dragon 2.5Gb LAN boosts bandwidth up to 2.5x compared to standard Gigabit Ethernet.
✅ Next-Gen USB-C – Front USB 3.2 Gen1 Type-C header for 5Gbps transfers and easy device connection.
✅ Customisable RGB – Polychrome RGB & SignalRGB support for synchronised lighting effects across your build.
✅ Multiple Display Outputs – HDMI, DisplayPort & D-Sub for versatile multi-monitor setups.
✅ Hassle-Free Setup – Auto Driver Installer makes installation quick and simple.

📊 Technical Specifications

• Socket: Intel 1851

• Memory: 2 x DDR5 DIMM slots (dual-channel support)

• Storage: 1 x Hyper M.2 Gen4 x4 slot

• Networking: Dragon 2.5Gb LAN, Dual Band WiFi (2.4/5GHz) + Bluetooth

• USB: Front USB 3.2 Gen1 Type-C + multiple USB ports

• Graphics Outputs: HDMI, DisplayPort, D-Sub

• RGB: Polychrome RGB & SignalRGB support

• Cooling: Aluminium heatsink for stable performance

💡 Why Choose the ASRock H810M-H?

The ASRock H810M-H Intel Socket 1851 motherboard strikes the perfect balance between performance, connectivity, and value. Whether you’re building a high-speed gaming rig, a reliable content creation workstation, or a smooth-running office PC, this board delivers future-proof features, superior cooling, and ultra-fast connectivity in a compact micro-ATX form factor.

Unique Feature

Superb Productivity
Dual Channel DDR5
Rock-Solid Durability
6+1+1+1+1 Power Phase
ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology

EZ Update
ASRock Auto Driver Installer

CPU
Supports Intel Core Ultra Processors (Series 2) (LGA1851)
Supports Intel Hybrid Technology
Supports Intel Turbo Boost Max 3.0 Technology
Supports Intel Thermal Velocity Boost (TVB)
Supports Intel Adaptive Boost Technology (ABT)
Integrated NPU for dedicated AI acceleration

Chipset
Intel H810

Memory
Dual Channel DDR5 Memory Technology
2 x DDR5 DIMM Slots
Supports DDR5 non-ECC, un-buffered memory up to 6400
Supports Clocked Unbuffered DIMM (CUDIMM)
Max. capacity of system memory: 128GB
Supports Intel Extreme Memory Profile (XMP) 3.0x

BIOS
256Mb AMI UEFI Legal BIOS with GUI support

Graphics
Intel Xe LPG Graphics Architecture
1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN
Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111H

Slots
CPU:
1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
Chipset:
1 x PCIe 4.0 x1 Slot (PCIE2)
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Storage
Chipset:
1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
4 x SATA3 6.0 Gb/s Connectors

USB
Chipset:
4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
6 x USB 2.0 (4 Rear, 2 Front)

Connector
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header
2 x Addressable LED Headers
1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

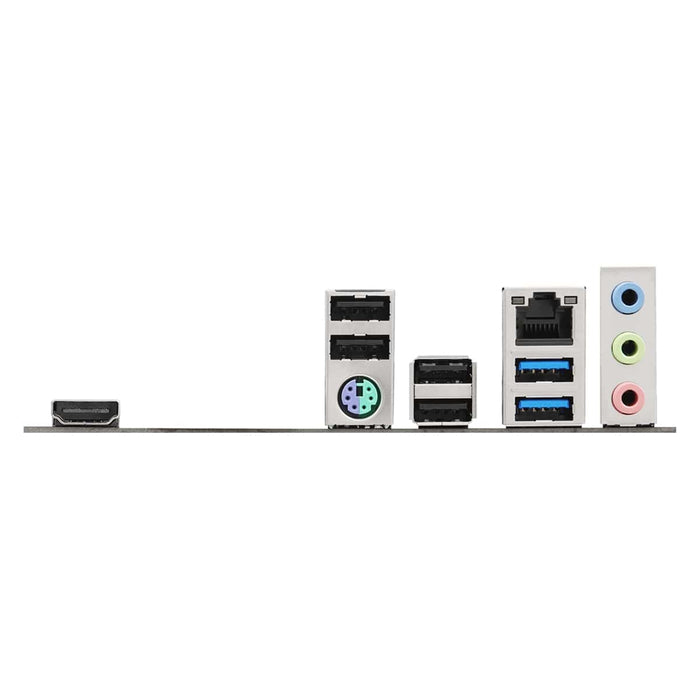

Rear Panel I/O
2 x Antenna Mounting Points
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
2 x USB 3.2 Gen1 Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI
Software
ASRock Motherboard Utility (A-Tuning)
ASRock Polychrome SYNC
UEFI
ASRock EZ Mode
ASRock Full HD UEFI
ASRock My Favorites in UEFI
ASRock Auto Driver Installer
ASRock Instant Flash

Accessories
1 x I/O Shield
2 x SATA Data Cables
1 x Screw for M.2 Socket

Form Factor
Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm

OS
Microsoft Windows 11 64-bit

Certifications
FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)
