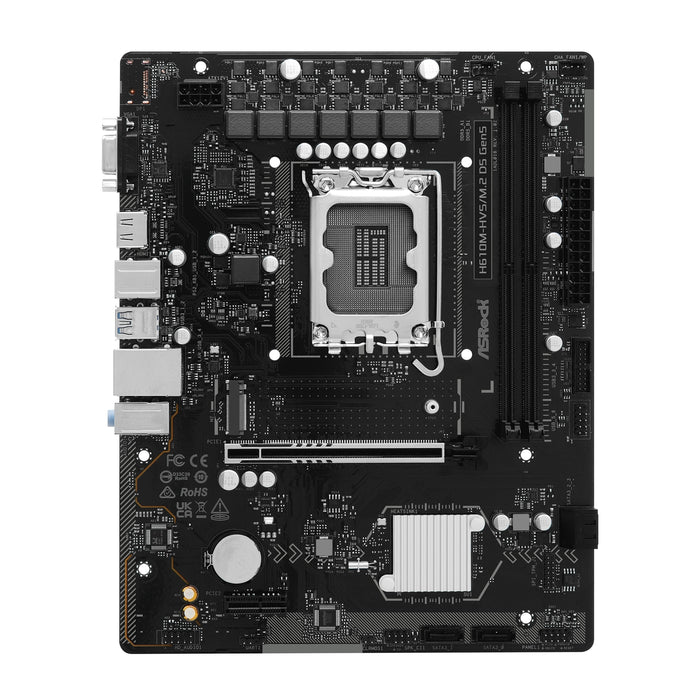

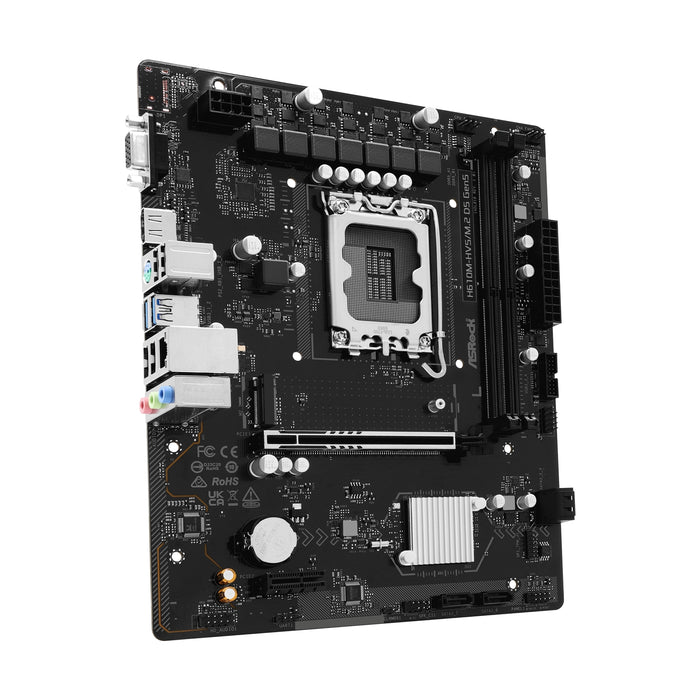

ASRock H610M-HVS/M.2 D5 GEN5 Intel Motherboard

The ASRock H610M-HVS/M.2 D5 GEN5 is a compact Micro-ATX motherboard designed for Intel 12th, 13th, and 14th Gen Core processors with LGA1700 socket. Built for home, office, and entry-level gaming, it features DDR5 memory support, PCIe Gen5 graphics, and Ultra M.2 storage, offering a balance of modern performance and reliability in a small form factor.

Key Features & Benefits

✔ Intel LGA1700 Support
Compatible with 12th, 13th, and 14th Gen Intel Core CPUs, including Hybrid and Turbo Boost Max 3.0 Technology.

✔ Micro-ATX Form Factor
Compact design (24.4 × 19.3 cm) fits in smaller cases while maintaining expandability.

✔ DDR5 Memory Support
2 × DDR5 DIMM slots supporting up to 128GB, with speeds up to 5600 MT/s (14th/13th Gen) and 4800 MT/s (12th Gen).

✔ PCIe Gen5 Graphics Slot
Single PCIe 5.0 x16 slot provides future-ready high-bandwidth GPU support.

✔ Ultra M.2 Storage
1 × PCIe Gen3 x4 M.2 socket delivers 32 Gb/s transfer speed for NVMe SSDs.

✔ Multiple Display Outputs
HDMI 2.1 (4K @ 60Hz), DisplayPort 1.4 with DSC (8K @ 60Hz / 5K @ 120Hz), and legacy D-Sub (1080p @ 60Hz).

✔ High-Definition Audio
7.1 channel HD audio via Realtek ALC897 with support for line in, mic, and front speaker connections.

✔ Gigabit LAN
Realtek 8111H Ethernet for reliable wired connectivity.

✔ USB Connectivity
2 × USB 3.2 Gen1 (rear), 2 × USB 3.2 Gen1 (front header), 6 × USB 2.0 ports.

✔ Solid Power & Reliability
6+1+1 Power Phase design with ASRock 4-Layer Memory POOL technology for stable operation.

✔ EZ Update & Auto Driver Installer
Simplified BIOS and driver updates via ASRock utilities.

Technical Specifications

CPU & Chipset

• CPU: Intel 12th–14th Gen Core processors, LGA1700

• Chipset: Intel H610

• Power Phases: 6+1+1

Memory

• Slots: 2 × DDR5 DIMM

• Max Capacity: 128GB

• Supported Speeds: DDR5 4800–5600*

• Profiles: Intel XMP 3.0

Expansion Slots

• 1 × PCIe 5.0 x16

• 1 × PCIe 3.0 x1

Storage

• 1 × Ultra M.2 PCIe Gen3 x4 (32 Gb/s)

• 4 × SATA3 6 Gb/s

Graphics

• Intel Xe Graphics Architecture (Gen12)

• HDMI 2.1, DisplayPort 1.4 with DSC, D-Sub legacy support

Networking

• 1 × Gigabit LAN (Realtek 8111H)

• No built-in Wi-Fi

Audio

• 7.1 CH HD Audio (Realtek ALC897)

Connectors & Headers

• 1 × CPU Fan, 1 × Chassis/Water Pump Fan (4-pin each)

• 1 × 24-pin ATX Power, 1 × 8-pin 12V

• 1 × Front Panel Audio, 1 × USB 2.0 Header, 1 × USB 3.2 Gen1 Header

• 1 × SPI TPM Header, Chassis Intrusion, and Speaker Header

Rear I/O

• 1 × PS/2

• 1 × D-Sub, 1 × HDMI, 1 × DisplayPort 1.4

• 2 × USB 3.2 Gen1, 4 × USB 2.0

• 1 × RJ-45 LAN

• HD Audio Jacks: Line In / Front Speaker / Mic

Form Factor & Accessories

• Micro ATX: 24.4 × 19.3 cm

• Solid capacitor design

• Accessories: I/O Shield, 2 × SATA cables, 1 × M.2 screw

Why Choose ASRock H610M-HVS/M.2 D5 GEN5

Ideal for compact Intel builds, this motherboard offers modern DDR5 memory support, PCIe Gen5 readiness, and reliable storage options. Perfect for home, office, or entry-level gaming, it combines small form factor convenience with future-ready performance.
