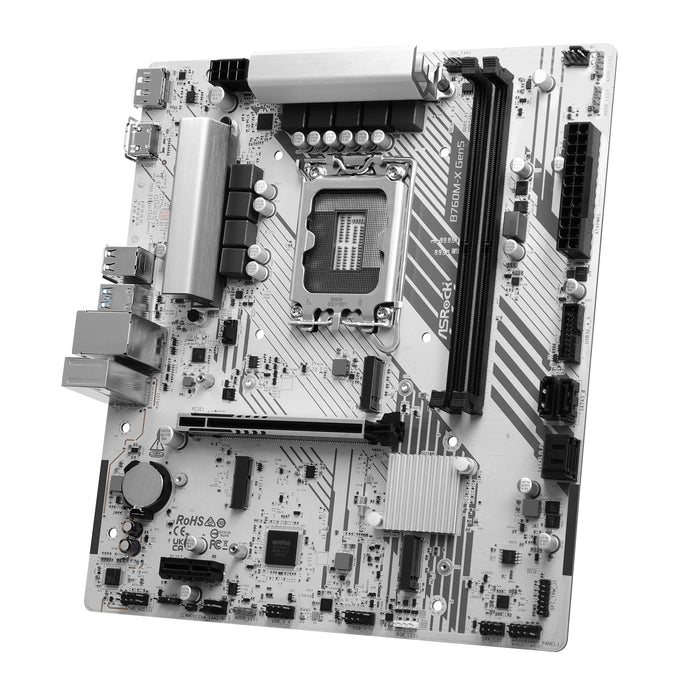

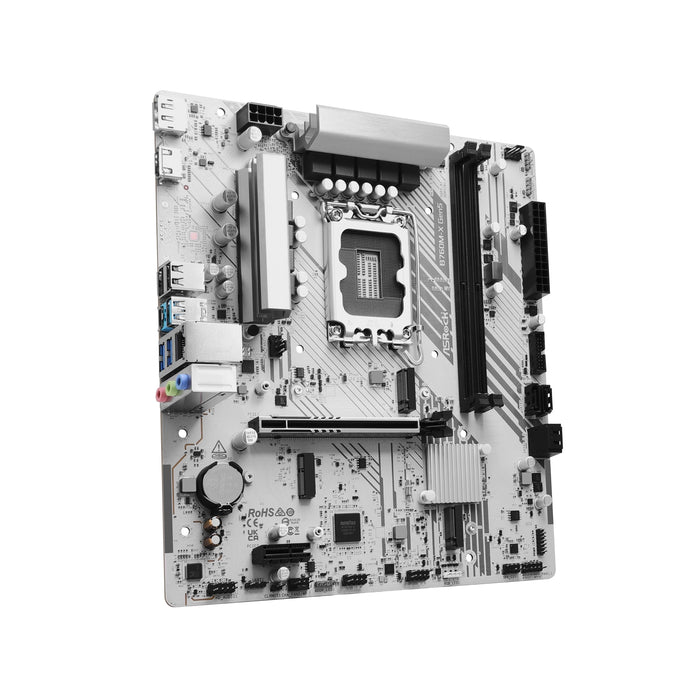

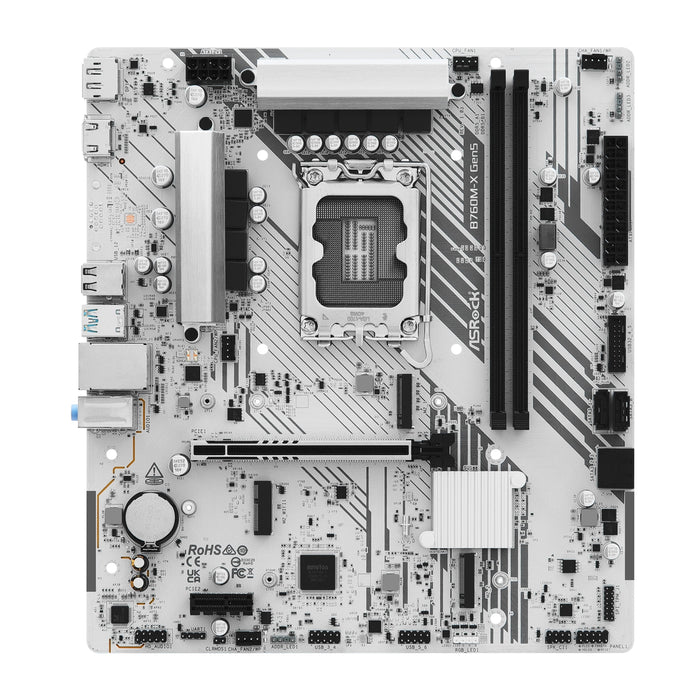

ASRock B760M-X Gen5 Intel Motherboard

The ASRock B760M-X Gen5 is a high-performance Micro-ATX motherboard for Intel 12th, 13th, and 14th Gen Core processors. Designed for mainstream gaming, content creation, and productivity, it combines DDR5 memory support, PCIe Gen5 graphics, dual M.2 storage, and 2.5GbE LAN for modern systems in a compact form factor.

Key Features & Benefits

✔ Intel LGA1700 Support
Compatible with 12th–14th Gen Intel Core CPUs, including Hybrid, Turbo Boost Max 3.0, Thermal Velocity Boost, and Adaptive Boost Technology.

✔ Micro-ATX Form Factor
Compact size (24.4 × 22.1 cm) allows flexible builds without compromising performance or expandability.

✔ DDR5 Memory Support
2 × DDR5 DIMM slots supporting up to 128GB, with speeds up to 7200+(OC) for top-tier performance.

✔ PCIe Gen5 Graphics Slot
1 × PCIe 5.0 x16 slot for next-gen GPU support and maximum bandwidth.

✔ Dual M.2 Storage
1 × PCIe Gen4x4 M.2 socket (64 Gb/s) and 1 × PCIe Gen3x4 M.2 socket (32 Gb/s) for high-speed SSDs.

✔ Multiple Display Outputs
HDMI 2.1 (4K @ 60Hz) and DisplayPort 1.4 with DSC (8K @ 60Hz / 5K @ 120Hz) for versatile display options.

✔ Advanced Audio
7.1 channel HD audio via Realtek ALC897 with line-in, mic, and front speaker support.

✔ 2.5 Gigabit LAN
Dragon RTL8125BG Ethernet with Smart Auto Adjust and bandwidth priority controls for gaming and streaming.

✔ USB Connectivity
1 × USB 3.2 Gen1 Type-C, 3 × USB 3.2 Gen1 Type-A, 2 × USB 2.0 (rear) plus front headers for total of 11 USB ports.

✔ Solid Power & Reliability
7+1+1 Power Phase design with ASRock 4-Layer Memory POOL technology ensures stable and reliable performance.

✔ EZ Update & RAID Support
ASRock Auto Driver Installer and Easy RAID Installer simplify setup for SATA RAID 0, 1, 5, and 10.

Technical Specifications

CPU & Chipset

• CPU: Intel 12th–14th Gen Core processors, LGA1700

• Chipset: Intel B760

• Power Phases: 7+1+1

Memory

• Slots: 2 × DDR5 DIMM

• Max Capacity: 128GB

• Supported Speeds: DDR5 up to 7200+(OC)

• Profiles: Intel XMP 3.0

Expansion Slots

• 1 × PCIe 5.0 x16

• 1 × PCIe 3.0 x1

• 1 × M.2 Key E for WiFi/BT module

Storage

• 1 × PCIe Gen4x4 M.2 (64 Gb/s)

• 1 × PCIe Gen3x4 M.2 (32 Gb/s)

• 4 × SATA3 6 Gb/s

• RAID 0, 1, 5, 10 supported for SATA

Graphics

• Intel Xe Graphics Architecture (Gen12)

• HDMI 2.1, DisplayPort 1.4 with DSC, D-Sub legacy support

Networking

• 2.5 Gigabit LAN (Dragon RTL8125BG)

• Smart bandwidth and usage monitoring, optimized for gaming, browsing, and streaming

Audio

• 7.1 CH HD Audio (Realtek ALC897)

Connectors & Headers

• 1 × CPU Fan, 1 × CPU/Water Pump Fan, 2 × Chassis/Water Pump Fans (4-pin each)

• 1 × 24-pin ATX Power, 1 × 8-pin 12V

• 1 × Front Panel Audio, 1 × USB 3.2 Gen1 header, 2 × USB 2.0 headers

• 1 × SPI TPM Header, Chassis Intrusion, RGB & Addressable LED Headers

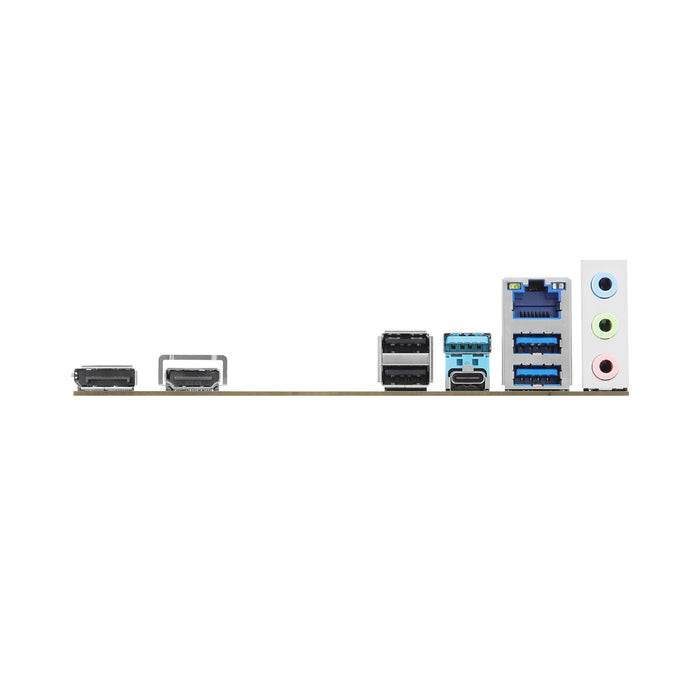

Rear I/O

• 2 × Antenna mounting points

• 1 × HDMI, 1 × DisplayPort 1.4

• 1 × USB 3.2 Gen1 Type-C, 3 × USB 3.2 Gen1 Type-A, 2 × USB 2.0

• 1 × RJ-45 LAN

• HD Audio Jacks: Line In / Front Speaker / Mic

Form Factor & Accessories

• Micro ATX: 24.4 × 22.1 cm

• Accessories: I/O Shield, 2 × SATA cables, 3 × M.2 screws

Why Choose ASRock B760M-X Gen5

Ideal for mainstream gaming and productivity in a compact build, this motherboard offers high-speed DDR5 memory, PCIe Gen5 graphics, dual M.2 storage, and 2.5GbE LAN. Its Micro-ATX design makes it perfect for space-conscious builds without sacrificing performance.
