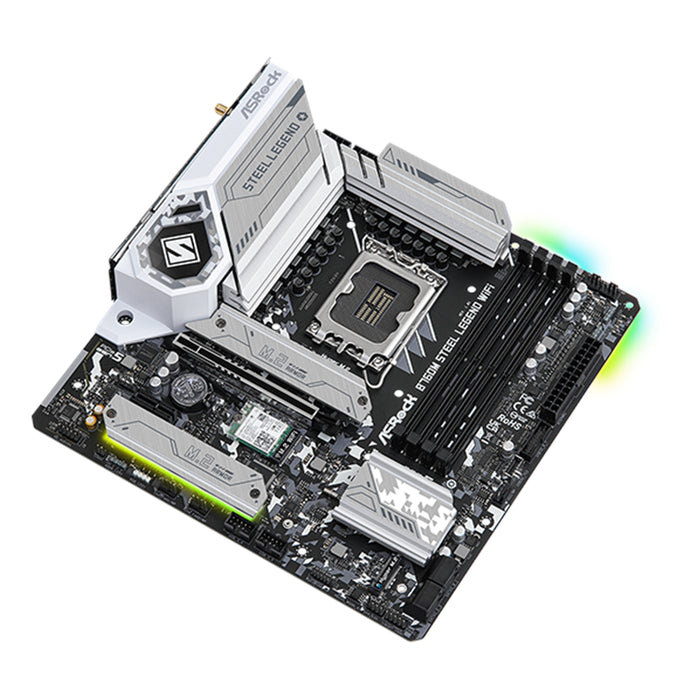

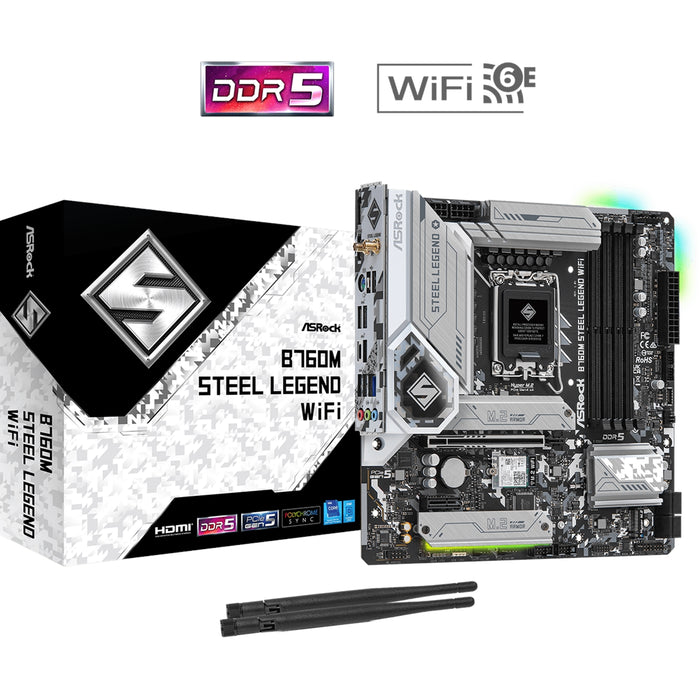

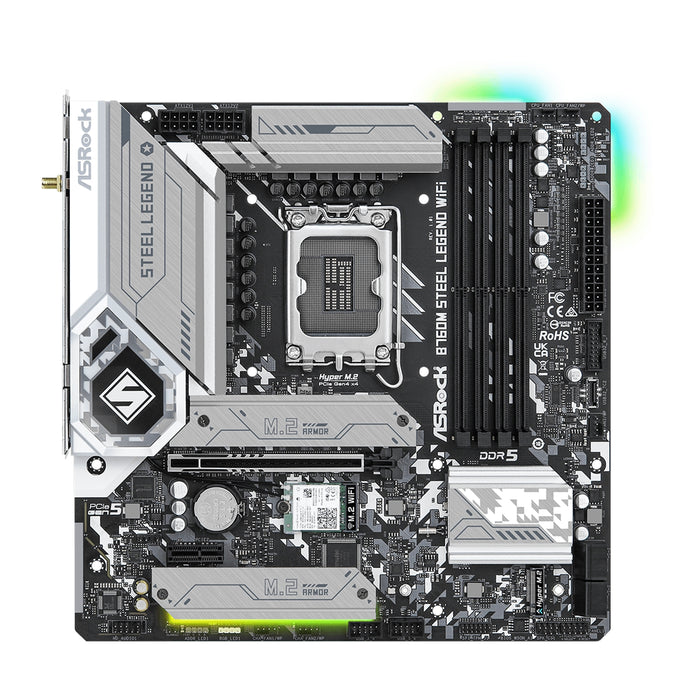

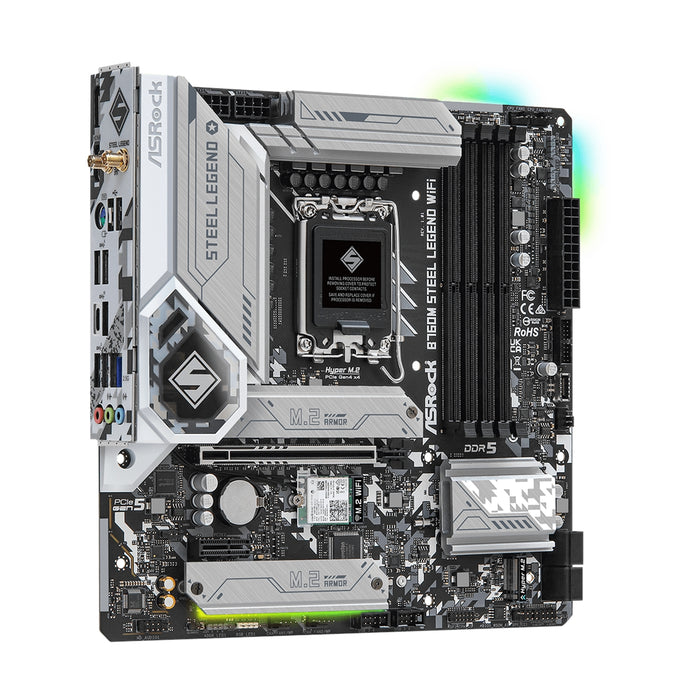

ASRock B760M Steel Legend WiFi DDR5 mATX LGA1700 Motherboard

ASRock B760M Steel Legend WiFi Intel LGA1700 Micro-ATX Motherboard

Built for Power, Designed to Last

The ASRock B760M Steel Legend WiFi delivers premium-grade features in a compact Micro-ATX form factor, making it the ideal foundation for high-performance gaming rigs, professional workstations, or enthusiast builds. With support for the latest Intel 12th and 13th Gen processors, cutting-edge DDR5 memory, and future-proof connectivity, this motherboard offers exceptional value without compromise.

Key Selling Points

• Supports 12th & 13th Gen Intel Core Processors
  Designed for LGA1700 socket CPUs, ensuring top-tier performance across gaming, streaming, and productivity tasks.

• DDR5 Memory Support up to 7200MHz (OC)
  Leverage ultra-fast memory speeds for smoother multitasking and faster application load times.

• PCIe 5.0 x16 Slot
  Ready for next-gen graphics cards with double the bandwidth of PCIe 4.0, delivering peak GPU performance.

• Triple M.2 Slots (PCIe Gen4x4)
  Accommodates blazing-fast NVMe SSDs for rapid storage, reduced boot times, and quicker file transfers.

• Integrated Wi-Fi 6E and 2.5GbE LAN
  Built-in wireless and high-speed Ethernet deliver fast, stable internet and LAN connectivity for gaming, downloads, and streaming.

• USB 3.2 Gen2 Type-C (Front and Rear)
  Fast, future-ready connectivity for high-speed peripherals, external drives, and modern accessories.

• 12+1+1 Power Phase with Dr.MOS
  Robust power delivery ensures stability under load, even during overclocking or extended gaming sessions.

• Polychrome RGB Lighting
  Customisable RGB lighting with full sync support for a coordinated and professional aesthetic.

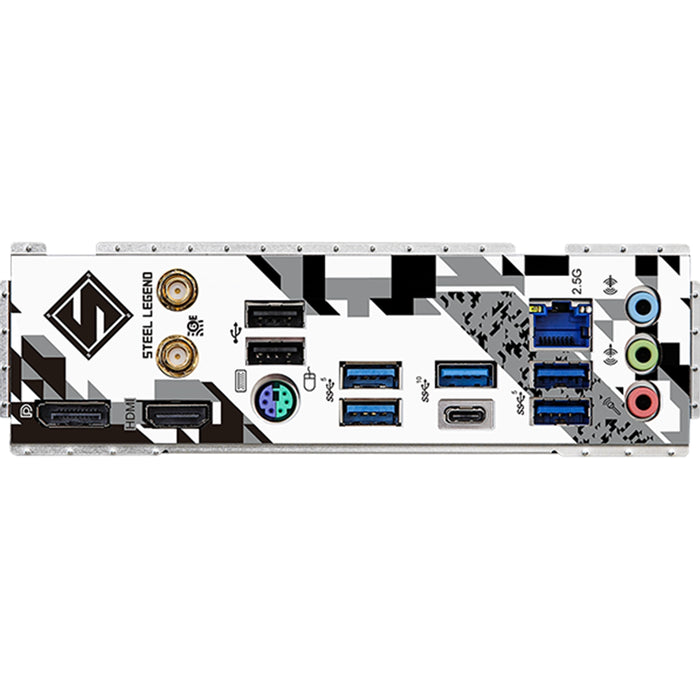

• Reinforced Steel PCIe Slot and Built-in I/O Shield
  Enhances durability and streamlines installation, especially in high-end or frequently upgraded systems.

Specifications

• Form Factor: Micro-ATX (24.4 x 24.4 cm)

• CPU Support: 12th & 13th Gen Intel Core, Pentium Gold, and Celeron (LGA1700)

• Chipset: Intel B760

• Memory: 4 x DDR5 DIMMs, up to 192GB, 7200+MHz (OC)

• Expansion Slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x1

• Storage: 3 x M.2 (PCIe Gen4x4), 4 x SATA3 6Gb/s

• Graphics Output: HDMI 2.1, DisplayPort 1.4, eDP 1.4

• Networking: 2.5GbE LAN, Wi-Fi 6E (802.11ax), Bluetooth 5.3

• Audio: 7.1 CH HD Audio (Realtek ALC897) with Nahimic Audio

• USB Ports: 2 x USB 3.2 Gen2 Type-C, 1 x USB 3.2 Gen2 Type-A, 6 x USB 3.2 Gen1, 6 x USB 2.0

• RGB Support: 1 x RGB header, 3 x Addressable RGB headers

• Power Connectors: 1 x 24-pin ATX, 2 x 8-pin 12V

• OS Compatibility: Windows 10 64-bit, Windows 11 64-bit

Why This Board?

If you're building a compact PC and need a motherboard that doesn't cut corners, the ASRock B760M Steel Legend WiFi is your answer. It’s engineered for serious builders who demand speed, flexibility, and reliability. Whether you’re gaming at high settings, editing 4K video, or running intensive applications, this board provides the backbone to do it all—faster, smoother, and with headroom to grow.
