ASRock B760M-HDV/M.2 mATX DDR5 Motherboard – LGA1700, 2.5GbE, M.2

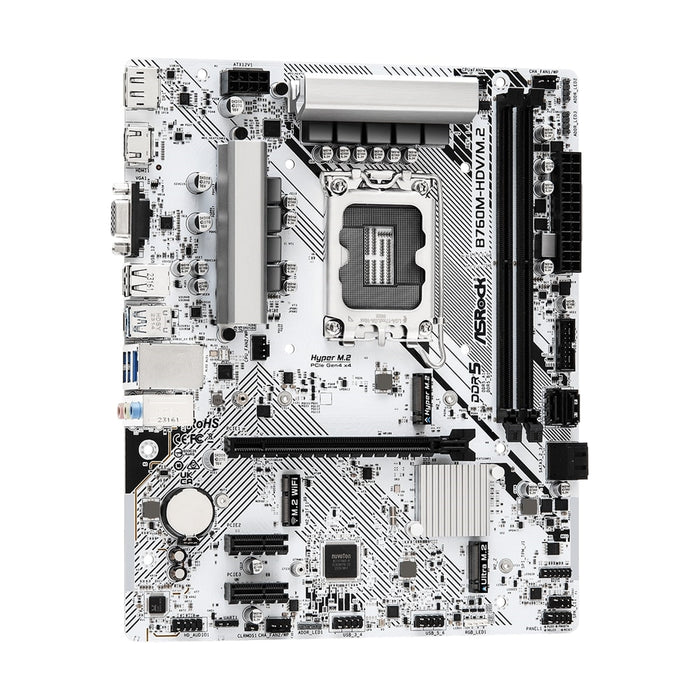

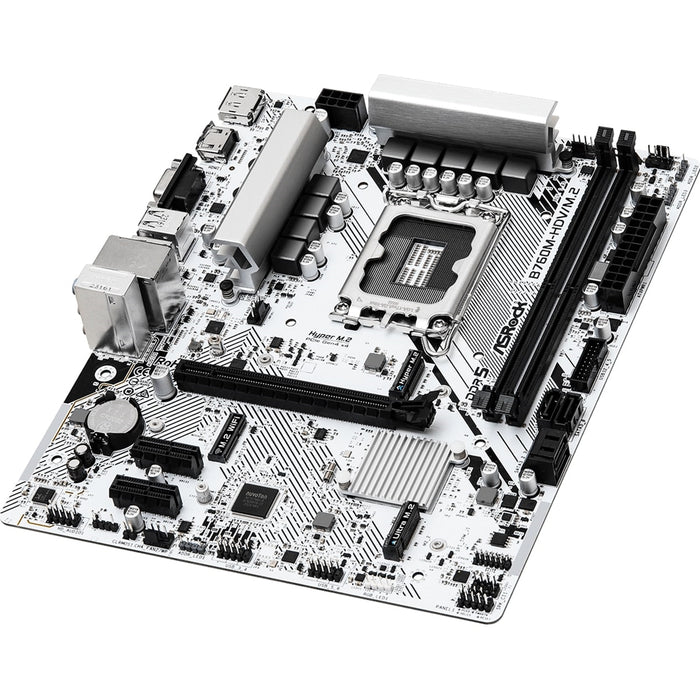

ASRock B760M-HDV/M.2 Intel LGA1700 Micro-ATX Motherboard – DDR5, PCIe 4.0, 2.5GbE LAN

Power your next-gen Intel build with the ASRock B760M-HDV/M.2, a high-performance Micro-ATX motherboard designed for speed, reliability, and future-proof features. Supporting 13th and 12th Gen Intel Core processors and DDR5 memory, it delivers powerful performance in a compact footprint – ideal for gaming, content creation or everyday use.

🔧 Key Features & Benefits

✅ Supports 13th & 12th Gen Intel Core CPUs (LGA1700)
✅ Dual DDR5 DIMM slots – Up to 96GB, 7200+ MHz (OC)
✅ Hyper M.2 & Ultra M.2 sockets – Fast PCIe Gen4 & Gen3 SSD support
✅ 2.5GbE Dragon LAN – Fast and reliable network performance
✅ Triple display output – HDMI 2.1, DisplayPort 1.4, D-Sub
✅ Rear USB-C port – Fast 5Gbps data transfer & reversible plug
✅ RGB headers – Polychrome SYNC for custom lighting
✅ Auto Driver Installer – No disc drive needed for setup
✅ Ready for Wi-Fi – M.2 Key E slot (Wi-Fi module not included)

📦 What’s Included

• ASRock B760M-HDV/M.2 Motherboard

• I/O Shield

• 2 x SATA Data Cables

• 3 x M.2 Screws

• User Manual

⚙️ Technical Specifications

Form Factor: Micro-ATX (24.4 cm x 20.1 cm)
CPU Support: Intel 13th / 12th Gen Core (LGA1700)
Chipset: Intel B760
Memory:

• 2 x DDR5 DIMM slots (Dual Channel)

• Up to 96GB, 7200+ MHz (OC)

• Supports Intel XMP 3.0 / AMD EXPO

Expansion Slots:

• 1 x PCIe 4.0 x16

• 2 x PCIe 3.0 x1

• 1 x M.2 Key E slot (for Wi-Fi module)

Storage:

• 1 x Hyper M.2 (PCIe Gen4 x4)

• 1 x Ultra M.2 (PCIe Gen3 x4)

• 4 x SATA3 6Gb/s

• Supports RAID 0/1/5/10, NVMe boot drives

Graphics Outputs:

• 1 x HDMI 2.1 (4K @60Hz)

• 1 x DisplayPort 1.4 (up to 8K @60Hz)

• 1 x D-Sub (1080p @60Hz)

Graphics require CPU with integrated GPU

Networking:

• Dragon RTL8125BG 2.5GbE LAN

• Smart Bandwidth Control & Gaming Mode

Audio:

• Realtek ALC897 7.1 CH HD Audio Codec

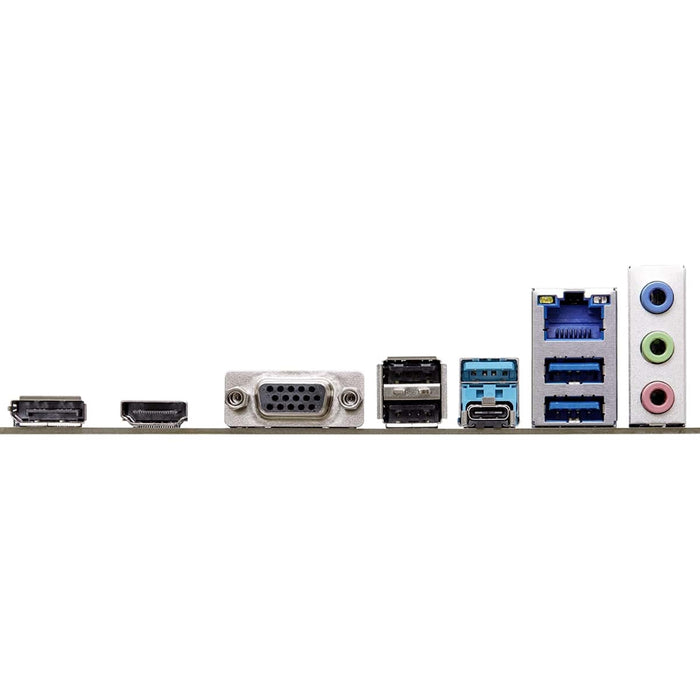

Rear I/O Ports:

• 1 x HDMI / 1 x DisplayPort / 1 x D-Sub

• 1 x USB 3.2 Gen1 Type-C

• 3 x USB 3.2 Gen1 Type-A

• 2 x USB 2.0

• 1 x RJ-45 LAN Port

• 3 x Audio Jacks

• 2 x Wi-Fi Antenna Mounts

Internal Headers:

• RGB + 3 x Addressable RGB Headers

• 1 x USB 3.2 Gen1 Header (2 ports)

• 2 x USB 2.0 Headers (4 ports)

• 4 x Fan Headers (CPU/Water/Chassis)

• TPM, Speaker, Front Audio, Power connectors

OS Support: Windows 10 / 11 (64-bit)

💬 Why Choose This Motherboard?

The ASRock B760M-HDV/M.2 combines the latest platform technologies in a compact form factor. With blazing-fast DDR5 support, high-speed storage, and advanced networking, it’s a reliable and future-proof foundation for your next PC build. Whether you’re a gamer, creator, or power user — this board delivers strong performance at an affordable price.
