ASRock B760M-HDV/M.2 D4 – LGA1700, DDR4, 2x M.2, PCIe 4.0, mATX

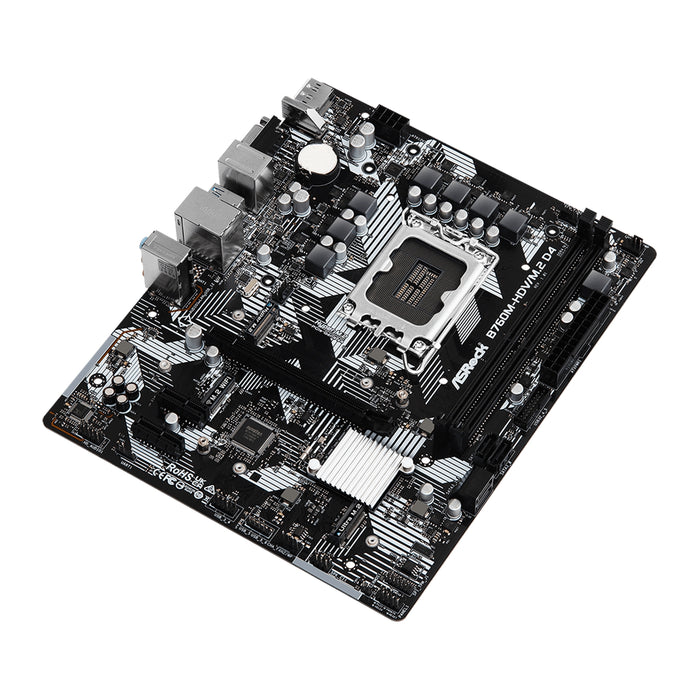

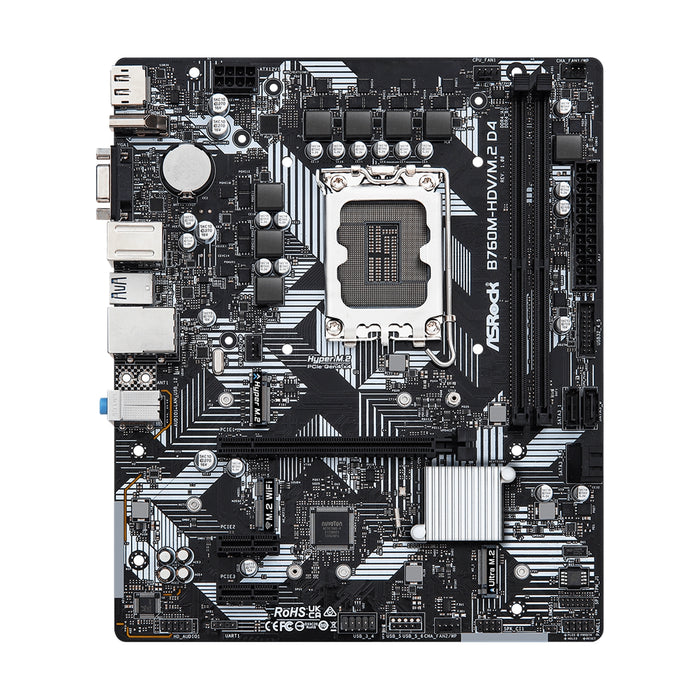

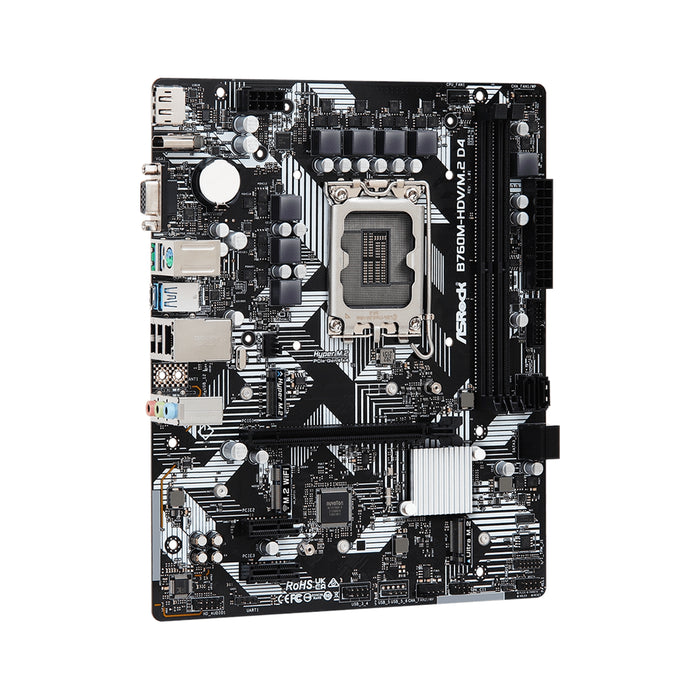

ASRock B760M-HDV/M.2 D4 Micro ATX Motherboard – Intel B760, LGA1700, DDR4 5333+ OC, PCIe 4.0, 2x M.2, Triple Display, USB-C, Realtek 1GbE LAN

Built for 13th and 12th Gen Intel® Core™ processors, the ASRock B760M-HDV/M.2 D4 delivers a balanced mix of performance, expansion, and connectivity. Ideal for compact desktop builds, this Micro ATX motherboard supports high-speed DDR4 memory, PCIe Gen4 GPUs, and dual M.2 storage—including Hyper M.2 Gen4 x4.

✅ CPU Support: Intel 13th & 12th Gen Core™, Pentium® Gold & Celeron® processors (LGA1700)
✅ Chipset: Intel B760
✅ Power Design: 5+1+1 power phase with high-quality components for stable CPU performance
✅ Memory Support:

• 2× DDR4 DIMM slots, up to 64GB

• Dual Channel DDR4 5333+ MHz (OC)

• Supports XMP 2.0 & non-ECC un-buffered memory
  ✅ Graphics Outputs:

• 1× HDMI 2.1 (4K@60Hz, HDCP 2.3)

• 1× DisplayPort 1.4 (8K@60Hz / 5K@120Hz, HDCP 2.3, DSC)

• 1× D-Sub (1920x1080@60Hz)
  ✅ Expansion Slots:

• 1× PCIe 4.0 x16 (CPU)

• 2× PCIe 3.0 x1 (Chipset)

• 1× M.2 (Key E) slot for Wi-Fi modules (2230)
  ✅ Storage:

• 1× Hyper M.2 (M2_1, PCIe Gen4x4, 64Gb/s)

• 1× Ultra M.2 (M2_2, PCIe Gen3x4 & SATA3, 32Gb/s)

• 4× SATA3 6.0Gb/s ports

• RAID 0, 1, 5, 10 supported for SATA
  ✅ Audio: Realtek ALC887/897 – 7.1 CH HD Audio Codec with ELNA capacitors
  ✅ LAN: Realtek RTL8111H Gigabit LAN (10/100/1000 Mb/s)
  ✅ USB Ports:

• Rear: 1× USB 3.2 Gen1 Type-C, 3× USB 3.2 Gen1 Type-A, 2× USB 2.0

• Front (via headers): 2× USB 3.2 Gen1, 3× USB 2.0
  ✅ Cooling & Headers:

• 1× CPU Fan (4-pin)

• 1× CPU/Water Pump Fan (4-pin)

• 2× Chassis/Water Pump Fans (4-pin)
  ✅ Internal Connectors:

• 1× 24-pin ATX Power

• 1× 8-pin 12V Power

• 2× USB 2.0 headers

• 1× USB 3.2 Gen1 header

• 1× SPI TPM header

• 1× Front Audio header

• 1× Chassis Intrusion/Speaker header

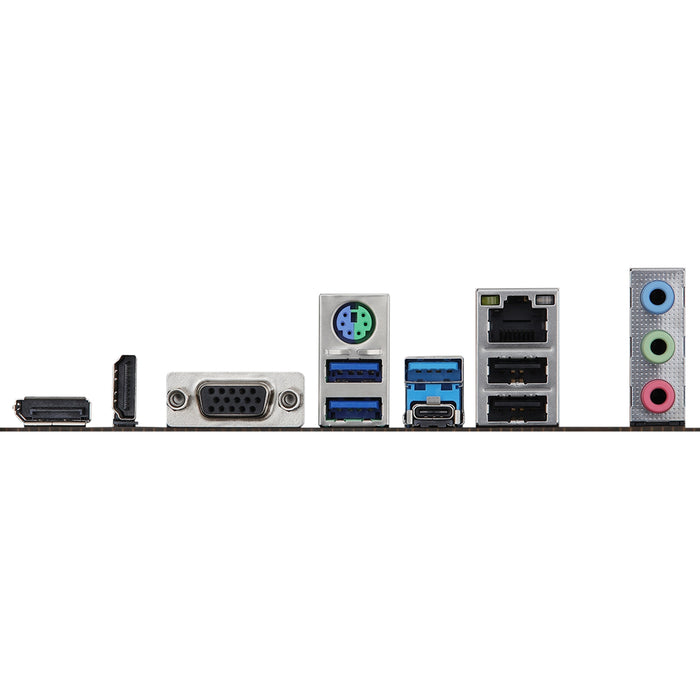

  ✅ Rear I/O Panel:

• 1× PS/2 Combo Port

• 1× HDMI, 1× DisplayPort, 1× D-Sub

• 1× USB 3.2 Gen1 Type-C

• 3× USB 3.2 Gen1 Type-A

• 2× USB 2.0

• 1× RJ-45 LAN

• 3× Audio Jacks (Line In, Line Out, Mic)

• 2× Wi-Fi Antenna Mounting Points (for M.2 Key E)
  ✅ Form Factor: Micro ATX – 24.4cm x 20.1cm
  ✅ BIOS: 128Mb AMI UEFI Legal BIOS with EZ Mode & Full HD GUI
  ✅ Software:

• ASRock Auto Driver Installer

• ASRock A-Tuning & XFast LAN

• Instant Flash, Easy RAID Installer
  ✅ OS Support: Windows 11 64-bit / Windows 10 64-bit
  ✅ Included Accessories:

• 1× I/O Shield

• 2× SATA Data Cables

• 3× M.2 Mounting Screws

• 1× User Manual

Why Choose the ASRock B760M-HDV/M.2 D4?

• ✔ Advanced 5+1+1 power phase design for reliable CPU delivery

• ✔ Dual ultra-fast M.2 slots including PCIe Gen4 x4 Hyper M.2

• ✔ Triple monitor support with HDMI 2.1, DP 1.4, and D-Sub

• ✔ Flexible connectivity with USB-C, Wi-Fi expansion, and Realtek Gigabit LAN

• ✔ No optical drive needed – install drivers via Auto Driver Installer tool
