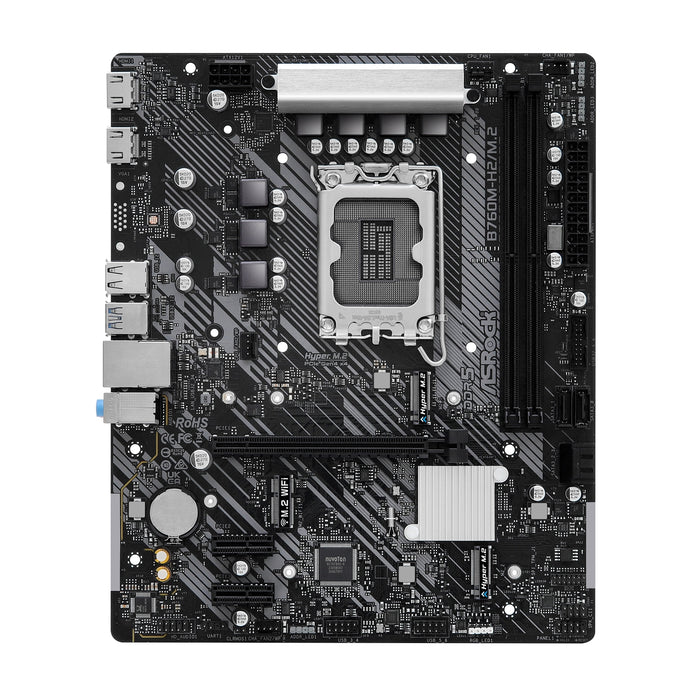

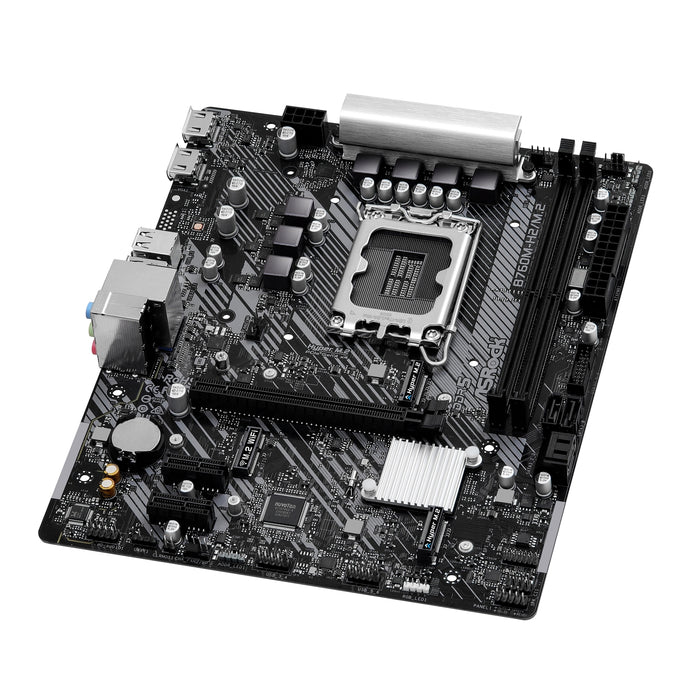

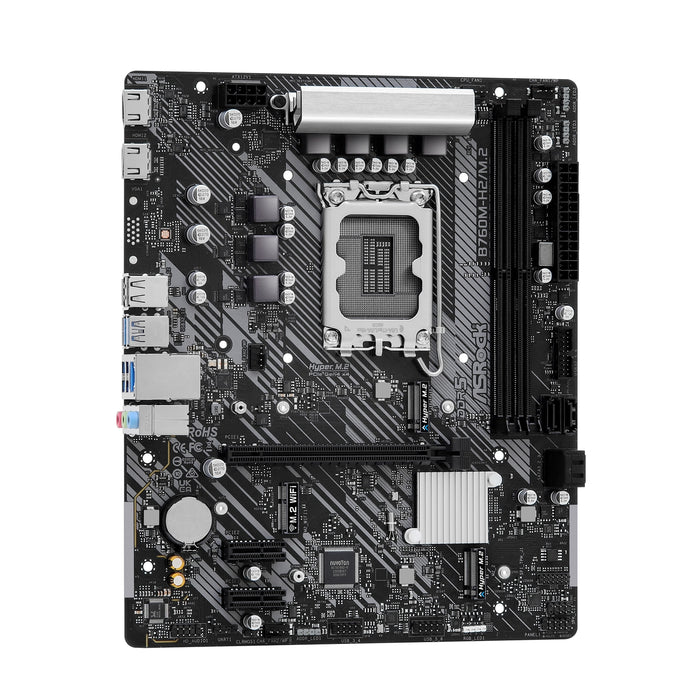

ASRock B760M-H2/M.2 Intel Motherboard

The ASRock B760M-H2/M.2 is a compact and reliable Micro-ATX motherboard designed for Intel 12th, 13th, and 14th Gen Core processors. Built for home, office, and entry-level gaming systems, it delivers strong performance with DDR5 memory, dual M.2 storage, and 2.5GbE LAN, making it a cost-effective foundation for modern PC builds.

Key Features & Benefits

✔ Intel LGA1700 Support
Compatible with 12th–14th Gen Intel Core processors with support for Hybrid Architecture and advanced boost technologies.

✔ Micro-ATX Form Factor
Compact 24.4 × 20.1 cm design, ideal for space-saving builds without sacrificing essential features.

✔ DDR5 Memory Support
2 × DDR5 DIMM slots supporting up to 128GB and speeds up to 7200+(OC).

✔ Dual M.2 Storage
2 × PCIe Gen4x4 M.2 sockets (64 Gb/s) for fast NVMe SSD performance.

✔ Dual HDMI Outputs
2 × HDMI 2.1 ports supporting up to 4K @ 60Hz, ideal for dual-display setups.

✔ 2.5 Gigabit LAN
Dragon RTL8125BG LAN provides fast and stable network performance for streaming and business use.

✔ Reliable Power Design
5+1+1 power phase with ASRock 4-Layer Memory POOL technology for stable operation.

✔ Flexible Expansion
1 × PCIe 4.0 x16 slot for GPU plus 2 × PCIe 3.0 x1 slots for additional devices.

✔ Smart Cooling & RGB Support
Multiple fan headers with Smart Fan Control and RGB/ARGB headers for custom builds.

✔ EZ Software & Setup
ASRock Auto Driver Installer, Instant Flash, and Easy RAID Installer simplify setup and maintenance.

Technical Specifications

CPU & Chipset

• CPU: Intel 12th–14th Gen Core processors, LGA1700

• Chipset: Intel B760

• Power Phases: 5+1+1

Memory

• Slots: 2 × DDR5 DIMM

• Max Capacity: 128GB

• Speeds: Up to 7200+(OC)

• Profiles: XMP 3.0

Expansion & Slots

• 1 × PCIe 4.0 x16

• 2 × PCIe 3.0 x1

• 1 × M.2 Key E for optional Wi-Fi module

Storage

• 2 × PCIe Gen4x4 M.2

• 4 × SATA3 6 Gb/s

• RAID: SATA 0/1/5/10

Graphics

• 2 × HDMI 2.1 (4K @ 60Hz)

• Intel Xe Graphics (CPU dependent)

Networking

• 2.5GbE LAN (Dragon RTL8125BG)

Audio

• 7.1 HD Audio (Realtek ALC897)

USB Connectivity

• 6 × USB 3.2 Gen1 (4 rear, 2 front)

• 6 × USB 2.0 (2 rear, 4 front)

Connectors & Headers

• CPU/Chassis/AIO fan headers with Smart Fan Speed Control

• RGB and Addressable LED headers

• USB 3.2 Gen1 and USB 2.0 headers

• Front panel audio and TPM header

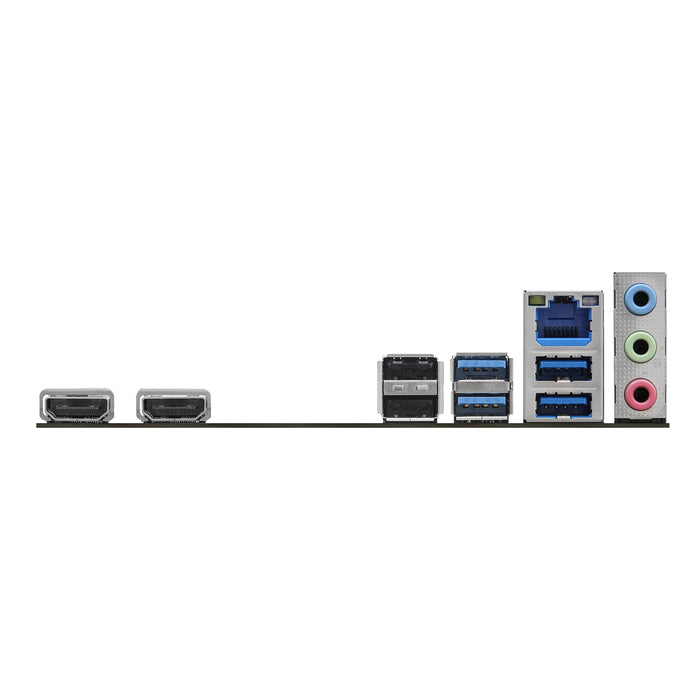

Rear I/O

• 2 × HDMI ports

• 4 × USB 3.2 Gen1, 2 × USB 2.0

• 1 × RJ-45 LAN

• HD Audio jacks

Form Factor & Accessories

• Micro-ATX: 24.4 × 20.1 cm

• Accessories: I/O shield, 2 × SATA cables, M.2 screws

Why Choose ASRock B760M-H2/M.2

Ideal for budget-friendly and space-saving builds, the B760M-H2/M.2 offers DDR5 performance, fast NVMe storage, dual HDMI outputs, and 2.5GbE networking in a compact Micro-ATX form factor. Perfect for home, office, and entry-level gaming systems requiring modern connectivity and reliability.
