ASRock B760 Pro RS/D4 ATX Motherboard – LGA1700, DDR4, 2.5GbE

ASRock B760 Pro RS/D4 Intel 1700 Socket ATX Motherboard

Powerful performance meets future-ready design with the ASRock B760 Pro RS/D4, a feature-rich ATX motherboard built for 12th and 13th Gen Intel® Core™ processors. From high-speed storage to vivid RGB aesthetics, it's a smart choice for builders, creators, and gamers seeking reliability, speed, and value.

🟩 Key Features & Benefits

✅ LGA1700 Socket for 12th/13th Gen Intel CPUs – Supports the latest Intel Hybrid Technology and Turbo Boost features for peak performance
✅ High-Speed Storage – 4x M.2 sockets with PCIe Gen4 support for ultra-fast data access
✅ Dual USB-C Ports – USB 3.2 Gen2 front and rear Type-C ports for high-speed 10Gbps data transfers
✅ 2.5GbE Dragon LAN – Intelligent networking with up to 2.5x faster speeds than standard Gigabit Ethernet
✅ POLYCHROME RGB Sync – Customise your lighting setup with addressable RGB headers and full sync support
✅ DDR4 Memory Support – 4 DIMM slots supporting up to 128GB at 5333+ MHz (OC)
✅ Pre-Installed I/O Shield – Simplified installation with added protection and durability
✅ Enhanced Power Design – 7+1+1 power phase with 50A Dr.MOS ensures stable performance under load
✅ Multiple GPU Support – AMD CrossFire™ ready with multiple PCIe slots for flexible expansion

🟦 Technical Specifications

Form Factor: ATX (30.5 cm x 24.4 cm)
CPU Support: Intel® 13th & 12th Gen Core™ Processors (LGA1700)
Chipset: Intel® B760
Memory: 4x DDR4 DIMM, Dual Channel, up to 128GB, 5333+(OC)
Storage:

• 3x PCIe Gen4 x4 M.2 sockets

• 1x PCIe Gen4 x2 M.2 socket

• 4x SATA 6Gb/s
  Expansion:

• 2x PCIe 4.0 x16

• 1x PCIe 3.0 x16

• 1x PCIe 3.0 x1

• 1x M.2 Key-E for WiFi/BT
  Networking: 2.5GbE LAN (Dragon RTL8125BG)
  Graphics Output: 1x HDMI 2.1, 1x DisplayPort 1.4 (Up to 8K/60Hz)
  Audio: 7.1 Channel HD Audio with Nahimic Software

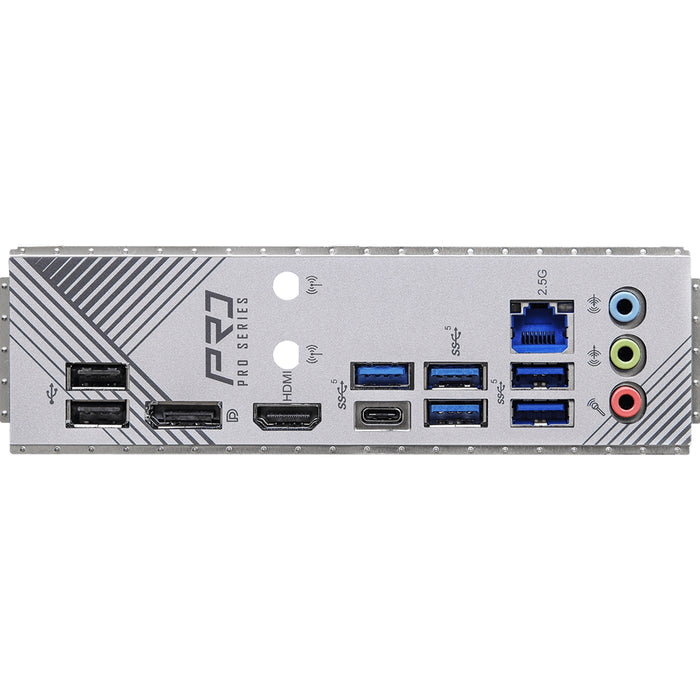

  Rear I/O Ports:

• 1x HDMI, 1x DisplayPort

• 1x USB-C Gen1

• 5x USB-A Gen1

• 2x USB 2.0

• 1x RJ-45 LAN

• HD Audio Jacks
  Front Panel Connectors: USB 3.2 Gen2 Type-C, USB 3.2 Gen1, USB 2.0, RGB, Addressable RGB
  Operating System: Windows® 10/11 64-bit
  Included Accessories: SATA cables, M.2 screws, standoff, user manual

🟨 Why Choose the ASRock B760 Pro RS/D4?

Whether you're building a high-performance workstation or a sleek gaming PC, the ASRock B760 Pro RS/D4 delivers exceptional value and next-gen connectivity. Its advanced features like PCIe Gen4 storage, 2.5GbE networking, and full RGB lighting control make it an ideal all-rounder for demanding users without breaking the bank. Built with reliability, expandability, and aesthetics in mind—this is your motherboard of choice for today and tomorrow.
