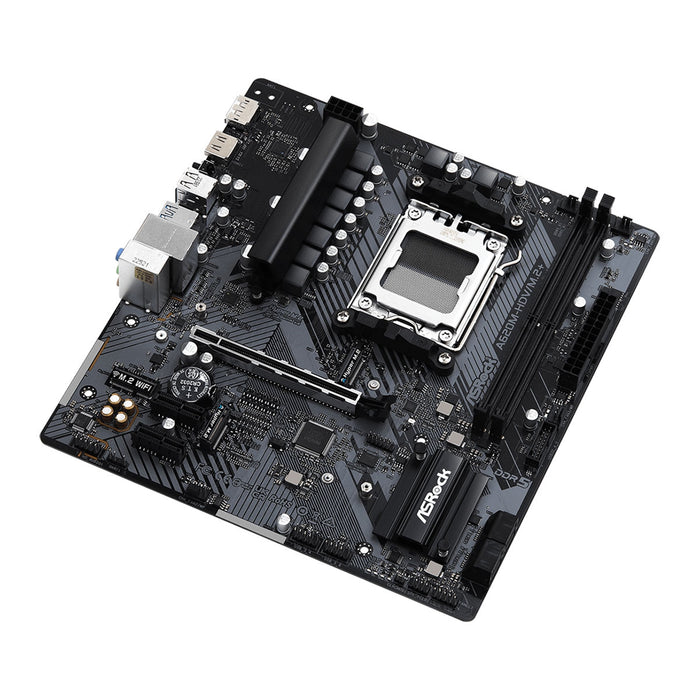

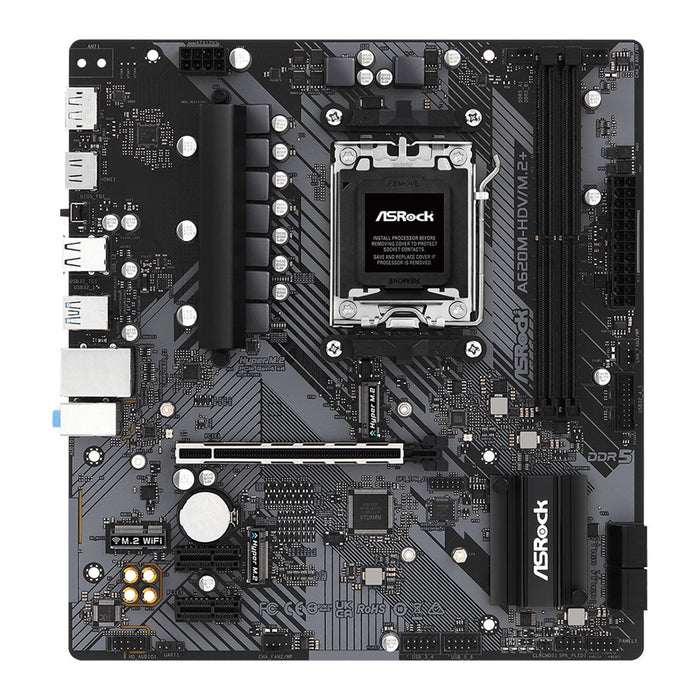

ASRock A620M-HDV/M.2 – AM5, DDR5, M.2, HDMI/DP, USB-C, mATX

ASRock A620M-HDV/M.2 Micro ATX Motherboard – AM5, DDR5, PCIe 4.0, Dual M.2, HDMI/DP, USB-C

If you're building a compact yet capable AMD system with the latest Ryzen™ 7000 Series processors, the ASRock A620M-HDV/M.2 is the smart choice. It combines high-speed DDR5 memory support, Gen4 storage performance, and excellent connectivity—all at an exceptional value. Whether you're upgrading an office PC, assembling a reliable gaming system, or setting up a versatile home workstation, this board delivers the power and stability you need.

✅ Key Features & Benefits

✔ Supports Next-Gen AMD Ryzen™ 7000 Series CPUs
Built for the latest AM5 socket, delivering top-tier multi-core performance and future-ready support.

✔ DDR5 Memory Ready – Up to 6400+ MHz (OC)
Get superior speed and bandwidth with support for dual-channel DDR5 RAM up to 96GB—perfect for demanding tasks, gaming, and multitasking.

✔ Dual M.2 Slots for Fast NVMe SSDs
Includes one PCIe Gen4x4 and one PCIe Gen3x2/SATA slot—ideal for ultra-fast boot times, game loading, and file transfers.

✔ Modern Display Support: HDMI 2.1 + DisplayPort 1.4
Enjoy stunning 4K visuals at 120Hz with HDR via integrated graphics—great for media PCs or iGPU-based builds.

✔ Rock-Solid Durability with Premium Components
4+1+1 Power Phase with 50A Dr.MOS ensures stable delivery to your CPU—even under load.

✔ Easy BIOS Updates & Driver Setup
BIOS Flashback Button and Auto Driver Installer make it hassle-free to set up and update—no CPU or memory required for BIOS updates.

✔ Compact Micro ATX Form Factor
Fits in most cases, ideal for small builds without sacrificing expansion options.

🔧 Technical Specifications

CPU Support:

• AMD AM5 Ryzen™ 7000 Series processors

• Integrated graphics support depends on CPU

Chipset:

• AMD A620

Memory:

• 2× DDR5 DIMM slots

• Dual channel, non-ECC, unbuffered

• Up to 6400+ MHz (OC)

• Max capacity: 96GB

• Supports AMD EXPO & Intel XMP

Graphics Outputs:

• 1× HDMI 2.1 (4K@120Hz, HDR, HDCP 2.3)

• 1× DisplayPort 1.4 (4K@120Hz with DSC, HDCP 2.3)

Audio:

• Realtek ALC897 7.1 CH HD Audio Codec

• Nahimic Audio support for enhanced sound

Networking:

• Realtek RTL8111H Gigabit LAN (10/100/1000 Mbps)

Expansion Slots:

• 1× PCIe 4.0 x16 (GPU, 15µ gold contact)

• 2× PCIe 3.0 x1

• 1× M.2 Key E slot for Wi-Fi/BT modules

Storage Options:

• 1× M.2 (2280) PCIe Gen4x4

• 1× M.2 (2260/2280) PCIe Gen3x2 + SATA

• 2× SATA3 6Gb/s

• RAID 0/1 for SATA, RAID 0/1/10 for NVMe (via add-on card)

USB Ports:

• Rear:
   • 1× USB 3.2 Gen1 Type-C
   • 2× USB 3.2 Gen1 Type-A
   • 2× USB 2.0

• Front:
   • Header for 2× USB 3.2 Gen1
   • Headers for 4× USB 2.0
  *All ports include ESD protection

Cooling & Power Connectors:

• 1× CPU fan (4-pin, up to 1A)

• 3× Chassis/water pump fan headers (4-pin, up to 2A, 3/4-pin auto-detect)

• 1× 24-pin ATX power, 1× 8-pin CPU power

Rear I/O Ports:

• 1× HDMI 2.1

• 1× DisplayPort 1.4

• 1× USB 3.2 Gen1 Type-C

• 2× USB 3.2 Gen1 Type-A

• 2× USB 2.0

• 1× BIOS Flashback button

• 1× RJ-45 LAN port

• 3× Audio jacks

• 2× Wi-Fi antenna mounting holes (module not included)

BIOS & Software:

• 256Mb UEFI BIOS with GUI

• BIOS Flashback, Instant Flash

• ASRock A-Tuning, XFast LAN

• ASRock Auto Driver Installer

Accessories Included:

• 1× I/O shield

• 2× SATA cables

• 3× M.2 screws

• 1× User manual

Form Factor:
Micro ATX – 24.4 cm × 22.6 cm (9.6" × 8.9")

OS Compatibility:
Windows® 10 64-bit / Windows® 11 64-bit

Certifications:
FCC, CE, ErP/EuP Ready

💡 Why Choose the ASRock A620M-HDV/M.2?

If you’re looking for a cost-effective way to build a modern, efficient AMD Ryzen™ system, this board hits the sweet spot. It’s compact but capable, with full DDR5 memory support, PCIe Gen4 speed, dual M.2 slots, and advanced display options—all built with ASRock’s reliability and thoughtful engineering.

The built-in BIOS Flashback function allows for easy recovery or upgrades, even without a CPU, while the Auto Driver Installer makes setting up Windows smooth and simple. Whether you're building a budget-friendly gaming rig, an everyday productivity machine, or a media centre PC, this board delivers everything you need—without the bloat.
