ASRock A620AM Pro RS WiFi AM5 Motherboard, DDR5, WiFi 6E, 2.5G LAN

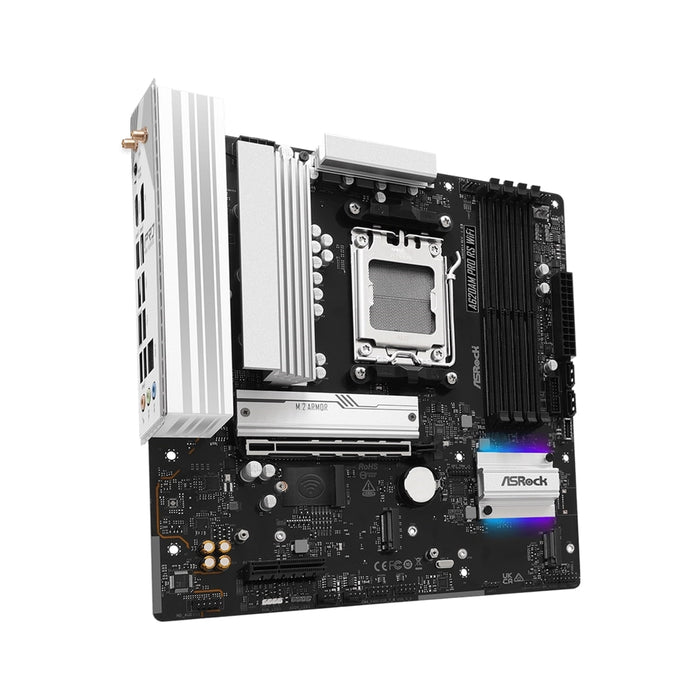

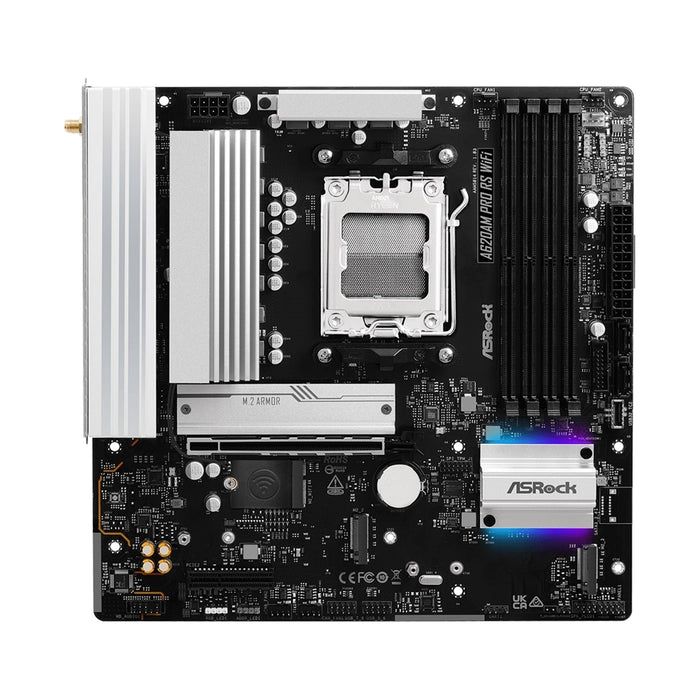

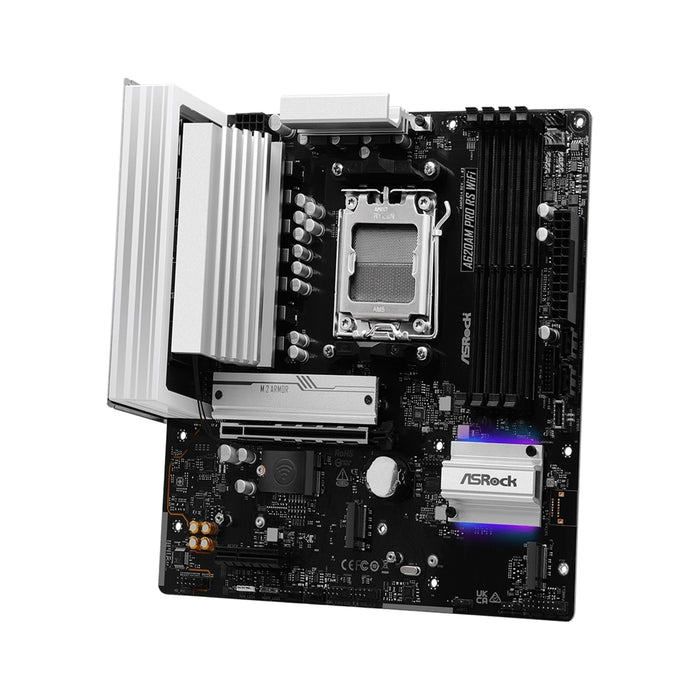

ASRock A620AM Pro RS WiFi AMD AM5 Motherboard

The ASRock A620AM Pro RS WiFi is engineered to deliver outstanding performance, cutting-edge connectivity, and rock-solid durability. Designed for AMD Ryzen 9000, 8000 and 7000 Series processors, this micro-ATX motherboard is the perfect foundation for a powerful gaming rig, creative workstation, or high-performance home PC.

With DDR5 support, PCIe Gen4 M.2 storage, next-generation networking, and robust power delivery, it’s built to handle intensive workloads while ensuring long-term stability. Whether you’re gaming at high frame rates, streaming in 4K, or pushing your system to the limit, the A620AM Pro RS WiFi is a future-proof choice.

Key Features & Benefits

• AMD Ryzen AM5 Support – Compatible with Ryzen 9000, 8000 and 7000 Series CPUs

• High-Speed DDR5 Memory – 4 DIMM slots, up to 256GB, 7200+ MHz (OC), with XMP & EXPO profiles

• Lightning-Fast Storage – Dual PCIe 4.0 M.2 slots, PCIe 3.0 M.2, plus SATA RAID support

• Advanced Connectivity – Dual USB-C (front and rear), HDMI 2.1 & DisplayPort 1.4 with 4K 120Hz support

• Next-Gen Networking – 2.5GbE Dragon LAN and WiFi 6E with Bluetooth 5.2 for ultra-fast, low-latency connections

• Robust Power Design – 6+2+1 Power Phase with Dr.MOS and Hi-Density connectors for stability under heavy loads

• Optimised Cooling – Aluminium heatsinks and smart fan controls keep temperatures in check

• Immersive Audio – Realtek 7.1 HD Audio with Nahimic software for gaming, streaming and calls

• Customisable Lighting – Polychrome RGB and Signal RGB support with wide device compatibility

• User-Friendly Features – BIOS Flashback, Post Status Checker, and pre-installed I/O shield for easier builds

Technical Specifications

CPU Support

• AMD Ryzen 9000 / 8000 / 7000 Series (Socket AM5)

Memory

• 4 x DDR5 DIMM slots, up to 256GB

• Supports up to 7200+ MHz (OC)

• ECC & non-ECC, un-buffered

Graphics

• 1 x HDMI 2.1 (4K 120Hz, HDR, HDCP 2.3)

• 1 x DisplayPort 1.4 (4K 120Hz, HDR, HDCP 2.3)

Expansion Slots

• 1 x PCIe 4.0 x16

• 1 x PCIe 3.0 x16 (x2 mode)

Storage

• 2 x PCIe 4.0 M.2 (Gen4x4)

• 1 x PCIe 3.0 M.2 (Gen3x4)

• 2 x SATA3 6Gb/s

• RAID 0/1/10 for SATA & NVMe

Networking

• 2.5GbE Dragon LAN

• WiFi 6E + Bluetooth 5.2

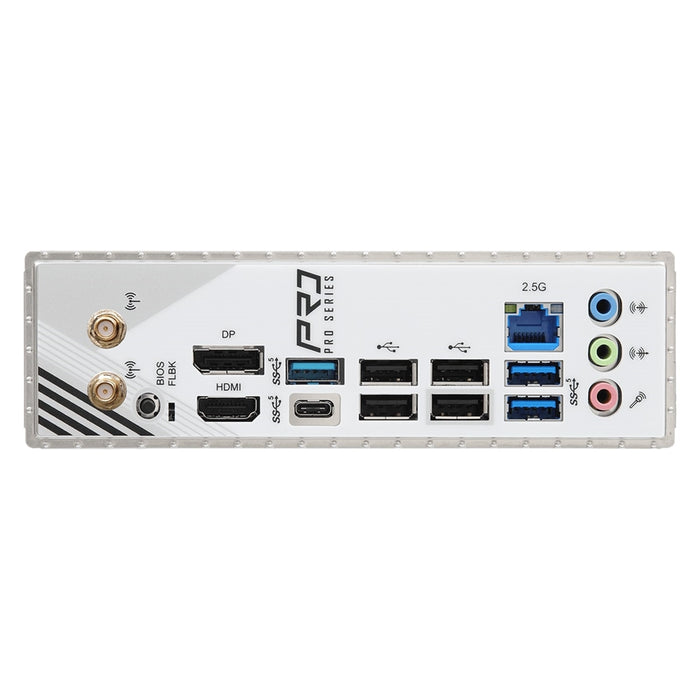

USB Ports

• Rear: 1 x USB-C 3.2 Gen1, 3 x USB-A 3.2 Gen1, 4 x USB 2.0

• Front: 1 x USB-C 3.2 Gen1, 2 x USB-A 3.2 Gen1, 4 x USB 2.0

Audio

• Realtek ALC897 7.1 HD Audio with Nahimic enhancements

Form Factor

• Micro-ATX (24.4 x 24.4cm)

Why Choose the ASRock A620AM Pro RS WiFi?

This isn’t just a motherboard—it’s a performance platform built to last. With support for the latest AMD processors, DDR5 memory, and PCIe Gen4 storage, it delivers the speed and responsiveness modern systems demand. Add in next-gen networking, premium power delivery, immersive audio, and advanced RGB customisation, and you have a board that’s ready for gaming, streaming, content creation, and beyond.

If you want reliability, speed, and features usually found in higher-end boards, the ASRock A620AM Pro RS WiFi is the smart investment for your next build.
