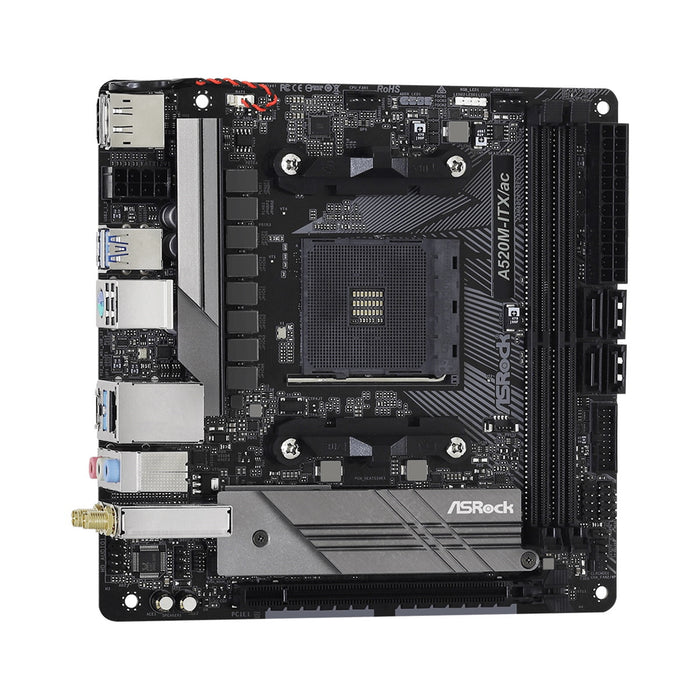

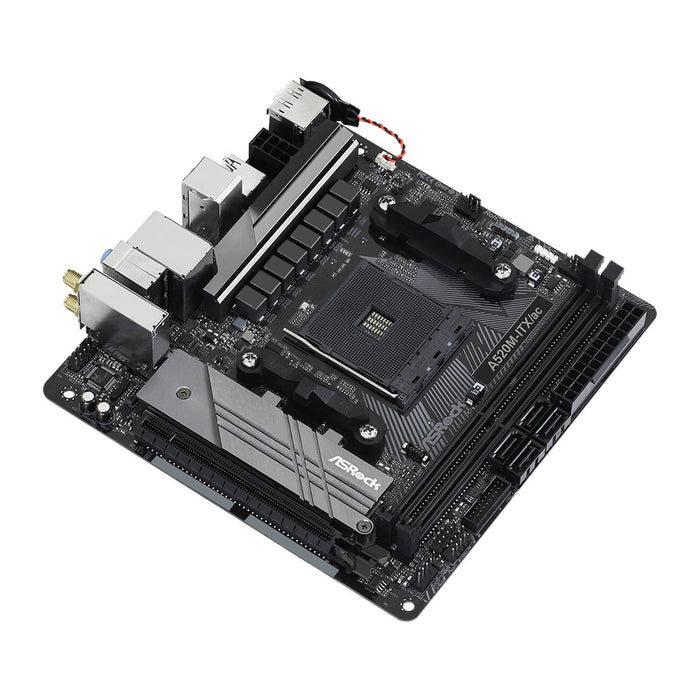

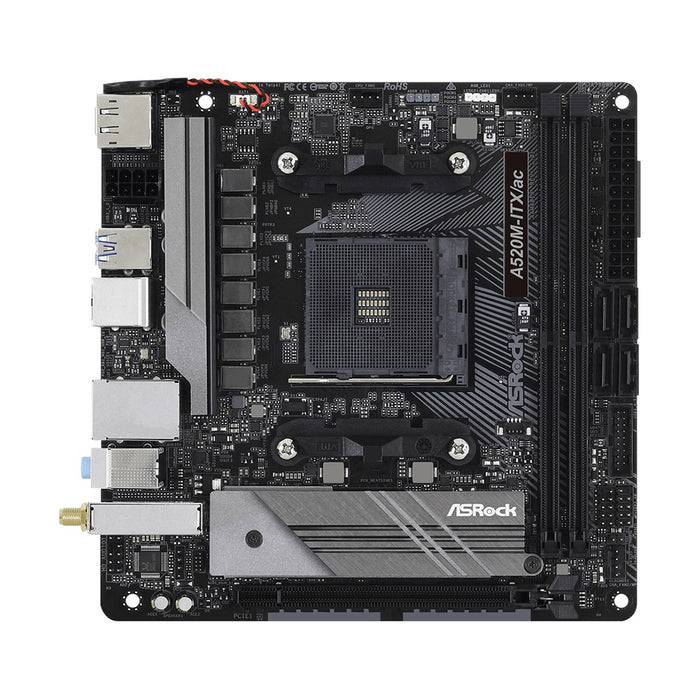

ASRock A520M-ITX/ac AM4 Mini-ITX Motherboard

The ASRock A520M-ITX/ac Motherboard is a compact and reliable Mini-ITX motherboard designed for efficient AMD Ryzen builds. Supporting Ryzen 3000 and 4000 series processors, it delivers essential performance, modern connectivity and wireless capability in a space-saving form factor.

Ideal for small form factor PCs, home systems and entry-level gaming builds, it provides all the core features needed for stable everyday computing.

Key Features & Benefits

✔ AM4 Socket for Ryzen CPUs
Supports AMD Ryzen 3000 and 4000 series processors.

✔ Compact Mini-ITX Form Factor
Perfect for small form factor (SFF) builds and space-saving systems.

✔ DDR4 Memory Support
Up to 64GB DDR4 RAM with speeds up to 4733+ MHz (OC).

✔ Ultra M.2 Storage (PCIe Gen3 x4)
High-speed NVMe SSD support up to 32Gb/s.

✔ Integrated WiFi 5 + Bluetooth 4.2
Reliable wireless connectivity with dual-band support.

✔ Gigabit LAN
Stable wired networking for everyday use.

✔ Dual Display Outputs
HDMI + DisplayPort for flexible monitor connectivity.

✔ PCIe 3.0 x16 Slot
Supports discrete graphics cards for gaming or upgrades.

✔ USB 3.2 Gen1 Type-A & Type-C
Modern connectivity with up to 5Gbps transfer speeds.

✔ 8 Phase Power Design
Stable power delivery for consistent performance.

Technical Specifications

General

Product
ASRock A520M-ITX/ac

Manufacturer
ASRock

Form Factor
Mini-ITX

Chipset
AMD A520

Socket
AM4

CPU Support

Compatible CPUs
AMD Ryzen 3000 / 4000 Series

Graphics Support
Integrated Radeon Vega graphics (APU dependent)

Memory

Memory Slots
2 × DDR4 DIMM

Maximum Capacity
64GB

Memory Speeds
Up to 4733+ MHz (OC)

Memory Type
DDR4 Dual Channel

Profiles Supported
XMP

Expansion Slots

1 × PCIe 3.0 x16

Storage

1 × PCIe Gen3 x4 M.2
4 × SATA III

RAID Support
RAID 0 / 1 / 10 (SATA)

Graphics Output

1 × HDMI 2.1 (4K @ 60Hz)
1 × DisplayPort 1.4 (up to 5K support)

Networking

LAN
Gigabit LAN (Realtek RTL8111H)

Wireless
WiFi 5 (802.11ac) + Bluetooth 4.2

Audio

Codec
Realtek ALC887

Channels
7.1 Channel HD Audio

USB Connectivity

1 × USB 3.2 Gen1 Type-C (Rear)
3 × USB 3.2 Gen1 Type-A (Rear)
2 × USB 3.2 Gen1 (Front via header)
2 × USB 2.0 (Rear)
2 × USB 2.0 (Front via header)

Internal Connectors

1 × RGB Header
1 × Addressable RGB Header
3 × Fan Headers
1 × USB 3.2 Gen1 Header
1 × USB 2.0 Header

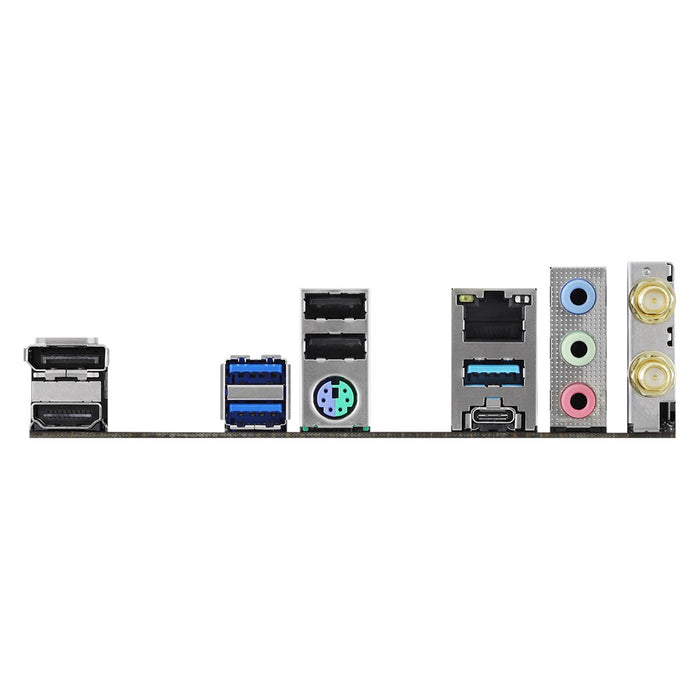

Rear I/O Ports

1 × PS/2 Combo Port
1 × HDMI
1 × DisplayPort
3 × USB 3.2 Gen1 Type-A
1 × USB 3.2 Gen1 Type-C
2 × USB 2.0
1 × RJ-45 LAN
HD Audio Jacks

Dimensions

170 × 170 mm (Mini-ITX)

Why Choose the ASRock A520M-ITX/ac

The A520M-ITX/ac is an excellent choice for users building compact, cost-effective AMD systems. With integrated WiFi, M.2 storage and solid power design, it offers reliable performance in a small footprint.

Perfect for home PCs, office systems or entry-level gaming rigs, it delivers essential features without unnecessary complexity—ideal for budget-conscious builds.
