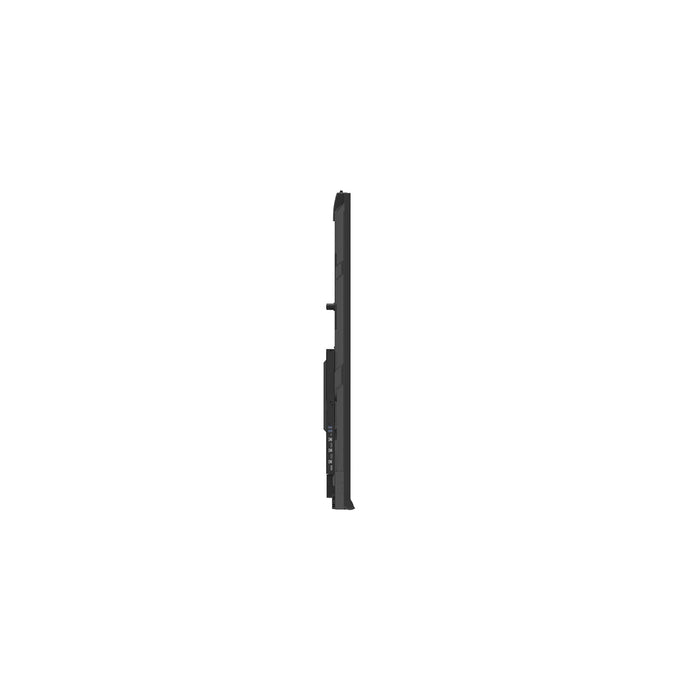

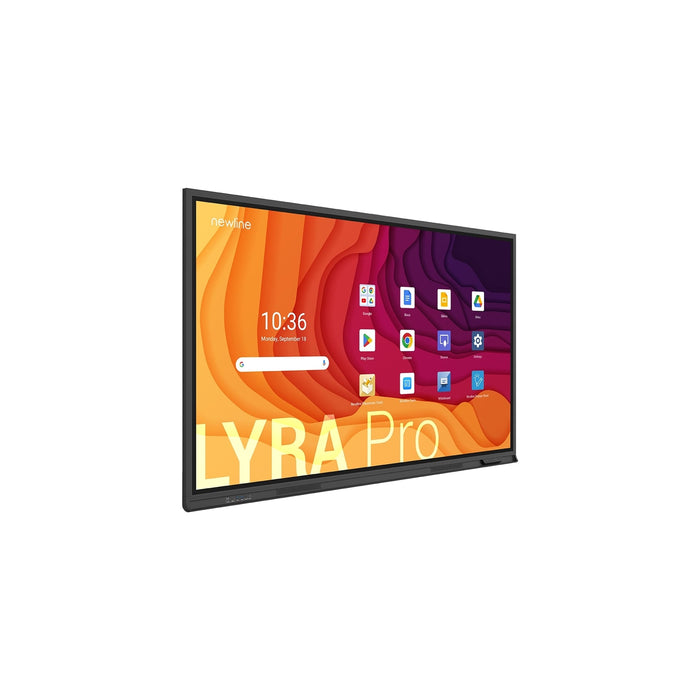

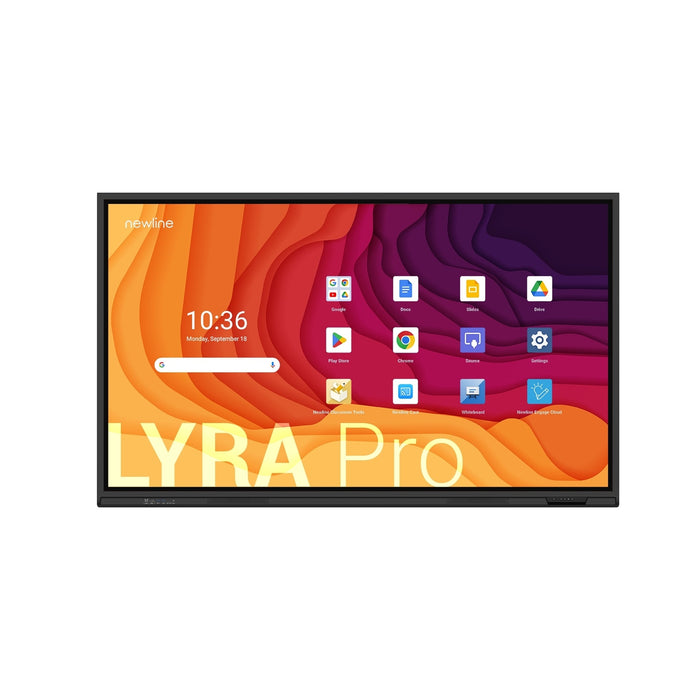

Newline TT-5523QA Lyra Pro 55" 4K Touch Display – Secure EDLA Innovation

The Newline Lyra Pro 55" delivers a secure, enterprise-grade interactive display solution. Google EDLA-certified and running Android 14, it combines high-precision zero bonding touch, 4K visuals, powerful audio and modular upgrades to enhance productivity and collaboration.

Stellar Touch technology, real palm rejection, front-facing speakers, and robust connectivity make the Lyra Pro 55" perfect for classrooms, meeting rooms and business environments where efficiency and security are essential.

Key Features & Benefits

✔ Google EDLA Certified
Seamlessly integrates with Google Apps for secure enterprise workflows

✔ 4K Ultra HD Display
Crystal-clear visuals with 1.07 billion colours, 450 cd/m² brightness, and 5000:1 contrast ratio

✔ Stellar Touch Technology – 50 Touch Points
Supports finger, passive pen or fist input with ≤1 mm accuracy and real palm rejection

✔ Modular System & OPS Support
Customise your display with accessories or embedded OPS PC for all-in-one functionality

✔ Powerful Front-Facing Audio
Dual 20W speakers deliver rich sound for presentations, multimedia and hybrid meetings

✔ Secure Android 14 Platform
Certified, reliable, and enterprise-ready for safe and efficient operation

✔ Flexible Connectivity
USB-C (65W), HDMI 2.1, DisplayPort, USB-A/B ports, RS232, RJ45, SPDIF and more for full device compatibility

✔ Durable Design
Anti-glare, anti-fingerprint, antimicrobial tempered glass with 50,000-hour display life

✔ Wi-Fi 6 + Bluetooth 5.2
Future-proof connectivity with replaceable module for advanced network performance

Technical Specifications

Model

• Lyra Pro 55 – TT-5523QA

Display

• Panel: Direct LED, Wide Colour Gamut, Anti Blue Light

• Resolution: 3840 × 2160 (4K UHD)

• Display Area: 1211 × 682 mm

• Brightness: 450 cd/m²

• Contrast Ratio: 5000:1

• Response Time: 5ms

• Viewing Angle: 178°

• Colours: 1.07 Billion

• Glass Surface: Anti-Glare + Anti-Fingerprint + Antimicrobial

• Bonding: Certified Zero Bonding

• Touch Surface Hardness: 7H

• Display Life: 50,000 hours

Touch System

• Stellar Touch Technology

• Touch Points: 50 Windows, 20 Android/macOS/Linux

• Tools: Finger, passive pen, fist

• Stylus: 2 included

• Accuracy: ≤1 mm

• Real Palm Rejection: Yes

Audio

• Speakers: Front-facing, 20W × 2, 6Ω impedance

Front I/O

• USB-C (65W powered) ×1

• HDMI 2.1 with HDCP 2.2 ×1

• USB-B (Touch) ×1

• USB-A 3.2 ×2

• Microphone In ×1

Rear I/O

• HDMI 2.1 ×2

• DisplayPort 1.2 ×1

• USB-B 3.2 (Touch) ×3

• USB-C (15W powered) ×1

• USB-A 3.2 ×2

• USB-A to Android ×1

• HDMI Out 2.0 ×1

• RS232 ×1

• RJ45 In/Out ×1

• OPS Slot ×1

• SDM-S Slot ×1

• SPDIF ×1

• Audio Line Out ×1

• Power Out Connect ×1

• Camera Slot ×1

Smart System

• SoC: Amlogic A311D2 Octa-Core (4 × Cortex-A73 2.2GHz, 4 × Cortex-A53 2.0GHz)

• GPU: Mali-G52

• RAM: 8GB DDR4

• Storage: 128GB (Expandable)

• OS: Android 14, Google EDLA Certified

Dimensions & Weight

• Outline Dimensions: 1294 × 808 × 101 mm

• Net Weight: 31.5 kg

• VESA: 400 × 400 mm

Why Choose the Newline Lyra Pro 55"?

The Lyra Pro 55" combines enterprise-grade security with industry-leading touch and display performance. Its 50-point precision, modular design, high-quality audio, and Google EDLA certification make it an ideal interactive display for corporate environments, training rooms, hybrid meetings and collaborative workspaces.

It is a reliable, future-proof solution that ensures efficiency, productivity, and secure operations for today’s professional settings.
