Gigabyte RTX 5050 WINDFORCE OC 8GB GDDR6 Dual Fan PCIe 5.0 GPU
The Gigabyte GeForce RTX 5050 WINDFORCE OC 8GB (GV-N5050WF2OC-8GD) delivers next-gen gaming performance in a compact dual-fan design. Built on NVIDIA’s Ada Lovelace architecture and PCIe 5.0 interface, this card is designed to provide smooth 1080p and 1440p gaming with enhanced ray tracing, DLSS 3 support, and AI-powered graphics.
With a factory-overclocked boost clock of 2587MHz, 2560 CUDA cores, and 8GB of GDDR6 memory at 20Gbps, it delivers excellent performance in modern games while maintaining power efficiency.
The WINDFORCE cooling system with two 90mm fans uses alternate spinning technology, composite copper heat pipes, and 3D active fan features to ensure silent, effective cooling.
Key Features
✅ 2587MHz factory overclock for stable performance
✅ 8GB GDDR6 memory with 128-bit interface
✅ Dual-fan WINDFORCE cooling with alternate spinning
✅ PCIe 5.0 support for next-gen bandwidth
✅ DisplayPort 2.1 and HDMI 2.1 for up to 8K resolution
✅ Compact 199mm card length—ideal for tighter builds
Technical Specifications
| Specification | Details |
|---|---|
| Graphics Engine | NVIDIA GeForce RTX 5050 |
| CUDA Cores | 2560 |
| Boost Clock | 2587 MHz (Ref: 2572 MHz) |
| Memory Size | 8 GB |
| Memory Type | GDDR6 |
| Memory Interface | 128-bit |
| Memory Clock | 20 Gbps |
| Card Bus | PCI Express 5.0 |
| Max Digital Resolution | 7680x4320 (8K UHD) |
| Multi-Display Support | Up to 4 monitors |

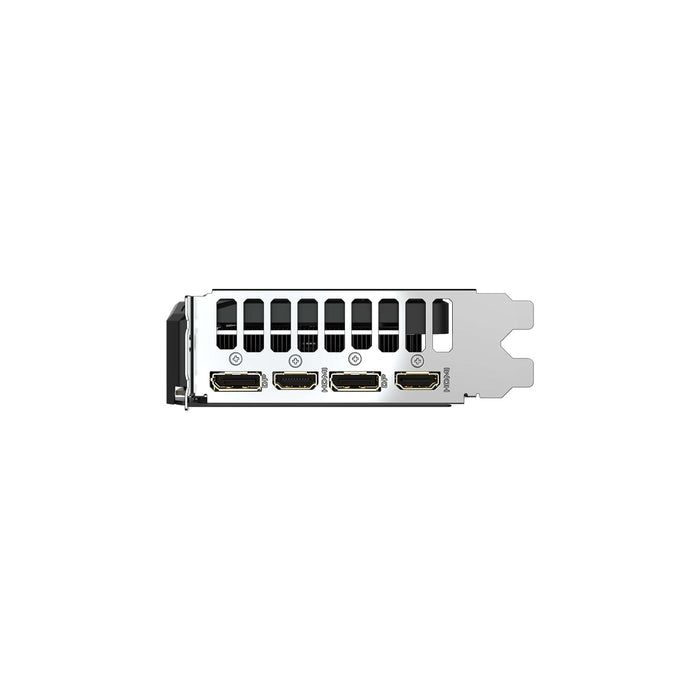

| Video Outputs | 2 x DisplayPort 2.1b 2 x HDMI 2.1b |
| Power Connector | 1 x 8-pin |
| Recommended PSU | 550W |
| Card Dimensions (L x W x H) | 199 x 116 x 40 mm |
| PCB Form Factor | ATX |
| DirectX / OpenGL | DirectX 12 API / OpenGL 4.6 |
In the Box
-
Gigabyte GeForce RTX 5050 WINDFORCE OC 8GB Graphics Card
-
Quick Installation Guide
Whether you're upgrading a compact system or building a new mainstream gaming rig, the RTX 5050 WINDFORCE OC offers strong, efficient performance with quiet dual-fan cooling and next-gen features.
