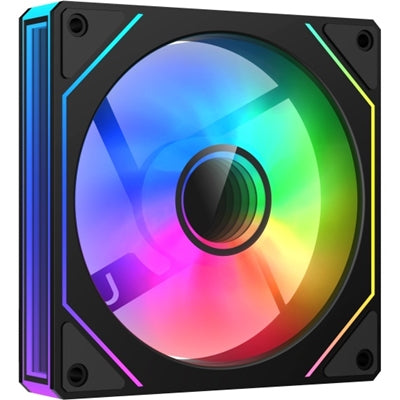

DeepCool CG530 Reverse ARGB Fan 120mm – Silent, PWM, High Airflow

DeepCool CG530 Bulk Reverse Fan – 120mm ARGB, PWM Control, Silent Operation, Black

Enhance your PC airflow with the DeepCool CG530 Bulk Reverse Fan, engineered for optimal thermal performance and quiet operation. Featuring vibrant ARGB lighting and a reverse-blade design, this fan is ideal for cases with bottom or side intake configurations that benefit from reversed airflow.

Equipped with a hydro bearing, PWM control, and anti-vibration pads, the CG530 delivers quiet and efficient cooling while simplifying cable management with standard 4-pin and 3-pin connectors. A perfect balance of form and function for modern PC builds.

Key Features

✅ Efficient Cooling – High airflow (up to 61.91 CFM) and strong static pressure for enhanced cooling
✅ Reverse Airflow Design – Ideal for unique airflow layouts like bottom/side intakes
✅ ARGB Lighting – Vibrant addressable RGB illumination for aesthetic appeal
✅ Quiet Operation – Hydro bearing and corner-mounted rubber pads for low noise
✅ PWM Fan Control – Dynamic speed adjustment from 500–1800 RPM
✅ Quality Build – Durable PBT frame and polycarbonate fan blades

Specifications

Model Number: R-EDF120-BKAPR17-G-1
Colour: Black
Dimensions: 120 x 120 x 25 mm
Weight: Approx. 150 g
Fan Speed: 500–1800 RPM ±10%
Airflow: Up to 61.91 CFM
Static Pressure: Up to 1.83 mmH2O
Noise Level: ≤28 dB(A)
Bearing Type: Hydro Bearing

Rated Voltage:

• Fan: 12 VDC

• LED: 5 VDC

Rated Current:

• Fan: 0.13 A

• LED: 0.21 A

Power Consumption:

• Fan: 1.56 W

• LED: 1.05 W

Connectors:

• Fan: 4-pin PWM

• LED: 3-pin ARGB

Lighting:

• Type: Addressable RGB

• Control: Compatible with standard 5V ARGB controllers

Construction:

• Frame Material: PBT

• Blade Material: Polycarbonate

• Noise Dampening: Rubber pads on all corners

Package Includes:

• 1 × 120mm ARGB Reverse Fan

• Mounting Screws

• User Manual

Warranty: 2 Years
