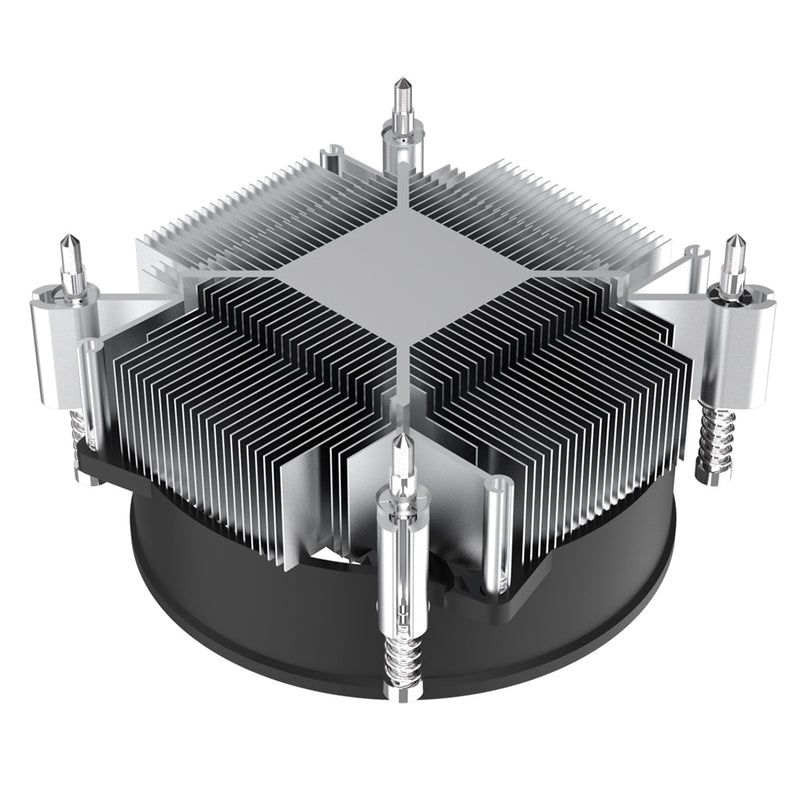

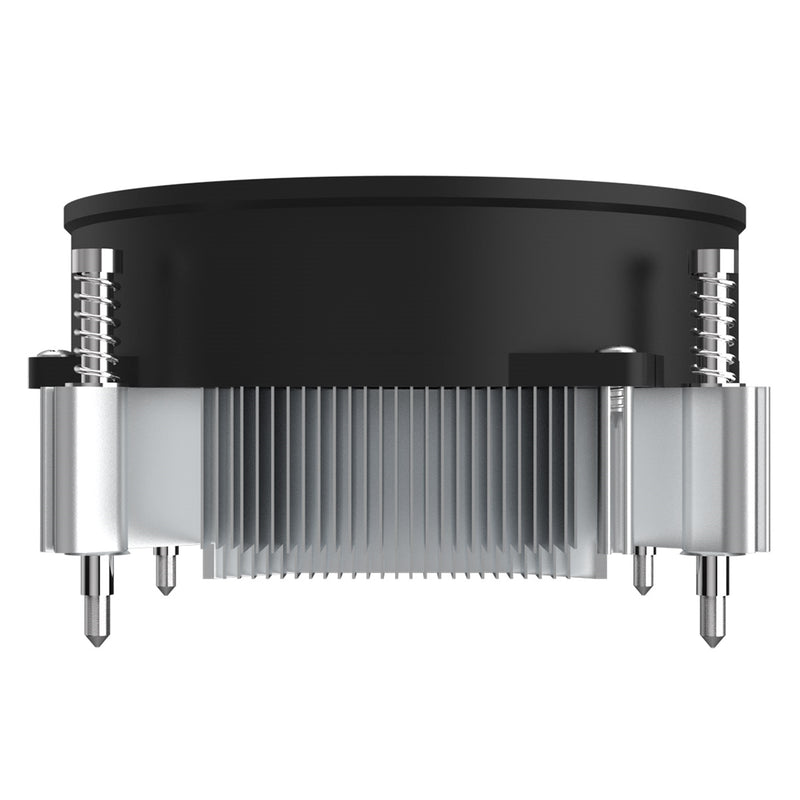

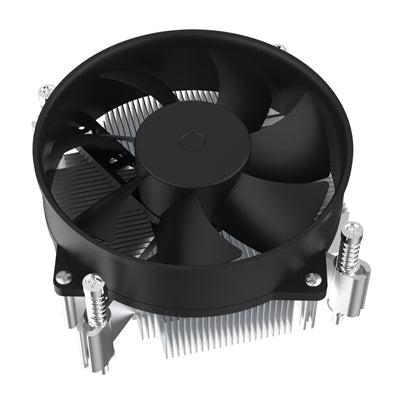

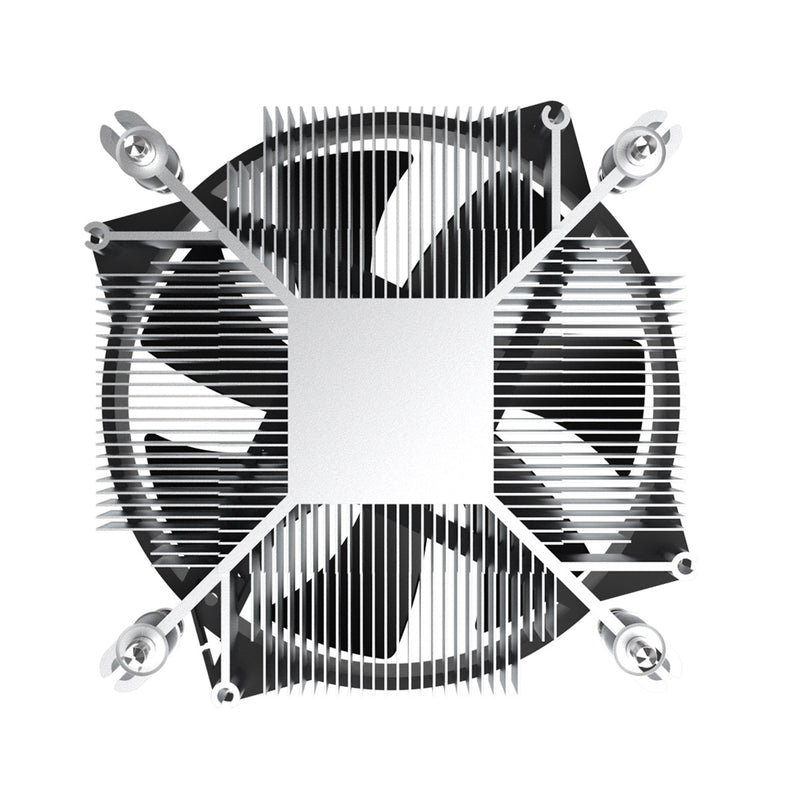

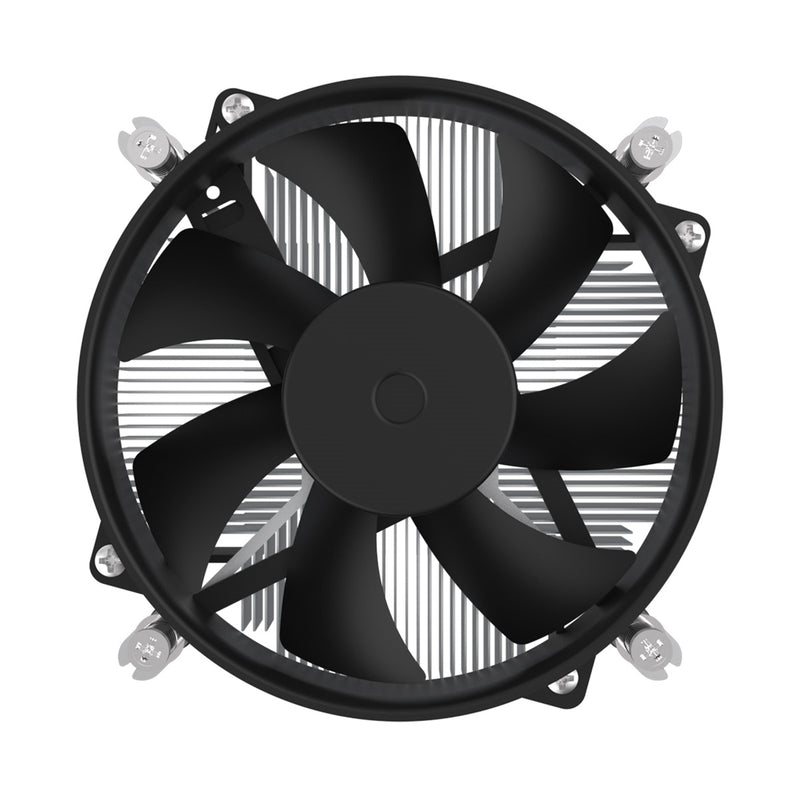

CiT Low Profile CPU Cooler for Intel – 92mm PWM Fan

Model: CIT-CPU-INTEL

The CiT Low Profile Intel CPU Cooler is engineered for compact and space-restricted PC builds using Intel platforms. With a slim 50mm height and aluminium fin construction, it provides efficient heat dissipation while maintaining a minimal footprint.

Fitted with a custom 95mm PWM silent fan staggered against the aluminium heatsink, airflow is focused directly across the fins for improved thermal performance. It is an excellent solution for slimline cases and small form factor systems.

Key Features & Benefits

✔ Compatible with Intel LGA 1156, 1366 and 1700 sockets
✔ Supports CPUs up to 85W TDP
✔ Low-profile 50mm height – ideal for slim cases
✔ Aluminium heatsink for effective thermal conduction
✔ 95mm PWM fan with automatic speed control
✔ Quiet operation with hydraulic bearing
✔ Includes fixing screws and thermal paste

Technical Specifications

CPU Cooling

Supported sockets: Intel 1156 / 1366 / 1700
TDP support: Up to 85W
CPU block material: Aluminium
CPU block width: 90mm
CPU block height: 25mm

Fan Specifications

Fan dimensions: 95 × 95 × 25mm
Speed (PWM): 0–2400 ±10% RPM
Airflow: 40.79 CFM
Maximum noise: 29.5 dBA
Bearing type: Hydraulic bearing
Connector: 4-pin PWM
Starting voltage: 5V
Rated operating voltage: 12V
Rated current: 121mA
Power input: 1.5W
Fan air pressure: 2.44 mmH₂O
Static pressure: 3.01 mmH₂O
MTBF: 30,000 hours

Physical Details

Product dimensions: 95mm × 50mm × 95mm (W × H × D)
Packaging dimensions: 103mm × 67mm × 105mm
Net weight: 0.25kg
Gross weight: 0.30kg
Colour: Black / Silver

What’s in the Box

• CPU Cooler
• Fixing Screws
• Thermal Paste

Ideal For

• Small form factor (SFF) systems
• Slim desktop cases
• Office and home Intel PCs
• Budget and entry-level builds
• CPUs with up to 85W TDP

Why Choose the CiT Low Profile Intel Cooler?

When space is limited, cooling efficiency becomes critical. This CiT low-profile cooler delivers dependable thermal performance without compromising on size or noise levels. Its PWM-controlled fan adjusts automatically to system load, ensuring effective cooling when needed while remaining quiet during everyday tasks.
