ASRock Challenger 360 Digital AIO Cooler 360mm ARGB LCD AM5
ASRock Challenger 360 Digital AIO Liquid CPU Cooler
360mm Radiator | 3” Digital Display | Triple ARGB Fans | High-Performance Cooling
The ASRock Challenger 360 Digital AIO Liquid CPU Cooler is designed for high-performance gaming systems and demanding workloads that require maximum thermal headroom. Featuring a large 360mm radiator, triple PWM ARGB fans, and a 3” smart digital display, it delivers powerful cooling performance with real-time system monitoring and modern aesthetics.
Key Features & Benefits
✔ 360mm high-efficiency aluminium radiator for maximum heat dissipation
✔ Triple 120mm PWM ARGB fans for high airflow and strong static pressure
✔ 3” smart digital display showing CPU temperature, frequency, and pump speed
✔ Supports Intel LGA1700 / 1851 and AMD AM5 / AM4 platforms
✔ Advanced 3-phase, 6-slot, 4-pole pump motor for stable coolant flow
✔ Dual-side inlet cooling path for improved thermal balance and efficiency
✔ Precision-machined copper cold plate for superior heat transfer
✔ 0dB silent mode – fans stop under low load for quiet operation
✔ ASRock Polychrome SYNC support for full system RGB synchronisation
✔ SignalRGB compatibility for advanced lighting control and monitoring
✔ ASRock Therm-X1 thermal grease included for enhanced conductivity

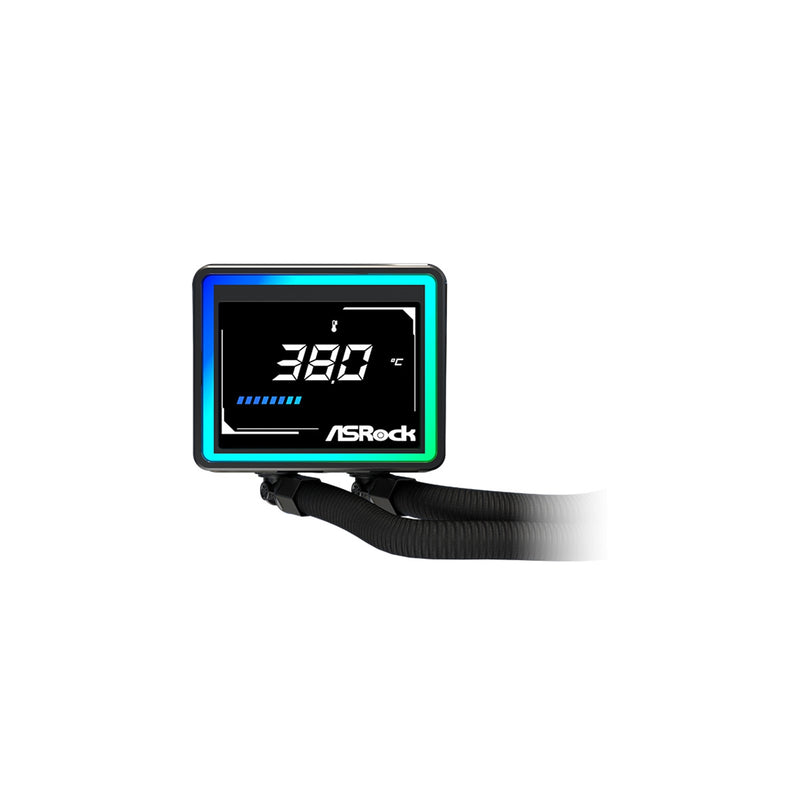

Smart Digital Display
The integrated 3” LCD display provides real-time monitoring of key system metrics including CPU temperature, frequency, and pump speed. It offers both functional performance tracking and a premium visual element for high-end PC builds.
Advanced Cooling Technology
High-Performance Pump System
Engineered with a 3-phase motor design for smooth operation, efficient energy use, and consistent coolant flow under sustained workloads.
Optimised 360mm Radiator Design
Large surface area radiator ensures superior heat dissipation, ideal for high-core-count CPUs and overclocked systems.
High Static Pressure Fans
Ring-frame blade design improves airflow concentration and radiator penetration for maximum cooling efficiency.
Silent Operation Technology
0dB mode ensures fanless operation under low loads for reduced noise and improved lifespan.
ARGB Lighting & Software Control
Dynamic ARGB Illumination
Vivid lighting effects across pump and fans for a striking visual build.
Polychrome SYNC Support
Synchronise lighting across compatible ASRock components for a unified RGB ecosystem.
SignalRGB Integration
Advanced software support for lighting effects, system monitoring, and custom profiles.
Technical Specifications
Model: ASRock Challenger 360 Digital (90-ACLA36-BAAGA6)
Radiator Size: 394 x 119.6 x 27 mm (Aluminium)
Fan Size: 120 x 120 x 25.4 mm (x3)
Fan Speed: 0 – 2100 RPM ±10%
Airflow: Up to 62.6 CFM
Air Pressure: Up to 1.77 mmH₂O
Noise Level: ≤31 dB(A)
Pump Speed: 1200 – 3200 RPM ±10%
Pump Connector: 4-pin PWM
Lighting: ARGB Gen1
Water Block:
Dimensions: 85 x 84.1 x 53.5 mm
Material: Copper cold plate
Display: 3” LCD (480 x 480)
Connector: USB 9-pin
Tubing: IIR + EPDM, 450mm length
Compatibility:
Intel: LGA1700, LGA1851
AMD: AM5, AM4
Warranty: 6 Years (AIO module)
Why Choose the ASRock Challenger 360 Digital?
The Challenger 360 Digital is built for users who demand maximum cooling capacity combined with real-time system monitoring and modern aesthetics. Its 360mm radiator provides exceptional thermal headroom for high-performance CPUs, while the smart display and ARGB lighting enhance both functionality and visual appeal.
It is an ideal solution for gaming enthusiasts, content creators, and high-end PC builders seeking strong cooling performance with premium features.
