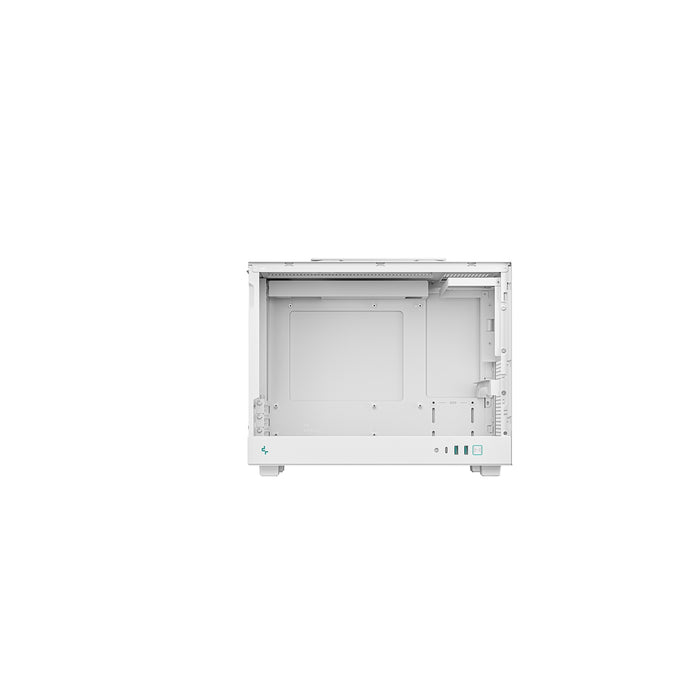

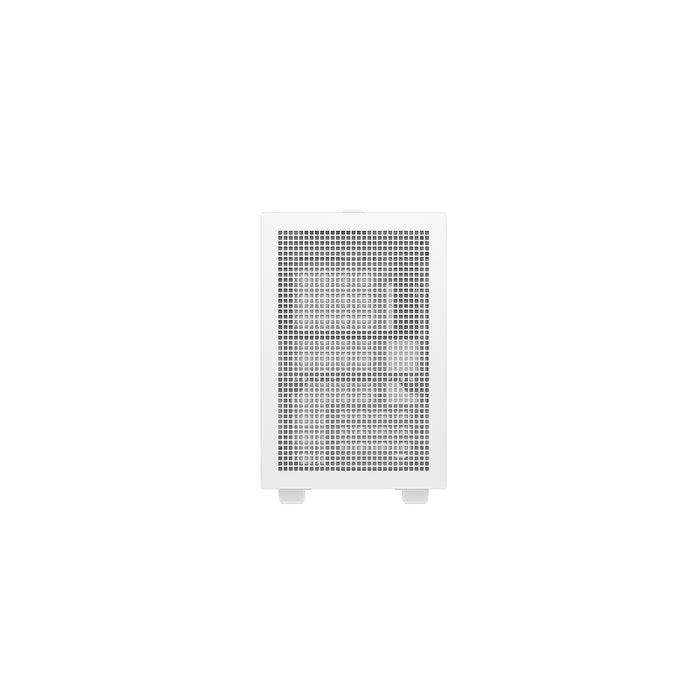

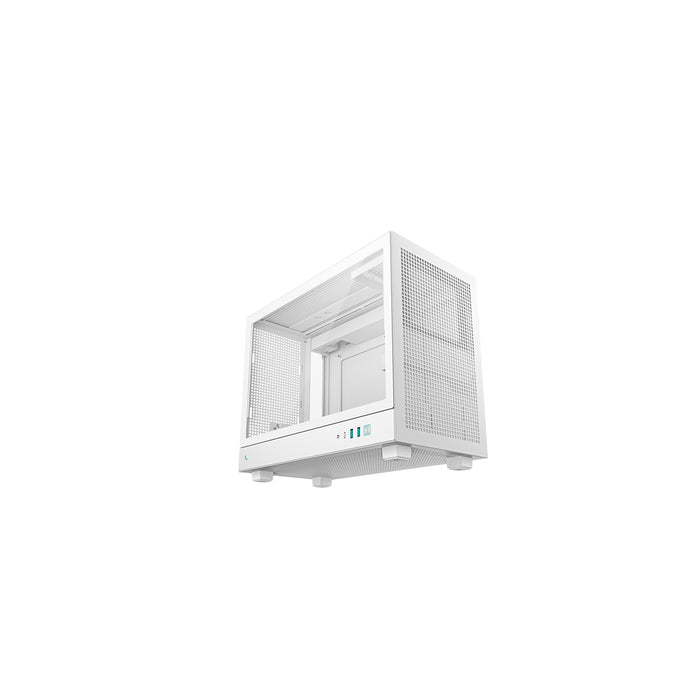

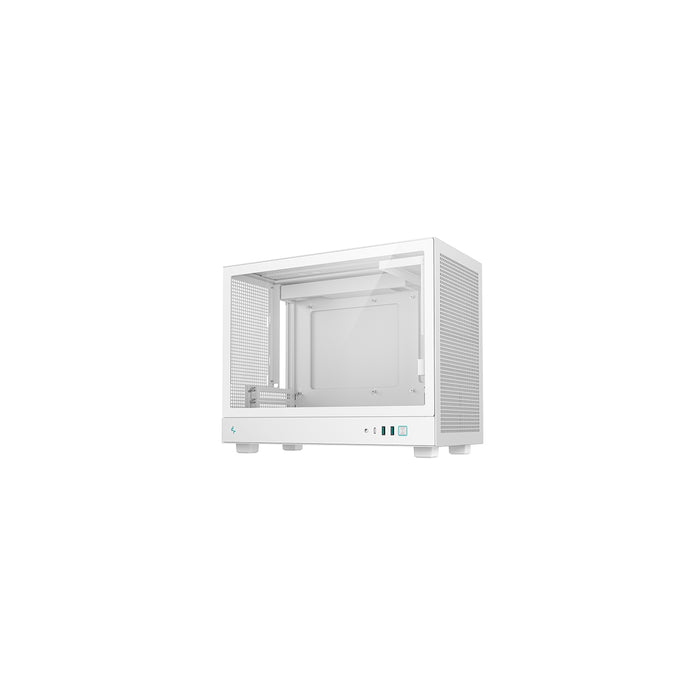

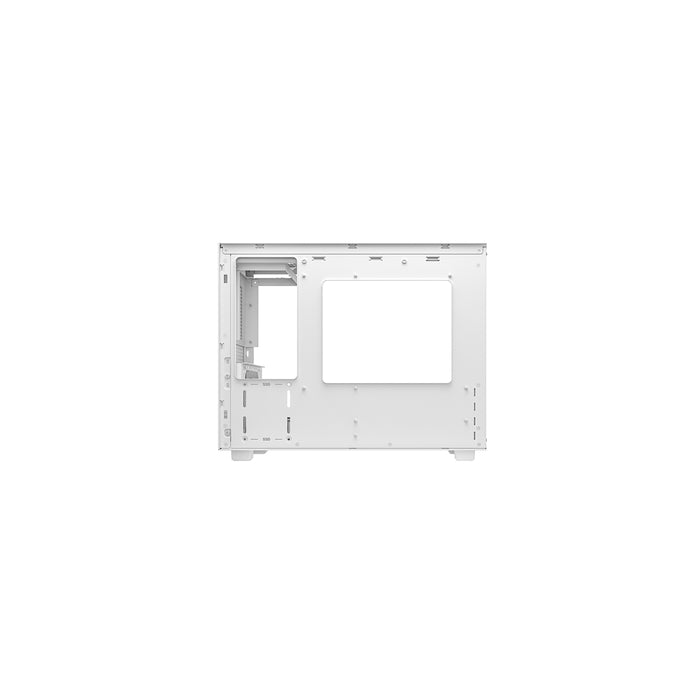

DeepCool CH160 PLUS White – Micro-ATX, 240mm Liquid Cooling Case
Compact Elegance with Enhanced Cooling
The DeepCool CH160 PLUS White combines refined aesthetics with exceptional functionality. Retaining the clean, compact design of the original CH160, this upgraded model now supports Micro-ATX motherboards and 240mm liquid cooling for advanced thermal performance.
Built to Breathe
Designed with mesh panels surrounding the chassis, the CH160 PLUS White delivers superior airflow while maintaining a compact form factor. Its integrated top handle makes it easy to move and reposition for convenient setup and portability.
Now with Liquid Cooling
Take your cooling performance further with support for up to a 240mm top-mounted radiator, ensuring your system stays cool under heavy loads.
✅ Top Radiator Support – Up to 240mm
✅ Rear Fan Support – 1×120mm
✅ Front Fan Support – 1×120mm / 1×140mm (with SFX PSU)
✅ CPU Cooler Clearance – Up to 164mm
Built to Fit More
Despite its small footprint, the CH160 PLUS White accommodates GPUs up to 342mm (328mm with front fan installed) and ATX PSUs up to 140mm. The addition of a fourth expansion slot provides greater flexibility for performance-oriented builds.
Customise with Purpose
Personalise your setup with DeepCool accessories like the HB-01 headset holder or PIXEL decorative bits to make your build truly unique.
Convenience in Every Detail
Enjoy easy access to your components with two USB 3.0 ports, a Gen2 Type-C port, and a hybrid audio jack on the front I/O panel. Dust filters on three sides make maintenance simple and efficient, keeping your system clean and performing at its best.
Specifications
• Product Dimensions: 375 × 195 × 323.5 mm (L×W×H)
• Net Weight: 4.2 kg
• Materials: ABS + SPCC + Tempered Glass
• Motherboard Support: Mini-ITX / Micro-ATX
• Front I/O Ports: 2× USB 3.0, 1× Gen2 Type-C, 1× Audio/Mic Combo
• Drive Bays: 1× 3.5", 1+1× 2.5"
• Expansion Slots: 4
• Radiator Support: Top 120/240mm, Rear 120mm
• Fan Support: Front 1×120/140mm, Top 2×120mm, Rear 1×120mm
• Pre-Installed Fans: None
