Antec AX90 Mid Tower Gaming Case, ARGB, Diamond Mesh, Tempered Glass

Antec AX90 Mid Tower Gaming Case – Black

The Antec AX90 is a high-performance mid-tower gaming case designed for gamers who want powerful cooling and a visually striking build. Featuring a diamond-shaped mesh front panel, full-view tempered glass side panel, and pre-installed ARGB fans, the AX90 ensures your system stays cool while looking exceptional.

Key Features & Benefits

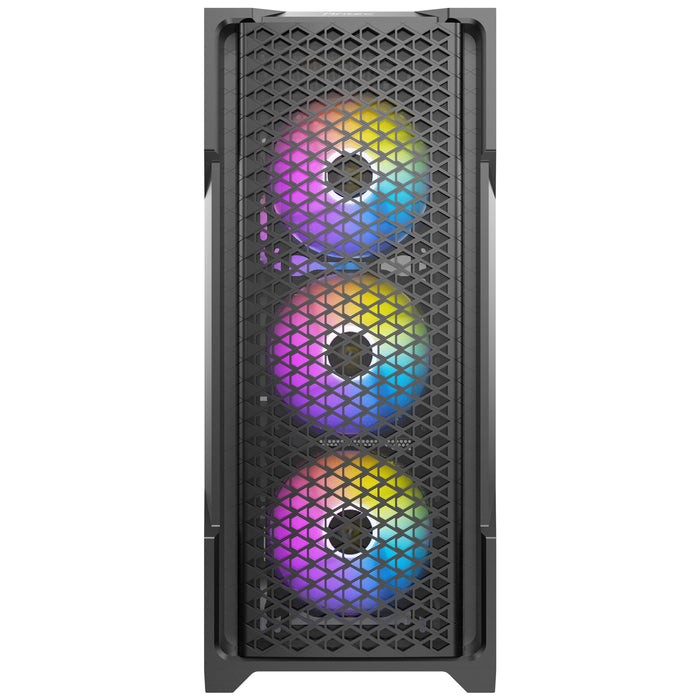

✅ Unique Diamond-Shaped Mesh Front Panel – Provides massive airflow while filtering dust efficiently.
✅ Maximum Cooling Potential – Supports up to 11 x 120mm fans and front/top radiators up to 360mm for custom cooling setups.
✅ Pre-Installed ARGB Fans – Includes 4 x 120mm fans (3 front, 1 rear) with ARGB lighting and syncable hub for motherboard integration or manual control.

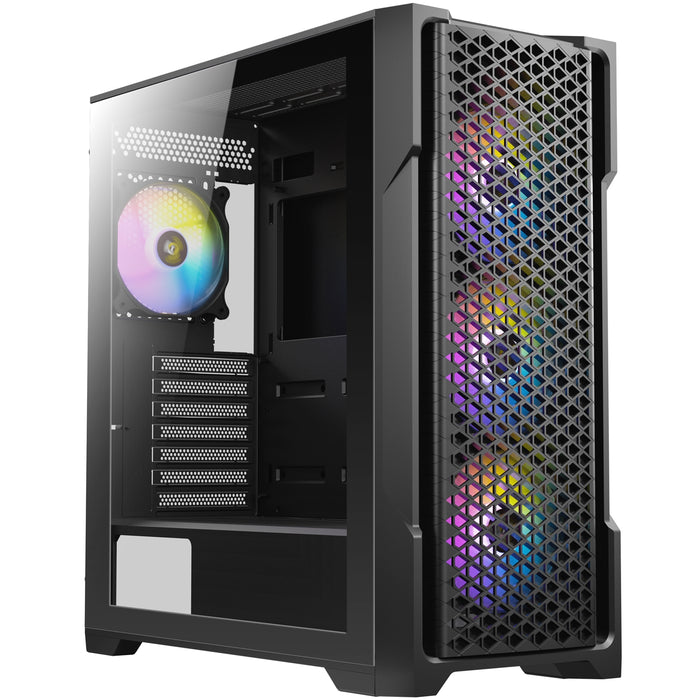

✅ Tempered Glass Side Panel – Show off your build, including water-cooling setups and custom hardware.
✅ Neat Cable Management – 23mm cable routing space for a clean, professional-looking build.
✅ Flexible Storage Options – 2 x 3.5/2.5” bays and 2 x 2.5” bays for SSDs/HDDs.
✅ Motherboard Support – ATX, Micro ATX, Mini-ITX compatible.
✅ I/O Panel – Power, Reset, LED Control, 1 x USB 3.0, 2 x USB 2.0, HD Audio / Mic.

Technical Specifications

• Form Factor: Mid Tower

• Materials: Steel, Plastic

• Dimensions (D x W x H): 473 x 210 x 486mm

• Weight: Net 6.77kg | Gross 7.93kg

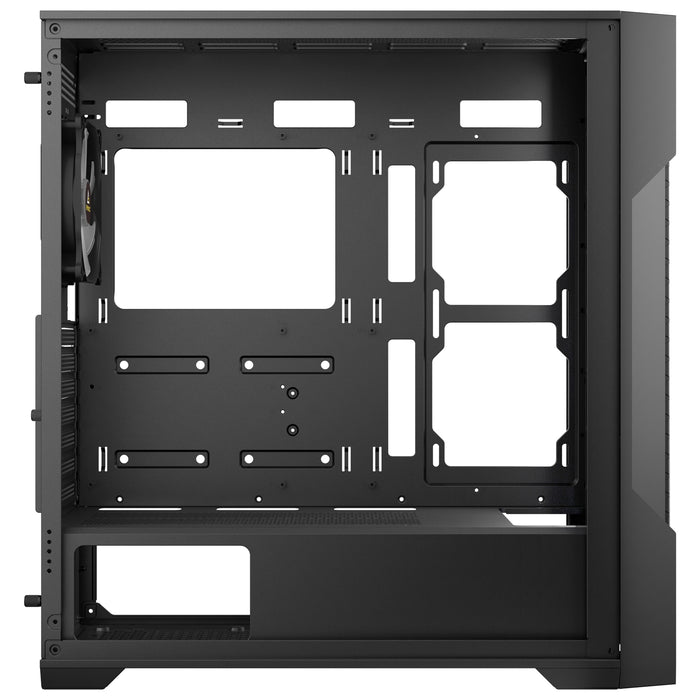

• Motherboard Support: ATX, Micro ATX, Mini-ITX

• Drive Bays: 3.5 / 2.5”: 2 / 1 | 2.5”: 2

• Expansion Slots: 7

• Fan Support:

  • Front: 3 x 120mm / 3 x 140mm

  • Top: 3 x 120mm / 2 x 140mm

  • Side: 2 x 120mm

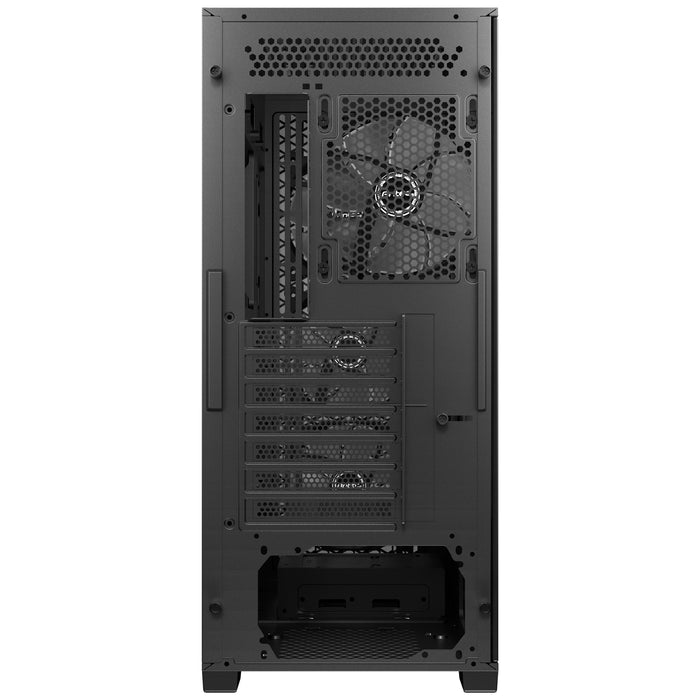

  • Rear: 1 x 120mm

  • PSU Shroud: 2 x 120mm

• Included Fans: Front: 3 x 120mm ARGB | Rear: 1 x 120mm ARGB

• Radiator Support: Front: 120/140/240/280/360mm | Top: 120/140/240/280/360mm | Side: 120/240mm | Rear: 120mm

• Component Clearance: Max GPU Length: 385mm | Max CPU Height: 160mm | Max PSU Length: 220mm (with HDD), 410mm (without HDD)

• Dust Filters: Front, Top, Bottom, Right Side

Why Choose the Antec AX90?

The AX90 combines airflow efficiency, high-end cooling options, and stunning aesthetics for a complete gaming chassis. Its pre-installed ARGB fans, tempered glass side panel, and diamond mesh front panel make it ideal for gamers who want a powerful, visually appealing build without compromise.
