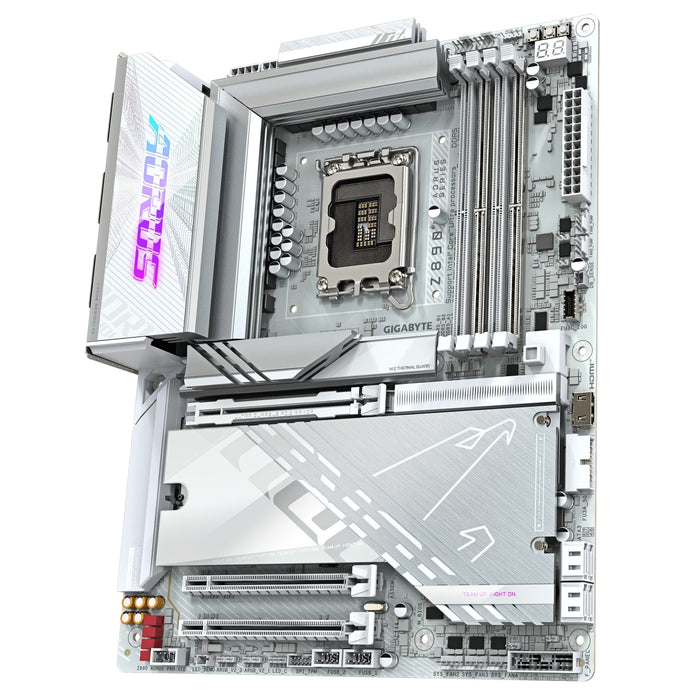

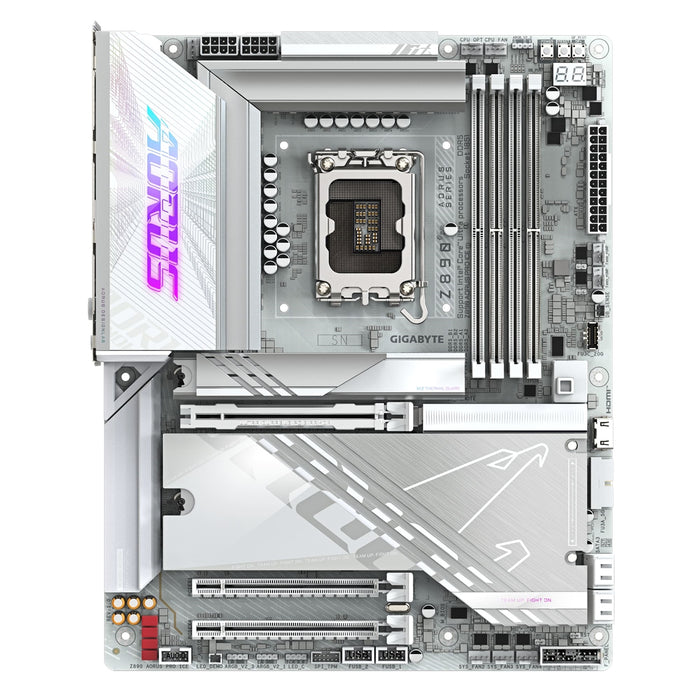

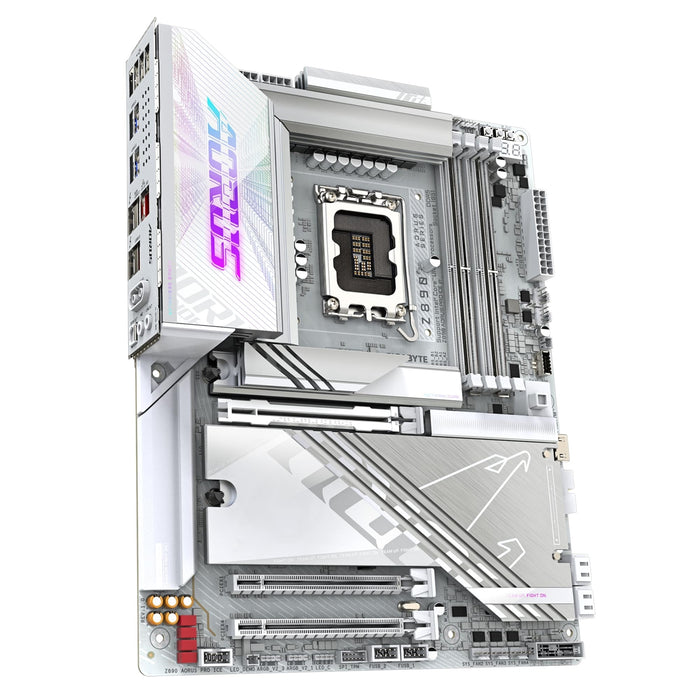

Gigabyte Z890 AORUS PRO ICE WIFI7 ATX LGA1851 Motherboard
Gigabyte Z890 AORUS PRO ICE Intel LGA1851 ATX Motherboard
The Gigabyte Z890 AORUS PRO ICE is a flagship-grade ATX motherboard engineered for Intel Core Ultra processors (Series 2), delivering extreme power delivery, cutting-edge connectivity, and uncompromising thermal performance. Designed for elite gaming systems, creator workstations, and high-end enthusiast builds, it combines PCIe 5.0, ultra-fast DDR5 memory, dual Thunderbolt 4, and next-generation Wi-Fi 7 networking in a premium ICE-themed design.
Built on GIGABYTE’s Ultra Durable platform, the Z890 AORUS PRO ICE offers exceptional stability, longevity, and a refined DIY experience for advanced PC builders.
Key Features & Benefits
✔Supports Intel Core Ultra processors (Series 2) on LGA1851 socket
✔Digital Twin 16+1+2 phase VRM ensures rock-solid power delivery under extreme loads
✔DDR5 support up to 9500MT/s (OC) with XMP and CUDIMM compatibility
✔DDR Wind Blade active cooling enhances memory stability at high frequencies
✔5x M.2 slots including 1x PCIe 5.0 x4 for maximum NVMe performance
✔PCIe 5.0 x16 UD Slot X with reinforced metal backplate for heavy GPUs
✔Dual Thunderbolt 4 / USB4 Type-C for ultra-fast data and display connectivity
✔5GbE LAN delivers enterprise-grade wired networking speeds
✔Intel Wi-Fi 7 with 320MHz bandwidth and Bluetooth 5.4
✔AORUS AI SNATCH AI-driven auto-overclocking for effortless performance gains
✔AI Perfdrive intelligently optimises BIOS profiles based on workload
✔EZ-Latch Plus and EZ-Latch Click provide fully tool-free PCIe and M.2 installation
✔Advanced VRM Thermal Armour and M.2 Thermal Guard L for sustained cooling
✔Realtek ALC1220 audio with WIMA audiophile-grade capacitors
✔Q-Flash Plus enables BIOS updates without CPU, RAM, or GPU installed
Built for Extreme Performance
The Z890 AORUS PRO ICE is designed to push modern hardware to its limits. Advanced DDR5 tuning, AI-assisted overclocking, and premium PCB design ensure outstanding performance, stability, and compatibility for demanding gaming and professional workloads.
Advanced Cooling and Power Stability
A comprehensive full-metal thermal solution covers VRMs, M.2 drives, and key components, ensuring efficient heat dissipation and consistent performance even during prolonged heavy usage.
Effortless High-End PC Building
From screwless M.2 heatsinks to quick-release PCIe slots and an intuitive UEFI BIOS, every detail is designed to streamline high-end system assembly and upgrades.
Technical Specifications
CPU
Intel LGA1851 socket
Supports Intel Core Ultra Processors (Series 2)
Chipset
Intel Z890 Express
Memory
4x DDR5 DIMM slots
Up to 256GB total capacity
Supports DDR5 up to 9500MT/s (OC)
Dual-channel architecture
XMP and CUDIMM support
Expansion Slots
1x PCIe 5.0 x16 (CPU)
1x PCIe 4.0 x16 (x4)
1x PCIe 4.0 x16 (x1)
Storage
5x M.2 slots (1x PCIe 5.0, 4x PCIe 4.0 / SATA)
4x SATA 6Gb/s
NVMe and SATA RAID 0/1/5/10 support
Networking
Realtek 5GbE LAN
Intel Wi-Fi 7 (802.11be, 320MHz)
Bluetooth 5.4
Audio
Realtek ALC1220 codec
7.1-channel HD Audio
Optical S/PDIF output

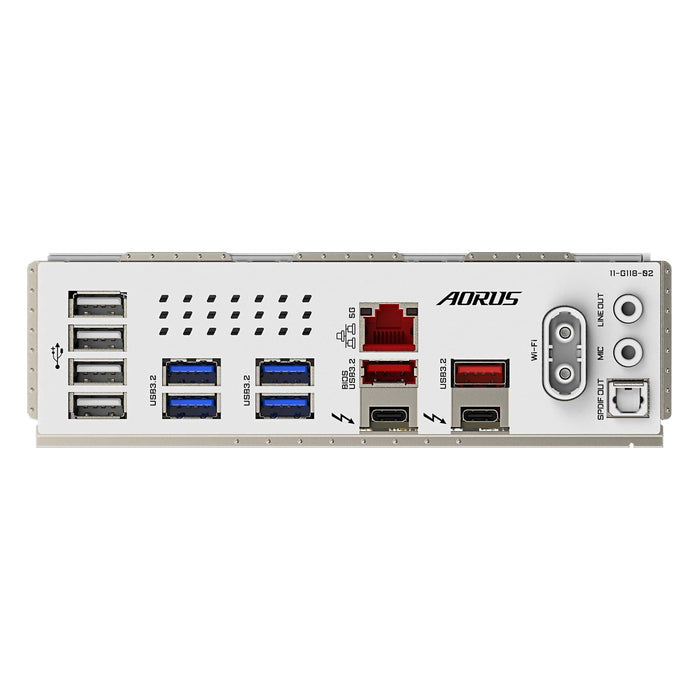

Rear I/O
2x Thunderbolt 4 / USB-C (USB4)
2x USB 3.2 Gen 2 Type-A
4x USB 3.2 Gen 1
4x USB 2.0
RJ-45 5GbE LAN
Optical S/PDIF and audio jacks
Form Factor
ATX
30.5 x 24.4 cm
Operating System
Windows 11 64-bit
Why Choose the Gigabyte Z890 AORUS PRO ICE
✔Designed for extreme gaming and professional systems
✔Future-proof with PCIe 5.0, DDR5 and Wi-Fi 7
✔AI-driven performance tuning for effortless optimisation
✔Enterprise-grade 5GbE networking and dual Thunderbolt 4
✔Premium build quality backed by GIGABYTE Ultra Durable engineering
