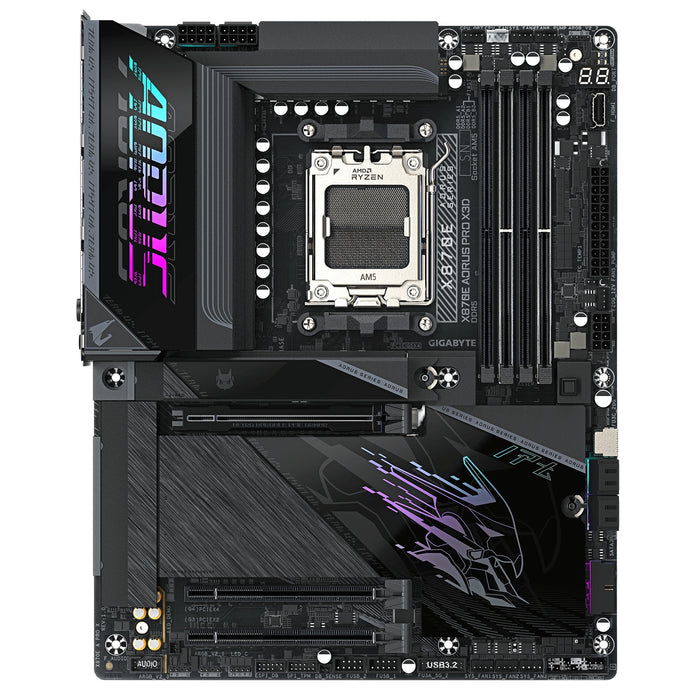

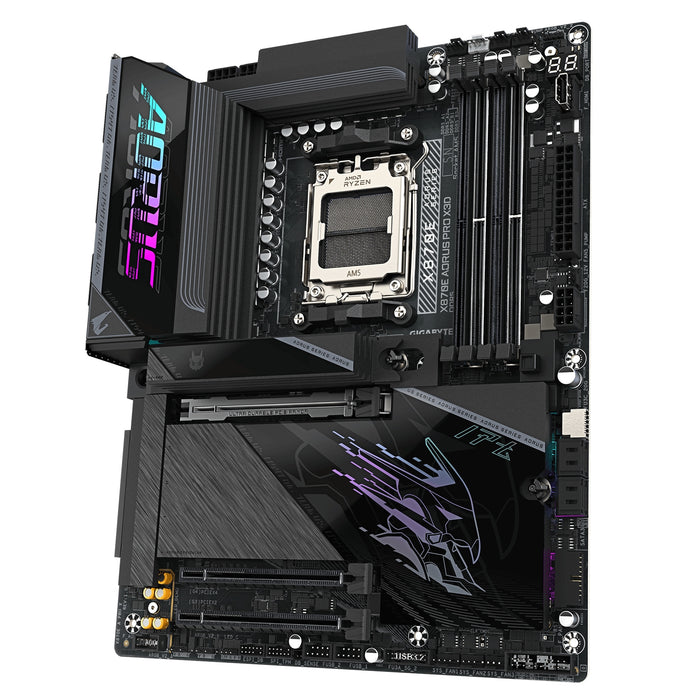

Gigabyte X870E AORUS PRO X3D AM5 ATX Motherboard

PCIe 5.0 | DDR5 9000MT/s | 4x M.2 | 5GbE LAN | Wi-Fi 7 | Dual USB4

The Gigabyte X870E AORUS PRO X3D is a premium ATX motherboard engineered to unleash the full potential of AMD Ryzen X3D processors. Built on the AMD X870E chipset, it combines AI-enhanced performance tuning, extreme DDR5 overclocking support and cutting-edge connectivity for high-end gaming and enthusiast builds.

Designed for serious performance, advanced thermals and next-generation storage, this board provides the foundation for a powerful, future-ready AM5 system.

Key Features & Benefits

X3D Turbo Mode 2.0 – AI-Driven Performance

Optimised specifically for Ryzen X3D processors, X3D Turbo Mode 2.0 intelligently enhances performance using AI-assisted tuning. Extract maximum gaming and compute performance without complex manual configuration.

Supports:

• AMD Ryzen 9000 Series

• AMD Ryzen 8000 Series

• AMD Ryzen 7000 Series

Extreme DDR5 Performance – Up to 9000MT/s (OC)

• 4 x DDR5 DIMM slots

• Dual-channel architecture

• Up to 256GB capacity

• AMD EXPO™ and XMP support

Built for elite memory overclocking, delivering exceptional bandwidth for gaming, content creation and heavy multitasking workloads.

PCIe 5.0 Graphics & Storage

• PCIe 5.0 x16 reinforced slot (10X strength design)

• 2 x PCIe 5.0 x4 M.2 slots (CPU)

• 2 x PCIe 4.0 x4 M.2 slots (Chipset)

• 4 x SATA 6Gb/s

With four M.2 sockets including PCIe 5.0 support, this board is engineered for ultra-fast NVMe SSD performance and future GPU upgrades.

Advanced Thermal Engineering

Performance stability is ensured by:

• Digital twin 18+2+2 phase VRM solution

• VRM Thermal Armour

• Advanced M.2 Thermal Guard & Thermal Guard Ext.

• M.2 EZ-Flex heat dissipation baseplate

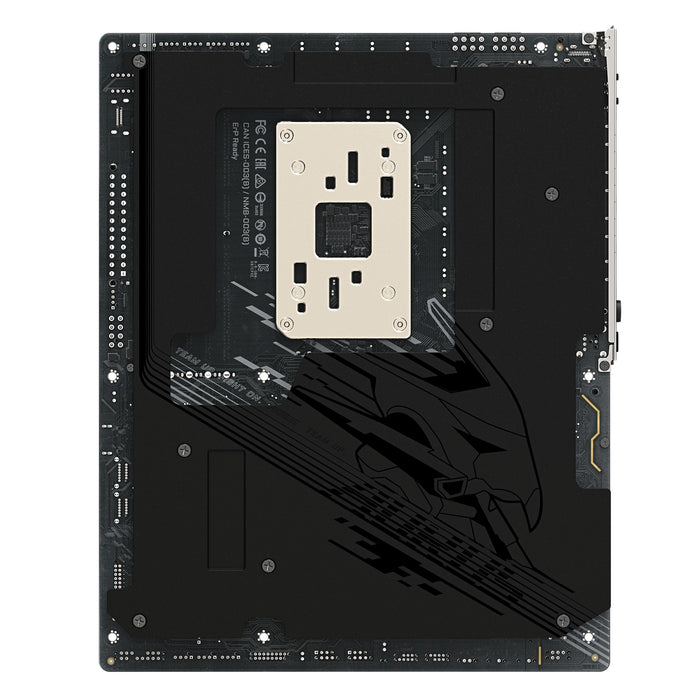

• PCB Thermal Plate (14% improved thermal efficiency)

Designed to maintain lower temperatures under sustained loads and overclocked configurations.

Ultra-Fast Networking

• Realtek 5GbE LAN

• Qualcomm Wi-Fi 7 (802.11be, 320MHz support)

• Bluetooth 5.4

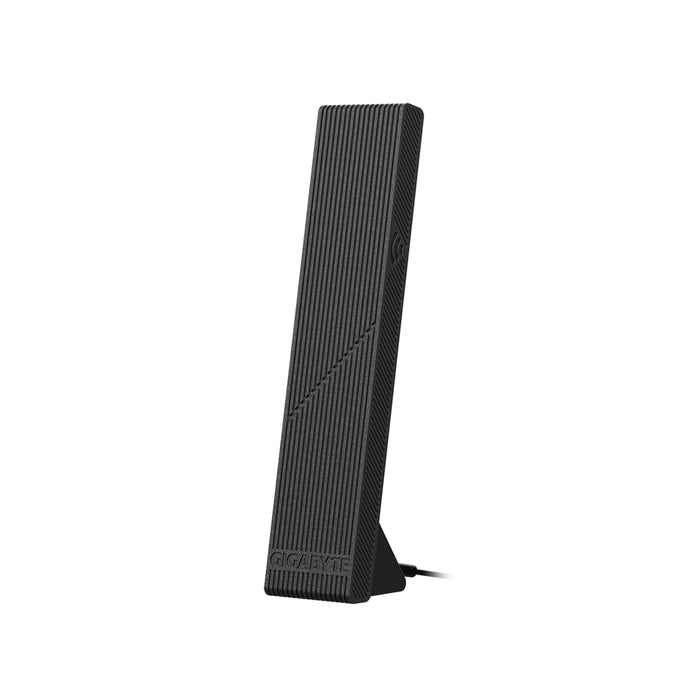

• Directional high-gain antenna

Experience low-latency gaming, rapid downloads and high-bandwidth streaming with next-generation connectivity.

USB4 & Extended Connectivity

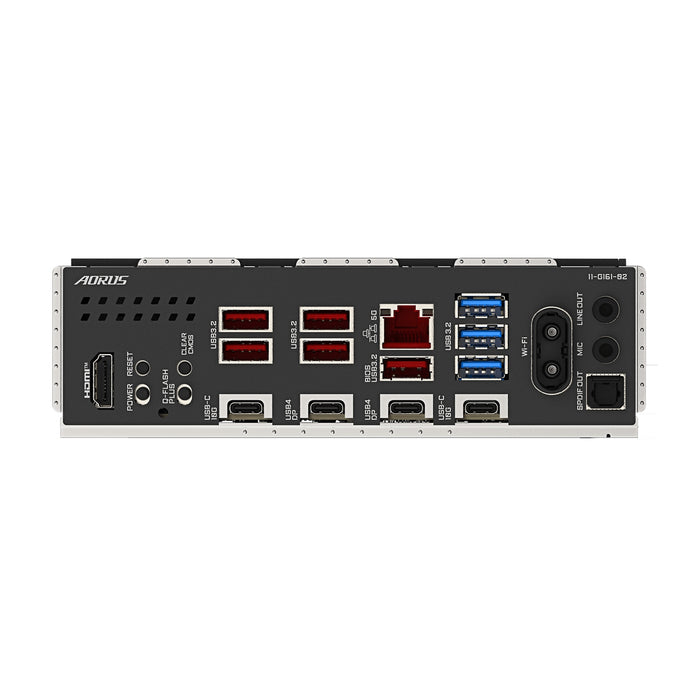

Rear I/O highlights:

• 2 x USB4 Type-C (DisplayPort Alt Mode)

• 2 x USB Type-C (USB 3.2 Gen 2)

• 5 x USB 3.2 Gen 2 Type-A

• HDMI 2.1

• Optical S/PDIF

• Clear CMOS, Q-Flash Plus & reset buttons

Internal USB-C header supports up to 65W fast charging (PD 3.0 / QC 4+), ideal for modern cases and peripherals.

Builder-Friendly Design

• Pre-fitted I/O shield

• M.2 EZ-Latch Click Plus (screwless installation)

• WiFi EZ-Plug antenna system

• Q-Flash & Q-Flash Plus (BIOS update without CPU)

• Multi-theme BIOS with AIO fan control

Engineered to simplify installation, upgrades and system tuning.

Technical Specifications

Chipset

AMD X870E

Socket

AMD AM5

Memory

4 x DDR5 DIMM
Up to 256GB
Supports up to 9000MT/s (OC)

Expansion Slots

1 x PCIe 5.0 x16
1 x PCIe 4.0 x4
1 x PCIe 3.0 x2

Storage

4 x M.2 (2 x PCIe 5.0, 2 x PCIe 4.0)
4 x SATA 6Gb/s
RAID 0/1/5/10 (NVMe)

Networking

5GbE LAN
Wi-Fi 7
Bluetooth 5.4

Audio

Realtek ALC1220
7.1 Channel HD Audio
Optical S/PDIF Out

Form Factor

ATX (30.5cm x 24.4cm)

Operating System Support

Windows 11 64-bit

Why Choose the X870E AORUS PRO X3D?

The X870E AORUS PRO X3D is purpose-built for enthusiasts who demand uncompromising performance from AMD’s latest X3D processors. With PCIe 5.0 graphics and storage, extreme DDR5 support, AI-driven optimisation and next-generation networking, it offers a powerful and future-ready platform for high-end gaming and professional workloads.

If you are building a premium AM5 system with long-term upgrade potential, robust power delivery and advanced thermal design, this motherboard delivers the performance headroom and connectivity modern systems require.
