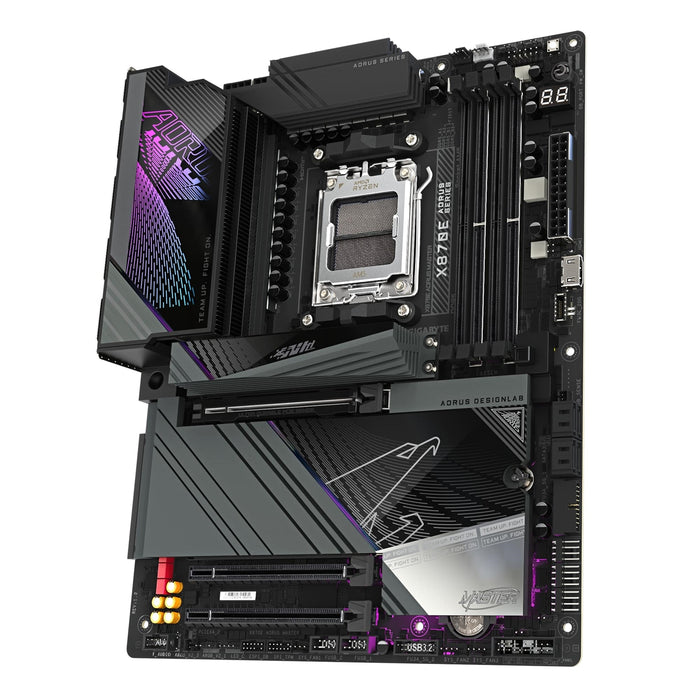

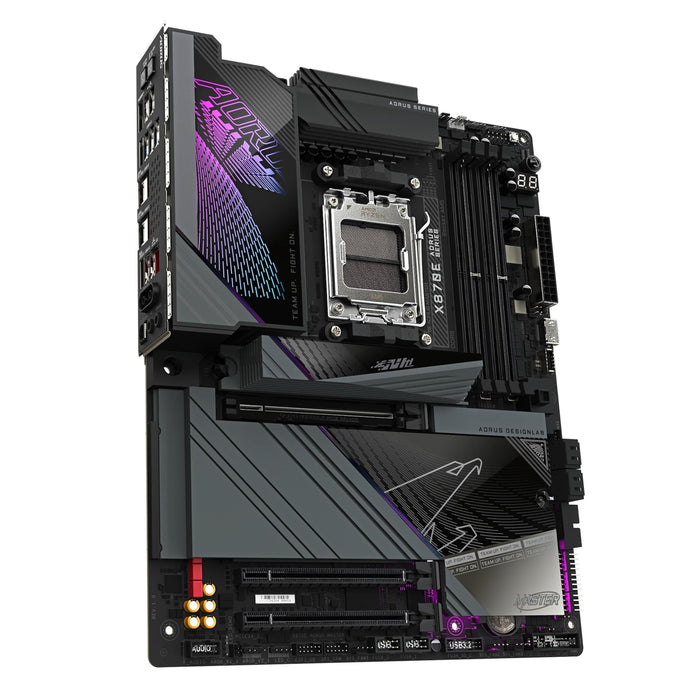

Gigabyte X870E AORUS MASTER ATX Motherboard – Ultimate Gaming & Creator Performance
The Gigabyte X870E AORUS MASTER is an ultra-high-performance ATX motherboard designed for gaming enthusiasts and content creators who demand extreme speed, stability, and cutting-edge features. Supporting AMD Ryzen 9000/8000/7000 Series processors, DDR5 memory, PCIe 5.0 storage, USB4, and Wi-Fi 7, it delivers uncompromised power and connectivity for the most demanding builds.
Key Features & Benefits
-
AMD AM5 Socket Support: Compatible with Ryzen 9000, 8000, and 7000 Series processors for next-generation processing power.
-
Digital Twin 16+2+2 Phase VRM: Ensures stable, high-current delivery for ultimate overclocking.
-
DDR5 Memory Support: 4 DIMM slots supporting up to 256GB, DDR5 OC up to 8600 MT/s, with AMD EXPO/XMP profiles for maximum performance.
-
Advanced Thermal Solutions: DDR Wind Blade, VRM Thermal Armor, M.2 Thermal Guard XL, and I/O zone AORUS lighting maintain cool and stable performance.
-
Ultra-Fast Storage: 4x M.2 slots (3x PCIe 5.0 x4) and 4x SATA 6Gb/s connectors with RAID 0/1/5/10 support for lightning-fast read/write speeds.
-
PCIe 5.0 & PCIe Armor: Supports next-gen graphics cards with screwless, reinforced PCIe x16 slot.
-
Next-Gen Connectivity: Dual USB4 Type-C ports, 3x USB-C, dual HDMI, 5GbE LAN, Wi-Fi 7 with ultra-high-gain directional antennas, and Bluetooth 5.3 for ultra-fast networking.
-
Premium Audio: Realtek ALC1220 HD Audio with WIMA capacitors and DTS:X Ultra for immersive sound experience.
-
EZ-Latch & Screwless Design: Tool-free installation of PCIe and M.2 slots, simplifying system assembly.
-
Smart UI & Software: Multi-theme BIOS, AIO fan control, Q-Flash auto scan, power monitoring in HWinfo, GIGABYTE Control Center, and Smart Backup for full system control.
-
Friendly Assembly: Sensor Panel Link and Wi-Fi EZ-Plug make setup smooth and hassle-free.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | Gigabyte X870E AORUS MASTER |
| Form Factor | ATX, 30.5 x 24.4 cm |
| CPU Support | AMD AM5 Socket: Ryzen 9000/8000/7000 Series |
| Chipset | AMD X870E |
| Power Design | Digital Twin 16+2+2 Phase VRM |
| Memory | 4x DDR5 DIMM, up to 256GB, dual channel, ECC/non-ECC, DDR5 OC up to 8600 MT/s, AMD EXPO/XMP support |
| PCIe Slots | 1x PCIe 5.0 x16 (10X reinforced), 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 |
| Storage | 4x M.2 PCIe 5.0/4.0 x4, 4x SATA 6Gb/s, RAID 0/1/5/10 support |
| USB Ports | 2x USB4 Type-C, 3x USB-C, 4x USB 3.2 Gen2 Type-A (red), 4x USB 3.2 Gen1, 6x USB 2.0/1.1 |
| Video Outputs | 2x HDMI ports, 2x USB4 Type-C with DisplayPort, max 4K/240Hz |
| Audio | Realtek ALC1220 HD Audio, DTS:X Ultra, WIMA Capacitors, 2/4/5.1/7.1-channel, S/PDIF Out |
| Networking | Realtek 5GbE LAN, Qualcomm Wi-Fi 7 802.11ax/be, Bluetooth 5.3 |
| Internal Connectors | 24-pin ATX, 2x 8-pin 12V, CPU/system fan headers, 4x ARGB Gen2, 1x RGB, 4x M.2 slots, 4x SATA, TPM, HDMI, power/reset/Clear CMOS buttons, voltage/temp monitoring |

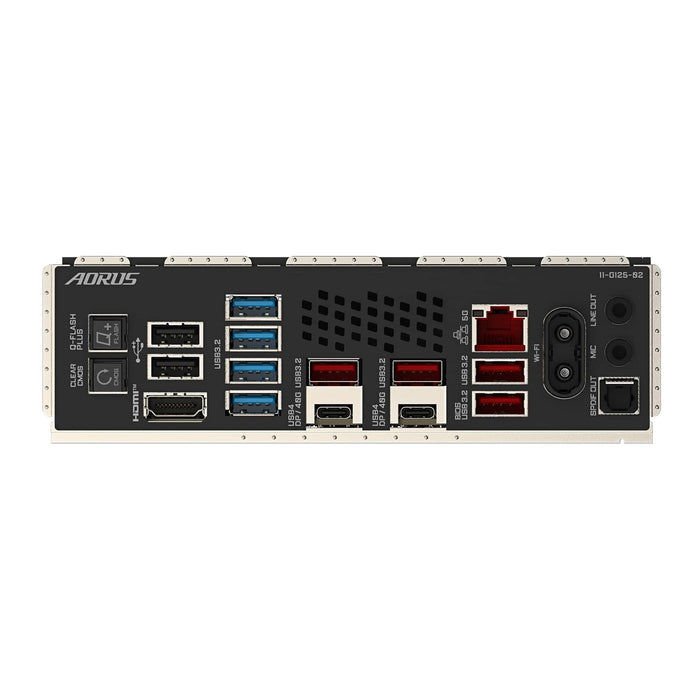

| Back Panel | Q-Flash Plus, Clear CMOS, 2x USB4 Type-C, 1x HDMI, 4x USB 3.2 Gen2 Type-A, 4x USB 3.2 Gen1, 2x USB 2.0, 1x RJ-45, 2x antennas, 2x audio jacks, 1x optical S/PDIF |
| BIOS | 256 Mbit AMI UEFI BIOS, Q-Flash/Q-Flash Plus support |
| OS Support | Windows 11 64-bit |
| Unique Features | GIGABYTE Control Center, Smart Backup, EZ-Latch, Sensor Panel Link, Power Monitoring, Multi-Theme BIOS, Fan Control |
| Bundled Software | Norton Internet Security (OEM), LAN bandwidth management |
Why Choose the Gigabyte X870E AORUS MASTER?
The X870E AORUS MASTER is engineered for extreme performance, robust overclocking, ultra-fast connectivity, and premium audio, making it perfect for professional gaming, high-end content creation, and future-proof PC builds. Its ATX form factor packs next-gen features including DDR5 8600 memory support, PCIe 5.0 graphics, USB4, and Wi-Fi 7, ensuring your system stays cutting-edge for years to come.
