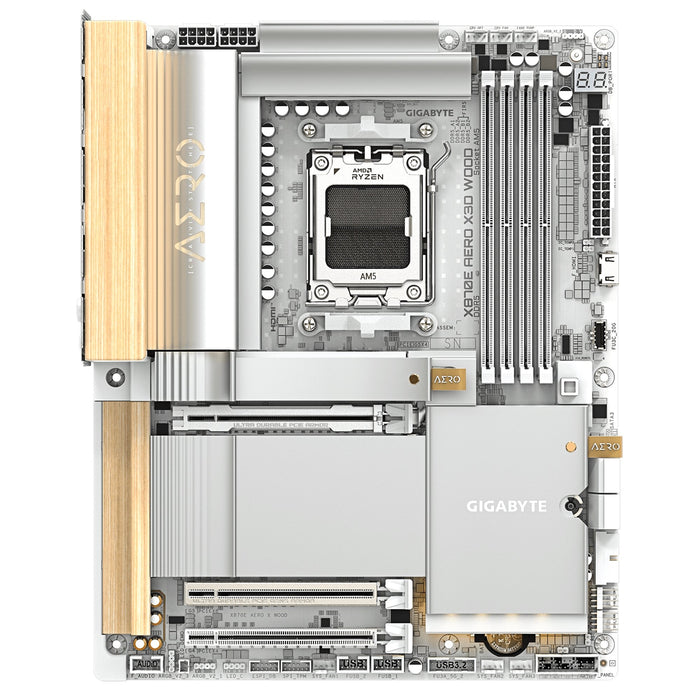

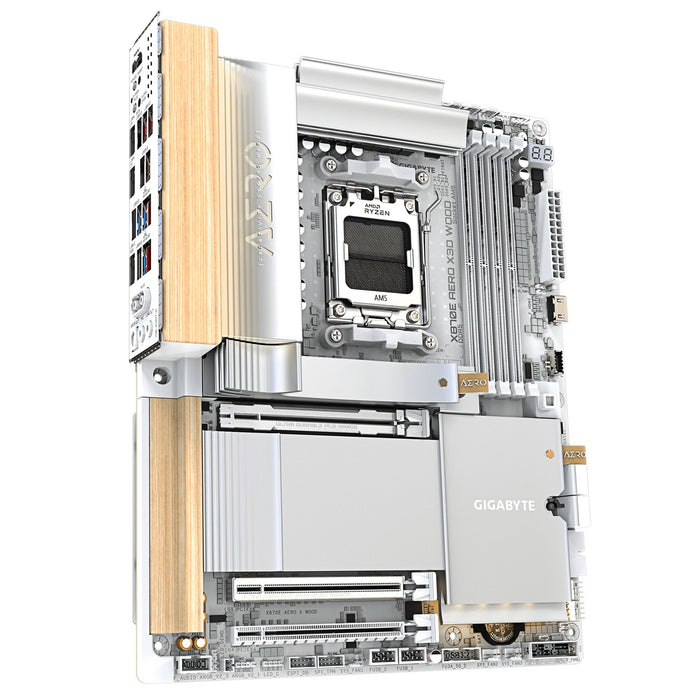

Gigabyte X870E AERO X3D WOOD AM5 ATX Motherboard – WiFi 7, Dual 5GbE, USB4

The Gigabyte X870E AERO X3D WOOD is a premium ATX motherboard designed for high-performance AMD Ryzen systems. Built on the AMD X870E chipset and supporting Ryzen 9000, 8000 and 7000 Series processors, it delivers exceptional power delivery, cutting-edge connectivity and advanced thermal management.

Designed with a distinctive natural wood-inspired aesthetic, this motherboard blends elegant design with professional-grade performance. It features DDR5 memory support up to 9000MT/s (OC), PCIe 5.0 expansion, four M.2 storage slots and ultra-fast networking including dual 5GbE LAN and Wi-Fi 7.

With advanced features such as X3D Turbo Mode 2.0, EZ-Latch installation mechanisms and USB4 connectivity, the X870E AERO X3D WOOD provides an ideal platform for creators, enthusiasts and high-end workstation builds.

Key Features & Benefits

✔ Supports AMD Ryzen 9000, 8000 and 7000 Series Processors
Built for the AMD AM5 platform, providing compatibility with the latest Ryzen CPUs for high-performance desktop systems.

✔ Advanced 16+2+2 Phase Digital VRM Power Design
Robust power delivery ensures stable performance for demanding workloads, overclocking and high-core-count processors.

✔ DDR5 Memory Support up to 9000MT/s (OC)
Four DDR5 DIMM slots support up to 256GB of system memory with AMD EXPO and XMP profiles for high-speed memory performance.

✔ PCIe 5.0 Graphics Support
Reinforced PCIe UD Slot X provides up to 10x strength for modern high-performance graphics cards.

✔ Ultra-Fast Storage with Four M.2 Slots
Supports up to four NVMe SSDs including PCIe 5.0 x4 support for next-generation high-speed storage.

✔ Dual 5GbE LAN and Wi-Fi 7 Networking
High-speed networking capabilities provide exceptional wired and wireless connectivity for modern high-bandwidth environments.

✔ USB4 Connectivity with Dual USB-C Ports
Two USB4 Type-C ports support high-speed data transfer, DisplayPort video output and advanced peripheral connectivity.

✔ Advanced Thermal Design
VRM Thermal Armour, M.2 Thermal Guard and PCB thermal plate technology ensure improved heat dissipation and system stability.

✔ X3D Turbo Mode 2.0
AI-powered optimisation designed to unlock maximum performance from Ryzen X3D processors.

✔ EZ-Latch and EZ-Install Design
Tool-free installation features simplify M.2 SSD installation and graphics card removal for easier system building.

Technical Specifications

Model
Gigabyte X870E AERO X3D WOOD

Chipset
AMD X870E

CPU Support
AMD Socket AM5
Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors

Memory

4 × DDR5 DIMM Slots
Dual Channel Memory Architecture
Maximum Capacity: 256GB

Supported Speeds:
DDR5 9000 / 8800 / 8600 / 8400 / 8000 / 7800 / 7600 / 7200 / 7000 / 6800 / 6600 / 6400 / 6200 / 6000 / 5600 / 5200 / 4800 / 4400 MT/s (OC dependent)

Supports AMD EXPO and XMP Memory Profiles

Graphics Output

2 × USB4 Type-C Ports (DisplayPort Video Output Support)
Maximum Resolution: 3840 × 2160 @ 240Hz

1 × HDMI 2.1 Port
Maximum Resolution: 4096 × 2160 @ 60Hz

1 × Front HDMI Header (1080p support)

Graphics output requires processors with integrated Radeon graphics.

Expansion Slots

1 × PCIe 5.0 x16 Slot (CPU)
1 × PCIe 5.0 x8 Slot (CPU)
1 × PCIe 4.0 x4 Slot (Chipset)

Reinforced PCIe UD Slot X design for enhanced GPU support.

Storage

4 × M.2 NVMe Slots

• 2 × PCIe 5.0 x4 (CPU)
• 2 × PCIe 4.0 x4 (Chipset)

Supports M.2 22110 / 2280 / 2580 SSD formats

4 × SATA 6Gb/s Ports

RAID Support:
RAID 0, 1, 5, 10 for NVMe
RAID 0, 1, 10 for SATA

Networking

2 × Realtek 5GbE LAN Ports

Wireless Connectivity
Wi-Fi 7 (802.11be)
Tri-band support (2.4GHz / 5GHz / 6GHz)

Bluetooth 5.4

Audio

Realtek ALC1220 High Definition Audio Codec
2 / 4 / 5.1 / 7.1 Channel Audio
Optical S/PDIF Output

USB Connectivity

Rear Panel

2 × USB4 Type-C
1 × USB 3.2 Gen2x2 Type-C
5 × USB 3.2 Gen2 Type-A
3 × USB 3.2 Gen1 Type-A

Internal Headers

1 × USB-C Header (USB 3.2 Gen2x2)
2 × USB 3.2 Gen1 Headers
2 × USB 2.0 Headers

Internal Connectors

1 × 24-pin ATX Power Connector
2 × 8-pin CPU Power Connectors
1 × CPU Fan Header
1 × CPU Pump Header
4 × System Fan Headers
2 × System Pump Headers
3 × Addressable RGB Gen2 Headers
1 × RGB LED Header
4 × M.2 Slots
4 × SATA Ports
1 × Front Panel Header
1 × Front Panel Audio Header
1 × TPM Header
2 × Temperature Sensor Headers

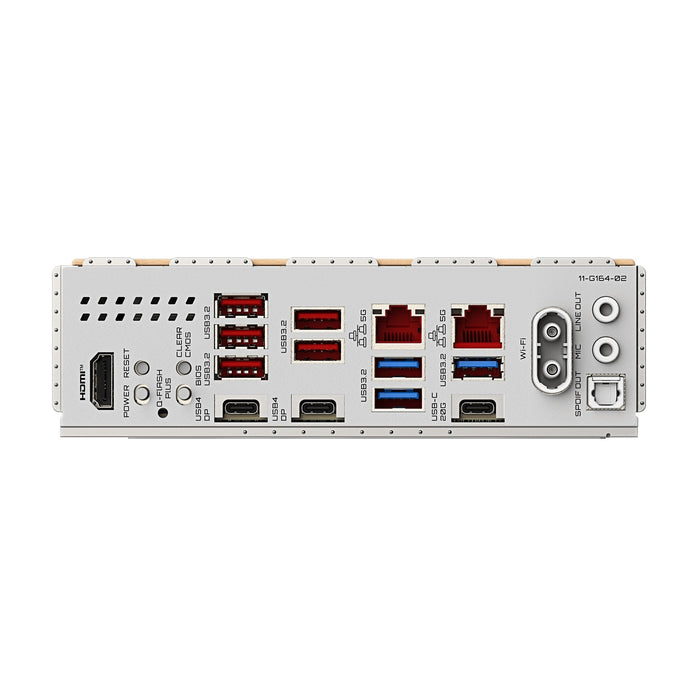

Rear I/O Ports

1 × Q-Flash Plus Button
1 × Clear CMOS Button
1 × Power Button
1 × Reset Button
1 × HDMI
2 × USB4 Type-C
1 × USB-C (USB 3.2 Gen2x2)
5 × USB 3.2 Gen2 Type-A
3 × USB 3.2 Gen1 Type-A
2 × RJ-45 5GbE LAN Ports
2 × Wi-Fi Antenna Connectors
2 × Audio Jacks
1 × Optical S/PDIF Output

Physical Specifications

Form Factor: ATX
Dimensions: 30.5 cm × 24.4 cm

Operating System Support

Windows 11 64-bit

Why Choose the Gigabyte X870E AERO X3D WOOD

The Gigabyte X870E AERO X3D WOOD combines premium aesthetics, powerful AM5 performance and cutting-edge connectivity into a high-end motherboard platform.

With PCIe 5.0 expansion, DDR5 memory support, Wi-Fi 7 networking and advanced thermal design, it provides an ideal foundation for enthusiast gaming PCs, content creation systems and professional workstation builds that demand reliability and performance.
